Neons inside a XR6T



Page 1 of 1 [ 12 posts ]


 Post subject: Neons inside a XR6T
Posted: Sat Jul 26, 2008 9:31 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

Well after a few drinks my brother in-law sez he wants neons in his footwells, after me showing him some of the classy jobs done from here.

So all day today i tear apart his nice blue BA XR6T just so no wires are showing or will be pinched, 2 x blue 20cm ccfl's in the footwells (showed up nicely) and 2 x green 15cm ccfl's under driver and passenger seat.

The green ones were a pain in the a*** to mount as normal seating means flex and limited positions to mount, they do show up slightly but not what i was hoping.

He's happy, so i am too (i guess)

you can just see a little of the green in this shot, thank fcuk for 30 second exposure.


Isn't quite as vibrant to the naked eye as in these shots, more sort of looks like it's a standard ford feature, which is what i aimed for.



_________________


Top
 Profile


Posted: Sun Jul 27, 2008 3:04 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 552

Joined: 20th Nov 2007

Gallery: 4 images

Ride: EL Fairmont

Location: Inner suburbs, Melbourne
VIC, Australia

looks sick good job man.. thats one thing im definatly been planning on doing in my car.. nice simple mod that makes being in the car more fun i reckon...



_________________

1997 EL Fairmont [EHELL] Mods: 2.5" straight through Redback Mandrel Bent Exhaust from cat back, BA XR8 18" Replica's, LPG conversion, Kingspring Superlows - front and rear, Monroe GT lowered shocks all round, Clear side repetors, FPV front floor mats..

Top
 Profile


Posted: Sun Jul 27, 2008 3:16 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

What a fantastic job-well done. Are they connected to the interior light circuit, or wired independently?



_________________

The older I get the better I was!

Top
 Profile


Posted: Sun Jul 27, 2008 3:17 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 552

Joined: 20th Nov 2007

Gallery: 4 images

Ride: EL Fairmont

Location: Inner suburbs, Melbourne
VIC, Australia

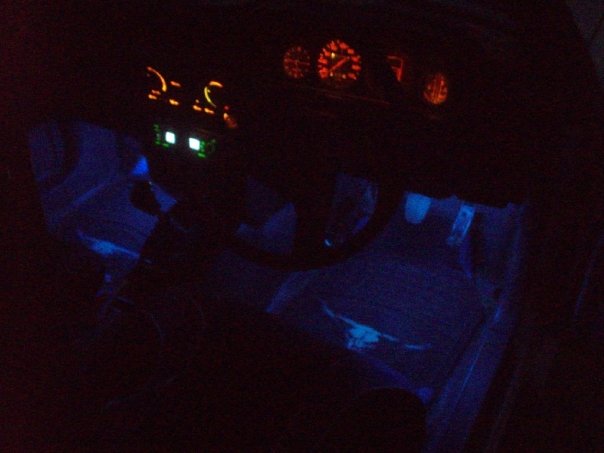

this is a piccy of the neons in an old mates ute





Attachments:
n594545356_3118743_7740.jpg [ 32.11 KiB | Viewed 1193 times ]



_________________

1997 EL Fairmont [EHELL] Mods: 2.5" straight through Redback Mandrel Bent Exhaust from cat back, BA XR8 18" Replica's, LPG conversion, Kingspring Superlows - front and rear, Monroe GT lowered shocks all round, Clear side repetors, FPV front floor mats..

Top
 Profile


Posted: Sun Jul 27, 2008 3:50 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

kwaussiekid wrote:
What a fantastic job-well done. Are they connected to the interior light circuit, or wired independently?


Yeah i have connected them to the Parkers circuit, i also at a later date want to rig them into the left/right side courtesy lights, so that when either side doors are opened that side lights up.



_________________


Top
 Profile


Posted: Sun Jul 27, 2008 4:35 pm
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

Very clean job, mate. Good work! I got mine done back in December last year also, they look very nice at night time and add a real touch of class to your car. Funny thing is, it's probably the cheapest mod you can do yet the most visually impressive.

One question though, they look very bright in your first photos. Is that simply due to the long exposure time? I've always preferred footwell illumination to be a soft glow as opposed to a bright light. Just curious.
Top
 Profile


Posted: Sun Jul 27, 2008 5:00 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

It is a very soft glow, it's just the camera wouldn't let me take any shot (other than in auto) with less than 30 second exposure, we ran out of time to get any more shots as it took me the best part of all day to do.



_________________


Top
 Profile


Posted: Mon Jul 28, 2008 1:33 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

Got a pm just now asking how i did this job, and i thought hey i may aswell post it up in case anyone else wants to tackle this job.

Time taken (including beers) about 6 hours, probably a lot less if you know your own car and you don't take apart the centre console then realising wires "tuck in".

ok under the seat there is only one spot, and that's cable tied to the power seat wires. It's the only spot that won't flex when someone is in the seat.

I then spliced the under seat lights into the under dash (left and right seperately) and ran the wires from the left under the dash itself along the floor and below the steering colum but above the big black plug and cable tied into position, and for the drivers side i cable tied the light inbetween the steering colum and attached it to that big black plug so it's not visible to the eye and also when the steering colum is adjusted the light moves with it.

I then found a nice good earth in that big black plug (i think it's the biggest black wire closest to the seat) and then in the fuse box i found the parkers circuit which i think was a blue 10amp 4 down from the steering colum and closest to the white relays.


Hope that helped.



_________________


Top
 Profile


Posted: Mon Jul 28, 2008 10:00 am
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

There's a Tech Doco on this already, complete with pictures and all.

http://www.fordmods.com/forums/Installi ... F-d91.html
Top
 Profile


Posted: Mon Jul 28, 2008 11:32 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

Well don't that just smack the naughty kid with a wet ruler.

Pictures too, man i shoulda checked here first lol, cheers



_________________


Top
 Profile


Posted: Mon Jul 28, 2008 5:05 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

But it is for BA-BF, and not E series as we are after.



_________________

The older I get the better I was!

Top
 Profile


Posted: Tue Jul 29, 2008 10:22 am
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

OK, that's in the tech doco section also! (Adding floor lamps to an E-series falcon)

http://www.fordmods.com/forums/Quick-Mo ... s-d24.html
