 Post subject: Neons into 98 Festiva
Posted: Wed Sep 27, 2006 3:54 pm
Technical Contributor
Offline

Age: 37

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Hey friend of mine wants to install neons into her footwells. Question is where would I wire them to?
Top
 Profile


Posted: Wed Sep 27, 2006 4:00 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 2550

Joined: 28th Jun 2005

Gallery: 13 images

Ride: EF 5 Speed, XH Uterus :P

Location: Hobart
TAS, Australia

i'll need to find this wire too - have an alarm to put into my sisters purple people eater!

i've had a quick look and i can only see the internal roof light as the option.



_________________

Maloo - Holden's word for ugly.

Top
 Profile


Posted: Wed Sep 27, 2006 4:05 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 2754

Joined: 14th Apr 2005

Ride: fairmont

Location: mackay
QLD, Australia

in the ex's festiva we used the ciggie lighter as a source, pain in the a*** too, i hate pulling them cars apart



_________________

Now i have a EF XR8 5spd.........mmmmmm 5L

Top
 Profile


Posted: Wed Sep 27, 2006 4:08 pm
Parts Gopher
Offline

Posts: 59

Joined: 14th Feb 2006

Location: sydney
NSW, Australia

ive done them in my footwells

i just wired the neons straight to hte battery but i also made them work ony when hte doors come open


if u want a switch just wire htem to the battery and put hte swtich where u want it.

mine only work when a door is open instead of all the time
Top
 Profile


Posted: Wed Sep 27, 2006 4:16 pm
Smokin em up
Offline

Age: 33

Posts: 288

Joined: 30th Aug 2006

Ride: BA XR6 MKII

Location: Perth
WA, Australia

well i have a 95 falcon, and i decided a good way to stop people from smoking is to unplug the cig lighter and use the 12v to install 3 green computer neons. I then filled the hole where the cig ligther is with a round button switch



"alrite well for some reason i cant get my pics to load, so just visit http://www.infojared.co.nr/carjared.html for pics.."

Cheers

Last edited by fordjared on Thu Sep 28, 2006 12:46 am, edited 9 times in total.

Top
 Profile


Posted: Wed Sep 27, 2006 4:25 pm
Technical Contributor
Offline

Age: 37

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Ok I only want them to come on when the doors are open. I jsut did 4 into my Coupe but I used my door light. The roof light seems like the only option (quick look) but those wires must lead somewhere; the question is where?
Top
 Profile


Posted: Wed Sep 27, 2006 4:30 pm
Parts Gopher
Offline

Posts: 59

Joined: 14th Feb 2006

Location: sydney
NSW, Australia

na u dont need to use the interior lights

all u do is ground hte neons on the thing that turns the lights on when hte door is open (little stick that pops out when door is open)..

you simply ground hte neons there and when u open the door, taa daa it completes the circuit and the neons come on
Top
 Profile


Posted: Wed Sep 27, 2006 5:47 pm
Smokin em up
Offline

Age: 33

Posts: 288

Joined: 30th Aug 2006

Ride: BA XR6 MKII

Location: Perth
WA, Australia

I thought about doing that, but im not sure which line to connect to it.. if someone could please do a diagram in paint and post it on here that would be very good!!

Thanks
Top
 Profile


Posted: Thu Sep 28, 2006 1:42 am
Technical Contributor
Offline

Age: 37

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Patty wrote:
na u dont need to use the interior lights

all u do is ground hte neons on the thing that turns the lights on when hte door is open (little stick that pops out when door is open)..

you simply ground hte neons there and when u open the door, taa daa it completes the circuit and the neons come on


The little black button thing?

Nope doesnt work, tried that today. Unless I made a mistake but Im pretty sure I didnt. Where does the positive wire run to?
Top
 Profile


Posted: Thu Sep 28, 2006 8:47 am
Parts Gopher
Offline

Posts: 59

Joined: 14th Feb 2006

Location: sydney
NSW, Australia

k yeha

you run your positive straight to hte battery, so just extend the wire and run a positive and negative out to ya battery.

then your little black spring button, take it off and u have just like a wire there, ground your neons there. (connect all the neons in paralell and ground em all together on the black button)

i have 4 like 1 in each of my footwells and i made it parallel and grounded them all on my drivers side black button.

If i have the chance ill get you some pics

it took me while to work out how to get em on with the doors and a tried doing it off lights and all that other jazz but honestly this way is easy once u work out how to wire it
Top
 Profile


Posted: Thu Sep 28, 2006 10:11 am
Parts Gopher
Offline

Posts: 59

Joined: 14th Feb 2006

Location: sydney
NSW, Australia

ive got some pics and heres the wiring diagram
ok
the neons have 2 wires out of them one is positive and one is ground

run one wire from the positive terminal on the battery to where u want it, then connect neons onto it (as per diagram). Then have another piece of wire that is grounded (on the black button), connect the neon ground wires to the ground wire parralel to each other (as per diagram).

any other questions or if u dont understand feel free to ask

thanks





Attachments:
File comment: the diagram
wiring.JPG [ 9.72 KiB | Viewed 841 times ]

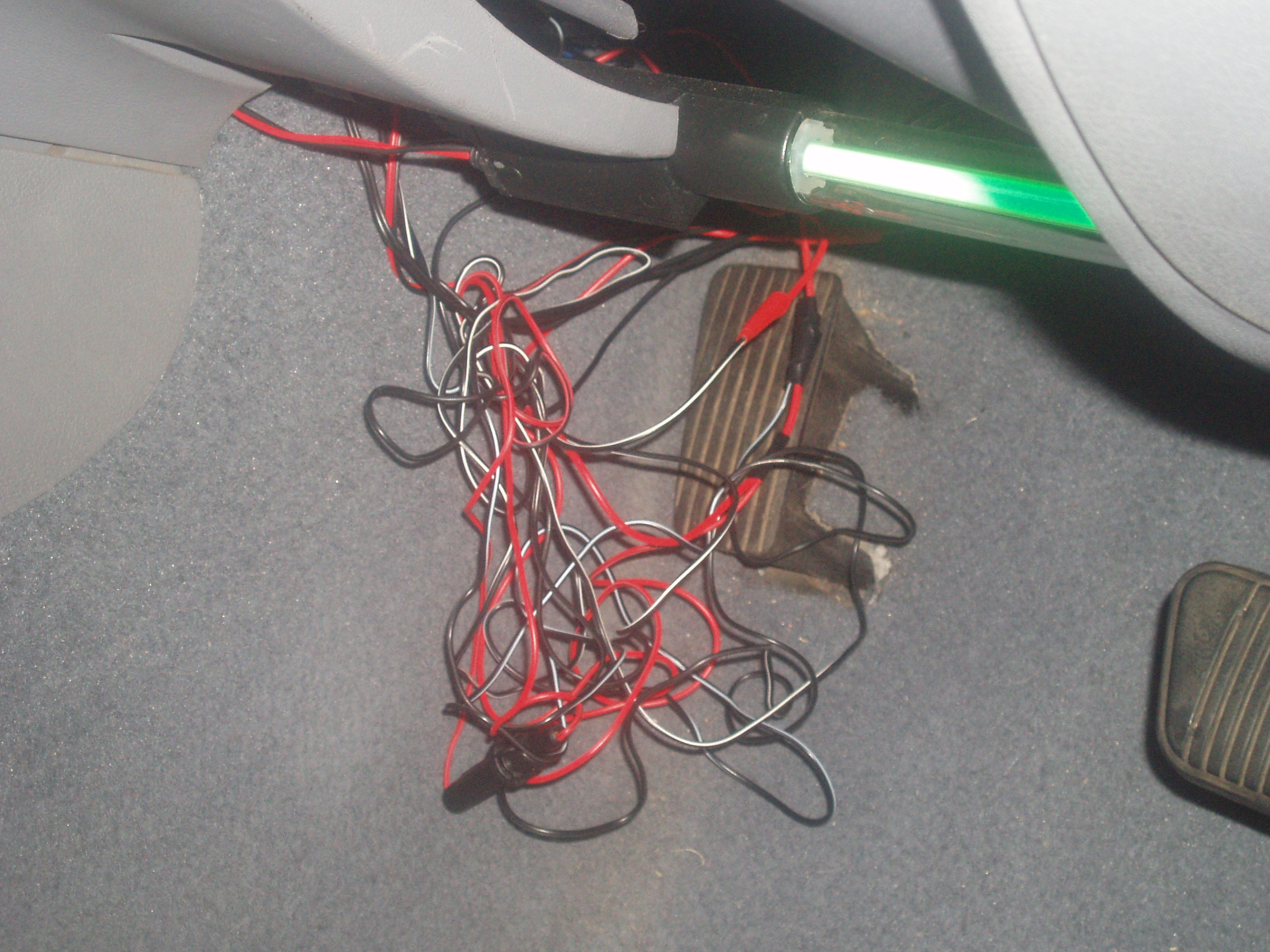

P1010023.JPG [ 872.27 KiB | Viewed 131 times ]

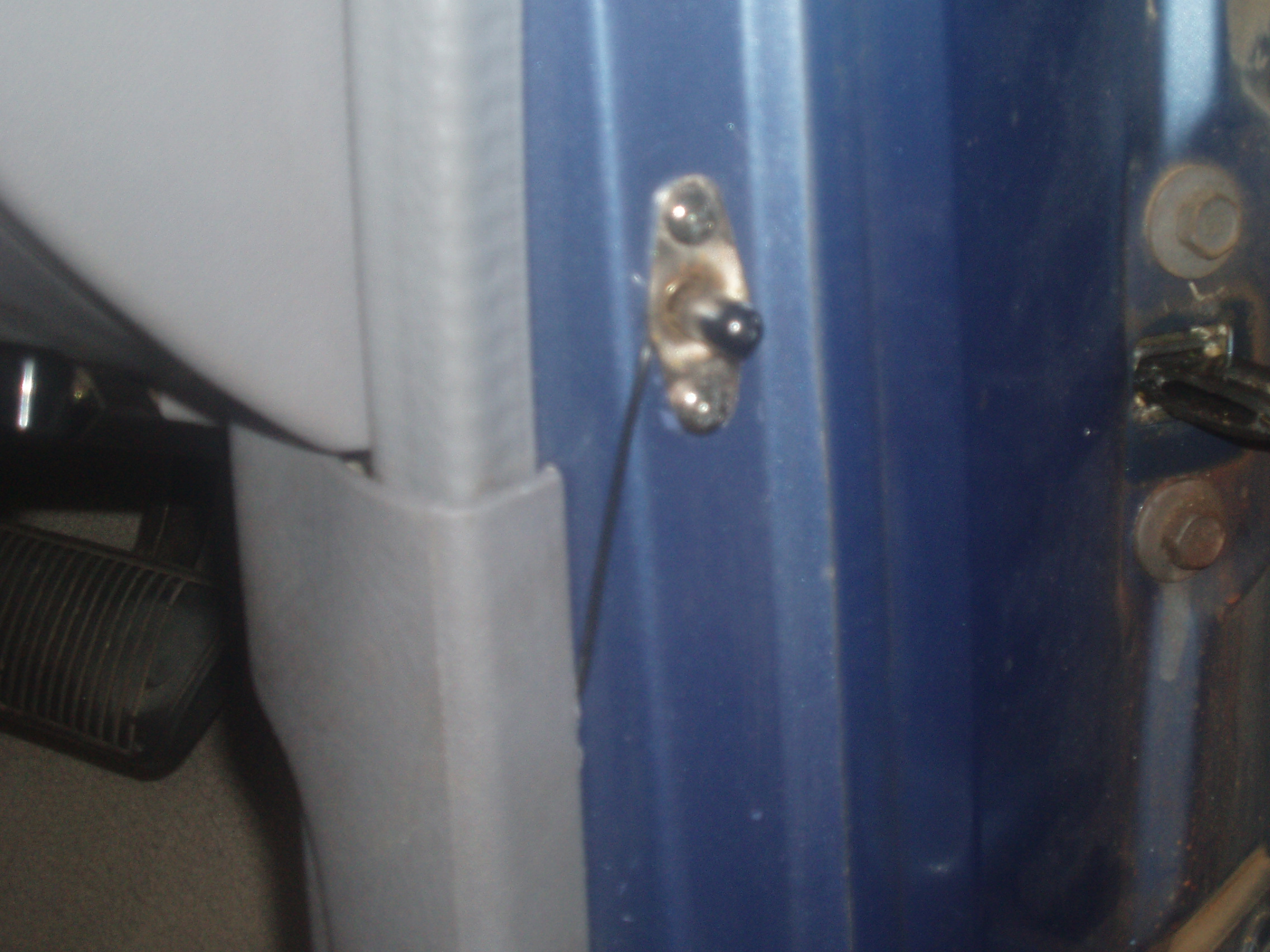

File comment: the black button thing
P1010021.JPG [ 904.57 KiB | Viewed 134 times ]

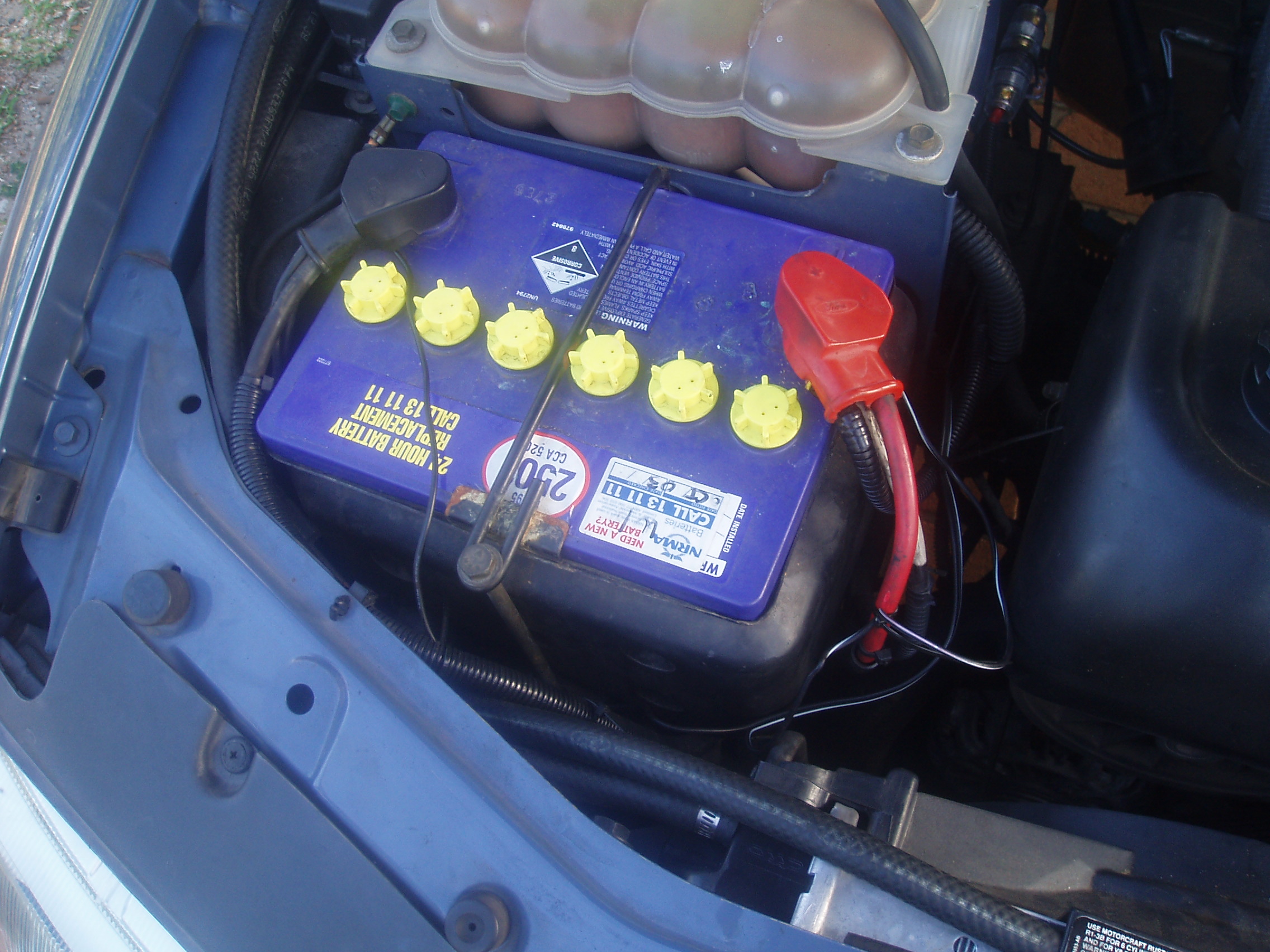

File comment: connected to battery
P1010024.JPG [ 850.67 KiB | Viewed 131 times ]
Top
 Profile


Posted: Thu Sep 28, 2006 10:12 am
Technical Contributor
Offline

Age: 37

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

So positive wire to the battery, negative wire tapping into the wire behind the door sensor?
Top
 Profile


Posted: Thu Sep 28, 2006 10:16 am
Parts Gopher
Offline

Posts: 59

Joined: 14th Feb 2006

Location: sydney
NSW, Australia

yeah

and then u just connect all the positive wires of the neons to that power wire from the battery and then all the ground wires on the neons to the ground wire from that button
Top
 Profile


Posted: Thu Sep 28, 2006 11:22 am
Stock as a Rock
Offline
User avatar

Age: 35

Posts: 162

Joined: 19th Sep 2006

Gallery: 8 images

Ride: EF xr6 5spd

Location: Barossa
SA, Australia

I have green interior lights also. Except I have just got green rubber caps on my existing interior curtisy lights. It looks sweet.



_________________

-1994 EF XR6 + Factory 5speed = Fun :)

Top
 Profile


Posted: Thu Sep 28, 2006 11:23 am
Parts Gopher
Offline

Posts: 59

Joined: 14th Feb 2006

Location: sydney
NSW, Australia

yeah i wanna get some of those also...

for the interior lights should look good
