 Post subject: power window Center Console?
Posted: Sat Dec 01, 2007 4:55 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

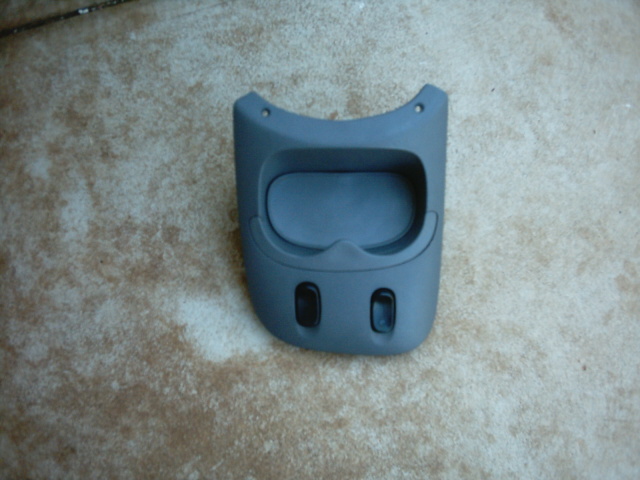

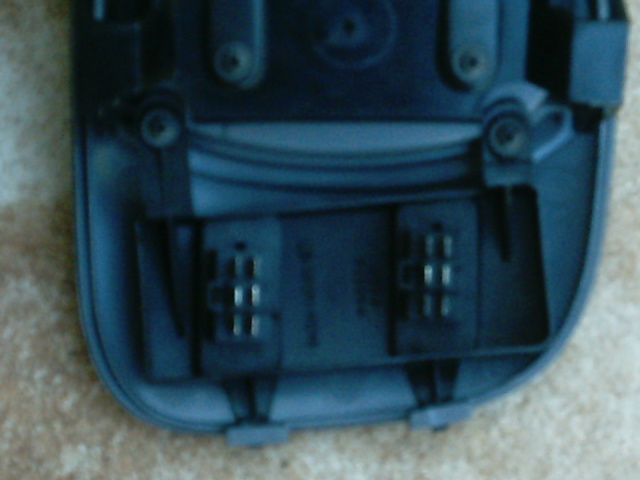

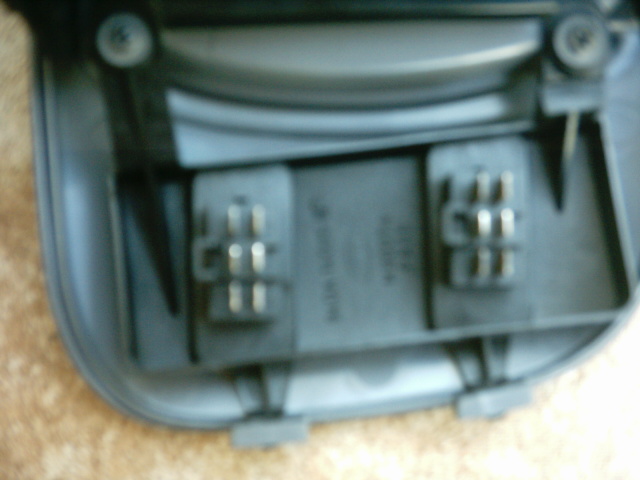

i just got a Center Console to do a front power window conversion and it doesn't look like the one on the tech doco. see pics.

have i been ripped off or can i still use it?





Attachments:
DSCI0013.JPG [ 89.31 KiB | Viewed 56 times ]
DSCI0012.JPG [ 88.97 KiB | Viewed 62 times ]
DSCI0010.JPG [ 109.2 KiB | Viewed 49 times ]



_________________

EF2 wagon stockstandard with plenty of leaks and other problems

Top
 Profile


Posted: Sat Dec 01, 2007 5:45 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

hey maybe work out with a volt meter or something which is up down etc auto up and s**t



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sat Dec 01, 2007 6:01 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Thats only a Front console.

All you have to do with this is Feed 12v pos and Neg (with 10amp cable) to the switches.

and run 2 pairs of 10amp wires to the front doors.

Should only have a total of 6 wires (and an inline fuse).

These switches are toggle and alternate internally.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sat Dec 01, 2007 6:13 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

thanks Krytox

atleast i can use it. could you do a electricl pic as i'm not sure what pins to connect the + and earths to. thanksfor the replys



_________________

EF2 wagon stockstandard with plenty of leaks and other problems

Top
 Profile


Posted: Sat Dec 01, 2007 6:48 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

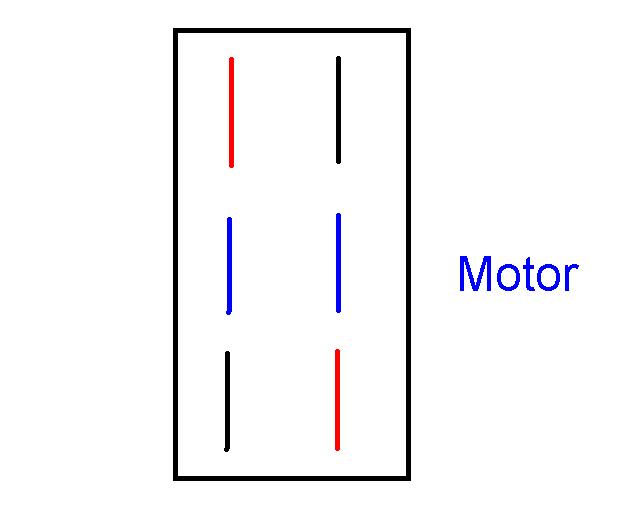

Heres a basic setup.
Note Red and Black.. self explanatory.

Connect the red and blacks together and your blues are outputs.

Use a 10 breaker/fuse prior to switches and you'll prolly never have an issue.

Wiring this way ensures the motor always has Negative contact
and switched Positive. So you can actually add a secondary switch if you like.



sorry cant change it. BMP is not allowed





Attachments:
Simple Window Switch.JPG
Simple Window Switch.JPG [ 15.7 KiB | Viewed 54 times ]



_________________

Carefree, we may not be number one, but we're up there.

Last edited by Krytox on Sat Dec 01, 2007 7:45 pm, edited 2 times in total.

Top
 Profile


Posted: Sat Dec 01, 2007 7:30 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

what program are you using to do the pics cause it wont let me upload a bmp file of how i think the wiring goes.



_________________

EF2 wagon stockstandard with plenty of leaks and other problems

Top
 Profile


Posted: Sat Dec 01, 2007 7:41 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

MS Paint.

Its jpg, I'll change it to bmp



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sat Dec 01, 2007 8:06 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

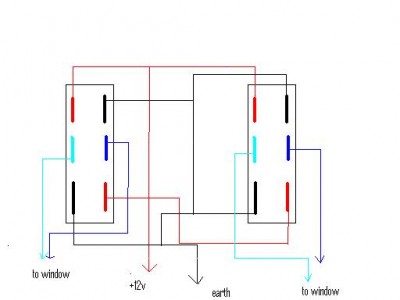

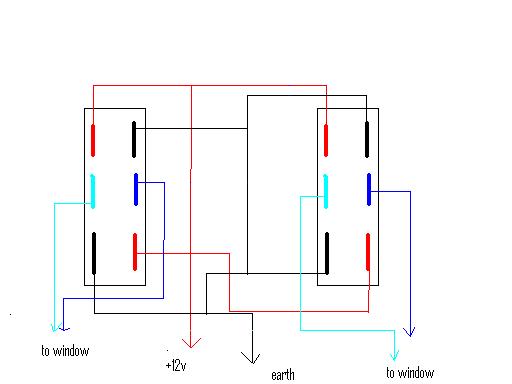

is this right





Attachments:
window switch.JPG
window switch.JPG [ 16.52 KiB | Viewed 64 times ]



_________________

EF2 wagon stockstandard with plenty of leaks and other problems

Top
 Profile


Posted: Sat Dec 01, 2007 9:49 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

bloody beautiful!

Looks messy, you could always go to the wreckers and get the flying lead that plugs into the switches, I recall they've binded the wires already?



_________________

Carefree, we may not be number one, but we're up there.

Last edited by Krytox on Sat Dec 01, 2007 10:10 pm, edited 1 time in total.

Top
 Profile


Posted: Sat Dec 01, 2007 9:55 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

flying lean are you having a lend of me :lol: or is that the name of the plug i can get.

again thanks for the help



_________________

EF2 wagon stockstandard with plenty of leaks and other problems

Top
 Profile


Posted: Sun Dec 02, 2007 10:24 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

You can also have a look at Figs 11&12 of http://www.fordmods.com/forums/documents.php?doc=81



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Dec 02, 2007 3:49 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

thanks snap nice and easy to understand. have to get a pass sied reg now and then i'll install the lot. i got a set of front door trims today for $22. not in to bad nick.



_________________

EF2 wagon stockstandard with plenty of leaks and other problems

Top
 Profile


Posted: Sun Dec 02, 2007 7:30 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

NP. You could do as Andrew's said and grab the door looms and cabin loom parts out of an EF/EL futura - should be plenty around at self serve wreckers.
Also you could install the futura looms that go to the pillars for the back doors - in case you want to add rear powereds later on . . . . .



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Dec 02, 2007 7:50 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

i spent all day at u pull it and all i found was a key illumination wire i needed, 2 futura door trims $22, $11 each(good value me thinks) and a drivers door seal. otherwise the 4 ef/el i found were striped clean. the wrecker said he should be getting another couple of cars this week so i'll have to look again.



_________________

EF2 wagon stockstandard with plenty of leaks and other problems

Top
 Profile


Posted: Mon Dec 03, 2007 7:55 pm
Stock as a Rock
Offline

Age: 38

Posts: 119

Joined: 27th Jul 2006

Ride: EF II wagon

Location: adelaide/salisbury north
SA, Australia

i phoned ford today to try and get some m6 door trim rivets, got quoted $3.85 each. so i then phoned motor traders and they only sell them in boxes of 100. as i only want 4 can some one tell me where i can get them cheaper in adelaide?
