removing aircon but i want to keep windscreen demister



Page 1 of 1 [ 11 posts ]


 Post subject: removing aircon but i want to keep windscreen demister
Posted: Sun Mar 18, 2007 5:25 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1063

Joined: 22nd Aug 2006

Gallery: 20 images

Ride: FG XR8, F6 F6 ute, XR5T, Capri

Location: Perth
WA, Australia

basically my XG has the usual XG problems...

1) the first 3 speeds for aircon are the same, and only setting 4 has any blowing power.

2) the air isnt cool. since condensor (?) has broken


i dont use the aircon (windows down almost all the time). but i do use the windscreen demister.

my question... is there anyway to remove the aircon stuff (compressor, condensor, lines, etc) but leave the windscreen demister operational?

note: its standard Gli spec aircon. not climate/ghia spec





Attachments:

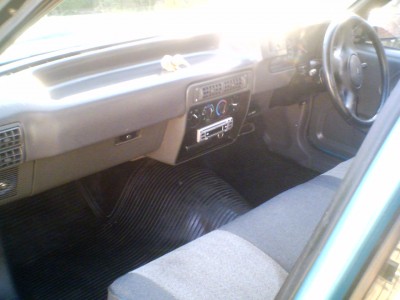

File comment: old pic.. but shows aircon unit perfectly
23-08-06_1533.jpg [ 106.48 KiB | Viewed 174 times ]
Top
 Profile


Posted: Sun Mar 18, 2007 5:54 pm
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

The reason for your fan only working on full is due to the fanspeed resistor being stuffed.

Theres no reason why removing the A/C stuff would effect the operation of the windscreen demister, as long as you do it properly. (ie keep the vacuum lines attached)



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


Posted: Sun Mar 18, 2007 7:03 pm
Stock as a Rock
Offline

Age: 54

Posts: 163

Joined: 6th Nov 2004

Gallery: 1 images

Ride: xf wagon

Location: bayswater
VIC, Australia

better to fix the system than dismantle...
Top
 Profile


Posted: Sun Mar 18, 2007 11:15 pm
Technical Contributor
Offline
User avatar

Age: 59

Posts: 5659

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

You can just leave everything as is, don't use A/C - check out the resistor assy as mentioned.
I'd also suggest fixing the A/C - very effective for demisting.
Windows down on a 35degree plus day is no match for A/C on and windows up.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Mon Mar 19, 2007 7:27 am
Getting Side Ways
Offline
User avatar

Age: 92

Posts: 1088

Joined: 30th Jan 2005

Gallery: 16 images

Ride: F350

Location: Brisbane
QLD, Australia

I had the A/C fail in my EL, and it was impossible to demist without it. A/C is a brilliant dehumidifier, and used for demisting for that reason.
I know in the EF/L V8 supercars thay had to use a front demister just like the rear demister to clear the screens.

Seeing yours is XD based, it may work without A/C, but there must be some inherant design fault with later cars that you definatly need the A/C for demisting.
Top
 Profile


Posted: Mon Apr 30, 2007 10:13 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1063

Joined: 22nd Aug 2006

Gallery: 20 images

Ride: FG XR8, F6 F6 ute, XR5T, Capri

Location: Perth
WA, Australia

just updating... im thinking about attempting this removal this upcoming weekend.

i've had a look and have seen that the compressor runs on a seperate belt so removing it wont affect the timing or anything :) and i can also remove the tensioner too :)

i will be removing the air con radiator, condenser and air con lines (the metal ones)

i will be also removing the air con vents... its gonna be part of a new interior of ute.

also the centre fascia will change.. i wanna remove all the air con related switches EXCEPT for a toggle switch to turn demister on and off (constant speed)

what i need to know is, when you change from "demister to head to feet... etc" is that electronically changed? or does twisting the knobs open and shut aircon tubing ports?
Top
 Profile


Posted: Mon Apr 30, 2007 10:19 pm
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 10128

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

the gli uses vacuum lines



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Mon Apr 30, 2007 10:22 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 2516

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

i will be vacuum lines, and im pretty sure you will find its default position is on the windscreen, thus meaning u can disconnect all the vacuum lines and it will go to the screen.
Top
 Profile


Posted: Mon Apr 30, 2007 10:24 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1063

Joined: 22nd Aug 2006

Gallery: 20 images

Ride: FG XR8, F6 F6 ute, XR5T, Capri

Location: Perth
WA, Australia

thats awesome. :) thanks for that info :)
Top
 Profile


Posted: Mon Apr 30, 2007 10:28 pm
Technical Contributor
Offline
User avatar

Age: 59

Posts: 5659

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah, yellow vaccy hose from memory:
vacuum on: feet
vacuum off: demist



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Tue May 01, 2007 6:59 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1063

Joined: 22nd Aug 2006

Gallery: 20 images

Ride: FG XR8, F6 F6 ute, XR5T, Capri

Location: Perth
WA, Australia

oh sweet. basically the (hopeful) end product will be

toggle switch off = off (derrrr haha)

TS on = demister on (cold air setting and full fans [speed on 4])

so would it be hard to run it via toggle switch?
Top
