 Post subject: sensor coolant wires
Posted: Sat May 20, 2006 1:33 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

found out the wires from the coolant sensor terminate just inside the firewall and i have looked and tried to follow it but get lost in the maze of wires, can someone give me a pic please of where this little bugger of a wire that's sposed to run from the coolant sensor on my EF to where?



_________________


Top
 Profile


Posted: Sat May 20, 2006 8:46 pm
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

Goes to the instrument cluster. It does go via a couple of plugs (one on each side of the firewall?)but doesn't change color - Yellow wire with Red trace.



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
 Profile


Posted: Sat May 20, 2006 8:55 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

hmmmm very helpful thankyou.

now does anyone else know where in the maze of wires these wires are?
because i look underneath and all i see is a couple a 2 inch thick clumps of wires and there are a couple in ther that are red and yellow, and blue and white and so on and so fourth.



_________________


Top
 Profile


Posted: Sat May 20, 2006 10:43 pm
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

They easist way to find it is pull the cluster out and trace it back - it will be the only Yellow wire with a thin Red trace going into the cluster (not sure wether it is the left or right plug though)
Question is.. why do you need to find it?.



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
 Profile


Posted: Sun May 21, 2006 12:05 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

so i can connect the sensor i got and installed into the bottle.
on my Ef it has provisions for the sensor but the wires terminate just inside the firewall. and kinda not much point following it back from the cluster coz it ain't there......yet lol



_________________


Top
 Profile


Posted: Sun May 21, 2006 2:55 am
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

Under the dash, above the accelerator pedal, is a big white plastic socket encased in a metal bracket - there are 2 sets of wires plugged into it, we are interested in the smaller left hand plug only. Second column in from the left and second row up from the bottom is where the coolant level sensor wire (Yellow/Red) should be.
A couple of things:
Ignore the color of the wires at the sensor, they change to the loom colors at the first plug: Yellow/Red and Black. The Black wire is earthed in the engine bay so its only the Yellow/Red sensor wire you need be concerned about.
If the the sensor wire is present at the plug under the dash then it will just be a matter of removing the cluster and fitting a bulb in the right place - looking at the back of the cluster it is the first on the right from the center (odometer) bulb and will probably have a paper "dot" glued over it, peel it off and insert the bulb (1.2 watt clear).



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
 Profile


Posted: Sat Jul 01, 2006 8:00 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

If i wanted to put a low coolant sensor in a EF GLi what would i have to do. I got lost in all that talk.



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Mon Jul 03, 2006 2:18 pm
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

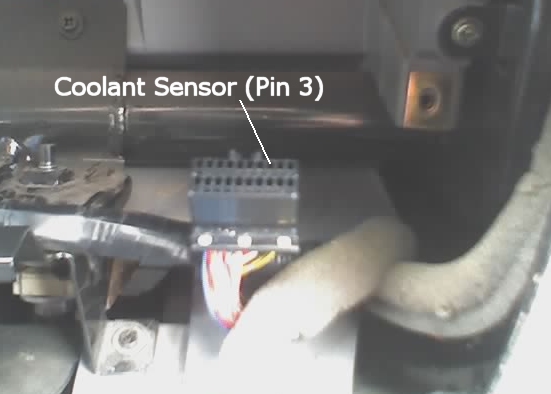

Coolant sensor wire connection to the cluster (right hand plug):





Attachments:
rh_cluster_plug.jpg [ 71.57 KiB | Viewed 37 times ]



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Last edited by Holbrookau on Mon Jul 03, 2006 2:51 pm, edited 1 time in total.

Top
 Profile


Posted: Mon Jul 03, 2006 2:22 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

Thanks man that's exactly what i needed to see.



_________________


Top
 Profile


Posted: Mon Jul 03, 2006 3:23 pm
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

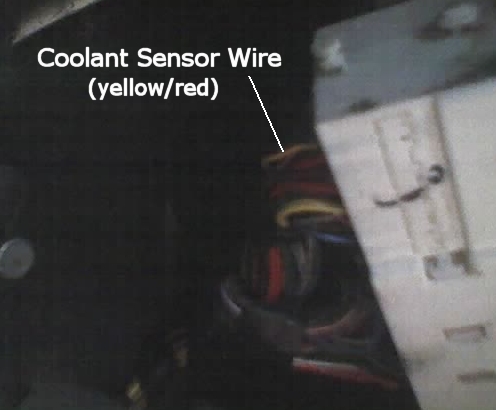

Coolant sensor wire at rear of big white plug/socket assembly (metal cover removed).





Attachments:
rear_big_plug.jpg [ 79.37 KiB | Viewed 23 times ]



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
