 Post subject: Smartlock
Posted: Fri Mar 09, 2007 4:47 pm
Technical Contributor
Offline

Age: 50

Posts: 3227

Joined: 12th Feb 2007

Gallery: 10 images

Ride: Falcon

Power: 113 rwkw

Location: your mums
NSW, Australia

ok i won a remote door and boot operner for ford EB/ED on Ebay, i had a look at the info givin on how to re program a remote to my car, i did what the doc said and nothing happen,

So does the 3/92 model EB mont have smartlock, my key is round not flat thats for the ignision and doors and boot, were is the smart lock computer found.

i have used the doc word for word on how to add a remote with no luck.



_________________

BANNED

Top
 Profile


 Post subject: smartlock
Posted: Fri Mar 09, 2007 5:22 pm
Getting Side Ways
Offline

Posts: 632

Joined: 20th Jan 2007

Gallery: 6 images

Ride: el xr8

Location: bidwill
NSW, Australia

im not 100% certian but i was told its located above handbreak lever and that why when car not start u hit the dash there



_________________

i smell bad even when fm members drive past lol.

Top
 Profile


Posted: Fri Mar 09, 2007 5:29 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

did you use the demistor switch?
if so.. try the Boot button instead.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Fri Mar 09, 2007 5:40 pm
Technical Contributor
Offline

Age: 50

Posts: 3227

Joined: 12th Feb 2007

Gallery: 10 images

Ride: Falcon

Power: 113 rwkw

Location: your mums
NSW, Australia

yep tried both ways no luck, could it be the new alarm i had installed to the car thats stopping this, as i have remote fobs to open and arm the alarm could this in some way have disabled that part ?.



_________________

BANNED

Top
 Profile


Posted: Fri Mar 09, 2007 8:27 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

you probably don't even have smartlock mate



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Sat Mar 10, 2007 11:46 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 906

Joined: 9th Aug 2005

Gallery: 4 images

Ride: EB2

Location: s.e suburbs
VIC, Australia

mines a EB no smartlock it was an option untill late in 92 i think
Top
 Profile


Posted: Mon Mar 19, 2007 11:03 pm
Fordmods Newbie
Offline

Age: 34

Posts: 2

Joined: 2nd Jan 2007

Ride: EB Fairmont 5.0L

Location: Nowra
NSW, Australia

EB didn't become series II until the 9/92 and smartlock doesn't start 10/92. found out the hard way that mine is a series II with no SLM. sorry to be the bearer of bad news



_________________

Some people still will never learn... F*#k The General Motors boys

Top
 Profile


Posted: Tue Mar 20, 2007 11:49 am
Technical Contributor
Offline

Age: 50

Posts: 3227

Joined: 12th Feb 2007

Gallery: 10 images

Ride: Falcon

Power: 113 rwkw

Location: your mums
NSW, Australia

Ford Til I Die wrote:
EB didn't become series II until the 9/92 and smartlock doesn't start 10/92. found out the hard way that mine is a series II with no SLM. sorry to be the bearer of bad news



more like good news, did the EB 1 use the round key and door locks ?



_________________

BANNED

Top
 Profile


Posted: Tue Mar 20, 2007 6:08 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

BuNtEr wrote:
Ford Til I Die wrote:
EB didn't become series II until the 9/92 and smartlock doesn't start 10/92. found out the hard way that mine is a series II with no SLM. sorry to be the bearer of bad news



more like good news, did the EB 1 use the round key and door locks ?


yes, tibbe door locks was introduced on EAII



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Tue Mar 20, 2007 6:28 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

BuNtEr wrote:
Ford Til I Die wrote:
EB didn't become series II until the 9/92 and smartlock doesn't start 10/92. found out the hard way that mine is a series II with no SLM. sorry to be the bearer of bad news



more like good news, did the EB 1 use the round key and door locks ?



how is it good news?

the only way to get your remote working is to add the smartlock module and BEM, from a post oct92 EB which is all stuffed deep within the dash.



_________________


Top
 Profile


Posted: Tue Mar 20, 2007 7:38 pm
Technical Contributor
Offline

Age: 50

Posts: 3227

Joined: 12th Feb 2007

Gallery: 10 images

Ride: Falcon

Power: 113 rwkw

Location: your mums
NSW, Australia

gogetta wrote:
how is it good news?.


better to know than not



_________________

BANNED

Top
 Profile


Posted: Wed Mar 21, 2007 7:37 pm
Technical Contributor
Offline

Age: 50

Posts: 3227

Joined: 12th Feb 2007

Gallery: 10 images

Ride: Falcon

Power: 113 rwkw

Location: your mums
NSW, Australia

Ford Til I Die wrote:
EB didn't become series II until the 9/92 and smartlock doesn't start 10/92. found out the hard way that mine is a series II with no SLM. sorry to be the bearer of bad news


here is some info i cound EB 2 was in April 92

EB Specifications
Series
EB

In Production
July 1991 launch, April '92 "series II" update

Number Produced
121,904 (plus 14,209 NC Fairlanes, 1,881 DC LTDs)

Country of design and manufacture
Australia

Body Styles
4 door sedan, 5 door wagon, long-wheelbase NC Fairlane, DC LTD 4 door sedans, and 2 door XG utility were also available

Number of seats
5, or 6 with the 'Centafold' bench front seat option

Mainstream models
Base 'Falcon GL', sportier 'Falcon S', upmarket 'Fairmont', top-line 'Fairmont Ghia', Falcon S-XR6, Falcon S-XR8

Engines
Front engine, in-line, chain-driven SOHC, 12 valve, longitudinal, six cylinder, iron block, alloy head;
3.9 (3949cc) litre single point throttle body (CFI) or multi-point injected (MPI) 4.9 litre (4942cc) OHV, 16 valve, longitudinal, iron block/head MPEFI V8 now available, 4.0 MPFI introduced in series II

Bore x Stroke
92.3 x 99.3 mm (4.0)
91.86 x 99.30 mm (3.9)
101.6 x 76.2 mm (V8 )


Power
165 kW @ 4,500 rpm (V8 )
120 kW @ 4,250 rpm (3.9 CFI)
139 kW @ 4,250 rpm (3.9 MPI)
148 kW @ 4,500 rpm (4.0 MPI)

Torque
388 Nm @ 3,000 rpm (V8 )
311 Nm @ 3,250 rpm (3.9 CFI)
338 Nm @ 3,500 rpm (3.9 MPI)
348 Nm @ 3,750 rpm (4.0 MPI)

Red Line
5000 rpm

Driven Wheels
Rear

Transmission
5 speed manual (not available on Fairmont and Fairmont Ghia wagons) 4 speed automatic

Gear Ratios
1 3.50, 2 2.14, 3 1.39, 4 1.00, 5 0.72 (5 speed manual)
1.2.39, 2 1.45, 3 1.00, 4 0.68 (4 speed auto)

Final Drive
2.92 (3.9 manual)
2.77 (3.9 auto)
3.08 (3.9 auto)
3.23 (4.0 manual)
3.27 (V
3.45 (S-XR6)

Fuel Tank
68 litres, sedan; 72 litres, wagon

Fuel consumption (AS2877, city/hwy)
14.5/9 L/100km (V8 auto)
11.5/7.6 L/100km (3.9 MPI manual)
12/7.6 L/100 km (4.0 auto)


Suspension
Front: Short and long arm, long spindle (SLALS), coil springs, anti-roll bar
Rear: live axle, trailing arms, Watts link, anti-roll bar, coil springs (leaf springs on wagon; self-levelling rear suspension on some sedan models)

Brakes
287 mm 4 wheel discs, front ventilated; Anti-lock Braking System on some models

Steering
Power assisted "Bishop" variable ratio rack and pinion

Turning Circle
11.0 metres

Steering turns to full lock
3.25

Wheels and tyres
P195/65HR14, 14" wheels (GL)
P205/65HR15, 15" wheels (S, Fairmont Fairmont Ghia, S-XR8, DC LTD)

Measurements (SWB Sedan)
4811 mm (length)
1857 mm (width)
1399 mm (height)
2794 mm (wheelbase)
1554/1533 mm (track front/rear)

Kerb Weight
1418 to 1599 kilograms, depending on model


Pricing at introduction ($AUD)
$25,199 to $41,606



_________________

BANNED

Top
 Profile


Posted: Thu Apr 05, 2007 3:16 am
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

ok now thats a little confuzzling.

it would say on the plate under the bonnet if its an EBII right?
cos mine just says EB.. but....

April '92 "series II" update mines aug '92

4.0 MPFI introduced in series II thats the engine i have

also no smartlock, but Ford Til I Die said it didnt come out till oct '92

so is mine actually series II without smartlock, or maybe a previous owner has changed a few things...
Top
 Profile


Posted: Thu Apr 05, 2007 7:57 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

Rossca wrote:
ok now thats a little confuzzling.

it would say on the plate under the bonnet if its an EBII right?
cos mine just says EB.. but....

April '92 "series II" update mines aug '92

4.0 MPFI introduced in series II thats the engine i have

also no smartlock, but Ford Til I Die said it didnt come out till oct '92

so is mine actually series II without smartlock, or maybe a previous owner has changed a few things...


you might actually have smartlock without knowing it. When i got my NC it didn't come with a remote. But still had smartlock.

When you totally remove your key from the ignition do you get a flashing LED after about 15 seconds??



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Thu Apr 05, 2007 9:56 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

fordzatmyplace wrote:
Rossca wrote:
ok now thats a little confuzzling.

it would say on the plate under the bonnet if its an EBII right?
cos mine just says EB.. but....

April '92 "series II" update mines aug '92

4.0 MPFI introduced in series II thats the engine i have

also no smartlock, but Ford Til I Die said it didnt come out till oct '92

so is mine actually series II without smartlock, or maybe a previous owner has changed a few things...


you might actually have smartlock without knowing it. When i got my NC it didn't come with a remote. But still had smartlock.

When you totally remove your key from the ignition do you get a flashing LED after about 15 seconds??


beats me, 15 seconds im usually out of the car haha. where would the LED be?

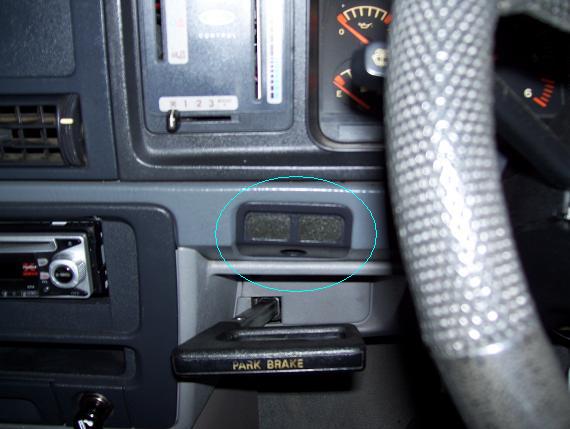

plus with smartlock, isnt it supposed to have a little thingy on the left side of the steering wheel? just above the handbreak?. this is a pic of whats in mine, looks like something should be there.





Attachments:
Picture 0141.JPG
Picture 0141.JPG [ 52.22 KiB | Viewed 50 times ]
Top
