 Post subject: To anyone about to do the blue dash, some suggestions
Posted: Fri May 05, 2006 8:05 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 512

Joined: 6th Feb 2006

Gallery: 3 images

Ride: BA Falcon Classic

Location: Perth
WA, Australia

i did my blue dash conversion on the weekend, and i beleive i have made some discoveries that don't appear on the doco...

firstly, the blue globe holders can be used for an LED, all you do is get a tiny screwdriver and poke the metal tabs from the sides, remove the globe then replace it with an LED (and resistor), slide the metal tabs back in and solder to the sides. I had to enlarge the hole on the resistor side, however, with my soldering iron.

secondly, when converting your LCD panels to blue illumination, I find it helps to insert white paper and a blue LED, as opposed to blue paper, which makes it green.

hope this helps someone...



_________________

When you do things right, people won't be sure you've done anything at all.

Top
 Profile


Posted: Sat May 06, 2006 12:44 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

you'll also find your lcd bit will work heaps better if you use a white LED with a blue filter and some white paper.



_________________


Top
 Profile


Posted: Sat May 06, 2006 1:07 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

ohh another added note

get the resitors to make the LEDs work on 14volts not 12



_________________

RIP SCOTT

Top
 Profile


Posted: Sat May 06, 2006 1:22 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

yeah i was about to do that today but the LEDs were like $3 each so im going to go to jaycar or something and see if i can get them cheaper.

I needed a light for the trip pc and i pulled apart the old globe and put the LED with resistor in it. But had to do some playing round to find the right way it went is, as LEDs have polarity.

But the Green (all i had at the time) looks sweet



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Sat May 06, 2006 1:22 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

oh yes of course goddam it that's prolly why the cheapies i buy keep dying.

And also does anyone know of a good mpeg4 to avi converter?
i have a vid of my dash and i wanna show it in a standard format for everyone.



_________________


Top
 Profile


Posted: Sat May 06, 2006 2:27 am
Parts Gopher
Offline

Age: 39

Posts: 76

Joined: 5th Jul 2005

Ride: Fairlane

Location: Sydney
NSW, Australia

Heyo,

Just wondering, when converting your dashes to LED's, dont you get bright spots on the dial face where the LED's light is focused?

What if you kept the standard bulbs and put some blue celefane behind the dial faces? cheaper then futzing around with LED's...

cya
Rene.
Top
 Profile


Posted: Sat May 06, 2006 2:46 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

when ya pull your dash apart you'll see that there is no point at which the LED can have a direct beam of light, due to the light dispersion plate thats in there.



_________________


Top
 Profile


Posted: Sat May 06, 2006 10:08 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 2159

Joined: 15th Nov 2005

Gallery: 17 images

Ride: TS40

Location: Latrobe Valley
VIC, Australia

Disco Frank wrote:
ohh another added note

get the resitors to make the LEDs work on 14volts not 12


so you found the LEDs wernt bright enough...



_________________

Was - 2001 AUIII Ford Falcon Forte
Genuine T2 TS50 bodykit, 18" BF Cobras, Boge and Eibach Suspension and Complete AU2 Fairmont Ghia Interior

Now - 2012 FG Mk2 Ford Falcon XR6
Swift Green,6 Speed Auto, Stock... and a Fuel Card :)

Top
 Profile


Posted: Sat May 06, 2006 10:52 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 497

Joined: 5th Nov 2004

Gallery: 11 images

Ride: 1989 300ZX Twin turbo Z32

Location: Bardon, Brisbane
QLD, Australia

once the car is on the battery will be charging at about 14 volts anyway so it shouldnt be much of a problem



_________________

Sold my EB :(
Now got my 300zx :)

Top
 Profile


Posted: Sat May 06, 2006 11:29 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 512

Joined: 6th Feb 2006

Gallery: 3 images

Ride: BA Falcon Classic

Location: Perth
WA, Australia

Quote:
Heyo,

Just wondering, when converting your dashes to LED's, dont you get bright spots on the dial face where the LED's light is focused?

What if you kept the standard bulbs and put some blue celefane behind the dial faces? cheaper then futzing around with LED's...

cya
Rene.


nope, and even the spots of varying brightness are reduced by some heavy sanding of the top and sides of your LEDs.



_________________

When you do things right, people won't be sure you've done anything at all.

Top
 Profile


Posted: Sat May 06, 2006 11:34 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

stomper wrote:
yeah i was about to do that today but the LEDs were like $3 each so im going to go to jaycar or something and see if i can get them cheaper.

I needed a light for the trip pc and i pulled apart the old globe and put the LED with resistor in it. But had to do some playing round to find the right way it went is, as LEDs have polarity.

But the Green (all i had at the time) looks sweet


when i got mine i got them off ebay for $10 for 30leds + holders+ resistors+ spacers.
Top
 Profile


Posted: Sat May 06, 2006 11:38 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

shannonwulff wrote:
Quote:
Heyo,

Just wondering, when converting your dashes to LED's, dont you get bright spots on the dial face where the LED's light is focused?

What if you kept the standard bulbs and put some blue celefane behind the dial faces? cheaper then futzing around with LED's...

cya
Rene.


nope, and even the spots of varying brightness are reduced by some heavy sanding of the top and sides of your LEDs.


Don't sand them at all, all that does is dim the led's and they look s**t, i'll try and find the pics of when i sanded them and when i haven't the difference is massive.



_________________


Top
 Profile


Posted: Sat May 06, 2006 11:41 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

Davehimself wrote:
shannonwulff wrote:
Quote:
Heyo,

Just wondering, when converting your dashes to LED's, dont you get bright spots on the dial face where the LED's light is focused?

What if you kept the standard bulbs and put some blue celefane behind the dial faces? cheaper then futzing around with LED's...

cya
Rene.


nope, and even the spots of varying brightness are reduced by some heavy sanding of the top and sides of your LEDs.


Don't sand them at all, all that does is dim the led's and they look s**t, i'll try and find the pics of when i sanded them and when i haven't the difference is massive.


It doesnt dim them it just speads the light because LEDs are very directional. I sanded them otherwise you end up with blue dots
Top
 Profile


Posted: Sat May 06, 2006 11:45 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 744

Joined: 10th Nov 2005

Ride: 2003 BA XT

Location: Perth
WA, Australia

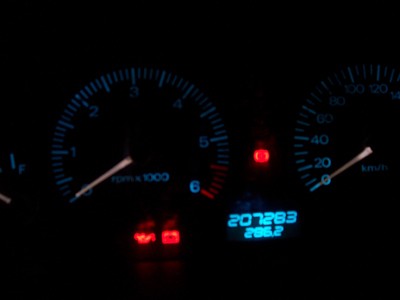

righto here is the proof.




Do we see a difference?





Attachments:
File comment: With Sanding
Pics for dave 8.jpg
Pics for dave 8.jpg [ 51.87 KiB | Viewed 17 times ]



_________________


Top
 Profile


Posted: Sun May 07, 2006 12:54 am
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

was that the only change between the pics? no sanding back of the dial face (rear) or lowered the vaule of the resistors?

If not then I take back my previous comments :oops:
Top
