 Post subject: What do you think
Posted: Sat Sep 17, 2005 6:33 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

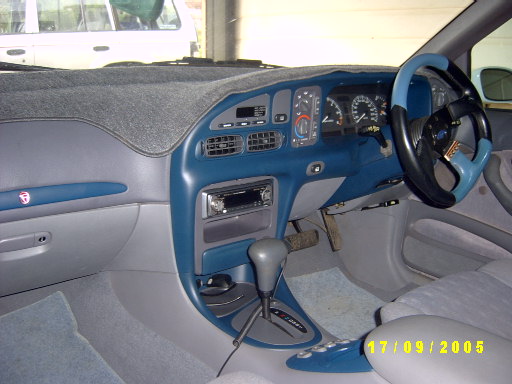

This is the interior of my EA SPAC





Attachments:
File comment: Needs new wheels eh
SV300002.JPG [ 779.9 KiB | Viewed 22 times ]
Picture 006.jpg
Picture 006.jpg [ 54.95 KiB | Viewed 59 times ]



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Sat Sep 17, 2005 6:52 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

man. i take my hat off to you. how the f*ck did you get the EF dash in there? Does it replace the standard EA dash with no mods? do all the screw holes line up???



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


 Post subject: Dash.
Posted: Sat Sep 17, 2005 7:03 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

Yey, quite a job. Needs EF/EL computer and a lot of wiring if you use the EA loom or change to EF/EL looms and rewire connectors 50/50 as far as I am concerned. Some changes to mountings for dash nothing to bad. All top winscerrn bolts the same, outer bolts near fusebox and on oassenger side have to be modded no probs, and tunnel mounting point is a little bit harder. You need to have a reasonable understanding of what needs to be changed. I am in electronics , so I was half way there. With a lot of help from guys on this forum it was easy. Biggest problem was the hand brake, as u cannot use the original under dash unit. But thats another story.

Thanks for the reply.

Cheers



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Sat Sep 17, 2005 7:03 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

The dash and door trims bolt in easily enough.

How did you go about the centre console, handbrake and seats? I'm interested because I'm doing the conversion soon enough too.



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


 Post subject: dash
Posted: Sat Sep 17, 2005 7:12 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

Seats were reasonable I used the existing frames and modded them to suit, not too much involved if u can weld ok.
Center console fist ok but u need a new carpet from EF/EL. U can getone made to fitt exactly or with a bit of cunning anEF/EL std will fit.
Hand brake is a BI-CH. To use the center h/b u need to fit an EF/EL rear axle. Take it from me I have tried lots of mods and they dont work. So its a new rear axel. But if u can get a foot operated handbrake from a column shift/bench seat EF/EL u can fit that and it does work. U must use the pedal box from the column shift car to get the mounting points also u have to weld a plate across where the steering column mounts as the bolt positions are different.

All good fun, not that I thought it at the time.



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Sat Sep 17, 2005 7:16 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

I have a foot operated handbrake to use, but I have a 5-speed manual... so I don't think it's a good idea lol!



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


 Post subject: Dash
Posted: Sat Sep 17, 2005 8:07 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

It should be ok its out of the way up high when off



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Sat Sep 17, 2005 8:10 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

What do I do about the pedal box though?



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sat Sep 17, 2005 8:20 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

very blue. nice that youve modernised the interior, but wouldn't of been my colour scheme choice. but good work there.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Dash
Posted: Sat Sep 17, 2005 9:16 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

You must change the pedal box otherwise u cannot fit the footbrake.

I did mine after changing the dash. I just took out all the bolts holding the dash and gently pulled it away at the top, I had previously completly unbolted the pedal box below the dash and disconnected the brake. Then u can undo the top bolts, pull out the old and in with the new, replace bolts and put dash back. One thing before pulling dash out release the heater cable behind the glove box.



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Sat Sep 17, 2005 9:23 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Hrmmm I would have to put a clutch pin onto the auto pedal box somehow...



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


 Post subject: Dash
Posted: Sat Sep 17, 2005 9:44 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

Should not be a problem just transfer the parts from one to the other.



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Sat Sep 17, 2005 10:46 pm
Smokin em up
Offline
User avatar

Posts: 244

Joined: 6th Nov 2004

Ride: EA falcon

Location: Melbourne
VIC, Australia

Hey copy cat!!!!

http://home.iprimus.com.au/grandmaster1/noojee/2fnlow9.jpg
(NL interior in EA)


Great job, good to see more and more people attempting this huge task, it's not as easy as some people make it out to be. It's unbelievable just how much need to be changed to get it all to work!!! Especially as you said if you want the centre handbrake and also the steering wheel...
Top
 Profile


 Post subject: Dash
Posted: Sat Sep 17, 2005 11:10 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

Hey THANKS for the inspiration. And thanks to all who helped me with info it would not have happened without it.



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Sat Sep 17, 2005 11:36 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 850

Joined: 10th Nov 2004

Gallery: 20 images

Ride: 03 BA Fairmont

Location: Forest Lake
QLD, Australia

voxace wrote:
I have a foot operated handbrake to use, but I have a 5-speed manual... so I don't think it's a good idea lol!


Sounds like an easy way to do handbrake turns...



_________________

Regards,
Punnisher_42
_____________
2003 BA Fairmont - Stock standard
1994 U13 cough Nissan Cough Bluebird

Favorite Quotes:
"Sportwagon = homo-erotic wank-fest." - downingj
