haha dont worry mate everyone will get one, i already have a ninth, and am waiting on more...


the butterflies have been CNC machined, they are actually an elipse, it is an exact scaled up copy of a standard butterfly it sits exactly as the standard one does...

i might also add, although most would have realised this, but you may have to adjust your idle speed screw to allow for the difference in air entering as the circumfrence is bigger..

i should be picking up the TBs on tuesday, ill post up picks then email the lucky first eight with details

Hey mate if you have any spare to sell or need any more t/b let me know I have 2 EA/EB ones and 1 EF one sitting in the shed.

ok, we have good news and bad news!

good news: throttle bodies have been bored out and i have picked them up already.

bad news: 4 out of the 8 throttle bodies are damaged. i have come to the conclusion that 68mm is pushing the boundary too far, as the machinist broke throught the wall section on four of them, i saw the jig he used to set them up and they are exactly concentric and no fault of the machinist... there must be inconsistancies in the castings due to worpage or something which affected half of them.

my only option at this stage is to reduce the diametre of the bore to 67, or 67.5, as i cant afford to have 50% of the throttle bodies i get machined being scraped...

this means i need to get new butterflies cut to suit the new diameter.

the breakthrough happened in the same spot on all four, there is a round indentation around the boss where the shaft goes, which reduces the wall section in that area (on the spring side)

with the 4 throttle bodies that have been damaged during machining, i have 2 options.
1. i scrap them
2. i try to repair them, either weld or steel putty (this is on the spring side and will not be visible as its covered by the black plastic washer)and if your not happy with them you can return them and ill refund the money no problems

in my opinion, a 67mm bore will be the best possible solution, with new butterflies...
i have 3 ef/el and 1 au throttle body already assembled which i will give to the 1st 4 on the list, i will pm them shortly with details.

the remaining 4 people who would have had one from this lot, please let me know if you want to wait for a 67mm TB or if you would like a repaired one, if its dodgey im not going to sent it..

please let me know what your feelings are... and i will proceed with what you all think is best. i will not proceed with 67mm bore untill you guys tell me that you are happy or not to go this way...

ooo thats a bit annoying, cant be much done about that. Its Fords dodgy inconsistancy in making the throttle bodies. With the 4 68mm throttle bodies you have, are they ok to use? like there not going to be too weak at the walls? Cheers

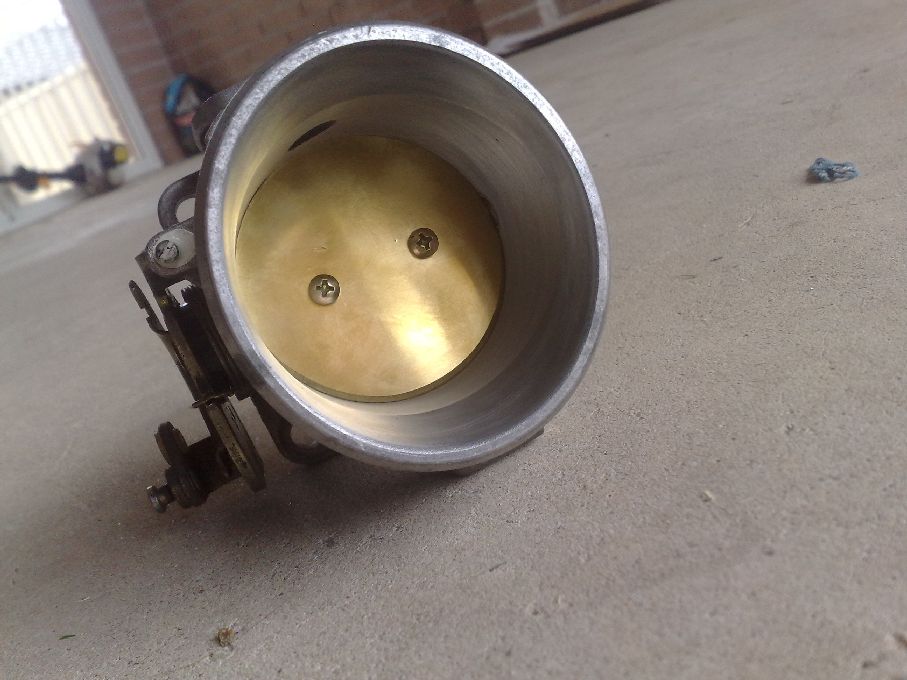

and here is a photo of one of the complete units





Attachments:

1.jpg [ 82.73 KiB | Viewed 183 times ]

yeah id put it down to ford machining the bore off center, and becasue the bore has been used as the datum the new hole is also offset causing the breakthrough...

the 4 throttle bodies are fine, as i said its only one small point where there is a thin wall, but even so you would have to hammer a screw driver through it...

i wont be sending out anything that is dodgey

so yeah, no problems with the 4 that im sending out, i need to know if people are still happy to proceed with a 67mm bore
- the difference is 31.4cm2 (at 67mm) compared to 32.6cm2(at 68mm) standard is 26.1 cm2, an increase of 20% over standard

i await your feedback

mate i will be happy with a 67mm throttle body, still a 20% improvement which still sounds great to me. if its going to make the whole process a heap easier i am willing to shave off 1mm! surely couldnt have that much effect, 1-2kw??

Do you think a 67mm throttle body would be noticable in comparison to the 68mm throttle body you had? I know its hard since you havent had a 67mm but just in your opinion maybe referring to the difference between stock and a 68.

idd be happy with the 67 if it is going to be stonger etc.

As im on the list for one that has been damaged, will the repairs be stable under use, as im not quite sure where the break is, just worried about having it crack or break in the future, if this is a slight possibility i'dd prefur to go to the 67mm.

Just a question, the ebay one that were up claimed to be 69mm from memory, how did they manage to bore to that depth?

Cheers.
Rushed

Ebay throttle body, getting one of these soon, then comes a crow billet cam.

Last edited by EL__Fairmont on Thu Feb 19, 2009 9:01 pm, edited 1 time in total.

You will probly find the ebay one is probly 69mm at the opening and gets more narrow as it goes in. If 68mm is hittings the walls an some are being damaged, there is no way you can completey bored it out 69mm

I am interested in these still but is there anyway we can tell which T/B flow better the Ebay ones or these? As said before ebay ones might not be bored right through which you would think it wouldn't be as good. Would be great if someone could test both of the T/B.

Hmmm.

Is it not possible to bore slightly off-centre in order to avoid this weak area?

Having said that, it's only air intake; it's not like there's 200 tons of pressure on it.

Hope a good solution can be found - and quick!

Well, I'm still keen as mustard on my one (being first on the list has its privileges, you have to understand. FASTXR - I have bought some of this stuff http://ultrabond.8m.com/ from a local Aussie character and it would fix your problems if you have access to a decent flame source. Thanks again to Ricks EF Fairmont Wagon for this tip.

Get some of this (about $20AUD for a dozen sticks or so) and heat the thin area up until this stuff melts into it, a little like old school oxy-acetylene welding. You can weld up alloy beer cans with it if you're half onto it.

- - -

As for people posting pictures of another product and saying loudly that they're going to buy from Ebay, they're entitled to do that... I'd prefer to support the guy who developed his idea for the world to see on FordMods... With feedback and criticism from other FordMod members.

This site has been of great help to me over the last year or so since I bought my first spanner (not with standing the fact it now looks like every other boring a*** site - I'm doing my best to provide some graphic relief...)

from what i know now, 69mm is an impossability, even if you were lucky enough to sneak it through there would be no wall section left and would probably break it half at the neck where the intake pipe sits on.

yes it is possible to machine it offset, but i never knew they had been machined offset to start with... if i offset the machining i run the risk off ruining the bearings, 68mm cuts into both bearings, any more and they would be disturbed too much.

im going to make the decision to go ahead with 67mm, ill even try to get a new dyno run organised to show the gains. it seams most people are happy to go this way.

with the ruined ones, after closer inspection im only happy to have a go at repairing 2 of them, they have a hairline crack only, the other 2 have small holes which id prefer not to even touch, im going to get them silver soldered(54%), they will be solid and no risk of any problems... so i can say that i have 6 throttle bodies at 68...

sorry about this, we live and we learn!

1. fiend (ef/el)
2. GeZza200 (ef/el)
3. Doofus (ef/el)
4. Rushed (ef)
5. LG (au3)
6.TurboFreak(EA)
7. InspectorRectum(EF)
8. metasaiah (EF)
9. Shortshift (EF)
10. twindongs (EL)
11 StrawbZ (AU3)
12. weeman (ef/el)

i will contact the people in bold shortly to organise payment, the underlined people please wait as i confirm the repairs, ill have them soldered tomorrow and ill let you know how they turn out (im 99% confident)
sorry to turbo ea, you have been skiped because the only ea TB i had is now beyond repair... but im on it, everyone should have one in the next group of 67mm

thanks
