BA Turbo Intake manifold



Page 1 of 2 [ 23 posts ] Go to page 1, 2  Next


 Post subject: BA Turbo Intake manifold
Posted: Sat May 05, 2007 11:00 pm
Stock as a Rock
Offline

Age: 30

Posts: 109

Joined: 11th Nov 2006

Gallery: 10 images

Ride: ED fairmont turbo

Location: sunshine coast
QLD, Australia

Well my nicely worked ed 4.0L motor has blown up because my hose broke on my waste gate and last thing i sore on the boost gauge was 27psi then the motor cut out, but more to the point i have bought a AU series II motor with 38,000km and put it in with a few mods but it just doent have the power as the last motor, i think it maybe the inlet manifold, does anyone know why the ba xr6 turbo doesnt use the bbm with the butterflies? If u look at one they don't even have the acuator





Attachments:

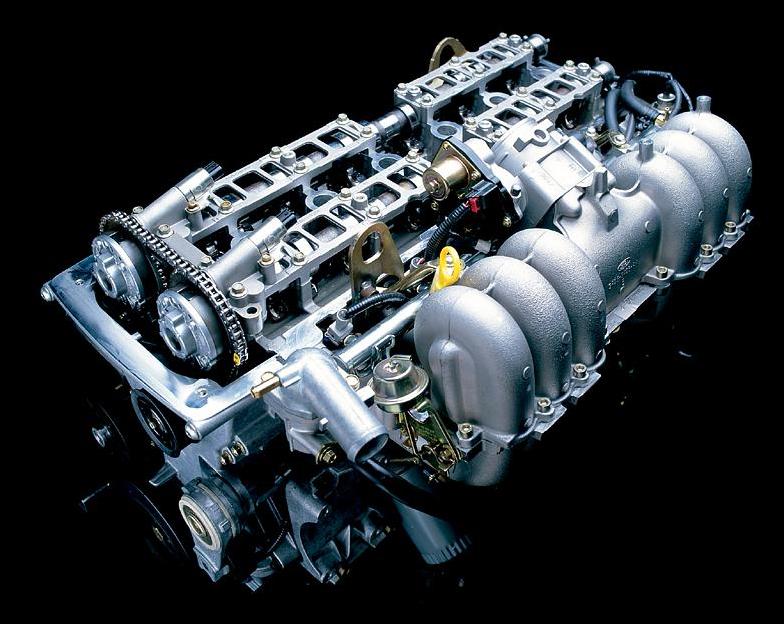

post-3-1052220359.jpg [ 142.99 KiB | Viewed 91 times ]

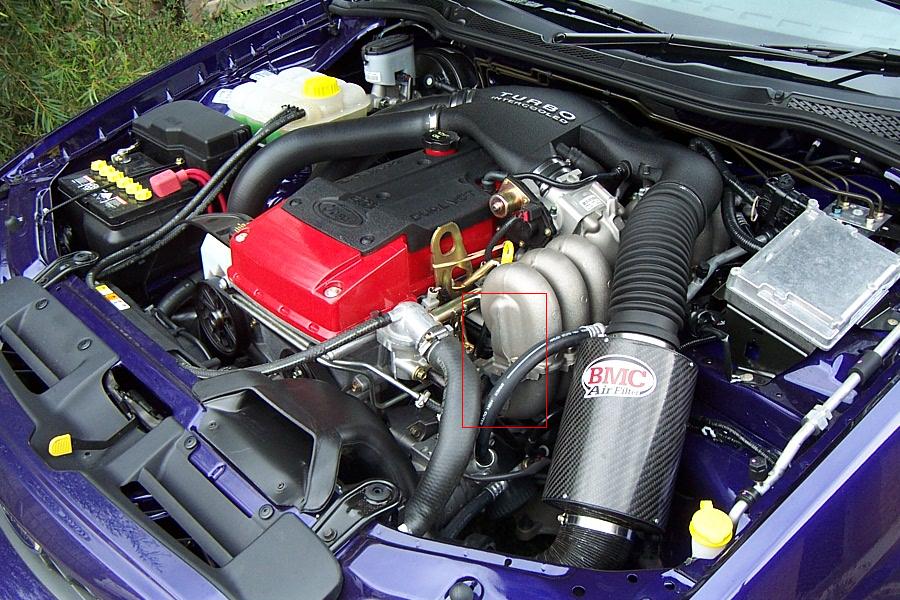

25-11-06_1205.jpg [ 72.29 KiB | Viewed 62 times ]



_________________

ED Fairmont: Master Power GT45, race spec T5, Wolf v4, 870cc Injectors, EF bottom end, EF Head, Surcam custom Grind Cam, Crane LX92 Coil

Top
 Profile


Posted: Sun May 06, 2007 12:19 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

i think it might have something to do with the fly by wire throttle body and computer programing



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Sun May 06, 2007 2:01 pm
Stock as a Rock
Offline

Age: 30

Posts: 109

Joined: 11th Nov 2006

Gallery: 10 images

Ride: ED fairmont turbo

Location: sunshine coast
QLD, Australia

Yeah that's true but the ba n/a six pot still uses the actuator





Attachments:

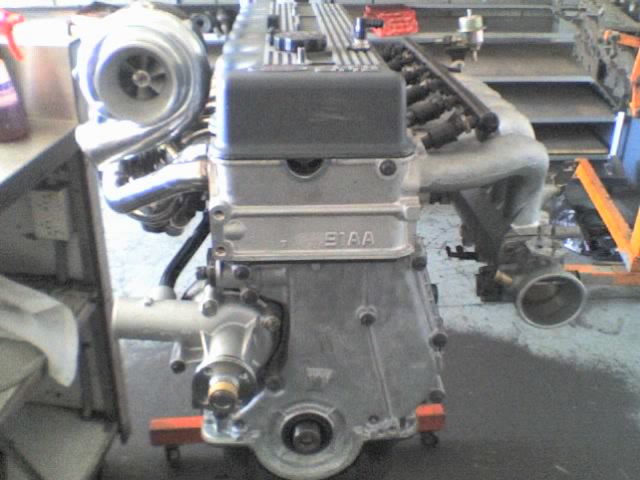

2792_11mg[1].jpg [ 74.93 KiB | Viewed 78 times ]



_________________

ED Fairmont: Master Power GT45, race spec T5, Wolf v4, 870cc Injectors, EF bottom end, EF Head, Surcam custom Grind Cam, Crane LX92 Coil

Top
 Profile


Posted: Sun May 06, 2007 2:08 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Why don't you just use your ED manifold on the AU motor??
Can use the same piping then too, makes cooler piping a hell of alot easier.

The BAs dont use the butterflys cause apparently they tested it and they didnt notice any effect under boost, so they pulled it out.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Sun May 06, 2007 2:18 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

The butterflies are for tuning the runner length in a NA engine. Makes no difference in a boosted engine.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun May 06, 2007 2:40 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Would enabling it on a boosted motor help spool a larger turbo or would there be no benefit?
Top
 Profile


Posted: Sun May 06, 2007 2:50 pm
Stock as a Rock
Offline

Age: 30

Posts: 109

Joined: 11th Nov 2006

Gallery: 10 images

Ride: ED fairmont turbo

Location: sunshine coast
QLD, Australia

I tried putting my ed manifold on but the throttle body leaves no clearence for the a/c compressor to fit



_________________

ED Fairmont: Master Power GT45, race spec T5, Wolf v4, 870cc Injectors, EF bottom end, EF Head, Surcam custom Grind Cam, Crane LX92 Coil

Top
 Profile


Posted: Sun May 06, 2007 3:34 pm
Smokin em up
Offline

Age: 30

Posts: 236

Joined: 2nd Jun 2005

Location: melbourn
VIC, Australia

ed_fairmont_turbo wrote:
I tried putting my ed manifold on but the throttle body leaves no clearence for the a/c compressor to fit




LoL had same trouble with the aircon condenser, now i have no air con....



_________________

4LTR-JET: 9.1 @150mph!!

Top
 Profile


Posted: Sun May 13, 2007 7:40 pm
Fordmods Newbie
Offline

Posts: 9

Joined: 13th May 2007

Ride: XR6T

Location: where fords are born...
VIC, Australia

The length of the runners in NA applications are very benificial (hence the butterflies) but in forced induction systems there is no effect.
Top
 Profile


Posted: Sun May 13, 2007 9:51 pm
Commercial Sponsor
Offline

Posts: 350

Joined: 28th Apr 2007

Ride: Falcon

Location: Melbourne
VIC, Australia

howitzer85 wrote:
The length of the runners in NA applications are very benificial (hence the butterflies) but in forced induction systems there is no effect.


actually it helps promote lowdown air speed and thus allows earlier turbo spool up to so yeah!!!!
Top
 Profile


Posted: Tue May 15, 2007 1:07 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

but is the butterfly system up to the task of holding boost pressures without letting u down?
Top
 Profile


Posted: Sat May 19, 2007 11:50 am
Tyre Shredder
Offline
User avatar

Age: 31

Posts: 325

Joined: 15th Apr 2006

Ride: F350, EF2 Ghia, XC & Corty

Power: 218 rwkw

Location: Wangaratta
VIC, Australia

Fit your old ED Rocker gear and camshaft.
If you have a look at the specs on the AU camshafts its suprising that they make any power at all.



_________________

13.28@103.73mph

Top
 Profile


Posted: Sat May 19, 2007 12:49 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

balizticbobo wrote:
Fit your old ED Rocker gear and camshaft.
If you have a look at the specs on the AU camshafts its suprising that they make any power at all.


ED and AU valve gear are not combatable !!! They have different rocker ratio's.....



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Sun May 20, 2007 11:21 am
Stock as a Rock
Offline

Age: 30

Posts: 130

Joined: 23rd Jul 2006

Ride: EL XR6 (Formally PYROAY)

Location: perth
WA, Australia

to use the "ED" intake manifold, you just need the standard brakect that moves the aircon down a couple of inchs,
The ED cam and rocker gear should bolt straight bak on to the AU.
Top
 Profile


Posted: Mon May 21, 2007 10:18 pm
Stock as a Rock
Offline

Age: 30

Posts: 109

Joined: 11th Nov 2006

Gallery: 10 images

Ride: ED fairmont turbo

Location: sunshine coast
QLD, Australia

the au valves are different length aswell



_________________

ED Fairmont: Master Power GT45, race spec T5, Wolf v4, 870cc Injectors, EF bottom end, EF Head, Surcam custom Grind Cam, Crane LX92 Coil

Top
 Profile
