Hey guys, if you remember us we put a bf turbo motor into my eb. We have done a few of these things now & are doing a ed at the moment. We aim to take as many pic's and infomation as possible including wiring to give you guys an idea on how to do it. Stay tuned. Cheers Owen.
Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Fri Jun 04, 2010 4:54 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 862

Joined: 8th May 2005

Ride: BA Wagon Turbo, Ba Fairlane G220

Location: Colac
VIC, Australia

Hey mate what do you guys recommend for ecu wise? I am gunna put a xr6 turbo motor in my ba wagon and I cant find an xr6 turbo ecu anywhere do you guys just flash a standard one or can you get hold of turbo ones?



_________________

Congo Green Ba Wagon With F6 6 Speed Manual Driveline.

Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Sat Jun 05, 2010 6:43 pm
Oompa Loompa
Offline

Age: 42

Posts: 48

Joined: 17th Mar 2008

Ride: XY Sedan, XB Coupe, EF Ghia

Location: Perth
WA, Australia

Subscribed!

Still planning to drop a turbo DOHC in my EF Ghia next year. I've managed to collect most of the parts, even got myself a car to drive while my Ghia is off the road (EL Sapphire).

Have you guys converted an EF / EL with ABS yet?


Cheers
Chris
Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Mon Jun 07, 2010 9:22 pm
Stock as a Rock
Offline

Age: 33

Posts: 151

Joined: 26th Jun 2005

Gallery: 12 images

Ride: BA F6 TYPHOON

Location: melbourne
VIC, Australia

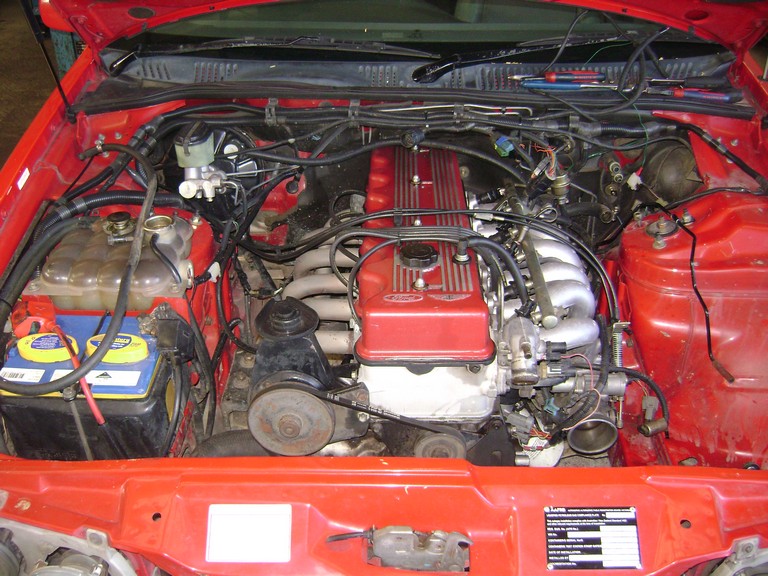

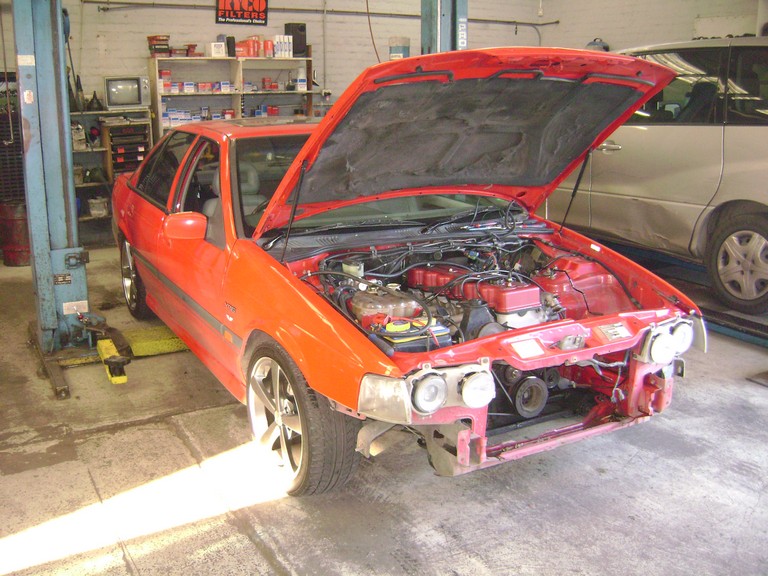

A few pic's of the car berfore we start.





Attachments:
DSC00597.JPG [ 170.3 KiB | Viewed 127 times ]
DSC00596.JPG [ 159.21 KiB | Viewed 105 times ]
Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Mon Jun 07, 2010 9:30 pm
Stock as a Rock
Offline
User avatar

Age: 42

Posts: 155

Joined: 7th Nov 2004

Ride: EB Fairmont Turbo

Location: Wynyard
TAS, Australia

I hope this works out to a full How to do,

If you need any diagrams of the wiring let me know, I can copy them for you

Scotty



_________________

EB 2,Turbo EL Motor, Momo Wheel, Cam, Fuel preasure reg, LSD, Color coded boot garnish 17" wheels, Lowered, Shift kit, Slotted & cross Drilled Brakes, AU fuel injectors, & more to come

Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Mon Jun 07, 2010 9:32 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

scotty2611 wrote:
I hope this works out to a full How to do,

If you need any diagrams of the wiring let me know, I can copy them for you

Scotty


I think they have the conversion down patt,
they've done it before hehe



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Mon Jun 07, 2010 9:44 pm
Stock as a Rock
Offline

Age: 33

Posts: 151

Joined: 26th Jun 2005

Gallery: 12 images

Ride: BA F6 TYPHOON

Location: melbourne
VIC, Australia

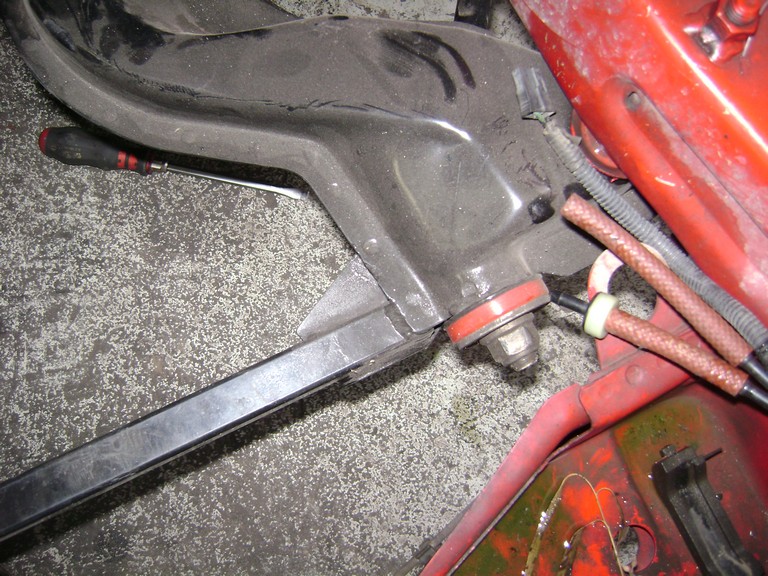

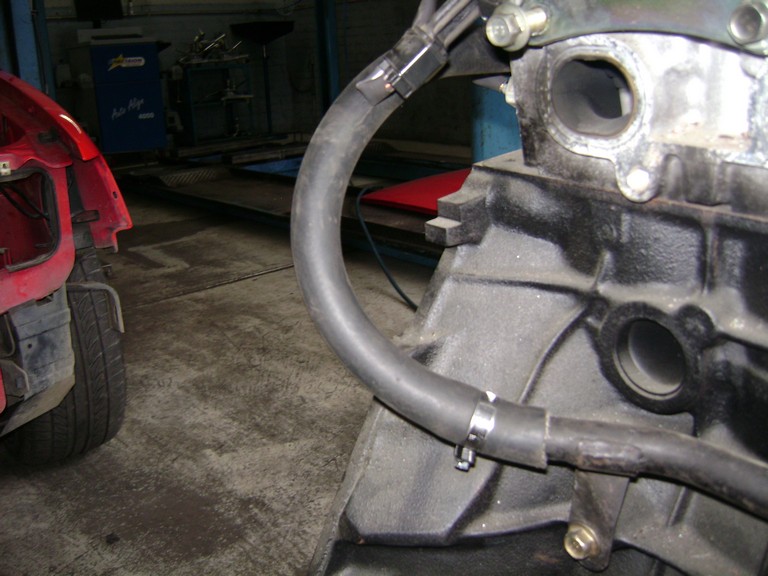

Ok first thing you wil need to do is modify the front bar of the K frame, we moved it all the way to the front of the K frame. You then have to modify the BF engines metal heater lines, we used rubber hose to join the exhaust side pipe to the intake side pipe, now the pipe on the intake side is from a el engine i forgot to take a pic but i will upload 1. If you are running a manual trans you will need to cut a section out of the barra sump casting to allow for the clutch cable, the Ed clutch & flywheel bolt straight up to the barra engine.





Attachments:

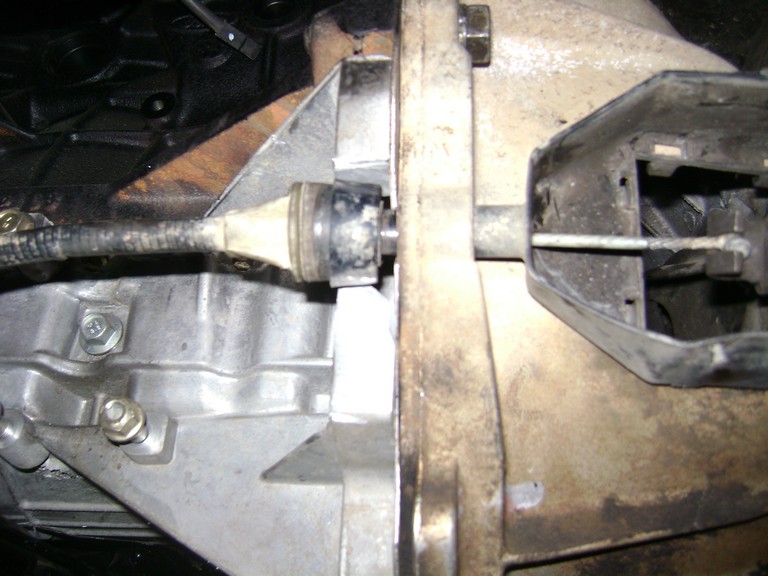

File comment: Clutch cable in position
DSC00609.JPG [ 117.82 KiB | Viewed 134 times ]

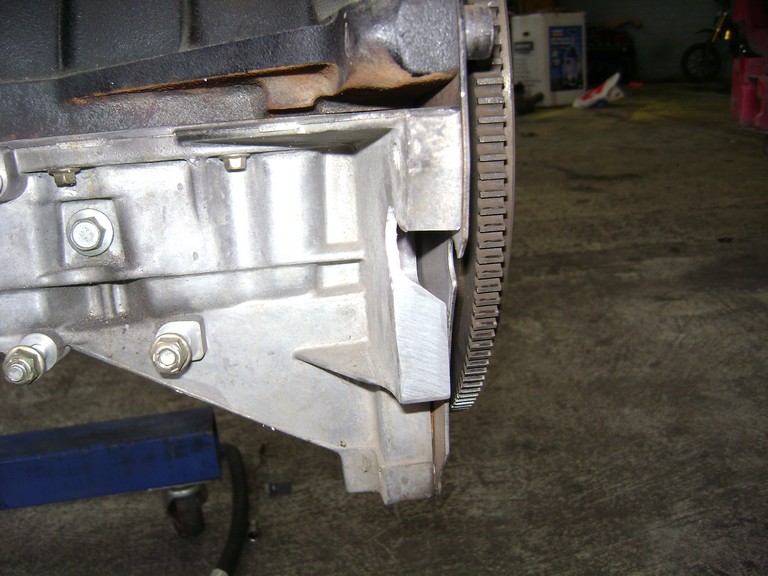

File comment: The cutout in the sump casting
DSC00606.JPG [ 126.18 KiB | Viewed 93 times ]
DSC00603.JPG [ 121.78 KiB | Viewed 98 times ]
File comment: The rubber heater pipe join

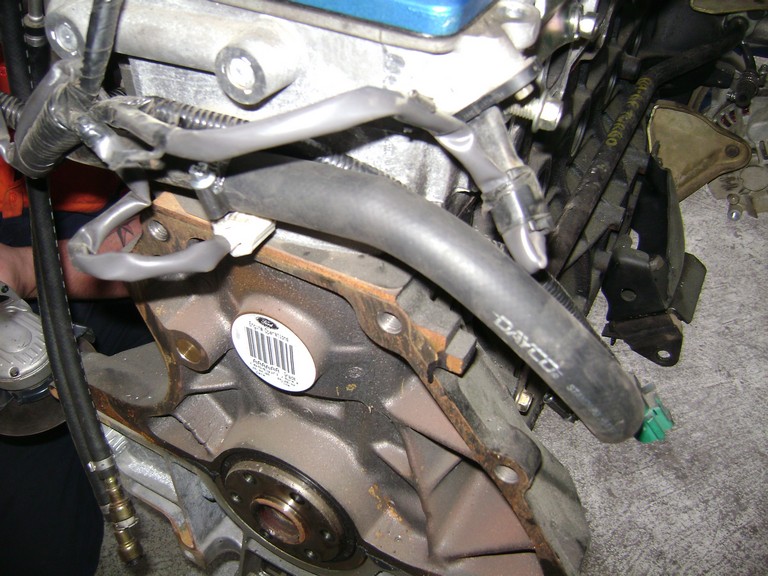

DSC00602.JPG [ 152.08 KiB | Viewed 98 times ]
File comment: The modded K frame
DSC00600.JPG [ 188.27 KiB | Viewed 116 times ]
Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Mon Jun 07, 2010 9:58 pm
Stock as a Rock
Offline

Age: 33

Posts: 151

Joined: 26th Jun 2005

Gallery: 12 images

Ride: BA F6 TYPHOON

Location: melbourne
VIC, Australia

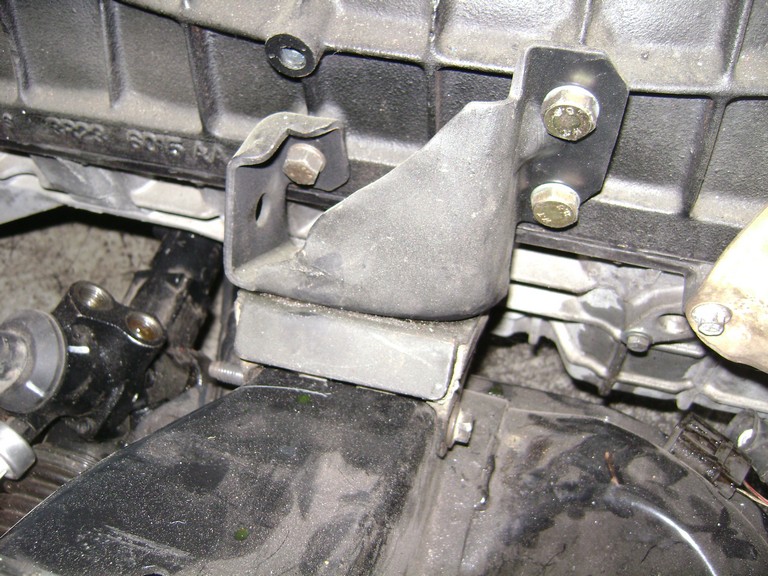

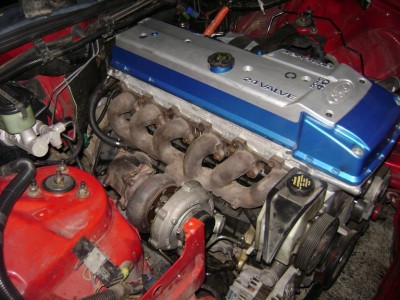

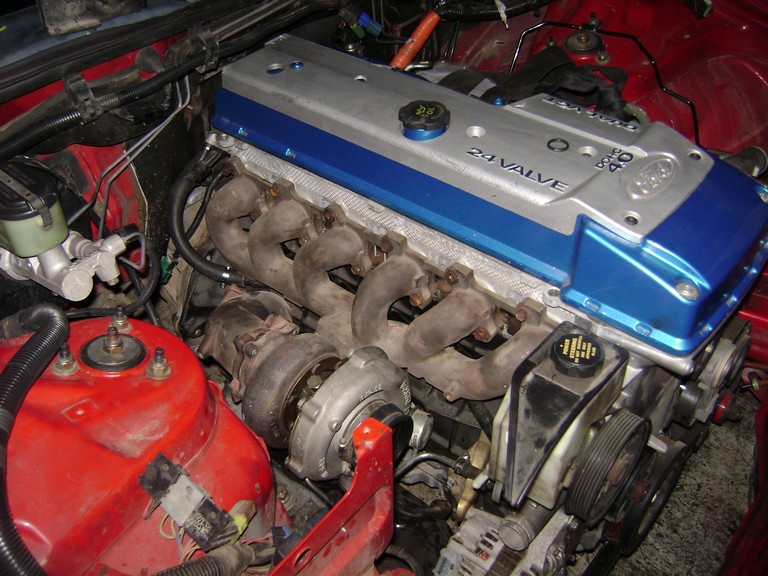

With the engine mount we welded the holes & re-drilled then 8mm lower to allow the engine clearence, you will still have to cut the centre brace out of the bonnet, The engine is now in the bay & i will upload more pic's & info soon. Stay tuned!





Attachments:
DSC00611.JPG [ 156.26 KiB | Viewed 140 times ]
File comment: The standard mount with modded holes to lower the engine
DSC00608.JPG [ 168.74 KiB | Viewed 120 times ]
Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Tue Jun 08, 2010 2:36 am
Parts Gopher
Offline

Age: 32

Posts: 68

Joined: 6th Jan 2006

Ride: EL Futura

Location: Brisbane
QLD, Australia

Thanks heaps mate. This is going to make my life so much easier. Mine is an el so I was going to copy what someone else on here has done with the k-frame. He cut a piece out of the front cross member and welded a right angle piece in for strength. To lower it he used spacers between the k-frame and the chassis. Is this still the best, or only way to do it? Do you think I could weld and redrill the actual bracket the engine mount bolts to? I've been told the sump can't be modified because of the pickup point.
Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Wed Jun 09, 2010 6:44 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

ive done this conversion to my eb and i didnt need to lower the engine at all, just had to cut the bracing in the bonnet and it fits fine with standard mounting points..... :? is there any other reason for lowering it??
as for the ef el side of things know fordman didnt have to lower his either, also having the fairmont hood meant he didnt need to modify the bracing.

Cheers Jesse



_________________


Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Wed Jun 09, 2010 9:19 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

Jester-BOC wrote:
ive done this conversion to my eb and i didnt need to lower the engine at all, just had to cut the bracing in the bonnet and it fits fine with standard mounting points..... :? is there any other reason for lowering it??
as for the ef el side of things know fordman didnt have to lower his either, also having the fairmont hood meant he didnt need to modify the bracing.

Cheers Jesse


Just don't break an engine mount then :P



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Thu Jun 10, 2010 11:15 am
Stock as a Rock
Offline

Age: 33

Posts: 151

Joined: 26th Jun 2005

Gallery: 12 images

Ride: BA F6 TYPHOON

Location: melbourne
VIC, Australia

Jester-BOC wrote:
ive done this conversion to my eb and i didnt need to lower the engine at all, just had to cut the bracing in the bonnet and it fits fine with standard mounting points..... :? is there any other reason for lowering it??
as for the ef el side of things know fordman didnt have to lower his either, also having the fairmont hood meant he didnt need to modify the bracing.

Cheers Jesse

Hey mate, when your engine is under load she will tap the bonnet, And you will have a nice outwards dent.
Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Thu Jun 10, 2010 2:03 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

bollocks wrote:
Jester-BOC wrote:
ive done this conversion to my eb and i didnt need to lower the engine at all, just had to cut the bracing in the bonnet and it fits fine with standard mounting points..... :? is there any other reason for lowering it??
as for the ef el side of things know fordman didnt have to lower his either, also having the fairmont hood meant he didnt need to modify the bracing.

Cheers Jesse

Hey mate, when your engine is under load she will tap the bonnet, And you will have a nice outwards dent.


oh s**t! i havent given it a good squirt yet so i havent had any dramas :shock: .... i am however cutting a hole and adding the ba bonnet bulge this should solve that problem right?
thanks for that info you have saved me a bonnet :D



_________________


Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Thu Jun 10, 2010 2:10 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

bollocks wrote:
With the engine mount we welded the holes & re-drilled then 8mm lower to allow the engine clearence, you will still have to cut the centre brace out of the bonnet, The engine is now in the bay & i will upload more pic's & info soon. Stay tuned!


are there any other clearance issues that you have come across with the whole instal other then the bonnet? hows snug is the turbo against the strut tower?



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: BF TURBO INTO 5 SPEED ED
Posted: Fri Jun 11, 2010 9:13 am
Stock as a Rock
Offline

Age: 33

Posts: 151

Joined: 26th Jun 2005

Gallery: 12 images

Ride: BA F6 TYPHOON

Location: melbourne
VIC, Australia

EFNA wrote:
bollocks wrote:
With the engine mount we welded the holes & re-drilled then 8mm lower to allow the engine clearence, you will still have to cut the centre brace out of the bonnet, The engine is now in the bay & i will upload more pic's & info soon. Stay tuned!


are there any other clearance issues that you have come across with the whole instal other then the bonnet? hows snug is the turbo against the strut tower?

Nah mate only the bonnet, Plenty of room between the turbo & the strut tower.
Top
