 Post subject: BOV Positioning
Posted: Thu May 01, 2008 10:25 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

Hey Guys,

As the title suggests, i am after some feedback on best position. I believe it should be as close as possible to the throttle body. Has anyone done this differently, say to suit intercooler piping, or just to be different. I did do a bit of a search, but could not find anything definitive. I have seen them near centrifugal blowers, so i am guessing these set-up are vastly different to turbo BOV's.

It makes sense to let as much of the intake charge out as possible.
BTW, my BOV is a plumb-back (XR6) one, not that i think this makes a difference.


Cheers

8-) Daz 8-)



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Thu May 01, 2008 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

The ones on centrifugal blowers are bypass valves, looks almost identical to a xr6t blow off valve.


6 inches away from the throttle body would be fine.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Fri May 02, 2008 9:13 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

I put mine over my exhaust manifold so that it may help cool it - since at idle it's open and letting air out.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Fri May 02, 2008 1:48 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

This depate often come up on turbomustangs.com...
Some say close to throttle body...
Other say on HOT side of intercooler so it vents HOT air...
On our ED Fairmant its fitted on cold side of intercooler in wheel arch...
I would consider on hot side or pre intercooler if its plumb back as it will be close to air cleaner...
The job of BOV is to prevent reversion bouncing back off throttle plate and spinning turbo backwards.. So it realy doesn't matter where its fitted... Plenty of theories, but the main point is to run one...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Fri May 02, 2008 7:58 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

EBXR8380 wrote:
I would consider on hot side or pre intercooler if its plumb back as it will be close to air cleaner.. So it realy doesn't matter where its fitted...

This is exactly where i was going to fit it, it will match up to the air cleaner perfectly, as it is a plumb back type.

I am thinking close to the throttle body, but i didnt want to run a long hose over and under intercooler pipework to the airbox.

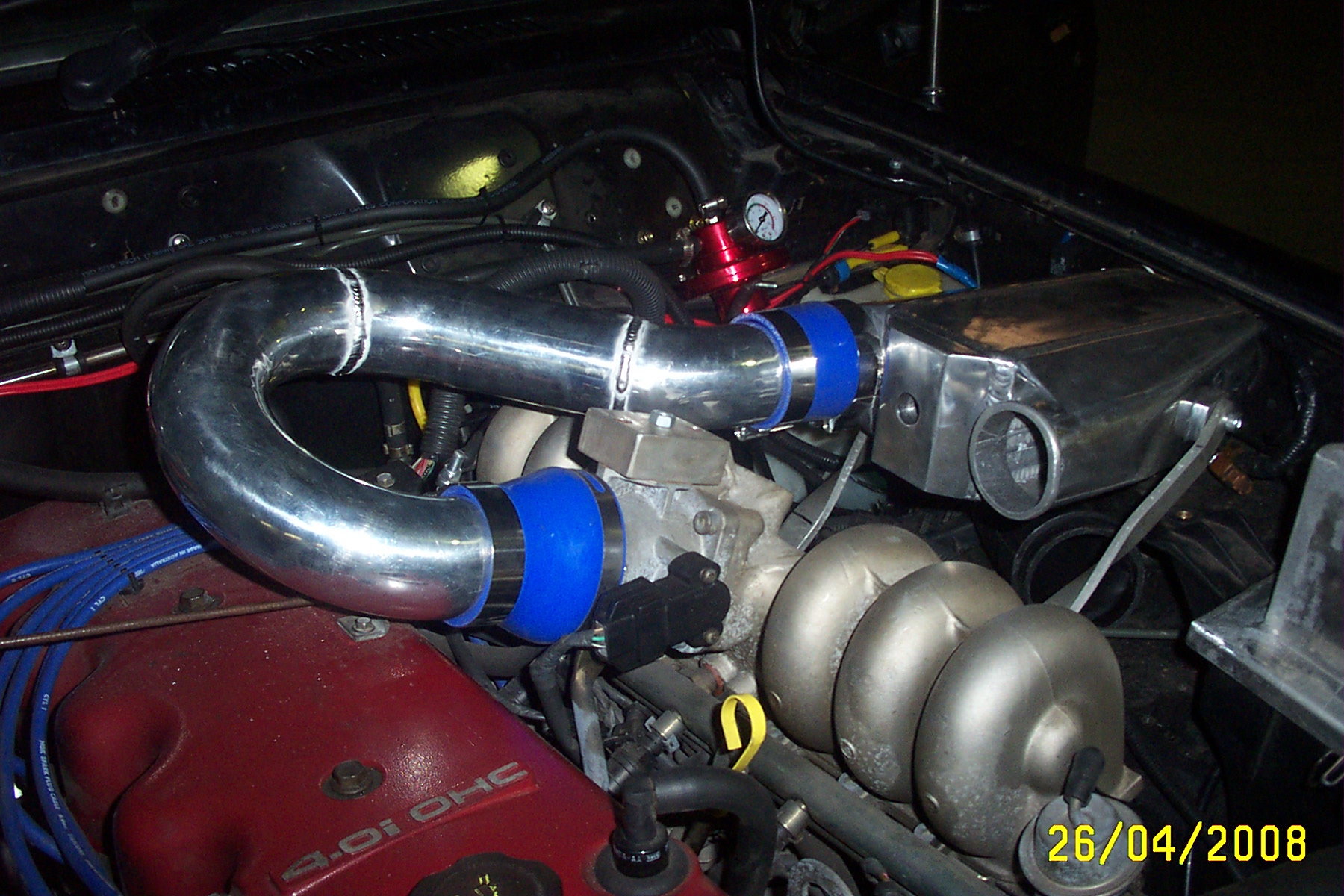

In the attached pic, you can just see the top left corner, this is where excess air will enter. I was going to put BOV in tube (yet to be made) just before the intercooler inlet. I think it will look the goods if nothing else....lol
