EA FALCON SEDAN - V8 351 cleveland C10 auto TwinTurbo



Page 2 of 3 [ 37 posts ] Go to page Previous  1, 2, 3  Next


Posted: Fri Aug 17, 2007 10:13 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Hi

Big brakes for a e-series mmmmmmmm

http://www.fordforums.com.au/showthread.php?t=109396

I have done something similar to this setup , but utilized the original e-series hubs which i have machine the rotors off. Machined the stub-axles and modified them also.

These twin piston calipers are cheap to buy form one of my suppliers .

still toying around with late model twin piston calipers like the ones on the AU series 3 and B-series falcons and the same calipers are on Holden VT commodores onwards.

HUB FACE OFFSET will be a question ??????

slowly slogging away on this project , arm hows ur blood pressure ???

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


 Post subject: T3 turbo exhaust flange - EA 351 TT
Posted: Wed Oct 03, 2007 8:35 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Hi

Thought i would work on the EA 351 TT

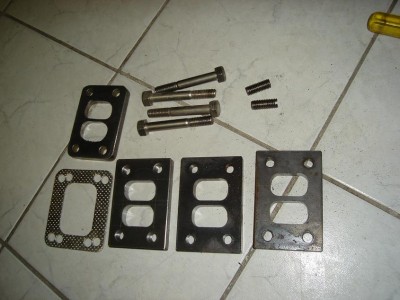

OK , quiet at work today , waiting for parts so i thought i might as well make up some T3 turbo flanges for the exhaust inlet side

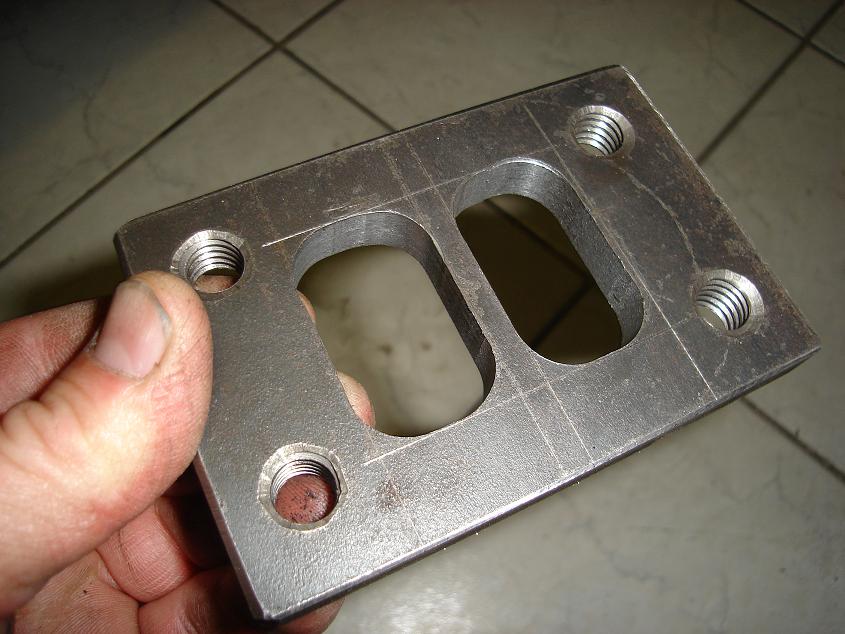

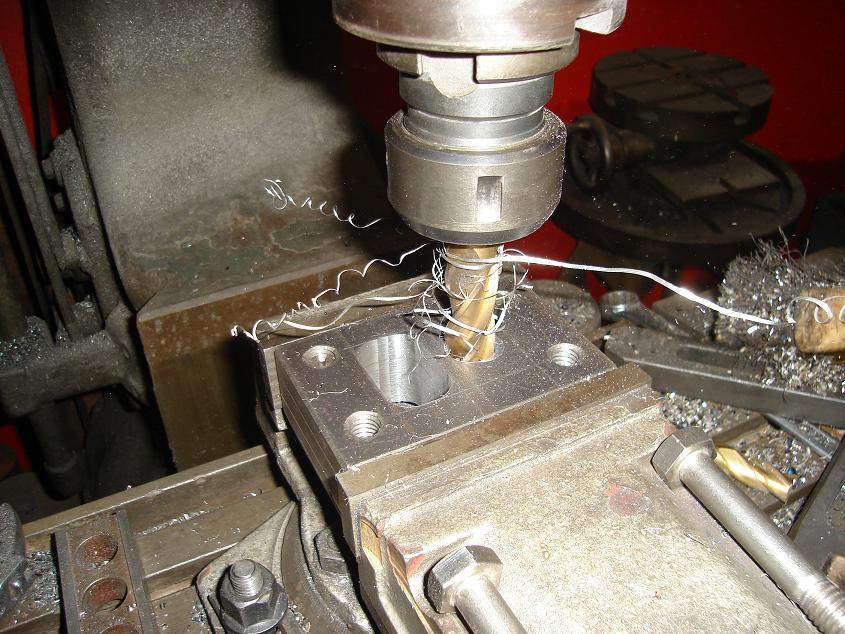

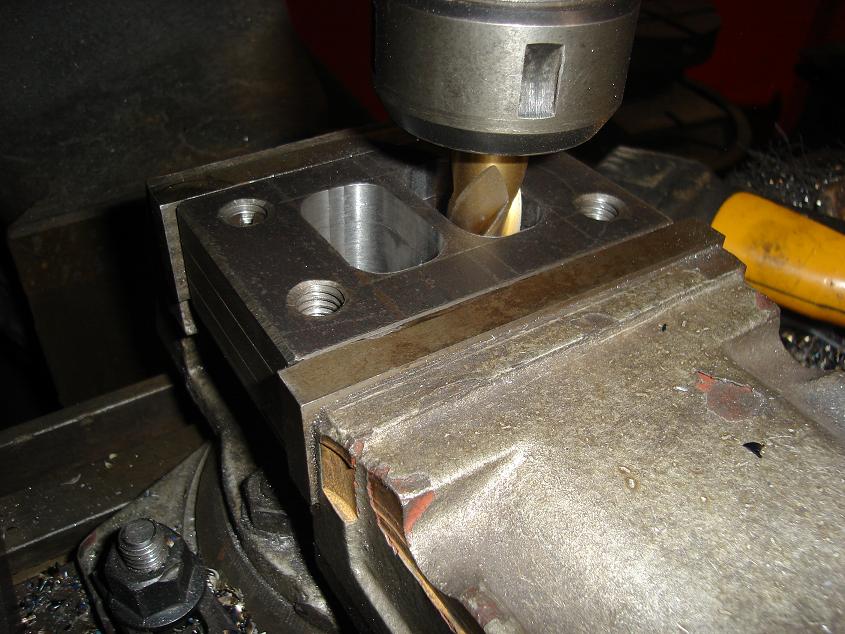

12mm mild steel plate , i cut up 4 pieces and squared them up in the milling machine.

Drop saws with a abrasive wheel doesn't cut straight as the wheel flexes a lot.

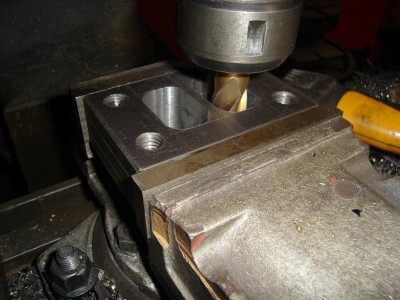

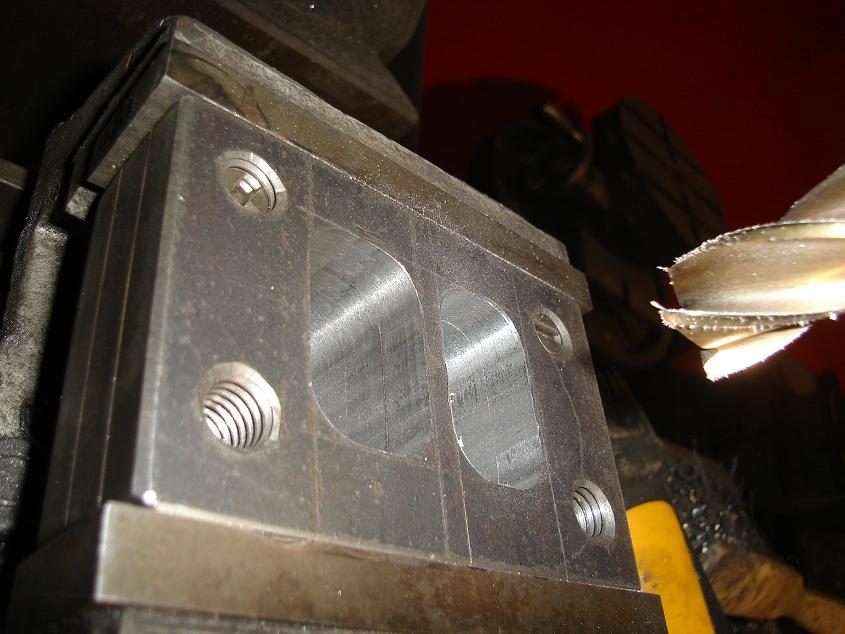

Then i drilled and slotted the holes in the mill.

Also order two stainless steel multi-pattern T3 and T4 flange exhaust flanges today.

cheers





Attachments:
Milling_flange_23.JPG [ 127.53 KiB | Viewed 86 times ]
Milling_flange_24.JPG [ 107.59 KiB | Viewed 87 times ]
Milling_flange_26.JPG [ 83.61 KiB | Viewed 79 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Wed Oct 03, 2007 8:49 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

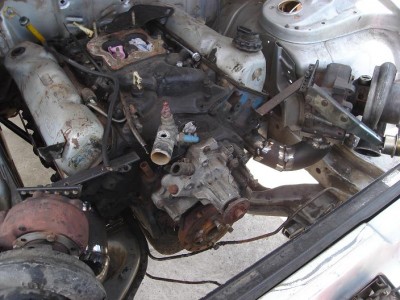

OK , turbos are sitting in the engine bay beside the 351 cleveland will post a few more pictures tomorrow.

Engine is fully mounted in the bay with the C10 gearbox. Next few weeks will have to finish of the 9 inch differential also

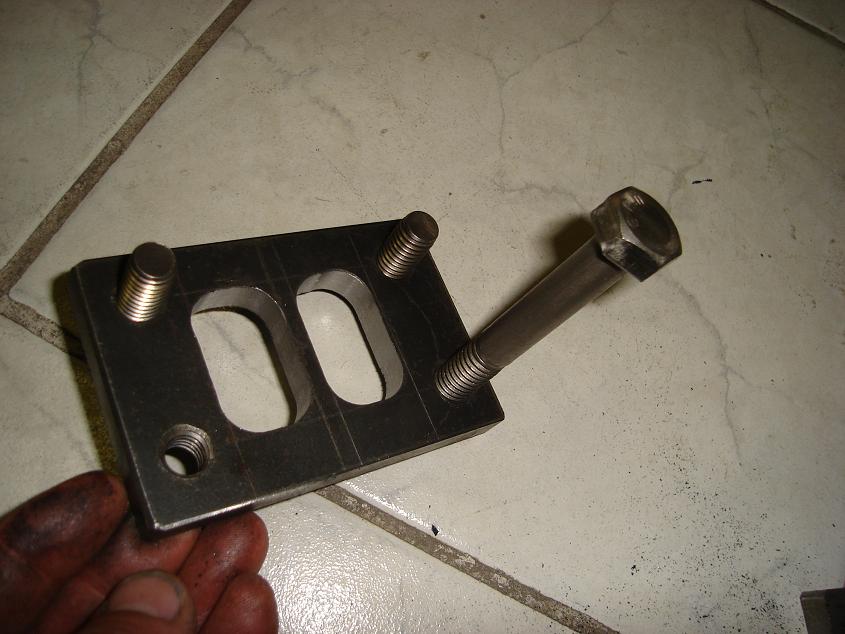

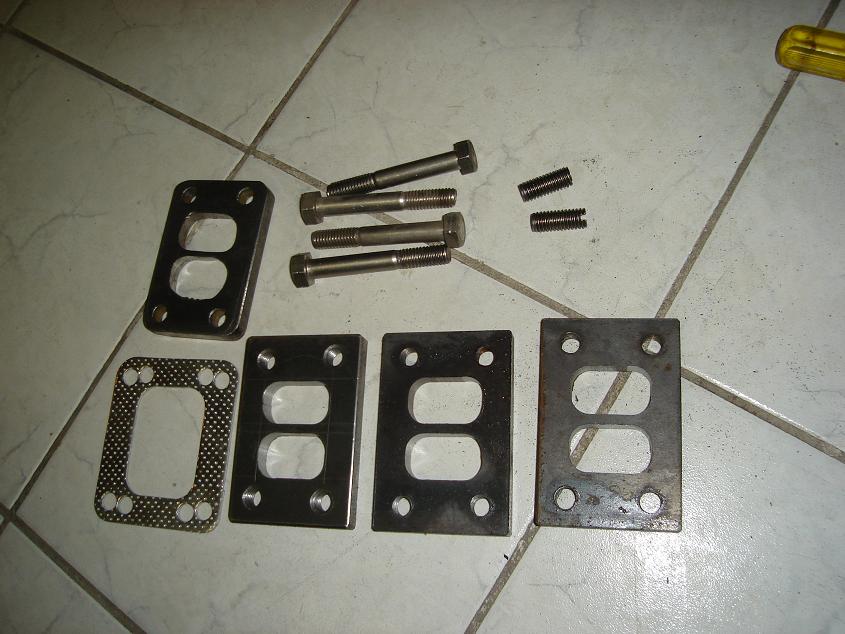

The flanges actually come out very good , i once at a swap meet bought a box of 1/2 inch stainless steel bolts which will come in hand now to make studs for the exhaust manifold.

The plenum i have made a start on also but after lurking around in some ford forums i found a few nifty ideas for the inlet manifold design. Will also make the fuel injector bosses and fuel rails.

Will try and make the adapter some time this week.

I'm making two sets of turbo manifolds and chassis sub frame and rear gearbox mount if anyone is interested in doing a similar project just drop me a PM and can sell the setup to you.

It has taken me a while to get it to fit nicely in the engine bay , where this will just bolt straight into a EA , EB and ED chassis rail with no fuss.
cheers





Attachments:
Milling_flange_34.JPG [ 90.3 KiB | Viewed 77 times ]
Milling_flange_33.JPG [ 78.85 KiB | Viewed 81 times ]
Milling_flange_31.JPG [ 87.61 KiB | Viewed 88 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


 Post subject: Inlet manifold hat
Posted: Wed Oct 03, 2007 9:01 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

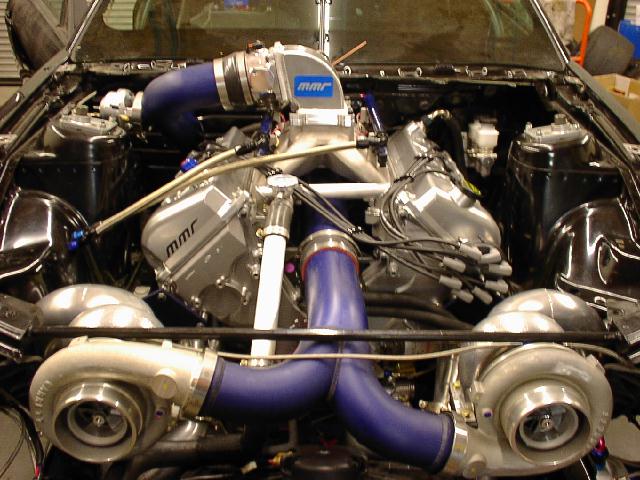

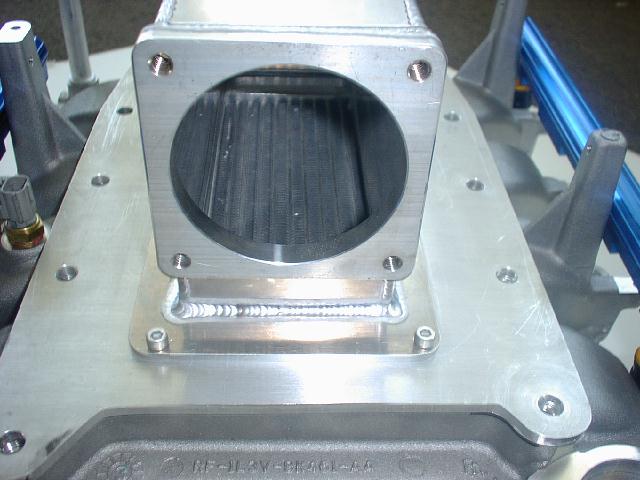

here are a few pictures of inlet manifolds setup

cheers





Attachments:
5.4boss_light%20man%202.jpg [ 65.12 KiB | Viewed 82 times ]
5.4boss-IDSC00212small.jpg [ 88.58 KiB | Viewed 155 times ]
5.4boss_thumperheaders_6_sized.jpg [ 107.79 KiB | Viewed 144 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Thu Oct 04, 2007 12:12 am
Getting Side Ways
Offline

Posts: 539

Joined: 30th Nov 2004

Location: Melbourne
VIC, Australia

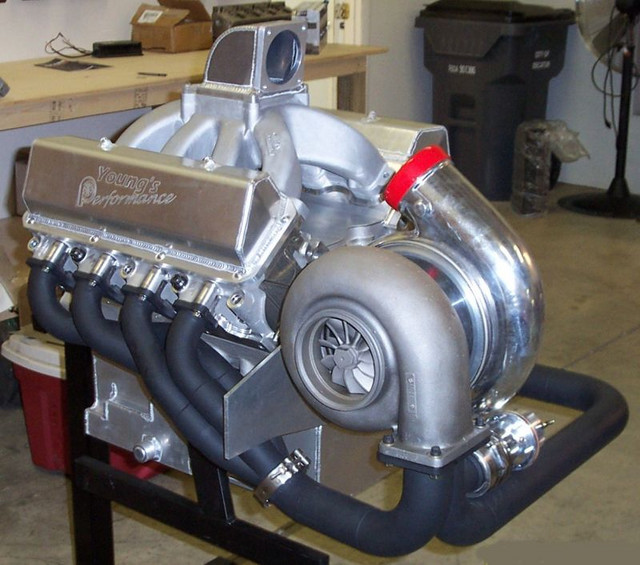

What size turbo is in that 3rd pic - loose your arm in that thing.
Top
 Profile


Posted: Thu Oct 04, 2007 6:35 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

MMD wrote:
What size turbo is in that 3rd pic - loose your arm in that thing.


HAHA that thing would have a very narrow power band!!!



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile


Posted: Thu Oct 04, 2007 6:44 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Mr.Kiss wrote:
MMD wrote:
What size turbo is in that 3rd pic - loose your arm in that thing.


HAHA that thing would have a very narrow power band!!!


LOL mmmmmmmm these guys are making 1500 to 2000 bhp and running 7 and 8 seconds , YES your right very narrow PMSFL

http://www.youngsperformance.com/index. ... ersandkits

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Thu Oct 04, 2007 7:32 pm
Stock as a Rock
Offline

Posts: 170

Joined: 10th Nov 2005

Location: Canberra
ACT, Australia

MMD wrote:
What size turbo is in that 3rd pic - loose your arm in that thing.


looks like a superthumper, sizes range from 88 thru 106++mm inducer, the biggest of the big.



_________________

http://www.TURBO351.com

2V 351T, 732rwhp@15psi on LPG.

Top
 Profile


Posted: Thu Oct 04, 2007 8:23 pm
Getting Side Ways
Offline

Age: 31

Posts: 659

Joined: 18th Mar 2005

Gallery: 2 images

Ride: WRX

Power: 132 rwkw

Location: Frankston
VIC, Australia

I have an ED you might want to strip for parts. only problem is im using it atm while my subaru is f**k, or till i sell the subaru.



_________________

Car Killer.

Top
 Profile


Posted: Tue Oct 09, 2007 2:06 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Hi

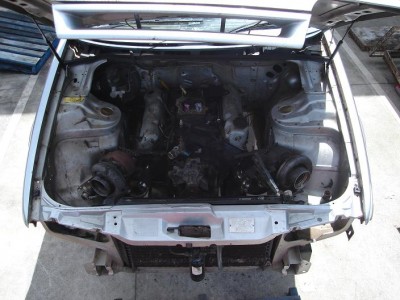

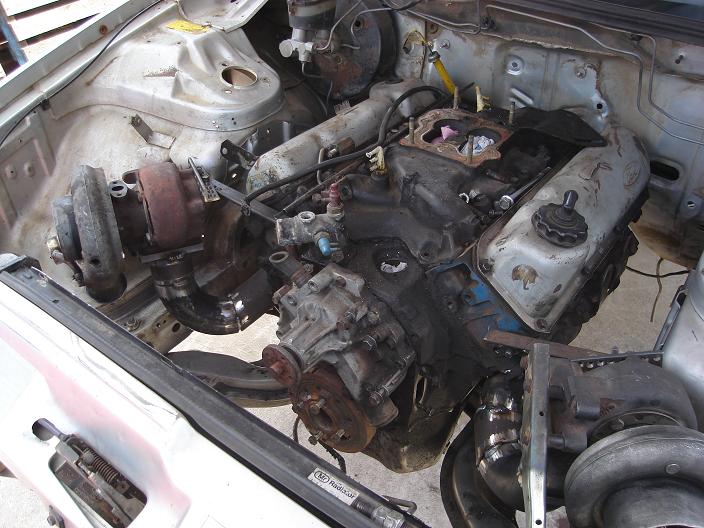

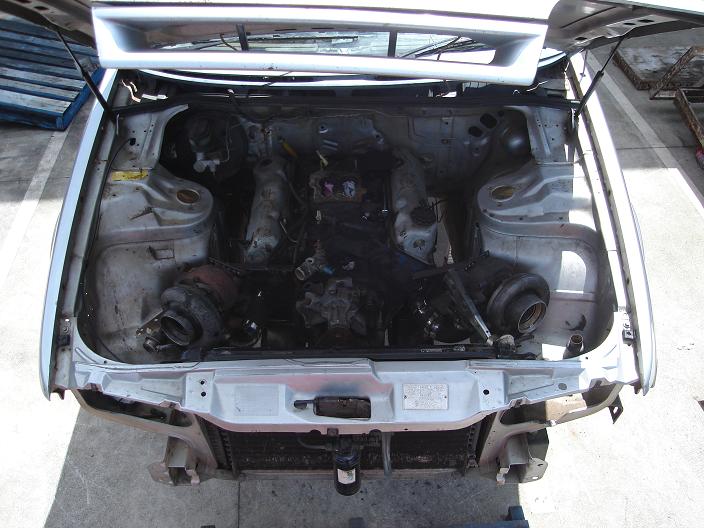

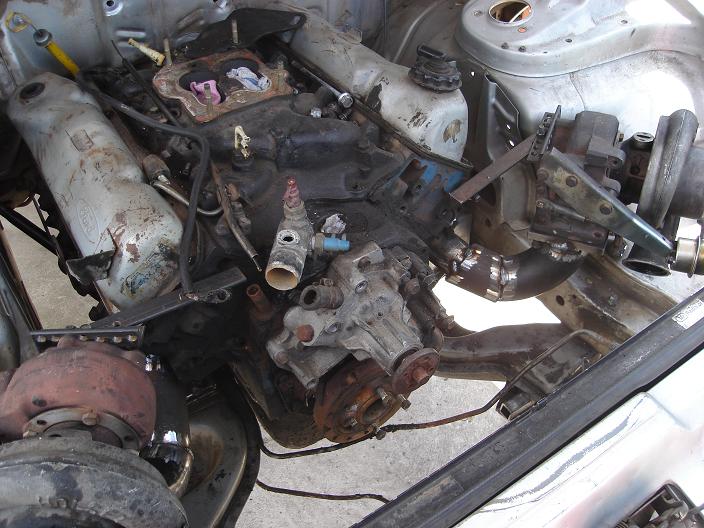

Ok the exhaust inlet side of the turbos is fabricated and tack welded

now i have to make the two three inch exhuast exit

cheers





Attachments:
DSC01039_EA.JPG [ 89.41 KiB | Viewed 554 times ]
DSC01038_EA.JPG [ 90.02 KiB | Viewed 166 times ]
DSC01037_EA.JPG [ 81.27 KiB | Viewed 208 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Tue Oct 09, 2007 2:10 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

That looks great. Looks like there is heaps of room to play with.

Good stuff. Keep the updates coming.
Top
 Profile


 Post subject: Just received my exhaust exit flanges
Posted: Sat Jan 05, 2008 1:09 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Hi

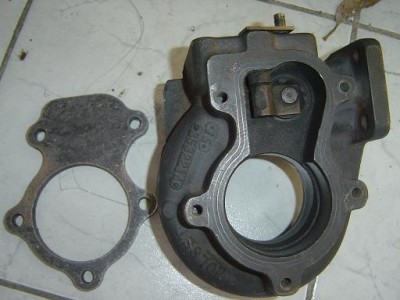

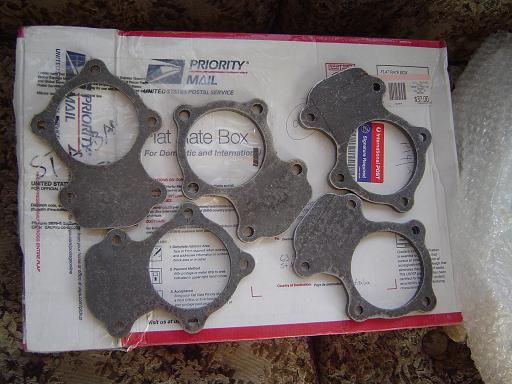

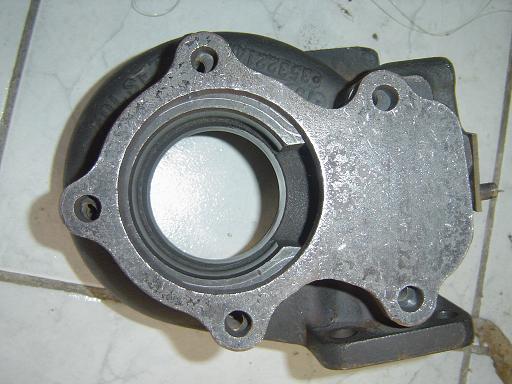

Just received my exhaust exit flanges for my turbos HX35w's, actually received five flanges ordered from the States in early December 2007.

They just arrived today via US mail via Australia Post

The five flanges cost me at a quarter of the price delivered to my door step , where here in Melbourne Victoria laser/water jet plate cutters wanted a small fortune to make some up for me.

Why five flanges ? , two V8 turbo conversions and one inline 6 cylinder setup.

With all the heat wave we have been having in Melbourne for the past few weeks and more heat on the way .

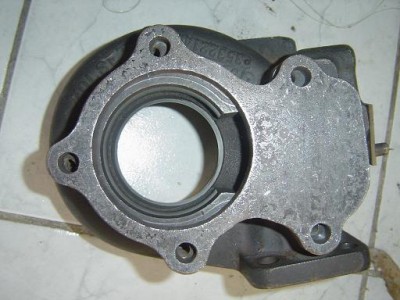

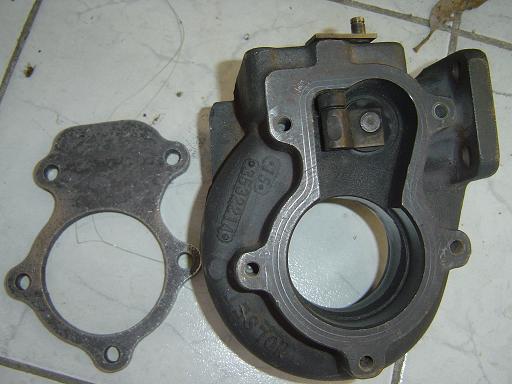

I have a few things i have to machine up. On the flange plates since I'm running a internal waste gate system i have to machine holes in the plates that just arrived for adequate waste-gate boost control of the turbos.

Will also have to increase the waste gate hole size by 2 mm , explore this later on once the engine is on the dyno if i have boost control issues.

I'm pretty sure i will have issues in this section of over boosting but tackle this issue when it arises

will also finish the 3 inch tapered to 3.5 inch dump pipes and and a huge twin 3.5 complete exhaust system , want to give this thing a go on the street also .

Back to work on the car once again.

Also fabricating a huge ice box heat exchange unit with internal water spray nozzles . Basically it is two 600*300*100mm intercoolers run in parallel inside a enclosed box that you fill up with ice .

Will post a few pictures once i have stared to weld the unit up.

Also bending up a 8 point roll cage which will be fully welded into the body structure.

2008 will be one busy year for me.

Still chase EA sedan/wagons wrecks for parts ( donation cars )

cheers





Attachments:
DSC00154m.JPG [ 44.6 KiB | Viewed 93 times ]
DSC00155m.JPG [ 42.47 KiB | Viewed 86 times ]
DSC00156m.JPG [ 35.47 KiB | Viewed 91 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Sat Jan 05, 2008 2:11 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

good stuff, this is gonna be 1 crazy ea



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Jan 05, 2008 11:58 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 556

Joined: 10th Dec 2006

Gallery: 4 images

Ride: EAII Falcon S

Location: Brisbane
QLD, Australia

its good to to see the project is going well. going by the icebox and 8 point cage its not going to be a street car, lol.. i still reckon emissions could be managed, would make an exelent sleeper. j\k ;)



_________________

Speed Safely! ;-)

Top
 Profile


Posted: Sun Jan 06, 2008 4:06 pm
Stock as a Rock
Offline

Posts: 149

Joined: 28th Sep 2007

Power: 192 rwkw

Location: kadina
SA, Australia

absolutly brilliant mate!!! i love how "outside the box" it is :D

best of luck mate its gona be awsome
Top
 Profile
