 Post subject: EA FALCON SEDAN - V8 351 cleveland C10 auto TwinTurbo
Posted: Thu Jun 28, 2007 3:57 pm
Getting Side Ways
Offline

Posts: 1655

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Hi

Just dropped a V8 Cleveland C10 Auto and a nine inch diff will be next on the program.

The motor is just sitting where the six cylinder mounts normally bolt upto. The engine is to far forward and needs to be brought back towards the rear end another two to three inches.

Up to suspending the engine and auto in the engine bay and having taken all the measurements. About to remove the K-frame and start cutting and fabricating the mounting section as to obtain more set back of the engine. Move the engine back approximately 3 inches in total

Also two turbos are going to be hanging of the exhaust manifolds with a custom plenum , fuel injection , wolf engine managment system and big intercooler.

and nick no time frame :oops:

Here are some pictures

Also need EA falcon parts for this project ONLY if there cheap or give away will consider whole cars or partly dismantled.

cheers





Attachments:

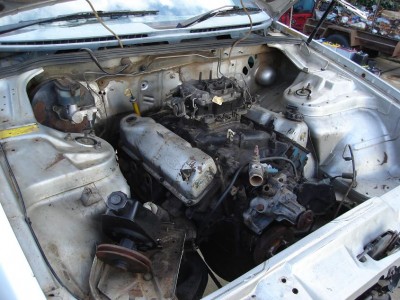

EA_V8-351C_TwinTurbo3.JPG [ 121.18 KiB | Viewed 402 times ]
EA_V8-351C_TwinTurbo2.JPG [ 72.52 KiB | Viewed 108 times ]
EA_V8-351C_TwinTurbo1.JPG [ 120.81 KiB | Viewed 162 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Thu Jun 28, 2007 4:30 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 10823

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

WOW! this could have the potential to look a lil like a "sleeper" :lol: :wink: :twisted: will be great reading the progress threads as they come.. will be keeping an eye out.. :wink: -also hopes this baby sees quater mile duties.... :wink: -good luck mate.. seems like an excellent project.... :wink:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Thu Jun 28, 2007 4:33 pm
Getting Side Ways
Offline
User avatar

Age: 26

Posts: 2288

Joined: 4th Dec 2004

Ride: '98 EL Fairmont

Location: Melbourne
VIC, Australia

Are you planning to get it road registered?



_________________


Top
 Profile


Posted: Thu Jun 28, 2007 6:12 pm
Getting Side Ways
Offline

Posts: 1655

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Hi

As far as registration goes no , probably impossible due to EPA rules and so on.

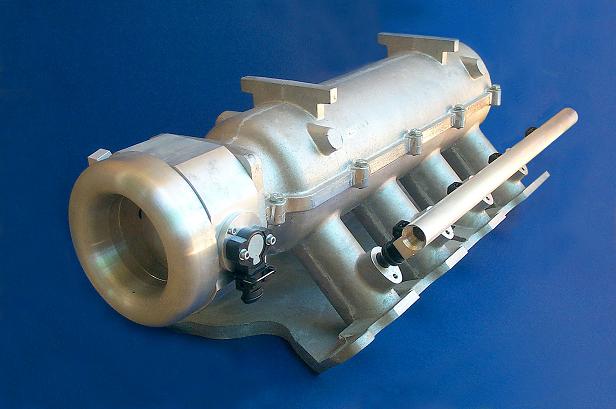

Sourced a Ford V8 351 cleveland EFI plenum wooooo not cheap :oops:

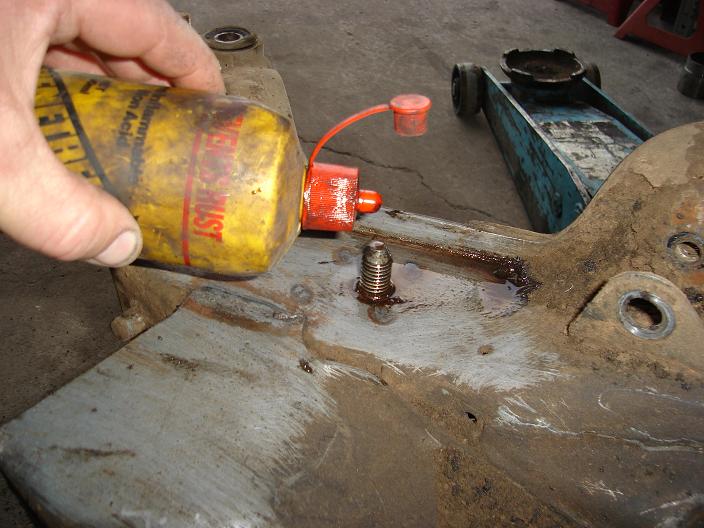

K-frame is out and the lower control arm bolts are seize in both sides in the lower control arm bushes. Tried to force them out with a decant size hammer didn't even budge them LOL

Will try and soak the bolts with penetrene solution see if that helps and then use the hammer again to drive the seized bolts out :oops: :(

cheers





Attachments:

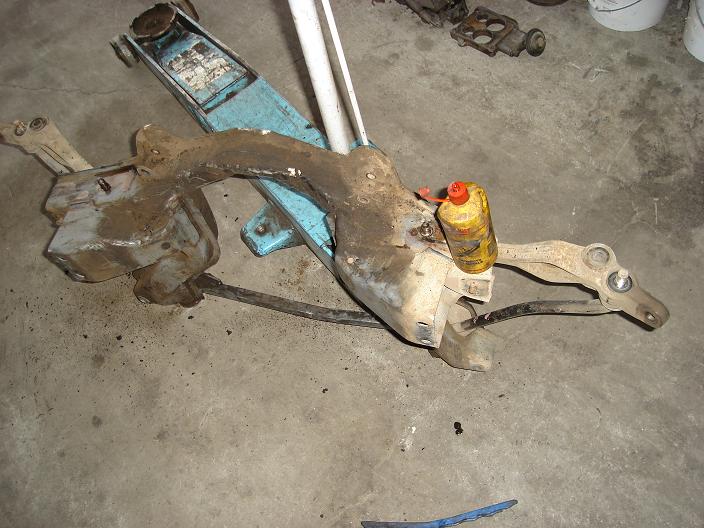

K_frame2.JPG [ 77.2 KiB | Viewed 50 times ]
K_frame1.JPG [ 81.44 KiB | Viewed 61 times ]
V8 351 cleveland EFI plenum.jpg
V8 351 cleveland EFI plenum.jpg [ 30.92 KiB | Viewed 185 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Thu Jun 28, 2007 6:52 pm
Fordmods Addict
Offline
User avatar

Age: 28

Posts: 7962

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

That manifold is f**k nice ivan, good luck.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Jun 28, 2007 7:07 pm
Getting Side Ways
Offline

Age: 30

Posts: 3403

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

What kind of parts are you after? Ive got an eb2 with no interior, cyl head, diff or suspension if you need it. Pick up only lol.
Top
 Profile


Posted: Thu Jun 28, 2007 7:14 pm
Getting Side Ways
Offline

Posts: 1655

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Dansedgli wrote:
What kind of parts are you after? Ive got an eb2 with no interior, cyl head, diff or suspension if you need it. Pick up only lol.


MMMMMM LOL now your making things tuff no suspension and diff

I need front/rear lights , bonnet , front/rear bumper bars so on.

what suburb are you in.

What actauly is missing from the front end I'm trying to establish what would it take to get it back on wheels.

PRICE ????

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Thu Jun 28, 2007 9:43 pm
Getting Side Ways
Offline

Age: 30

Posts: 3403

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Bonnet, front bar and boot lid are damaged.

Its only missing front springs and shocks and a few bolts in the front end.

Its probably not worth the effort for you. Im in bayswater.
Top
 Profile


Posted: Tue Jul 03, 2007 8:59 pm
Getting Side Ways
Offline

Posts: 1655

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Dansedgli wrote:
Bonnet, front bar and boot lid are damaged.

Its only missing front springs and shocks and a few bolts in the front end.

Its probably not worth the effort for you. Im in bayswater.


Dansedgli HOW MUCH ????


ok , did a bit more work in the last few days , couldn't get the lower control arm bolts out :oops: so had to use the oxy torch :oops: and burn the bush out and cut the bolt from both sides to save the arm . K-frame back in the car adjusting engine for clearances around the motor , rear gearbox mounts is made front engine mounts nearly finished.

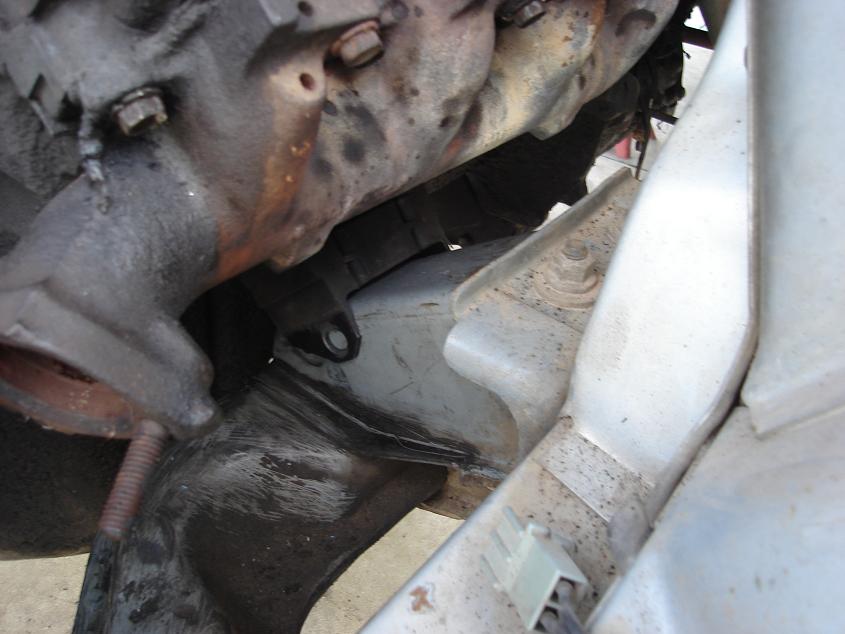

Passenger side head very close to heater hose outlet/inlet. Engine is set back as far as possible.

Just had enough room to fit a clapper starter motor , rack&pinion coupling is extremely close . Do have some room to play around with this tho.

Next few days i should also have the turbos hanging of the exhaust manifolds.

Hopefully will have a mount kit avaliable for people interested in doing such a engine swap.

Will have to investigate a hi_torque starter motor for a cleveland , compact and a reduction gearbox setup so have ample torque to start the motor. Just depends on the price of one :oops: . Will get a price of these guys tommorow http://www.enginecentre.com.au/starters-ford.html


STILL CHASING EA EB ED PARTS OR COMPLETE CARS CONDITION NOT IMPORTANT

cheers





Attachments:
HI_TORQ.jpg [ 33.33 KiB | Viewed 45 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


 Post subject: Open heart surgery - Cleveland 2bbl 2V inlet manifold gutted
Posted: Fri Jul 13, 2007 2:07 pm
Getting Side Ways
Offline

Posts: 1655

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

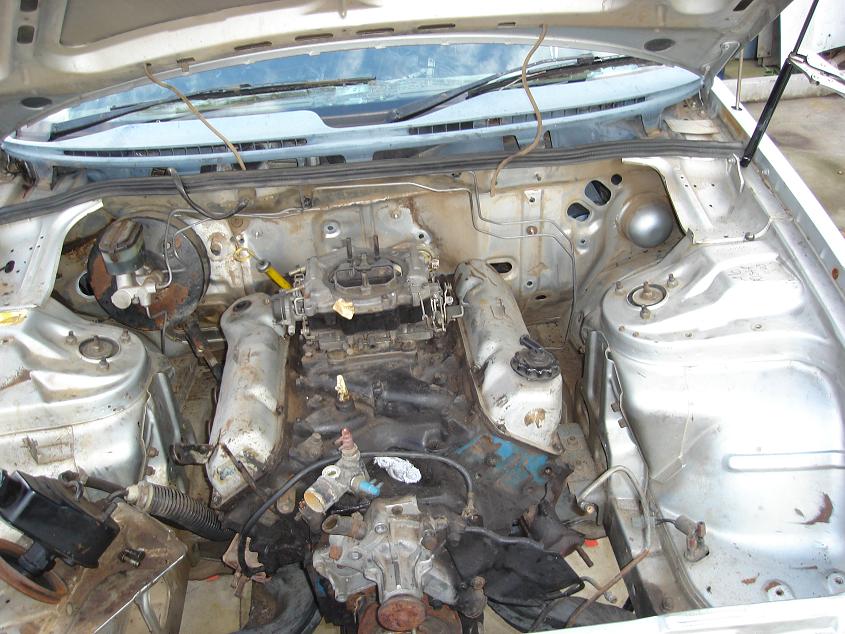

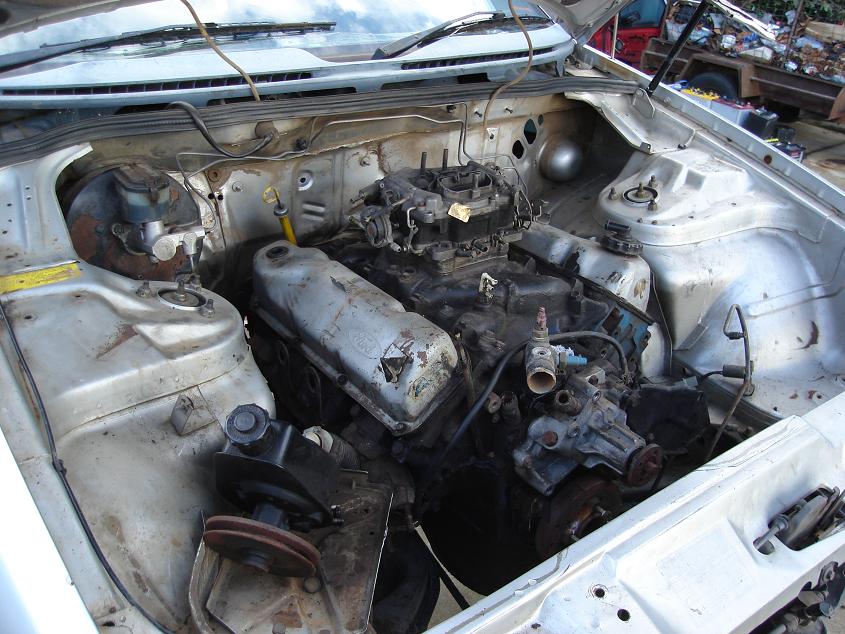

Cleveland is finally mounted , with all the right clearances.

Actually more room in a EA falcon than a XE falcon .

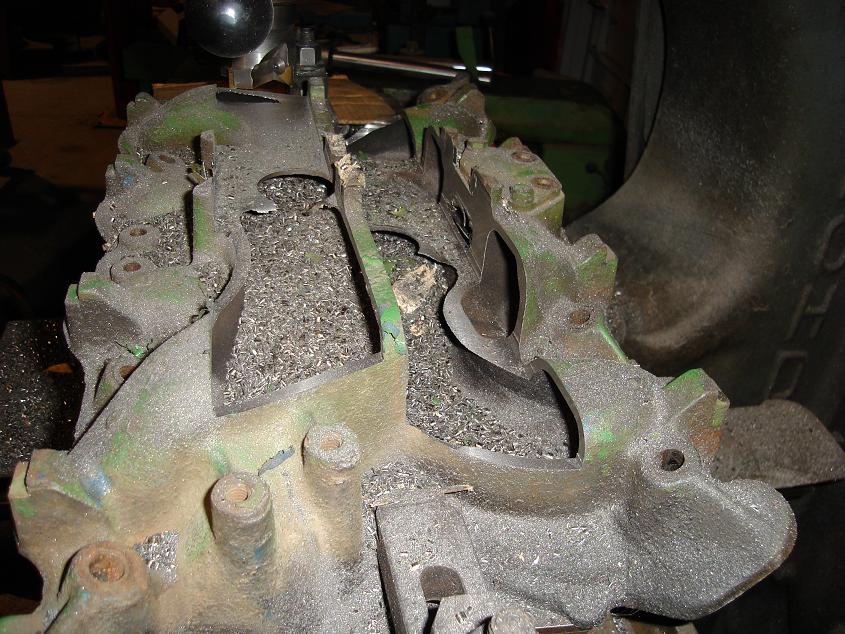

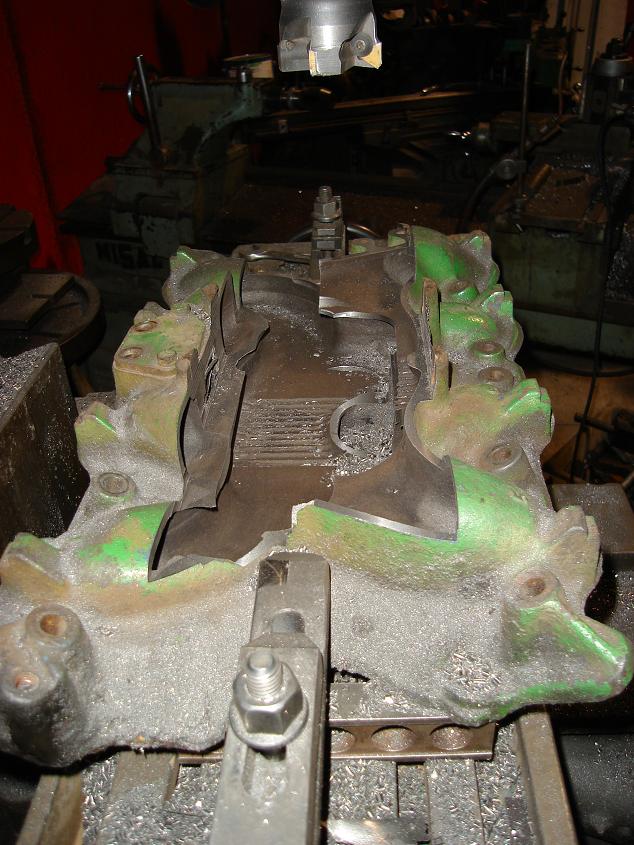

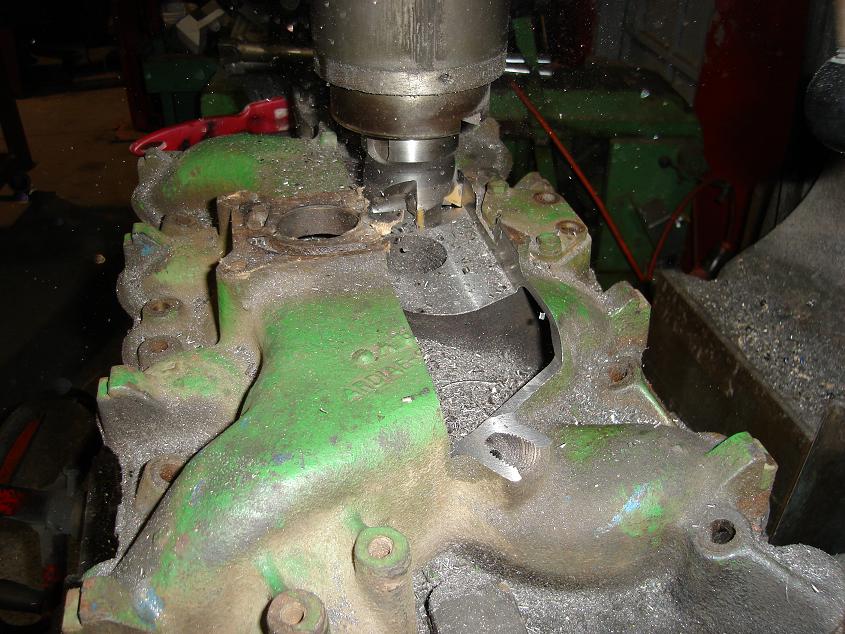

Open heart surgery - Cleveland 2bbl 2V inlet manifold gutted out.

Will make up some internal same length trumpets and box them of with a plenum and incase the lot with a twin throttle body setup at the front.

The top of the plenum will be removable ( bolt on ) for access purposes
lets see what happens.

cheers





Attachments:
DSC00873_clevo1.JPG [ 121.83 KiB | Viewed 57 times ]
DSC00875_clevo2.JPG [ 133.48 KiB | Viewed 59 times ]
DSC00882_clevo3.JPG [ 113.37 KiB | Viewed 54 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Fri Jul 13, 2007 2:34 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 556

Joined: 10th Dec 2006

Gallery: 4 images

Ride: EAII Falcon S

Location: Brisbane
QLD, Australia

that is mad! i see the pics but its hard to belive cos everyone knows a clevo cant fit, lol

FPV_GTp wrote:
Hi

As far as registration goes no , probably impossible due to EPA rules and so on.

Sourced a Ford V8 351 cleveland EFI plenum wooooo not cheap :oops:


if the car has rego, just keep it registered.. clevlands dont pass EPA tests cos they arent EFI, but with EFI & twin hi-flo cats it would no problem imo.

good luckwith the project :d



_________________

Speed Safely! ;-)

Top
 Profile


Posted: Mon Jul 16, 2007 11:40 am
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 3515

Joined: 5th Nov 2004

Gallery: 25 images

Ride: 93 Maverick LWB/S2 LWB Delica

Power: 75 rwkw

Location: uoʇǝlƃuıs lʍoq ʇsnp
NSW, Australia

Redford wrote:
that is mad! i see the pics but its hard to belive cos everyone knows a clevo cant fit, lol


:D Heaps of people have fitted Clevos to EA's etc. "Pierced1" has one fitted to an EA sedan (appears to be registered?) and "66 coupe" has one in a EA wagon Link to posts about both.

Of course there is others, some are just a POS and others have made it to magazines etc, there used to be a soggy suspension POS looking EA in Newcastle fitted with a Cleveland.

But I have never seen an EA fitted with a Clevo and turbos, now that is a bit different, now has anyone fitted a big block to an E series?



_________________

93 Ford Maverick LWB automatic petrol guzzler (gets stuck where Deli doesn't, big pumpkins :evil:)
97 S2 Mitsubishi Delica LWB (off the road getting v8 transplant)

Top
 Profile


Posted: Mon Jul 16, 2007 5:44 pm
Getting Side Ways
Offline

Posts: 1655

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

Hi

Macca thanks , yes nice job pierced1,
the guys have done on the forum. http://www.fordmods.com/forums/viewtopi ... 681#683681

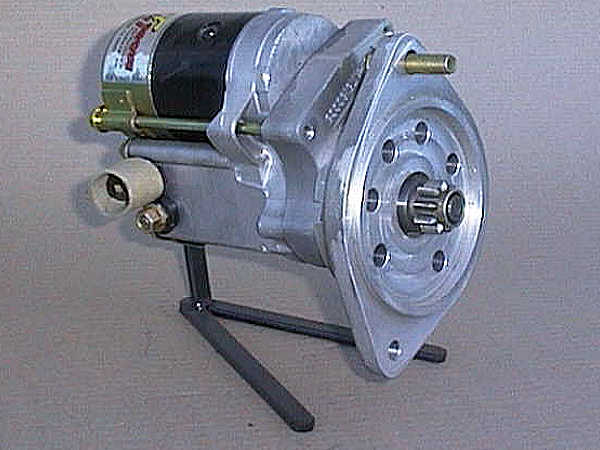

Just got a quote for a small reduction starter motor $295-oo plus GST plus freight from http://www.enginecentre.com.au , picture is IHI-106 http://www.enginecentre.com.au/images/imi-ford-s.jpg which has been replace now with a IHI-906 .
The starter motor is half the size , have the weight and double the torque of you standard cleveland starter motor.

Just toying with the Inlet manifold i have gutted out. Exploring all different possibilities i can make a plenum . Need volume in the plenum which will make it large.

Whether i go with a rectangular or a cylindrical shape we see .

Might have to give the twin throttle body idea away and just put some 90 to 100mm single throttle body on.

Injector bosses on the cleveland manifold just at the end of the port of the runners on the manifold only allow one to point the injectors straight down into the floor of the port entry. Not a very good idea , ideally the flow parth should follow the contours of the cylinder head port flow aimed about the center of the inlet valve.

May have to explore the idea of mounting the injectors in the side of the plenum the right side point into the left side of the inlet port and the left side pointing to the right side inlet port.

Another option is mount the injectors on the top of the plenum pointing into the trumpets inside the plenum like the F1 cars do theirs.

a lot of d**k around mmmmmmmmmmm for just a cleveland.
