EFFalcon wrote:
Bomber wrote:
Ok heres a few bits ive come up with but gives a visual aid.


sorry... who came up with? :P

Ha ha alright credit goes to john for them :D



_________________

1992 EBII 5L Fairmont Ghia Wagon
1999 XR6 6 Speed manual
Build Thread

Top
 Profile


Posted: Mon Apr 30, 2007 8:14 pm
Smokin em up
Offline
User avatar

Posts: 296

Joined: 18th Mar 2005

Gallery: 2 images

Ride: BA XR6

Location: Melbourne
VIC, Australia

Hey kewl...yea that looks like the work of JRT in Perth, I have a write up on a blue 11sec ELXR6 he worked on, with 404 rwkw's using a 2300 SRM screw type supercharger, and I know he uses water cooling also to cool down the actual supercharger, its incorporated in the mounting bracket he made up, very neat setup, not cheap also... :-) also noted he changed the position of the power steering pump... thats the area Im lookin at setting up the M90 if the manifold doesnt work out..



_________________

Denim (BAXR6) nothin like a couple of Eaton M90's on, to show whos BOSS....

Top
 Profile


Posted: Mon Apr 30, 2007 9:55 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 654

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AU XR6

Location: Mulgrave
VIC, Australia

Also I found a niffty file on sprintex's web site give you an idea on literage airflow rpm of a supercharger for you specific application and power figures.





Attachments:
Blower_Calculator.xls [255.5 KiB]
Downloaded 117 times



_________________

1992 EBII 5L Fairmont Ghia Wagon
1999 XR6 6 Speed manual
Build Thread

Top
 Profile


Posted: Thu May 03, 2007 7:28 pm
Smokin em up
Offline
User avatar

Posts: 296

Joined: 18th Mar 2005

Gallery: 2 images

Ride: BA XR6

Location: Melbourne
VIC, Australia

Thanx for that Bomber, I think I may have some quite interesting news about the M90, I found out past couple of days, which, I have to experiment with, Im waiting on parts from the U.S. , and if all goes well, and my cost isnt too high, because a bit of machining has to be done, then I may end up with an M90 giving similar figures to the M112, this came from a particular person in the U.S. who deals with them, and claims a 24% increase with the modifications... (fingers crossed here..:-) ) soon find out, damn I hate this waiting...



_________________

Denim (BAXR6) nothin like a couple of Eaton M90's on, to show whos BOSS....

Top
 Profile


Posted: Thu May 03, 2007 9:31 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

is this the radiusing of the inlet/outlet mod?



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri May 04, 2007 12:37 am
Smokin em up
Offline
User avatar

Posts: 296

Joined: 18th Mar 2005

Gallery: 2 images

Ride: BA XR6

Location: Melbourne
VIC, Australia

:D .... no... even tho that does make a improvement... I'd rather not go into it as yet.. simply because I am spending money on this, but it is parts being put onto it, to make it a lot more efficient, and as always, the prototype is the one that costs the most... plus I dont want no one using my ideas and hard work.. Im placing into it.. :) ... I gotta make SOMETHING outta this.... lol...



_________________

Denim (BAXR6) nothin like a couple of Eaton M90's on, to show whos BOSS....

Top
 Profile


Posted: Sat May 05, 2007 4:00 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

im currently working on a design for an intake manifold to fit an eaton M112 (EX 2003/2004 mustang cobra) onto an EF - AU falcon, ill draw up some diagrams and post them tommorow.

it'l probably turn into another one of my "gonna do" projects, but hey, my design may spur you on a bit.



_________________

Because i can.

Top
 Profile


Posted: Sat May 05, 2007 11:34 pm
Smokin em up
Offline
User avatar

Posts: 296

Joined: 18th Mar 2005

Gallery: 2 images

Ride: BA XR6

Location: Melbourne
VIC, Australia

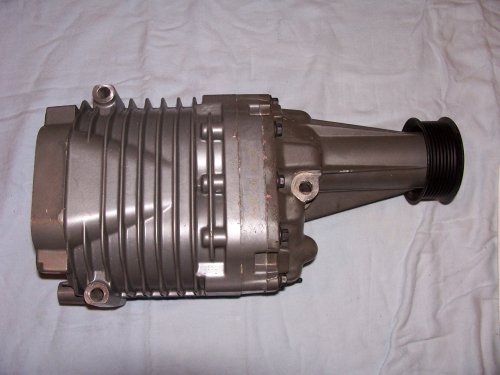

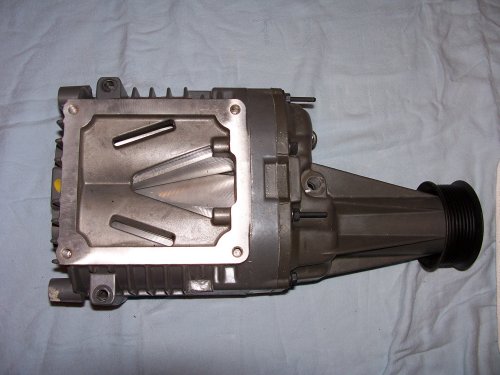

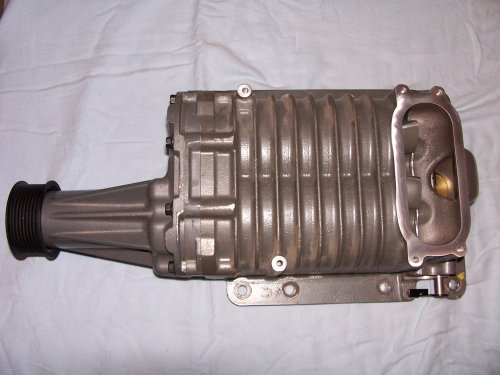

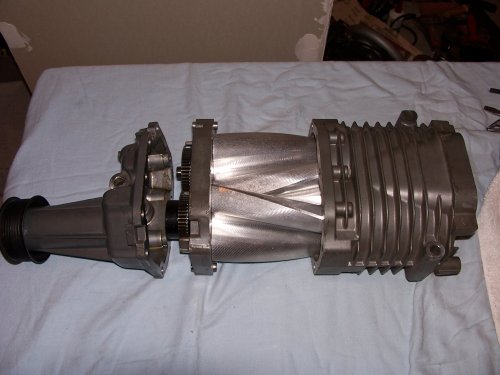

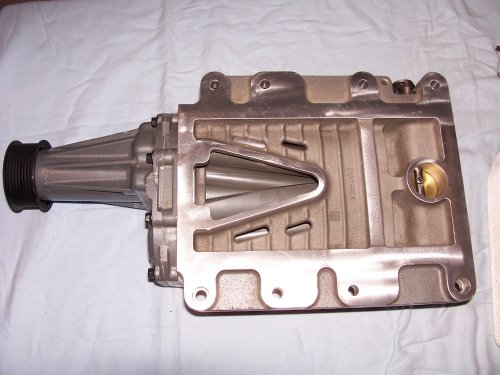

:D ... thats kewl mate.. would be interesting to see, its great to see others ideas, heres some pics of the M90 and M112 I have, I pulled one of the M90's apart so I could get some work done to it, Im gonna be concentrating a lot on the M90 as I believe it has a lot of potential, set up right, I have seen Dyno figures of one against a Vortex, fitted on a V8, the same car, it was quite impressive, and it'll also be cheaper to set up an M90, to a M112, but, not to say I wont also be doing work to the M112, because theyre great also, setup right... :) but because of my job, the progress wont be all that quik, just have to be patient I guess.... 8-)





Attachments:
M90Apart.JPG [ 30.82 KiB | Viewed 81 times ]
M90Under.JPG [ 31.95 KiB | Viewed 81 times ]
M90Top.JPG [ 29.84 KiB | Viewed 77 times ]
M112Under.JPG [ 35.86 KiB | Viewed 83 times ]
M112Top.JPG [ 33.13 KiB | Viewed 69 times ]



_________________

Denim (BAXR6) nothin like a couple of Eaton M90's on, to show whos BOSS....

Top
 Profile


Posted: Sun May 06, 2007 10:17 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

hmmm, im kinda stuck at the moment, i went out and measured up my engine bay - and i really dunno how im gonna fit in an eaton SC and a W2A intercooler without modifying the bonnet, fuel rail means the SC has to sit high up, which means the bonnet is in the way, and the dizzy means i cant mount the injectors and fuel rail on the underside.

im going to make a carboard mockup of an M112 to see if i can get it to fit in on an angle. (or maybe even on its side) also yella terra make all sorts of drive snouts for the eaton SC's if you need a different length one



_________________

Because i can.

Top
 Profile


Posted: Sun May 06, 2007 11:07 pm
Smokin em up
Offline
User avatar

Posts: 296

Joined: 18th Mar 2005

Gallery: 2 images

Ride: BA XR6

Location: Melbourne
VIC, Australia

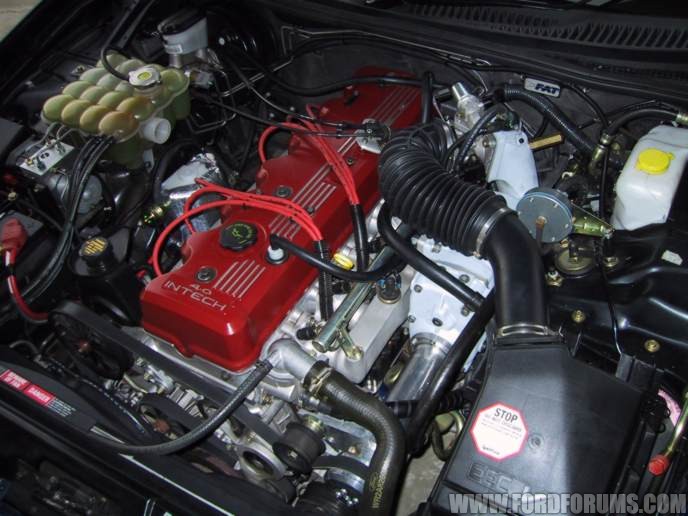

I think you will find, an M90 will fit the inlet side of the motor, but the M112 will have to be the other side, cause thats where you have the room for it without modifying the bonnet, the M112 is quite large, and its bad enough trying to fit an M90 on the inlet side let alone an M112, take a look at the pic further up the page to see what I mean, all the M112's Ive seen installed were on the exhaust side... heres a pic of a M90 installed to the inlet manifold.. I cant recall where I picked up this pic...



_________________

Denim (BAXR6) nothin like a couple of Eaton M90's on, to show whos BOSS....

Top
 Profile


Posted: Sun May 06, 2007 11:10 pm
Smokin em up
Offline
User avatar

Posts: 296

Joined: 18th Mar 2005

Gallery: 2 images

Ride: BA XR6

Location: Melbourne
VIC, Australia

A pic of a M90 installed...





Attachments:
1031ford1.jpg [ 86.84 KiB | Viewed 215 times ]



_________________

Denim (BAXR6) nothin like a couple of Eaton M90's on, to show whos BOSS....

Top
 Profile


Posted: Mon May 07, 2007 12:17 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Denim wrote:
A pic of a M90 installed...


LOL, what did you do just link that from the first picture on the first page of this thread?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon May 07, 2007 9:24 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 654

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AU XR6

Location: Mulgrave
VIC, Australia

The only problem with mounting the m90 like above is that the intake manifold is limited in flow and space, I think it would be robbing the system of power looking at the first few pics.



_________________

1992 EBII 5L Fairmont Ghia Wagon
1999 XR6 6 Speed manual
Build Thread

Top
 Profile


Posted: Mon May 07, 2007 9:21 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

That manifold has two 90 degree points. the only two combustion chambers benefiting from it is 3 & 4.


it would be more beneficial having one of these free standing units. that way you still could use the factory BBM & T/B in place.

http://cgi.ebay.com.au/SUPERCHARGER-EAT ... dZViewItem



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Last edited by Slick on Mon May 07, 2007 9:30 pm, edited 1 time in total.

Top
 Profile


Posted: Mon May 07, 2007 9:29 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

M90 and M112 (well atleast the standard one - not the OEM ones) are practicly the same size.

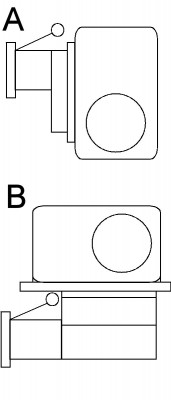

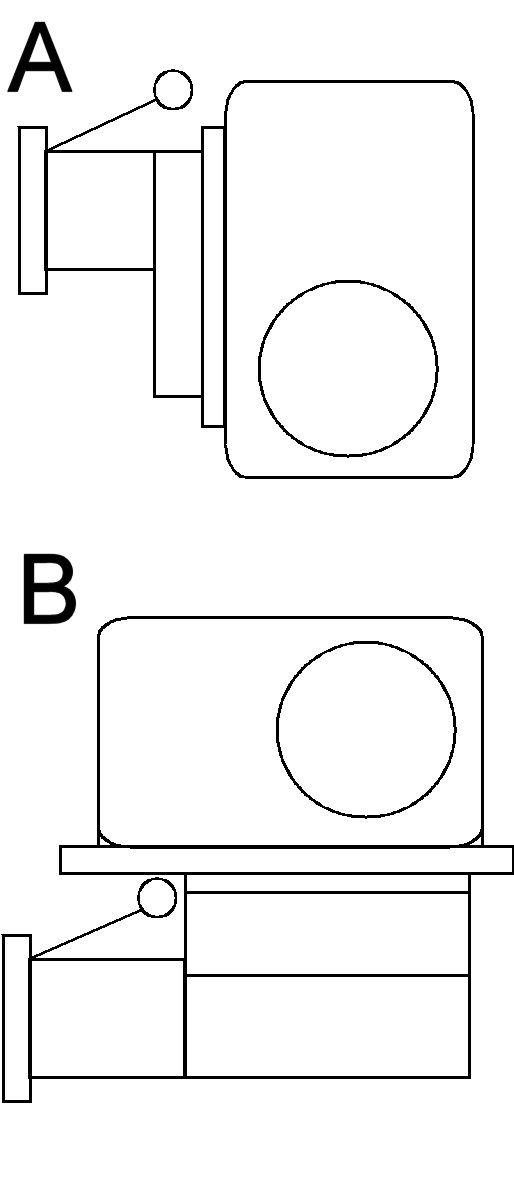

i went outside today with my cardboard supercharger and mocked up some mounting positions i came up with two possibilities:

Possibility A fits under the bonnet, but is pretty much the same as the s**t one someone posted earlier - this should work with M90 or M112 (not the taller one from the F150 lightnening trucks)

possibility B allows for an water to air intercooler, but doesnt fit under the bonnet, also its not as restrictive - im looking at doing mine this way with an 03/04 cobra supercharger

(both drawings are badly out of scale, but give you the idea)
