 Post subject: EF/EL Intercooler Sizes
Posted: Thu May 12, 2011 8:08 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

Hi guys,

Just wondering what size intercoolers people have jammed into the front of their EF/ELs?

What's the biggest that can squeeze in there without (too much) trimming of the bumper bar or other modifications?

Photos would be nice as well.

Cheers,
Nic



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Fri May 13, 2011 8:17 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

Anyone??

Okay, from what I have seen 600 x 300 x 76 will fit.

Any takers on 600 x 300 x 100?



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Fri May 13, 2011 8:26 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Frittz has a monster sized one behind his bar.

600 * 300 * 100 will fit easy enough.
Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Fri May 13, 2011 8:30 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Fritzz core is 610 x 300 x 109


Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sat May 14, 2011 9:43 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

Awesome, thanks for that Dan.

Frittz' cooler fills that bar right up doesnt it! :shock:



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sat May 14, 2011 9:10 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 430

Joined: 21st Jan 2008

Ride: ef XR6t

Location: noosa
QLD, Australia

Mines a 600x300x76 and I had to relocate my horns off the rio bar up just in-between my headlights. And all I had to cut off my bar is the upper section of the lower lip on the mouth, mines got an el xr front bumper. Cut about 1 and 3/4 inch in depth. Looks pretty tidy still.
Cheers,
Corbin



_________________

Just Falcon Around.
EF xr6t
Garrett gt3582r, 6 boost manifold, turbosmart 50mm gate, microtech ltx-12s, eboost, 044, 60lb siemens deka, 3.45 Tru Trac. 333.4rwhp@12psi Tuned by P.I.T.S

Build Thread
http://www.fordmods.com/the-garage-f53/ef-turbo-build-t103080.html

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sun May 15, 2011 6:59 pm
Smokin em up
Offline

Age: 29

Posts: 200

Joined: 7th Apr 2007

Gallery: 19 images

Ride: XR6 XH Ute

Location: Narre Warren Sth.
VIC, Australia

I have a 600X300X115 cooler on my Xh (pretty similair front) and although i cut the front off my bumper. It would of easily fit behind the bumper.

Ben
Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sun May 15, 2011 7:13 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

Corbin, Ben,

Thanks for the replies guys.

Do either of you have photos?

Did either of you have to modify the reo in the back of the bumper at all to get them to fit? (Ben, by the sounds of it, you have taken everything out, yes?)



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sun May 15, 2011 8:21 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 430

Joined: 21st Jan 2008

Ride: ef XR6t

Location: noosa
QLD, Australia

nicco wrote:
Corbin, Ben,

Thanks for the replies guys.

Do either of you have photos?

Did either of you have to modify the reo in the back of the bumper at all to get them to fit? (Ben, by the sounds of it, you have taken everything out, yes?)


nope didnt modify the rio bar at all. mine still has A/c condenser and receiver dryer and everything, horns are the only thing i had to relocate.

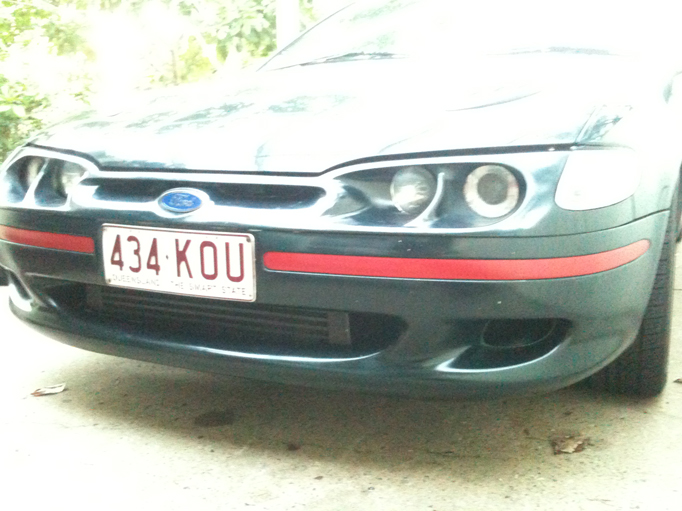

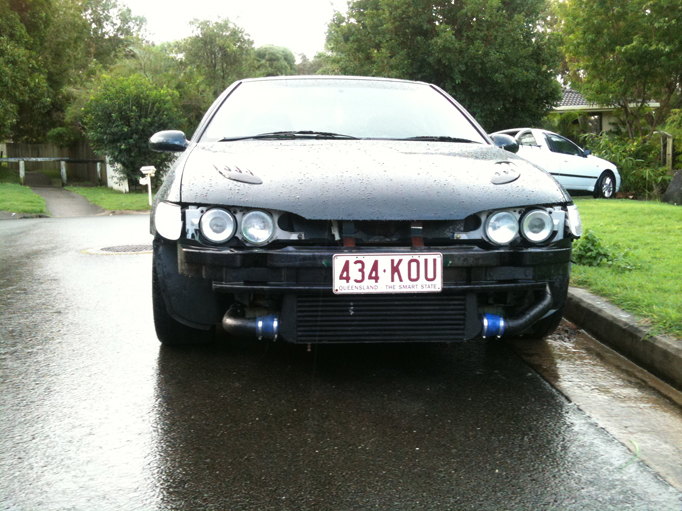

ive got these 2 pics but i dont have a pic of the bar itself when it was off





Attachments:
IMG_0531.JPG [ 237.4 KiB | Viewed 104 times ]
IMG_0518.JPG [ 333.87 KiB | Viewed 139 times ]



_________________

Just Falcon Around.
EF xr6t
Garrett gt3582r, 6 boost manifold, turbosmart 50mm gate, microtech ltx-12s, eboost, 044, 60lb siemens deka, 3.45 Tru Trac. 333.4rwhp@12psi Tuned by P.I.T.S

Build Thread
http://www.fordmods.com/the-garage-f53/ef-turbo-build-t103080.html

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Thu May 19, 2011 10:06 am
Smokin em up
Offline

Age: 29

Posts: 200

Joined: 7th Apr 2007

Gallery: 19 images

Ride: XR6 XH Ute

Location: Narre Warren Sth.
VIC, Australia

Hey

Yer I cut the reo. It's still there and sort of structual but the bumper no longer uses it for support.

I only had to relocate the horns. all the ac gear is still in place.



Cheers
Ben
Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sun May 29, 2011 3:40 am
Parts Gopher
Offline

Age: 42

Posts: 82

Joined: 21st Feb 2010

Ride: FG XR6 TURBO

Location: BLACKTOWN
NSW, Australia

mate there are heaps of pics on here u will need to trim your bumper a bit to have a snug fit just have a go use som of the pics on here as a guide .................



_________________

BANNED

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Fri Jun 17, 2011 2:51 pm
Fordmods Newbie
Offline

Age: 47

Posts: 2

Joined: 17th Jun 2011

Ride: ford falcon ef series two

Location: blue mountains
NSW, Australia

surly this cant be legal wheres the rest of the bumper,what if u have a crash buddy ..personaly id hide my intercooler as much as posible so as car thiefs dont know what in the car :idea: ....nice pictures though
Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sat Jun 18, 2011 10:12 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 430

Joined: 21st Jan 2008

Ride: ef XR6t

Location: noosa
QLD, Australia

boostedmustang161200 wrote:
surly this cant be legal wheres the rest of the bumper,what if u have a crash buddy ..personaly id hide my intercooler as much as posible so as car thiefs dont know what in the car :idea: ....nice pictures though


The more it's hidden the less airflow will pass through the cooler, defeating the purpose of it. As for car thiefs.... That's what kill switches/immobilisers are for haha



_________________

Just Falcon Around.
EF xr6t
Garrett gt3582r, 6 boost manifold, turbosmart 50mm gate, microtech ltx-12s, eboost, 044, 60lb siemens deka, 3.45 Tru Trac. 333.4rwhp@12psi Tuned by P.I.T.S

Build Thread
http://www.fordmods.com/the-garage-f53/ef-turbo-build-t103080.html

Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sun Jun 19, 2011 10:34 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Wouldn't butchering the reo like that render your airbag useless?
Top
 Profile


 Post subject: Re: EF/EL Intercooler Sizes
Posted: Sun Jun 19, 2011 11:11 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i recon the intercooler would act like a reo and absorb some on the impact pressure in an accident anyway...
