 Post subject: EF fairmont turbo with Megasquirt
Posted: Wed Apr 30, 2008 10:58 pm
Parts Gopher
Offline

Age: 39

Posts: 55

Joined: 21st Apr 2008

Ride: anything with a engine

Location: Gold Coast
QLD, Australia

Here are some pic's of my brothers EF turbo. I have just finished fitting the Megasquirt. My brother did all the fabrication work and I did the electronics. At the moment there is no intercooler but the plan is to fit water/methanol injection. The pipe work still needs cleaning, painting and polishing.

The megasquirt controls the factory coil packs and I made an adaptor loom so the megasquirt just plugs into two plugs in the engine bay. I mounted the megasquirt in the glovebox for easy access. I drove it around the block for the first time tonight with just the base settings in the megasquirt and it drove quite well considering no tuning has been done.





Attachments:

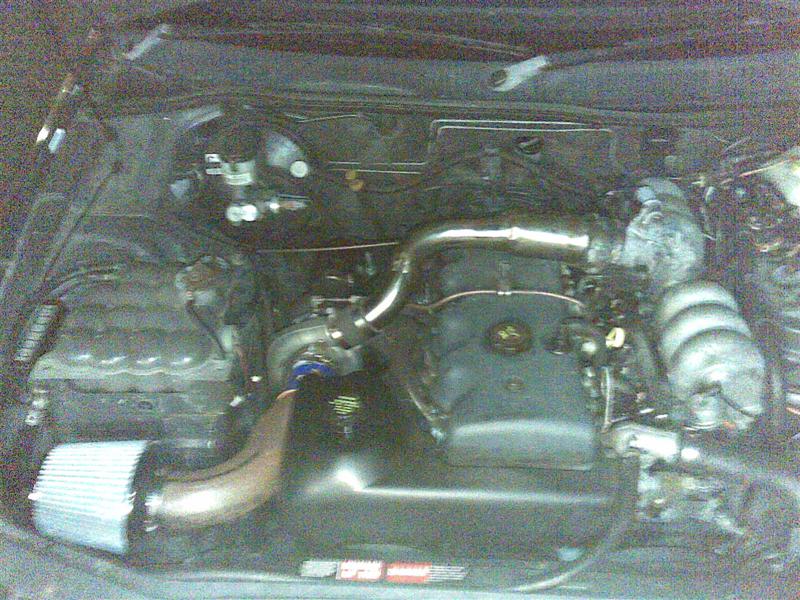

File comment: Engine Bay
30042008(001).jpg [ 120.4 KiB | Viewed 81 times ]

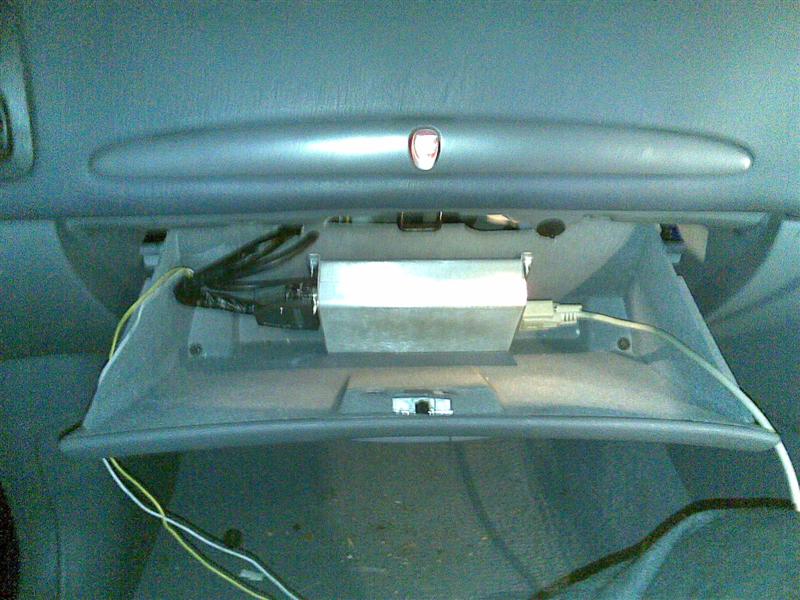

File comment: GloveBox mounting.
30042008.jpg [ 85.99 KiB | Viewed 76 times ]
