Hi Fellas,

I'm wanting to fit a Walbro GSS342 (basic walbro intank) to the cradle for my AU sedan (see attached pics).

I took it to my mechanic yesterday and he's not happy to go this way due to the standard fuel pump outlet/hose arrangement. As you can see its different from E-series...the pump outlet turns 90 degrees immediately, before the hose does some funky bends and joins the top of the cradle.

To make the walbro fit, even with outlet lined up as best possible with cradle top outlet, the fuel line will bend too much and kink.

Has anyone fitted the walbro inside the standard AU cradle, and preferably has some pics? Would be very helpful. At this stage I'm going to exchange this for an external walbro and keep the standard in-tank pump, which is not an ideal solution.

Cheers,

Joe





Attachments:

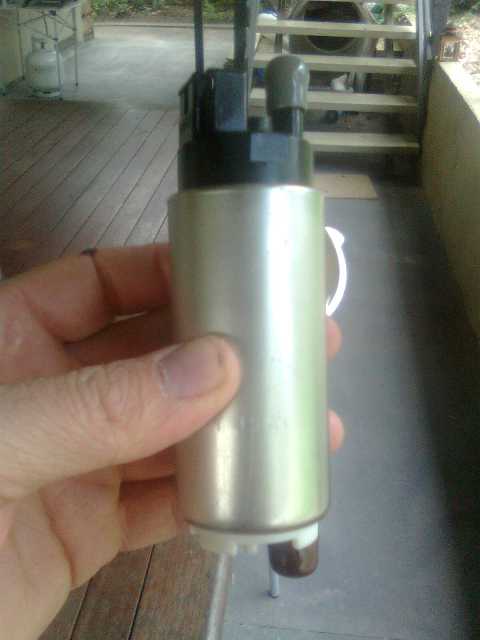

Walbro GS342.jpg
Walbro GS342.jpg [ 19.83 KiB | Viewed 65 times ]

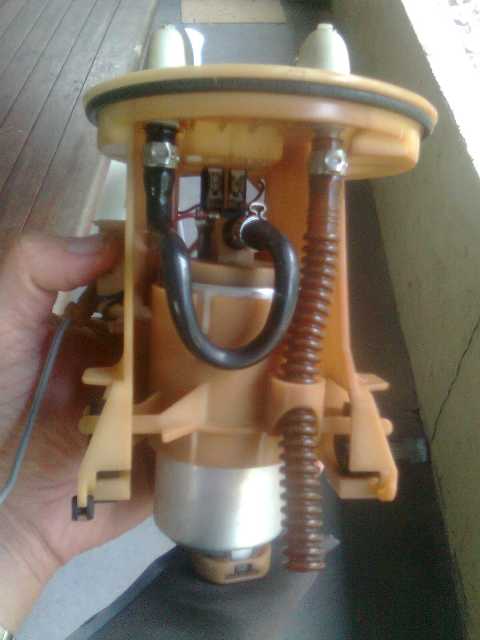

Fuel Pump Cradle 2.jpg
Fuel Pump Cradle 2.jpg [ 21.34 KiB | Viewed 61 times ]

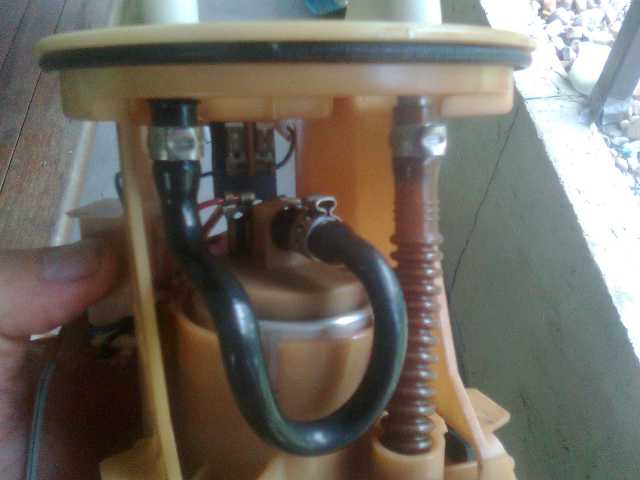

Fuel pump cradle.jpg
Fuel pump cradle.jpg [ 21.83 KiB | Viewed 71 times ]
