Fordmods Logo

fitting intercooler to EB



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next


 Post subject: fitting intercooler to EB
Posted: Wed May 19, 2010 4:10 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

i'm fitting a 600x300x75 inter cooler to my eb fairmont. I have the el ac condenser in it so the reciever dryer is off to the passenger side. I'm after peoples opinions/pic's/ experience as to how i can go about it with out having more than half the intercooler exposed. I don't wanna chop most of the bar away. Should i try get an inter cooler that is taller and narrower so it misses my reciever dryer and so the cooler is close to the condenser?
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Wed May 19, 2010 4:18 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Look up what Misk did on boosted. His is hidden but he cut heaps of metal work.

I'd personally go a 450 by 300 by 75 core in an EA-ED with the stock bar. Cut the metal to clear the pipes and it is very well hidden.

Bit small though.
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Wed May 19, 2010 4:24 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

cheers. When you did yours, did you have air con? I'm not sure if a 450x 300 will be enough for a twin turbo?
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Wed May 19, 2010 4:31 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

eboost wrote:
cheers. When you did yours, did you have air con? I'm not sure if a 450x 300 will be enough for a twin turbo?


I took the aircon out in one of my cars. In another the receiver dryer thing was moved to under the drivers side guard. Its easy to move and get new hoses made.

Is the EL bottle attached to the side and in front of the radiator on the passenger side or is it under the guard?

If its still between the headlights your not going to have much luck I dont think.

I think the 450 core is too small but people still make 300rwkw+ on XR6T's with them so it might do the job if its tuned well.

You could always have a custom core made thats a bit thicker too. Its pricey but it would help.

If i turbo another E series this is the main reason I'd get an EF. :P
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Wed May 19, 2010 5:12 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

sweet. Yeah i might move the reciever dryer. It's currently on the left side of the radiator. I think it's harder for me to make new lines tho as on the eb's they're threaded and on the el setup, they use an oring. Maybe i can machine up new fittings that real on the o ring and go to a speed flow fitting. But will braided hose be ok for ac gas? What hose did you use?
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Wed May 19, 2010 5:18 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

sweet. Yeah i might move the reciever dryer. It's currently on the left side of the radiator. I think it's harder for me to make new lines tho as on the eb's they're threaded and on the el setup, they use an oring. Maybe i can machine up new fittings that real on the o ring and go to a speed flow fitting. But will braided hose be ok for ac gas? What hose did you use?
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Wed May 19, 2010 5:21 pm
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

The lines were steel in mine.
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Wed May 19, 2010 5:23 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

oops triple post. So you just bent some steel hose and made threaded fittings? Can i use braided line?
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Sat May 22, 2010 4:11 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

so how can the AC be modified? Are the lines out of the condenser steel? Are they weldable? i need to relocate my reciever dryer, so is it possible to weld new pipe to the condensor?
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Sat May 22, 2010 4:58 pm
Getting Side Ways
Offline
User avatar

Posts: 807

Joined: 28th Oct 2008

Location: melburn
VIC, Australia

if you are sticking with the 600x300 you only have 2 options
either have the piping down the bottom, which leaves alot of the pipe and cooler exposed
or flip it up to have the pipes ontop like i did.
i didnt cut much metal, no worse than cutting holes in the gaurds for the pipe to go through...

you need to cut the headlights also, but again not the end of the world.





_________________

XG Panelvan
mild engine, EL ECU & J3, HI6 & MSD coil

in the shed - .595" lift cam, GT4202, forged AU engine, ems 4424 ecu, glide & 5500 stall - next-bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU, J3 chip, wideband & logger, ported BBM, 3" intake

Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Sat May 22, 2010 5:28 pm
Stock as a Rock
Offline
User avatar

Posts: 143

Joined: 7th Jun 2008

Location: sydney
NSW, Australia

had a mate do the same thing to his eb xr6, turbo piping is so short it starts spooling at 1800 with a log manifold and t4 turbs... will be interesting with your manifold to see how it compares..
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Sat May 22, 2010 5:59 pm
Stock as a Rock
Offline

Posts: 123

Joined: 3rd Nov 2009

Gallery: 20 images

Ride: FG G6E TURBO

Power: 285 rwkw

Location: Frankston
VIC, Australia

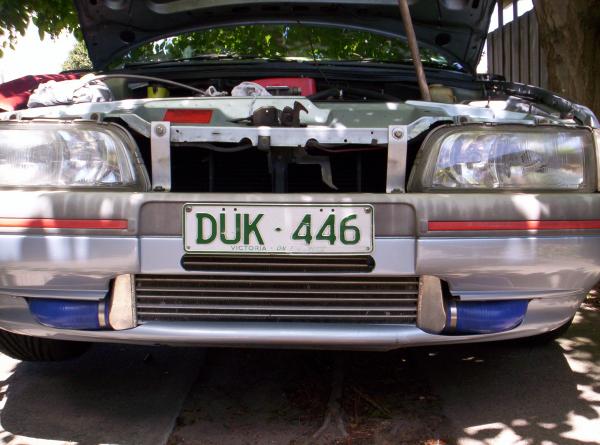

heres my ea





Attachments:
File comment: factory bar with moded ebxr8 skirt
l_7720433c557741428fba8671c478cb8e.jpg [ 47.46 KiB | Viewed 65 times ]
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Sat May 22, 2010 6:29 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

misk- i like how your cooler sit's but from what i see you don't have air con. Which is why i wanna note my reciever bottle. I also don't wanna but my head lights so i'll have to flip my cooler with the pipe's at the bottom. How far is your cooler from where the condenser sit's?

Psi taxi- do you have air con? Abs?

Waggen- hey how's the car going?
Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Sat May 22, 2010 6:42 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

not interested in aftermarket front bar?



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: fitting intercooler to EB
Posted: Sat May 22, 2010 6:54 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

na, wanna keep the standard front bar. Either way i have to move my AC receiver bottle so i just wanna know how this can be done?
Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 2  [ 20 posts ]  Go to page 1, 2  Next

Who is online

Users browsing this forum: No registered users and 5 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Sun Dec 17, 2017 2:13 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
