has anyone built there own turbo manifold?



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: has anyone built there own turbo manifold?
Posted: Thu Jun 29, 2006 8:44 pm
Parts Gopher
Offline

Age: 37

Posts: 72

Joined: 24th Sep 2005

Gallery: 8 images

Location: west ridgley
TAS, Australia

Hi ppl, i was wondering if anyone on here has built ther own log style turbo manifold and if so do they have any pics? I'm going to have a go at building my own manifold over the next couple of week and will keep you posted on the progress.

Regards Corey
Top
 Profile


Posted: Fri Jun 30, 2006 12:22 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

I have built a couple of custom manifolds for a few mates (an rx7 and a lancer) which isnt really isnt that difficult.

First get a flange to suit your car ( an exhaust shop have these to suit most cars ) and bolt it to your head. then get your turbo flange and position it in your engine bay for clearances. Once u have a desired position measure it up the take the turbo flange and tack a brace from the exhaust flange to the turbo flange. then getting steam pipe bends start from the turbo flange first then from the exhaust flange and meet up in the middle. its also good to go back every now and then to check clearances etc. another tip is to try and get all the piping and bends somewhat even .

hope that helps a bit.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sat Jul 01, 2006 2:24 pm
Parts Gopher
Offline

Age: 37

Posts: 72

Joined: 24th Sep 2005

Gallery: 8 images

Location: west ridgley
TAS, Australia

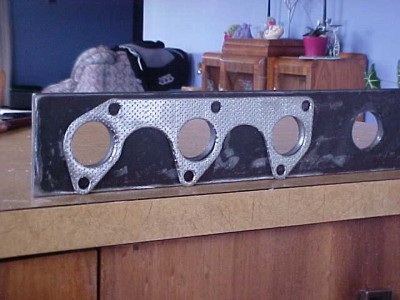

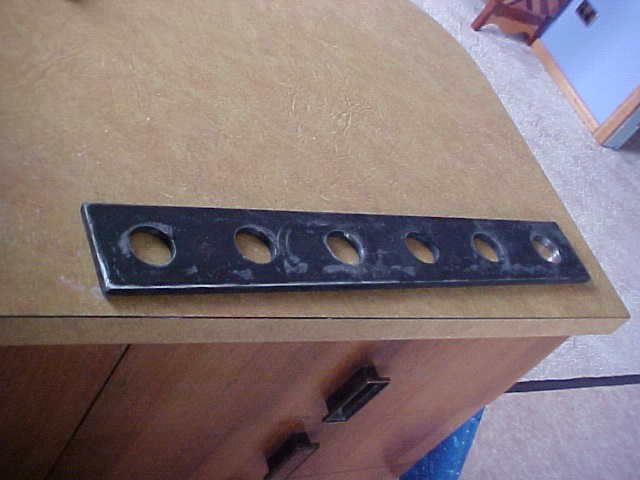

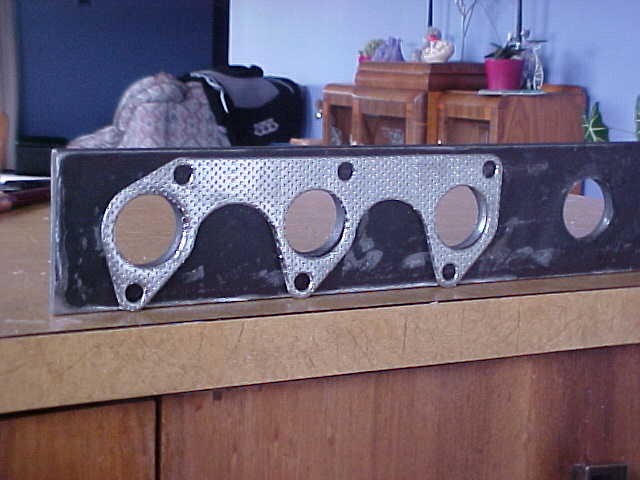

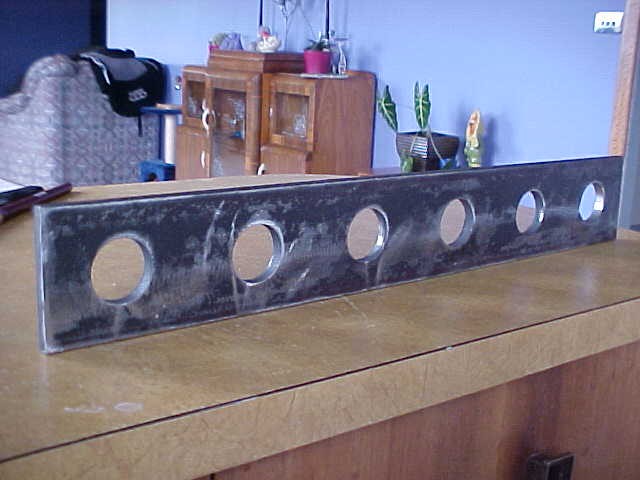

Hi guys, just an update. I started to make the manifold today. Firstly I got some 90*10 mild steel 620mm long, found the centre of the plate and marked out the 6 holes. Each of the holes have 104mm centres. Then i got a 41mm hole saw and drilled the holes checking with the manifold gasket as i went. This is as far as i got as i did this at work today and ran out of time. Here are some pics.

Regards Corey





Attachments:
manifold 3.jpg
manifold 3.jpg [ 58.04 KiB | Viewed 54 times ]
manifold 2.jpg
manifold 2.jpg [ 46.02 KiB | Viewed 46 times ]
manifold1.jpg [ 54.93 KiB | Viewed 45 times ]
Top
 Profile


Posted: Sat Jul 01, 2006 3:16 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

Dont forget spark plug notches!.

Be carefull when welding as 10mm mild steel is pretty easy to warp, so i suggest you get a scrap head from somewhere to bolt i to while you weld it



_________________

Because i can.

Top
 Profile


Posted: Sun Jul 02, 2006 2:50 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

I can get them flange plates for $50..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Sun Jul 02, 2006 1:01 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

geez hes keen making the entire head flange!!! as ebxr said, usually cost bout $50 to buy. the ones i use are from pacemaker



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sun Jul 02, 2006 1:21 pm
Tyre Shredder
Offline
User avatar

Age: 31

Posts: 325

Joined: 15th Apr 2006

Ride: F350, EF2 Ghia, XC & Corty

Power: 218 rwkw

Location: Wangaratta
VIC, Australia

I get them for nothing...
Just dont tell the boss!



_________________

13.28@103.73mph

Top
 Profile


Posted: Sun Jul 02, 2006 1:27 pm
Tyre Shredder
Offline
User avatar

Age: 31

Posts: 325

Joined: 15th Apr 2006

Ride: F350, EF2 Ghia, XC & Corty

Power: 218 rwkw

Location: Wangaratta
VIC, Australia

double post... my bad



_________________

13.28@103.73mph

Top
 Profile


Posted: Sun Jul 02, 2006 3:21 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

Personally i think youre pretty game drilling those holes with a holesaw! Must have taken for ever!



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Mon Jul 03, 2006 6:28 pm
Parts Gopher
Offline

Age: 37

Posts: 72

Joined: 24th Sep 2005

Gallery: 8 images

Location: west ridgley
TAS, Australia

Only took .5hr to drill all 6 holes and i drilled the bolt holes today all matches up nicely. The steel cost me bugger all as I work for an engineering firm so the manifold is really only going to cost me my time. I will post some pics in the next few days when its bolted to the head(which i have to give a bit of a clean first) :roll:

Regards Corey
Top
 Profile


Posted: Mon Jul 03, 2006 7:13 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

what r u gonna make it with?? u got steampipe elbows?

working for an engineering firm, dont they have a drill bit that big??

and yes, i have made my own exhaust manifold



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Jul 22, 2006 2:41 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

Any updates for us???



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile


Posted: Sun Jul 23, 2006 5:34 pm
Tyre Shredder
Offline

Age: 37

Posts: 353

Joined: 12th Apr 2006

Location: Brisbane
QLD, Australia

ebs_4l wrote:
what r u gonna make it with?? u got steampipe elbows?

working for an engineering firm, dont they have a drill bit that big??

and yes, i have made my own exhaust manifold


thats a nice looking manifold...
Top
 Profile


Posted: Mon Jul 24, 2006 6:31 am
Parts Gopher
Offline

Age: 37

Posts: 72

Joined: 24th Sep 2005

Gallery: 8 images

Location: west ridgley
TAS, Australia

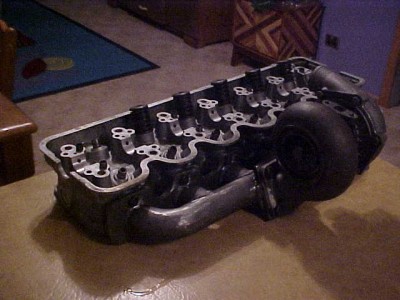

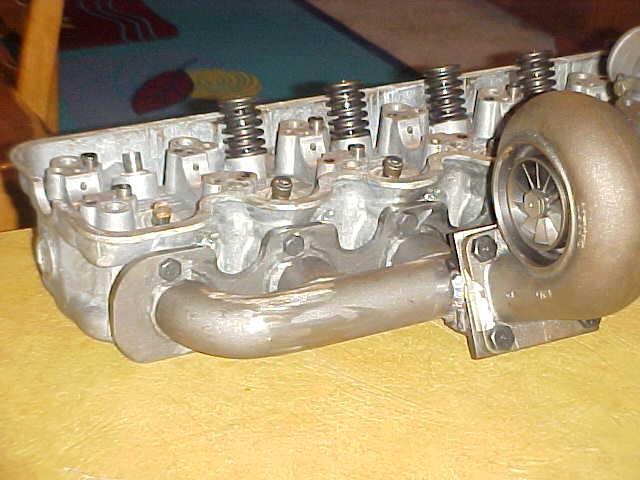

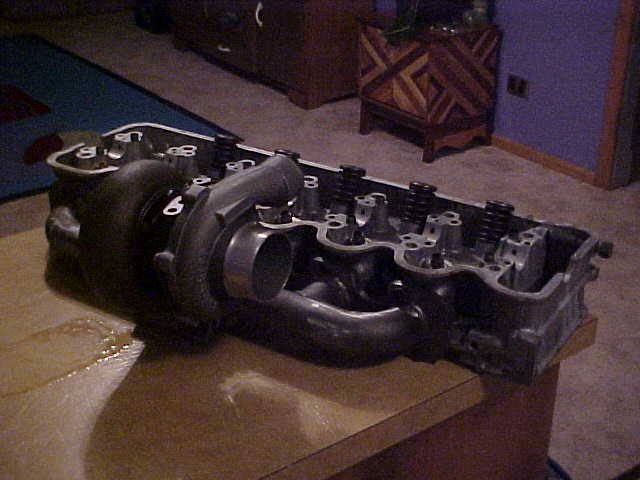

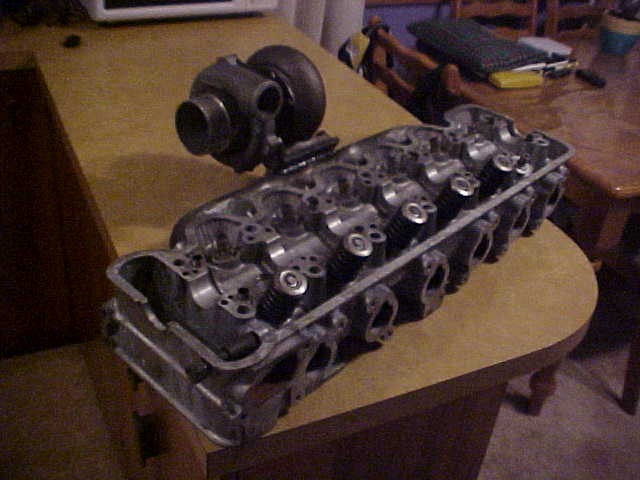

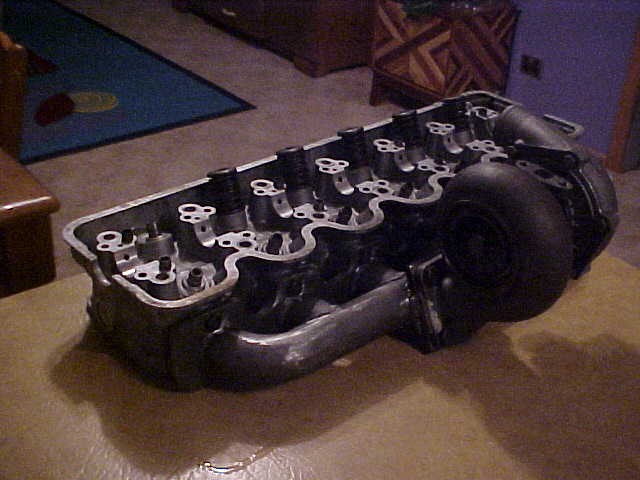

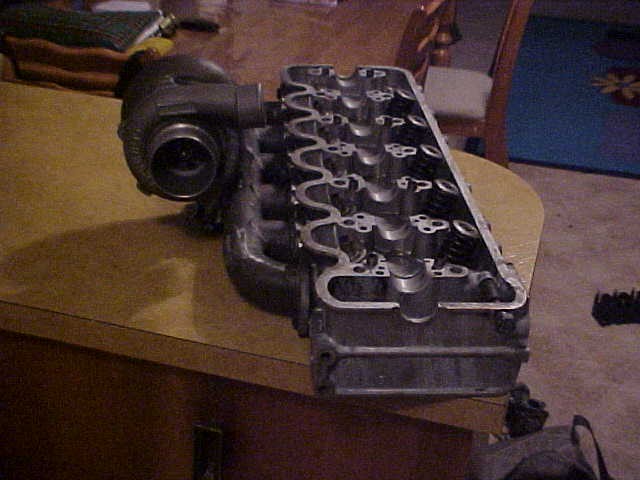

Hi guys just an update. the manifold is now finished bar the wastegate mount as still unsure where i'm going to put it as the motor hasn't been fitted to the car yet. Enough talk anyways here are some pics and let me know what you think. PS. EBS 4L that is a nice manifold but something that big wouldn't fit under the bonnet of a TD corty :D 8-)

Regards Corey (cortEA)





Attachments:
cortymani4.jpg [ 63.46 KiB | Viewed 55 times ]
cortymani3.jpg [ 69.78 KiB | Viewed 57 times ]
cortymani2.jpg [ 61.13 KiB | Viewed 49 times ]
cortymani1.jpg [ 61.62 KiB | Viewed 58 times ]
cortymani.jpg [ 60.05 KiB | Viewed 60 times ]
Top
 Profile


Posted: Mon Jul 24, 2006 2:54 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

Looking good, i'm gonna try make something like soon.



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile
