Head Studs, I think I have something



Page 2 of 8 [ 106 posts ] Go to page Previous  1, 2, 3, 4, 5 ... 8  Next


Posted: Wed Oct 18, 2006 12:44 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

im guessing that he is talking about exhaust manifold studs.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Wed Oct 18, 2006 12:49 pm
Tyre Shredder
Offline
User avatar

Age: 45

Posts: 336

Joined: 2nd Sep 2005

Location: Normzville
WA, Australia

if it works out then i definitely take a set off ya hands



_________________

<a href="http://www.spyderbyte.com.au">
<img border="0" src="http://www.spyderbyte.com.au/updated.gif" width="189" height="45"></a>

Top
 Profile


Posted: Sun Oct 22, 2006 11:27 am
Oompa Loompa
Offline

Age: 41

Posts: 22

Joined: 10th Dec 2004

Ride: Cortina

Location: Brisbane
QLD, Australia

Has anyone tried Performance Wholesale in Slacks Creek Brisbane? They definately did a stud kit for a crossflow?
Top
 Profile


Posted: Sun Oct 22, 2006 9:02 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

problem is 4l has metric bolts, main and head and rod... x-flow has imperial sizes



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Mon Oct 23, 2006 11:48 pm
Stock as a Rock
Offline
User avatar

Posts: 100

Joined: 18th Nov 2004

Ride: turbo

Location: melb
VIC, Australia

i had head studs on mine you can unscrew them to do the head,i got them from duggans balancing. give them a call they might be able to help
Top
 Profile


Posted: Mon Oct 23, 2006 11:51 pm
Stock as a Rock
Offline
User avatar

Posts: 100

Joined: 18th Nov 2004

Ride: turbo

Location: melb
VIC, Australia

mitchg911 wrote:
just a thought, but will it actually be possible to get the head off incar with studs?



-mitch
the head studs unscrew
Top
 Profile


Posted: Tue Oct 24, 2006 12:30 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

I just rang Duggans. They have a guy in Sydney who makes them up with a cut thread. Its gotta be a rolled thread and this is the main reason for the high cost of good engine studs.



_________________

Turbo 6s rule

Top
 Profile


Posted: Wed Oct 25, 2006 10:49 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 1085

Joined: 6th Nov 2004

Ride: BF XR Turbo

Location: Castle Hill
NSW, Australia

ef_jet wrote:
mitchg911 wrote:
just a thought, but will it actually be possible to get the head off incar with studs?



-mitch
the head studs unscrew



im aware the studs unscrew, however one would normally secure them with stud lock, making them difficult to get out.. i guess if you werent going to pull the motor down on a regular basis then the extra effort in removing the studs wouldnt be a problem.



-mitch



_________________

BF XR6T 6spd Auto. 60lb injectors, Hybrid Cooler, Custom Piping, Custom Surge Tank, Actuator.

12.3 @ 114

Top
 Profile


Posted: Thu Oct 26, 2006 2:22 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

You generally do not lock tight the studs in. There is no reason to, you just do them finger tight. A good headstud will also have enough thread on top to get a second nut on to it to be able to lock two nuts together to undo a tight stud.

If you did use a lock tight then I would use the weakest available.



_________________

Turbo 6s rule

Top
 Profile


Posted: Sun Oct 29, 2006 10:56 pm
Parts Gopher
Offline

Posts: 97

Joined: 5th Mar 2006

Location: qld
QLD, Australia

also very interested in these so price would be great when you confirm you can actually use them.
Top
 Profile


Posted: Tue Oct 31, 2006 10:24 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

I got the studs. Basically they fit but work out a bit too much. Recently I found that I can get custom studs made up in Australia for around $32 each so I think I may go down this path but the studs may not be as good as the ones from the US so it needs a little further checking.

The stud with the correct metric thread is not a commonly used stud hence the price is a bit more than the 1/2" stud which is alot more common.

The prices include studs nuts washers and postage to perth

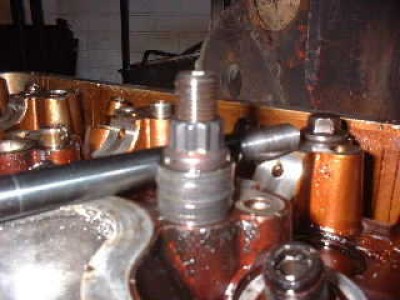

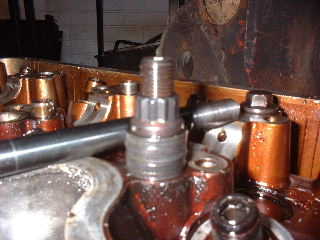

The metric 12mm stud is about 15mm too long and requires about 5 hardened washers. They will do the same job as any custom stud but at $36 are a bit pricy.

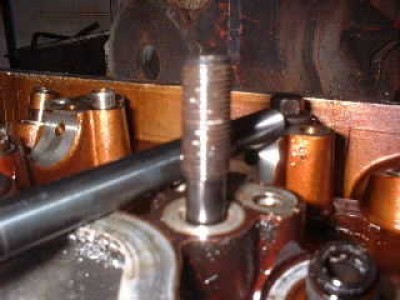

The 1/2 inch stud is exactly the right length and would work fine but needs the block to be redrilled and the head holes opened up a little. These work out to $25 each.

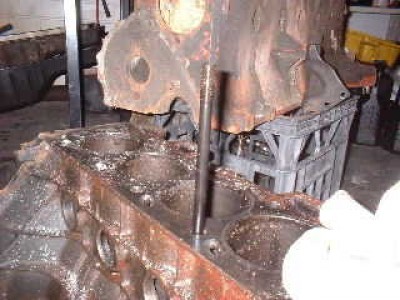

Attatched are some pics

I am still deciding what I am going to do but think the custom aust studs may be the way to go as I might get some main studs made up at the same time so that I can accomodate a crank girdle that I am may end up doing.





Attachments:
stud1.JPG [ 18.42 KiB | Viewed 56 times ]
stud4.JPG [ 16.39 KiB | Viewed 60 times ]
stud5.JPG [ 15.75 KiB | Viewed 57 times ]



_________________

Turbo 6s rule

Top
 Profile


Posted: Tue Oct 31, 2006 10:50 pm
Tyre Shredder
Offline
User avatar

Age: 45

Posts: 336

Joined: 2nd Sep 2005

Location: Normzville
WA, Australia

for the sake of $100ish i dont reckon it's worth mucking around drilling and retapping everything. less room for error.

what tension can u safely get out of them?

they look pretty long, have u tried it with a rocker cover in place?

i'm still up for a set



_________________

<a href="http://www.spyderbyte.com.au">
<img border="0" src="http://www.spyderbyte.com.au/updated.gif" width="189" height="45"></a>

Top
 Profile


Posted: Wed Nov 01, 2006 3:16 pm
Smokin em up
Offline

Age: 40

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

interesting! but why not mill up a spacer instead of all those washers?
never been a fan of those "torque to yield" bolts. Studs for the win!



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).

Top
 Profile


Posted: Wed Nov 01, 2006 8:13 pm
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Originally I was going to do up a spacer but remember the spacer has to be made out of a metal thats heat treated and whilst not hard the specially ground washers provided do the job but at over $1 each add $5 to the cost.

THe bolts will tension to whatever is necessary and am quite sure they will clear the rocker but will check nevertheless.

I am still deciding what to do and want to find the most economical solution. At that expense its still only something that you would do for a highly boosted engine.

I will advise in a couple of weeks when I have more time



_________________

Turbo 6s rule

Top
 Profile


Posted: Wed Jan 31, 2007 10:25 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

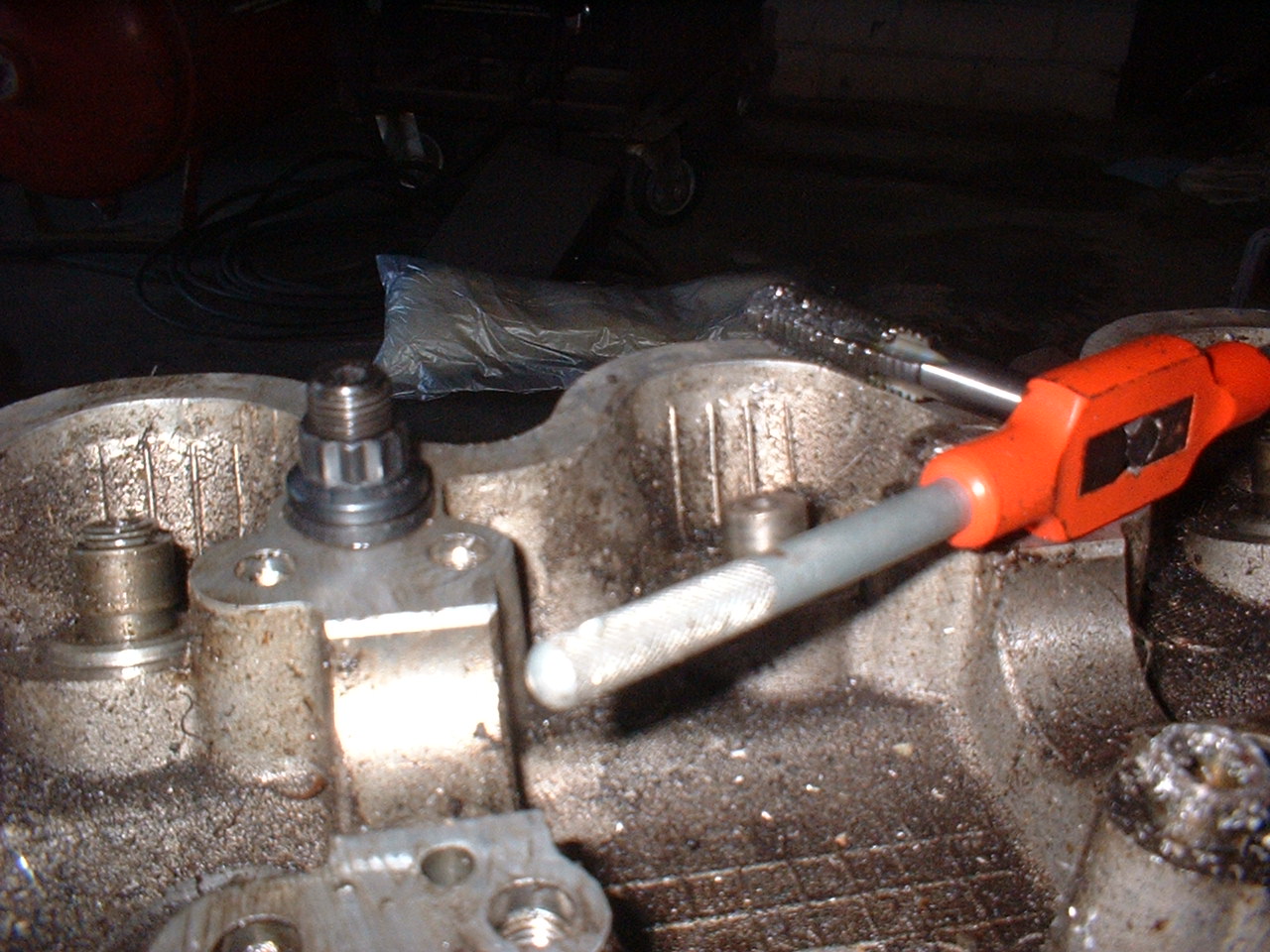

I tapped the block for the 1/2" stud and tested it for strength. I would have torqued it up over 300ftlb with a long bar as much as it would go and to the point that it distorted the nut. The thread in the block is as strong as the original thread and no issues in this department.

Threading the new thread is very easy. All I did was run the tap into the block with not even having to use a drill. The new thread fits in well. Its so easy that you could even do this with the engine in the car.

The 1/2 stud fits perfect for size and is an off the shelf bolt.

They are $25 each or $350 a set you will need a specific $50 tap from me to tap the threads. I will be putting a order in next week if anyone is interested.

This is the best solution for a high performance turbo mtr IMO. Getting custom studs was going to cost more time than just spending 1hr tapping the threads.





Attachments:
turbov6 008.jpg
turbov6 008.jpg [ 309.23 KiB | Viewed 65 times ]



_________________

Turbo 6s rule

Top
 Profile
