 Post subject: high mounted turbo's
Posted: Tue Aug 23, 2005 12:07 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

Hey all

Been looking at turbo stuff for ages now and another issue ive been stuck with is that most of the turbo kits have high mounted turbo's.
Has anyone had a high mounted turbo and had issues with melting break booster's, thrott cable, underbonnet paint ect...?
and is there any advantage over a lower mounted turbo?

thanks



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 12:38 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Often thought this myself. Only lowmounted turbo conversion on an E-Series I've seen done is on fordforums.com (not .au). By a guy called turbotrana, he's there version of CHEF basically :P (DIY turbo ED)
The only reason I can see for a high mount is ease of plumbing I guess. Is that the reason it's more popular?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Tue Aug 23, 2005 12:53 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

What? theres another version of me getting around? hehe yeah his is a much bigger turbo, a low is a good option as it would lower engbay temps a bit... but mine up high with a shield on doesnt heat up the bay much... low mount makes it harder to mount the wastegate though, its gotta sit up high
Top
 Profile


Posted: Tue Aug 23, 2005 1:19 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

there has been loads of ppl who have melted stuff :P
most people melt first, heat sheild later :P



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Tue Aug 23, 2005 2:27 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

Yeah, im talkin to tony atm. Melting the brake booster worries me



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 2:34 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

its nothing heat sheilding can't fix.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Tue Aug 23, 2005 5:05 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Dont panic too much though, Ive only melted throttle cables/cruise control cables that were directly over the exhaust housing.
I wrapped the dump pipe and wastegate pipes in thermo wrap and made up a stainless steel shield. I also put a metal tube over the throttle cable, wrapped it in thermo wrap and pulled it up next to the firewall so it no longer goes over the turbo... I just did a 3000 kay road trip and all was fine under the bonnet... heres a pic
Top
 Profile


Posted: Tue Aug 23, 2005 5:25 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

hmm, interesting

another thing ive been interested in is with the low mounted turbos, you can easly hide them under a heat sheild. Fool any stupid coppa that doesnt know what he is looking at

" i swear officer, its just a big radiator"



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 5:30 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

The BA's turbo is pretty well hidden... but really, if the set up is tidy and factory looking ie everything isnt polished and hitting you in the eyeballs then you might get away with it... might
Top
 Profile


Posted: Tue Aug 23, 2005 5:45 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

dam, my twins are as bling as bling gets.... i dont thinnk i will polish the rest of the plumbing tho, brob paint black



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 6:08 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

or just get it all engineer approved and you can have as much bling as you like
Top
 Profile


Posted: Tue Aug 23, 2005 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

engeneer approved over he is like pulling teeth...not cool



_________________


Top
 Profile


Posted: Fri Aug 26, 2005 8:11 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 89

Joined: 2nd Feb 2005

Gallery: 6 images

Location: st clair
NSW, Australia

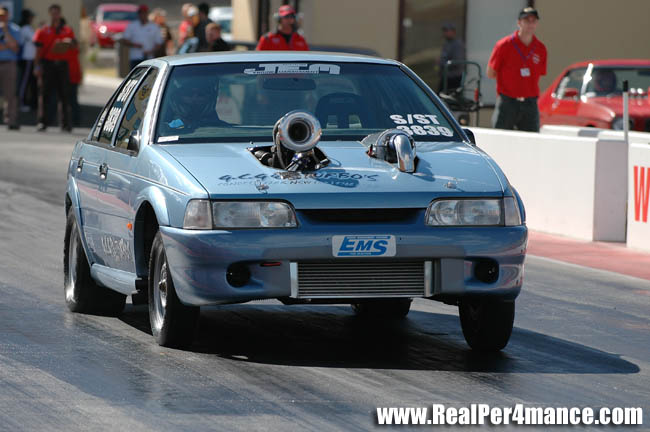

mine doesnt burn any boosters etc.





Attachments:
wsid_bm21082005_015.jpg [ 74.81 KiB | Viewed 62 times ]



_________________

777rwkws on 39psi with an old eb sohc, going for 7s...........

Top
 Profile


Posted: Fri Aug 26, 2005 10:01 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

hahahaha, i hate you, with jealously!



_________________


Top
 Profile


Posted: Sat Aug 27, 2005 12:45 am
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

I've melted two brake boosters so far. First one and made a heat shield, then the second one went, made a bigger shield.. Its all good now, After driving for a fair while I can put my hand behind the heat shield and touch the brake lines coming out of the booster and their not very hot.
Top
 Profile
