how do i install turbo oil lines



Page 1 of 1 [ 9 posts ]


 Post subject: how do i install turbo oil lines
Posted: Wed May 18, 2011 11:19 pm
Oompa Loompa
Offline

Age: 31

Posts: 30

Joined: 29th Apr 2011

Ride: 93 eb ford falcon

Location: melbourne
VIC, Australia

gday im just about to install a t4 t45 turbo in my rebuilt eb 4.0. can someone shed some light on where i need to run oil lines to? pictures would also be great. ill put u build thread soon iv got haps of pics of the engine rebuild. cheers .
Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Wed May 18, 2011 11:48 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

U will need a t-piece. Which screws into the block where the oil pressure sender is , thread is 1/4 NPT. have the pressure sender on one end of the t-piece and oil line off the other . This goes to the turbo.
Then for the drain punch a hole in the sump to the required size and tap a thread . Use grease to catch the chips , 1/2 BSP is a good size. Then drain oil. A magnetic sump plug is Also a good idea.

U can use -4AN braided hose for the feed and a NBR hose for the drain using barb fittings.
Also depends on Ur turbo and what threads it has



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Thu May 19, 2011 2:00 am
Parts Gopher
Offline
User avatar

Age: 8

Posts: 59

Joined: 9th Aug 2009

Gallery: 22 images

Ride: A massive sideways utensill...

Location: Wagga Wagga
NSW, Australia

Try and use a braided 200-series teflon for the feed if you can

Everything said from ef_falcon_95 is true, cant really explain it much better



_________________

XR6, 3''CAI, sick'o BBM, no AC, 2.5''exhaust, special cat, PWR radiator&expansion-tank, BTR, kevlar bands, JMM converter, shiftkit, 4 pin 3.91:1, 31spline billets, minispool, Nolathane, RDA golds, My interior, genuine GT's.. (gallery) SpeedFlow

Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Thu May 19, 2011 8:23 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia




_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Thu May 19, 2011 9:53 pm
Oompa Loompa
Offline

Age: 31

Posts: 30

Joined: 29th Apr 2011

Ride: 93 eb ford falcon

Location: melbourne
VIC, Australia

awesome thanks heaps for the help people !
Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Mon May 30, 2011 2:17 am
Parts Gopher
Offline

Age: 42

Posts: 82

Joined: 21st Feb 2010

Ride: FG XR6 TURBO

Location: BLACKTOWN
NSW, Australia

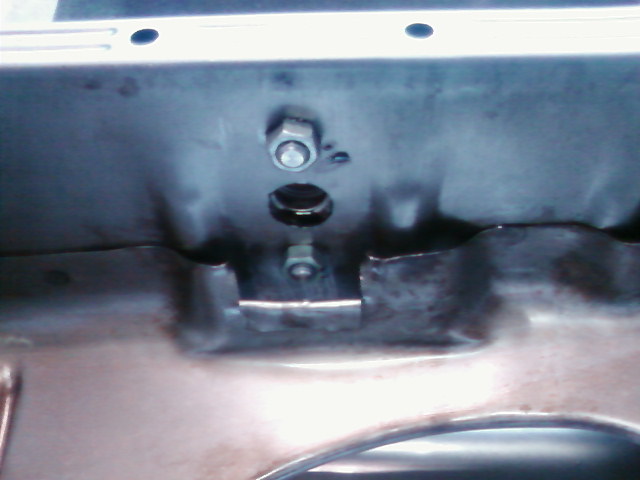

dude thats the lazy way rip of the sump and do it the right way it will get metal filling in your sump and will travel up to your oil ways why risk s**t like that for the cost of a sump gasket .take of the rocker cover and raise engine enought to remove sump then drill or punch a hole as for the oil lines yes use the oil sender inlet ad a t piece ant connect oil sender on one side and oil line other easy just position where u want the loi line to go in as u see in pic it has to be in a good position which u cant see from out side the sump





Attachments:
File comment: i just uses some bolts and lock tight
shanes turbo ef falcon 014.jpg
shanes turbo ef falcon 014.jpg [ 51.84 KiB | Viewed 250 times ]



_________________

BANNED

Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Sun Oct 05, 2014 5:02 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 495

Joined: 23rd Jan 2011

Gallery: 4 images

Ride: VE SS ute, EL Typhoon mock

Location: Canberra
ACT, Australia

shane falcon futura wrote:
dude thats the lazy way rip of the sump and do it the right way it will get metal filling in your sump and will travel up to your oil ways why risk s**t like that for the cost of a sump gasket .take of the rocker cover and raise engine enought to remove sump then drill or punch a hole as for the oil lines yes use the oil sender inlet ad a t piece ant connect oil sender on one side and oil line other easy just position where u want the loi line to go in as u see in pic it has to be in a good position which u cant see from out side the sump



Have done some thread mining via Google to find this but I'm hoping someone may know..

With raising the engine to remove the sump, where will it slide out? I tried raising the engine already and could not get enough room, am about to go take the rocker cover off now to see if that helps clearance at all (didn't even think of that first gone around.. Doh)

Cheers in advance



_________________

YES.40L
El Gli/Fairmont/Typhoon-twinlights, king springs, paccies, dark agents
http://www.fordmods.com/post1241821.html#1241821

Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Thu Oct 16, 2014 9:48 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

MAY be easier to lower cross member ??



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: how do i install turbo oil lines
Posted: Thu Oct 16, 2014 10:18 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 495

Joined: 23rd Jan 2011

Gallery: 4 images

Ride: VE SS ute, EL Typhoon mock

Location: Canberra
ACT, Australia

I gave up. Rented engine hoist, disconnected drive shaft smd tranny from crossmember, and that gave me the extra room to lift it and pull the sump out tge passenger side.

Cheers for the reply though!



_________________

YES.40L
El Gli/Fairmont/Typhoon-twinlights, king springs, paccies, dark agents
http://www.fordmods.com/post1241821.html#1241821
