Low blow kit for 351C???



Page 1 of 1 [ 10 posts ]


 Post subject: Low blow kit for 351C???
Posted: Fri Jan 19, 2007 8:17 pm
Smokin em up
Offline
User avatar

Age: 32

Posts: 280

Joined: 22nd Jan 2006

Ride: XB

Location: Hobart
TAS, Australia

Gday,

Does anyone make a low blow/underbonnet supercharger kit for the 351C?

Iv seen the Weiand 671 kit but...even though it looks tuff...due to attn from certain groups, it would be better to keep everything hidden.

Thanks



_________________

76XBGS, 383c, custom crow cam, 4V p&p heads, Isky SS Valve+springs, extractors, 2.5"twins, MSD Ignition, Edelbrock intake, Forged bottom end, Barry Grant 750DP, thermo, discs, toploader, Holley fuel pump, SUPERCHARGED!

Top
 Profile


Posted: Fri Jan 19, 2007 9:09 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

BnM had low blow kits for clevo's and windsors but they went out of production 10 years ago. Good luck trying to find one though.
Top
 Profile


Posted: Fri Jan 19, 2007 9:27 pm
Smokin em up
Offline
User avatar

Age: 32

Posts: 280

Joined: 22nd Jan 2006

Ride: XB

Location: Hobart
TAS, Australia

Bugger, only 10years too late...



_________________

76XBGS, 383c, custom crow cam, 4V p&p heads, Isky SS Valve+springs, extractors, 2.5"twins, MSD Ignition, Edelbrock intake, Forged bottom end, Barry Grant 750DP, thermo, discs, toploader, Holley fuel pump, SUPERCHARGED!

Top
 Profile


Posted: Fri Jan 19, 2007 9:50 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

A centrifugal supercharger can be used in a blow thru set up. Seen a Dodge truck at the drags running a vortech supercharger in a blow thru set up. It was running a Wedge 440 under it. Ran 12.73, not bad for a 2 tonne truck :P



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Fri Jan 19, 2007 10:20 pm
Smokin em up
Offline
User avatar

Age: 32

Posts: 280

Joined: 22nd Jan 2006

Ride: XB

Location: Hobart
TAS, Australia

Im not completely up to date on all the terms but I take it "Blow thru" means simply pressurised air fed straight into the intake. Does the vortech unit bolt onto the side of the engine and is plumbed to the intake or does it bolt ontop with its own manifold?



_________________

76XBGS, 383c, custom crow cam, 4V p&p heads, Isky SS Valve+springs, extractors, 2.5"twins, MSD Ignition, Edelbrock intake, Forged bottom end, Barry Grant 750DP, thermo, discs, toploader, Holley fuel pump, SUPERCHARGED!

Top
 Profile


Posted: Sat Jan 20, 2007 12:54 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 886

Joined: 17th Aug 2005

Gallery: 24 images

Ride: VZ SS 6Ltr ute, Honda VFR800

Location: Melbourne
VIC, Australia

Mac Winter 76XB351GS wrote:
Im not completely up to date on all the terms but I take it "Blow thru" means simply pressurised air fed straight into the intake. Does the vortech unit bolt onto the side of the engine and is plumbed to the intake or does it bolt ontop with its own manifold?

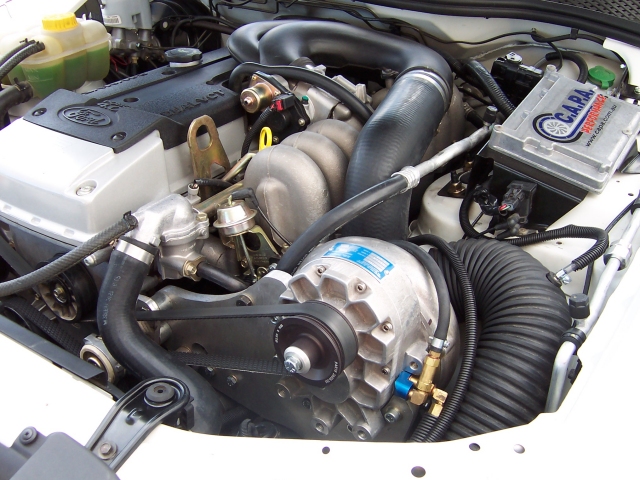

A vortech is mounted of to the side.





Attachments:
kits_ford_ba6_intercooled2.jpg [ 234.73 KiB | Viewed 89 times ]



_________________

My Cars
2006 VZ SS cammed 6Ltr ute 295rwkW
2004 BA XR6T - 290rwkW 12.5@113mph ( SOLD )
1996 EFII Fairmont - 130rwkW 15.5@91mph ( SOLD )

Top
 Profile


Posted: Sat Jan 20, 2007 11:26 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

"blow through" is a term only relating to carby systems, it means you have the pump blowing through the carby into the manifold, the other term is draw through, meaning you have your carby before the pump, which then pumps to the manifold



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Jan 20, 2007 3:02 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

Mac Winter 76XB351GS wrote:
Im not completely up to date on all the terms but I take it "Blow thru" means simply pressurised air fed straight into the intake. Does the vortech unit bolt onto the side of the engine and is plumbed to the intake or does it bolt ontop with its own manifold?


Basically its mounting the supercharger on the side then the piping goes through to the carb via a carb hat. The carby must be boost referenced.

Wont have stump pulling torque that a 6/71 or a low blow can provide right down low but will give a mid to higher end kick in the pants.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sun Jan 21, 2007 4:06 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

ebs_4l wrote:
"blow through" is a term only relating to carby systems, it means you have the pump blowing through the carby into the manifold, the other term is draw through, meaning you have your carby before the pump, which then pumps to the manifold


I would like to correct you on blow through and suck through suystems as they also apply to injected cars. SAE cars are forced to run suck through setups and a pissy little restrictor. Really makes you think as when you snap the throttle shut the turbo actually accelerates for a short while.
Top
 Profile


Posted: Sun Jan 21, 2007 1:15 pm
Smokin em up
Offline
User avatar

Age: 32

Posts: 280

Joined: 22nd Jan 2006

Ride: XB

Location: Hobart
TAS, Australia

Ok then, that seems pretty straight forward. Whats the go with boost referencing? The way I understand how carbies work doesnt really allow for a dramatic change in air pressure. Do carbed blow thru setups meter properly all the way thru the boost/rev range or is it a compromise at best?



_________________

76XBGS, 383c, custom crow cam, 4V p&p heads, Isky SS Valve+springs, extractors, 2.5"twins, MSD Ignition, Edelbrock intake, Forged bottom end, Barry Grant 750DP, thermo, discs, toploader, Holley fuel pump, SUPERCHARGED!

Top
