Lower Compression for Turbo



Page 1 of 3 [ 37 posts ] Go to page 1, 2, 3  Next


 Post subject: Lower Compression for Turbo
Posted: Tue Apr 18, 2006 2:04 pm
Getting Side Ways
Offline
User avatar

Posts: 426

Joined: 26th Jan 2005

Gallery: 4 images

Ride: EB GLi 4.0L

Location: Adelaide
SA, Australia

hey guys, got a couple of question on turbo-ing for those in the know. as far as turbo-ing an EB I6 (not after huge power figures) do i need to lower the compression? or more to the point, at what boost/figures would people recomend the compression be lowered, and to what?

then the next question is how to go about it? i'm trying to do this on the cheap so i'd like to avoid changing rods and pistons and try for a decompression plate (if such a thing exists for the falcons). then does the decompression plate need a head gasket either side of it, on one side or not at all? prices for such as thing would be appreciated 8-)

thanks guys



_________________

EBII 4.0L GLi | T5 | 3.27 Spool | POD | KKK K27 Turbo | 600x300x76 FMIC | 40mm Wastegate (dead) | RPD Stg1 Cam | B&M Launch Control | Thermos | 3" Dump | Twin 2.25" Zorst | 197kw@3500rpm, 7psi LEAN!

To Come: Hydraulic Handbrake | Coilover Springs | Fuel Pump | Microtech MT8 | 455cc Injectors

Top
 Profile


Posted: Tue Apr 18, 2006 8:44 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

the EB only had 8.8:1 compression, there is no real need to lower it any further.

infact if your only after a mild setup it might pay off to raise it a little up to 9:1 higher compression will bring the power up everywhere and should be more feul efficient........

an AU headgasket and i light skim to get the head flat should see you there.



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Wed Apr 19, 2006 12:42 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

i thought it was only the 3.9 that had 8.8 comp, arent the 4l 9.2??



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Wed Apr 19, 2006 12:46 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4305

Joined: 6th Jul 2005

Ride: BA xr8 Magnet ute

Location: Melbourne
VIC, Australia

just put a thicker head gasket on......... duno how much it will lower it tho
Top
 Profile


Posted: Wed Apr 19, 2006 2:12 am
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

ebs_4l wrote:
i thought it was only the 3.9 that had 8.8 comp, arent the 4l 9.2??


All pre-EF non-XR's have 8.8



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Wed Apr 19, 2006 2:49 am
Getting Side Ways
Offline
User avatar

Posts: 426

Joined: 26th Jan 2005

Gallery: 4 images

Ride: EB GLi 4.0L

Location: Adelaide
SA, Australia

and here i was thinking i had 9.0:1

i think i may have blown a head gasket yesterday but getting water thru my engine (funny story) so if i have to replace it then i'll use an AU one for sure...



_________________

EBII 4.0L GLi | T5 | 3.27 Spool | POD | KKK K27 Turbo | 600x300x76 FMIC | 40mm Wastegate (dead) | RPD Stg1 Cam | B&M Launch Control | Thermos | 3" Dump | Twin 2.25" Zorst | 197kw@3500rpm, 7psi LEAN!

To Come: Hydraulic Handbrake | Coilover Springs | Fuel Pump | Microtech MT8 | 455cc Injectors

Top
 Profile


Posted: Wed Apr 19, 2006 10:34 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Just leave it stock if your not chasing big power... no point making extra work for whats going to be a big job anyway.
Top
 Profile


Posted: Wed Apr 19, 2006 11:30 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

Slabz wrote:
and here i was thinking i had 9.0:1

i think i may have blown a head gasket yesterday but getting water thru my engine (funny story) so if i have to replace it then i'll use an AU one for sure...




if you have to take the head off to fix an already blown gasket, you have a little thinking to do.

being an EB you posibly have the head with the swirl ridge (detonation ridge)

not sure when ford stoped using that. if you do and the head is comming off i'd recomend having the machine shop remove the ridge completly and while he's there have him de-shroud the valves.

that will drop your compression and improve flow straight away as well as lessening the chances of knock. though it may drop the compression to much.
when you put the head back on use an AU gasket as it will stand up to boost better and bring the head closser to the pistons this will give tighter squish and again lessen the chances of knock.

it all comes down to what you want out of this engine,
remember anyone can shove a bit of boost in and make some power, but the guy who sits down works out exactly what he wants and plans for it will get a better end result



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Thu Apr 20, 2006 2:44 am
Getting Side Ways
Offline
User avatar

Posts: 426

Joined: 26th Jan 2005

Gallery: 4 images

Ride: EB GLi 4.0L

Location: Adelaide
SA, Australia

can you explain the swuirl ridge or give some pics because i've already had the head off once and if i do it again i wanna know what to look for...



_________________

EBII 4.0L GLi | T5 | 3.27 Spool | POD | KKK K27 Turbo | 600x300x76 FMIC | 40mm Wastegate (dead) | RPD Stg1 Cam | B&M Launch Control | Thermos | 3" Dump | Twin 2.25" Zorst | 197kw@3500rpm, 7psi LEAN!

To Come: Hydraulic Handbrake | Coilover Springs | Fuel Pump | Microtech MT8 | 455cc Injectors

Top
 Profile


Posted: Fri Apr 21, 2006 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

That swirl ridge was on 3.9 engines...Up to EB 1...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Last edited by EBXR8380 on Sun Jul 02, 2006 2:47 am, edited 1 time in total.

Top
 Profile


Posted: Sat Apr 22, 2006 11:44 am
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

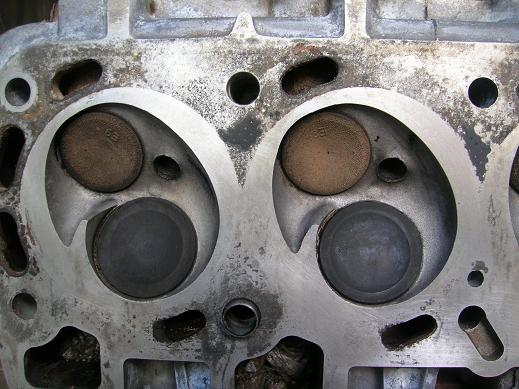

this is the swirl ridge





Attachments:
swirl ridge.jpg
swirl ridge.jpg [ 53.8 KiB | Viewed 52 times ]



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sat Apr 22, 2006 9:01 pm
Getting Side Ways
Offline
User avatar

Posts: 426

Joined: 26th Jan 2005

Gallery: 4 images

Ride: EB GLi 4.0L

Location: Adelaide
SA, Australia

thanks falcon 6... from memory (which may or may not be reliable) i'm pretty sure i dont have it...



_________________

EBII 4.0L GLi | T5 | 3.27 Spool | POD | KKK K27 Turbo | 600x300x76 FMIC | 40mm Wastegate (dead) | RPD Stg1 Cam | B&M Launch Control | Thermos | 3" Dump | Twin 2.25" Zorst | 197kw@3500rpm, 7psi LEAN!

To Come: Hydraulic Handbrake | Coilover Springs | Fuel Pump | Microtech MT8 | 455cc Injectors

Top
 Profile


Posted: Sat Apr 29, 2006 12:56 am
Tyre Shredder
Offline

Age: 37

Posts: 353

Joined: 12th Apr 2006

Location: Brisbane
QLD, Australia

what is the point of that swirl ridge thing?..
Top
 Profile


Posted: Sat Apr 29, 2006 12:52 pm
Getting Side Ways
Offline
User avatar

Posts: 426

Joined: 26th Jan 2005

Gallery: 4 images

Ride: EB GLi 4.0L

Location: Adelaide
SA, Australia

at a random guess, i'd say it is meant to help "swirl" the gases to get more complete combustion or possibly to help gases enter or exit the chamber...



_________________

EBII 4.0L GLi | T5 | 3.27 Spool | POD | KKK K27 Turbo | 600x300x76 FMIC | 40mm Wastegate (dead) | RPD Stg1 Cam | B&M Launch Control | Thermos | 3" Dump | Twin 2.25" Zorst | 197kw@3500rpm, 7psi LEAN!

To Come: Hydraulic Handbrake | Coilover Springs | Fuel Pump | Microtech MT8 | 455cc Injectors

Top
 Profile


Posted: Sat Apr 29, 2006 1:41 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

tickford_6 wrote:
this is the swirl ridge


yay, my cylinder head is famous. :)



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms
