Posted: Sun Aug 06, 2006 11:49 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 889

Joined: 23rd Aug 2005

Gallery: 1 images

Ride: 1984 XE Falcon

Location: South East Melb
VIC, Australia

hey snortingboost have u got a website?
Top
 Profile


Posted: Wed Aug 09, 2006 12:36 am
Oompa Loompa
Offline

Age: 30

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

Just to let u all know i have just finished putting the wolf3d in my car and and 870cc injectors are in. I pulled out my ed 4.0 and have my ef worked block ready to go in so should have the car all finished within 2 weeks but i need to run it in before i can give you good results.
Top
 Profile


Posted: Wed Aug 09, 2006 1:01 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

excellent, any updates on what you did about pistons and comp ratio???

just wondering what sort of power you are aiming for with this car?? as 870cc injectors are MASSIVE, they will support around 580rwkw, or 780fwkw... what are the wolf's like at controlling big injectors at very small opening times, like these injectors will be at idle???

for example, i think my 580cc siemens are at only 4-6ms at idle, dont quote that though, thats off the top of my head, i imagine 870's would be 2-4?? thats VERY small



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Aug 12, 2006 1:47 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

hell, i just ran my car to check my injector time at idle, with a 1100rpm idle at 12.5:1 mixture (my car likes a rich idle) my injector time is between 2.7-2.9ms...

i hate to think how small injector time 870cc injectors are going to have



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Mon Aug 14, 2006 1:15 am
Oompa Loompa
Offline

Age: 30

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

I'm chasing 300rwkw and maybe a bit more for comps, not sure how good my setup will work with the 870cc injectors i haven't had it running with turbo on yet, still building new motor. My pistons are giving me probs cause the website says they will bring compression up to 9.6:1 but not sure yet, i have a head with out the swirl so not sure. Anyone got any ideas how to get compression down with out decomp plate?

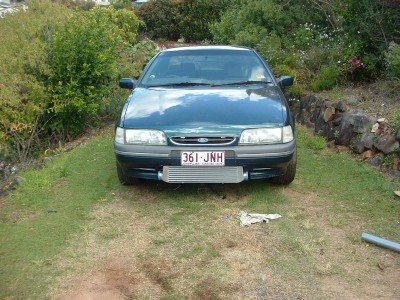

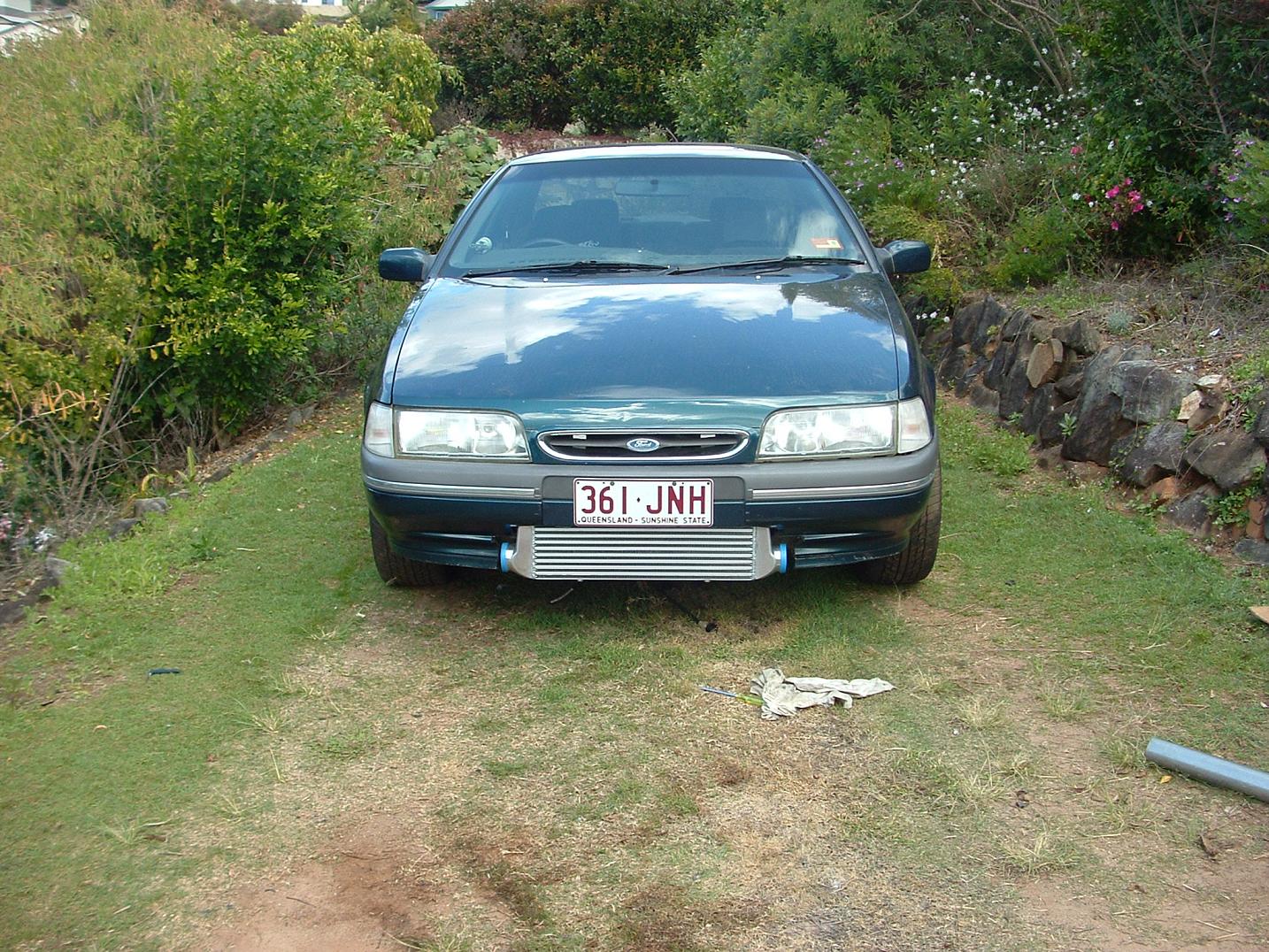

Here is a photo of my quick intercooler mount up





Attachments:
DSCF0008.JPG [ 388.64 KiB | Viewed 84 times ]
Top
 Profile


Posted: Mon Aug 14, 2006 1:49 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

did you see my post about pistons??

i pretty much summed up the situation, i was in the exact same boat, exept that my engine had done 5000km n/a before i went turbo, so i wasnt building the engine at the time i realisd i had problems...

you can get 2cc out the head, the rest has to come from gasket thickness...



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Wed Aug 16, 2006 12:40 am
Oompa Loompa
Offline

Age: 30

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

Hey how much for a decomp plate and are they good?
Top
 Profile


Posted: Wed Aug 16, 2006 1:59 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

bout $50, they are just a piece of steel, i know as much as anyone else that they arent ideal... BUT, i have been pushing 17psi into mine, no problems so far....

oh, btw, ive reached the limit of my 580cc injectors, about 340-350rwkw.. they were maxxed out on the dyno at 328kw on 14lb, we have since tried richening it over 5000rpm, only to find, we cant make it any richer... it pulls back to 12.5:1 at 5800, so ive lowered my limiter to 5500 until i get some bigger squirters, curently running 16-17psi, and its got plenty of fuel up to 5k, thats where they run out of puff

im going to buy the 72lb, 766cc siemens, same as my current ones, just the next size up



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Fri Aug 18, 2006 12:32 am
Oompa Loompa
Offline

Age: 30

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

Just took my valves out, they were all carboned up lol i'm going to re-seat them. I think i mite use 1.5mm shims and o-ring the head, anyone heard of this? it will bring my compression from 9.6:1 to 8.6:1 so yeah mite give it a go
Top
 Profile


Posted: Fri Aug 18, 2006 3:12 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

what is the shim made of??? can only use orings on fibre and copper gaskets



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Aug 26, 2006 9:29 am
Oompa Loompa
Offline

Age: 30

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

Ok so i'm going to drop the race pistons, i spoke to a guy at acl and hes said there no stronger than normal acl replacement pistons except they have as 12cc dish rather than a 5cc dish, so i'm trying to sell my race series pistons.
Top
 Profile


Posted: Sat Aug 26, 2006 5:45 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

bigger dish = lower comp = more boost.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sun Aug 27, 2006 2:49 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

ebman40 wrote:
Ok so i'm going to drop the race pistons, i spoke to a guy at acl and hes said there no stronger than normal acl replacement pistons except they have as 12cc dish rather than a 5cc dish, so i'm trying to sell my race series pistons.

they are infact stronger, where was the guy from?? acl. or an acl dealer??

the race series have a higher silicone content, which makes them a hypereutectic piston, they are basically made with the same material as most forged pistons

the race series also have the smaller dish, not a bigger dish, its the 3.9 pistons that have a 12cc dish, and 4.0 have the 5cc dish, but you cant just drop 3.9 pistons in since they have a 1mm smaller bore, you need o/s 3.9 and the bore made to suit



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Sep 09, 2006 12:43 am
Oompa Loompa
Offline

Age: 30

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

Finally new pistons, i got duralite low comp acl pistons. Gonna send the rods away to get shot peened. Hopefully putting the motor together within in the week and then i just have to do the pipe work.
Top
 Profile


 Post subject: Update
Posted: Wed Sep 27, 2006 1:41 am
Oompa Loompa
Offline

Age: 30

Posts: 32

Joined: 25th Apr 2005

Ride: Falcon S Pak

Location: Bli Bli
QLD, Australia

Finally a update, i am waiting on my conrods which should be done within the week, i have a new ignition system coming so hopefully going within the month
Top
 Profile
