Posted: Sat Sep 29, 2007 12:47 am
Stock as a Rock
Offline
User avatar

Posts: 197

Joined: 24th Nov 2006

Gallery: 1 images

Ride: vs cluby,elxr6t

Location: Frankganistan
VIC, Australia

great work frittzy. wish i lived in wa so i could have a looksy



_________________

wish i had bigger wheels.

Top
 Profile


Posted: Sun Sep 30, 2007 1:30 pm
Getting Side Ways
Offline

Age: 39

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

well done mate, that makes two sucessful gearbox conversions so far...

how did you go with tailshaft??



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sun Sep 30, 2007 4:13 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

thanks ebs.

at the moment it just using the stock tail shaft with a crossover uni to suit the 31 spline yoke, ill get a good 1 made up soon. the tail shaft length didnt need to be changed.

hows yours going?



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Mon Oct 01, 2007 4:09 pm
Parts Gopher
Offline

Posts: 67

Joined: 26th Jan 2006

Location: Perth
WA, Australia

Hey fritzz, hows it all going?? Steve and I will be hitting quit moto sometime soon, as were both up and running again. How much fab was required to fit the shifter in? Did you have to cut a new hole for the shifter etc, have you got pics of the interior with it all fitted?? I'll be really interested to see this, as my auto cost a reasonable amount, but I don't think its going to hold as I make more power, so I'll be looking for a good manual to put behind mine. I really don't want a 3spd auto, so manual is the only option I think, however since the tko is toploader size I'm assuming the shifter position is about 8-10 cm forward of t5 yeah?
Top
 Profile


Posted: Mon Oct 01, 2007 10:20 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

Delta wrote:
Hey fritzz, hows it all going?? Steve and I will be hitting quit moto sometime soon, as were both up and running again. How much fab was required to fit the shifter in? Did you have to cut a new hole for the shifter etc, have you got pics of the interior with it all fitted?? I'll be really interested to see this, as my auto cost a reasonable amount, but I don't think its going to hold as I make more power, so I'll be looking for a good manual to put behind mine. I really don't want a 3spd auto, so manual is the only option I think, however since the tko is toploader size I'm assuming the shifter position is about 8-10 cm forward of t5 yeah?


yeh the car is going great.

im keen on going to the plex to but i dont have a license atm.

ill try and get some pics up of the box in the car, the shifter is actully 35-40mm forward of the t5. but its not a big issue just needed to cut a bitt out.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Mon Oct 01, 2007 10:30 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

heres a quick write up of the install.

tko install:

firstly i had to make the spacer plate up to reduce the input shaft length from 182mm to 167mm(t5 length)
i did this buy cutting out a 16mm steel plate to the shape of the tko mounting face.
next to make was a steel insert to locate the t5 bell housing to the spacer plate and then locate the spacer plate onto the tko.
once that was all measured and machined up it was time to bolt the spacer plate to the t5 bell housing. i did this buy 6 bolts from the inside of the bell housing into a taped tread in the spacer plate. also the the steel locating ring was made to lock its self between the spacer plate and bell housing.
then it was time to tap the threads for the tko to mount the the spacer plate, i ended up taping right thew the spacer plate and bell housing for extra strength and then using long tread bolts.
once all that was done i installed the new clutch and bell housing onto the back of the motor.

then it was time to modify the stock t5 cross member because the mount on the box was 20mm further forward then the t5 and it also had to be 25mm higher for the output shaft to be in the same height as the t5, it also need to new holes drilled to bolt a ford top loader gearbox mount too, because that is what the tko uses.

the tunnel need to be cut a little to allow the shifter unit to come thew, because the shifter was 35-40 further forward than the t5. also to my discusst the trans tunnel need the be belted out to alow for the extra hight of the tko, other wise the output shaft hight would change.

then i bolted it all up so the tko was all mounted up and supported as it should be.

the output shaft was in the exact position of the t5 so the tail shaft didn't need to be any longer or shorter, i then when for the quick fix and installed a cross over uni joint so the stock tail shaft would be used with the large 31 spline yoke. ( will get a proper 2 piece make later)

i have just ordered a speedo gear for the tremec. it uses the stock ford speedo sensor but uses a special tremec gear.

made up a shifter the bring the knob position bak to normal.

thats all i can think of atm

if u got any questions then just ask!



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Sat Oct 13, 2007 1:33 pm
Tyre Shredder
Offline
User avatar

Age: 38

Posts: 325

Joined: 15th Apr 2006

Ride: F350, EF2 Ghia, XC & Corty

Power: 218 rwkw

Location: Wangaratta
VIC, Australia

Which Version of the TKO 600 are you using, the .82OD or the .64OD?
I'm currently contemplating fitting one to my Corty, and am debating which OD would suit the best.



_________________

13.28@103.73mph

Top
 Profile


Posted: Sun Oct 14, 2007 3:00 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

i just went the .64

i do alot of highway driving at 110 so i just when with that. but i think it is a bit to low, sits at about 2100 at 110 with 3.45:1 diff gears.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Thu Nov 15, 2007 10:42 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

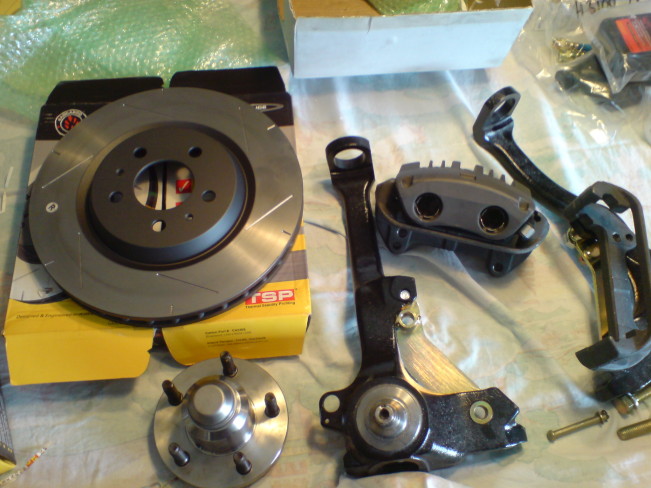

these arrived today

PBR Twin Piston Performance Front Brake Caliper - Anodised 'Black' R/H
PBR Twin Piston Performance Front Brake Caliper - Anodised 'Black' L/H
Cebco 'Street Performance Plus' Brake Pads
High Grade Steel Hubs
DBA Disc Rotor 330mm X 28mm, Front, Slotted Slip-on Design
Spindles - Modified complete with brackets, spacers, bolts and washers
Stainless Steel Braided Front Brake Hoses
Banjo Bolts and copper washers
Genuine FORD Upper Ball Joints
Genuine FORD Lower Ball Joints
Inner and Outer front wheel bearings
Hub Seals
Brake Fluid, 500ml bottles
High Temperature Bearing Grease





Attachments:
brake kit.JPG
brake kit.JPG [ 89.38 KiB | Viewed 262 times ]



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Thu Nov 15, 2007 10:46 pm
Smokin em up
Offline

Age: 36

Posts: 236

Joined: 2nd Jun 2005

Location: melbourn
VIC, Australia

How Much?

Looks Nice...



_________________

4LTR-JET: 9.1 @150mph!!

Top
 Profile


Posted: Thu Nov 15, 2007 11:00 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

about 2700 i think



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Fri Nov 23, 2007 6:45 pm
Oompa Loompa
Offline

Posts: 30

Joined: 18th Feb 2006

Location: mel
VIC, Australia

hey, anyone know who he got the brake kit off? and some contact details please and also what did he do with his battery boot ?
Top
 Profile


Posted: Fri Nov 23, 2007 8:57 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

brake kit is from cebco http://www.cebcobrakes.com.au

what do you mean "what did he do with his battery boot"??



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Fri Nov 23, 2007 10:44 pm
Oompa Loompa
Offline

Posts: 30

Joined: 18th Feb 2006

Location: mel
VIC, Australia

sorry it looks like he moved his battery was it to the boot and did he leave any info on how he did it? sorry i didnt explain myself very well. thanks
Top
 Profile


Posted: Sat Nov 24, 2007 10:32 am
Stock as a Rock
Offline
User avatar

Posts: 197

Joined: 24th Nov 2006

Gallery: 1 images

Ride: vs cluby,elxr6t

Location: Frankganistan
VIC, Australia

to move the battery into the boot it aint hard. although you will need large crimp terminals and some large crimpers and a reasonable length (7 odd metres) of 00 gauge cable. most peoplewould just get there auto elec to do the job. but if you can get all the parts its easy to do yourself.



_________________

wish i had bigger wheels.
