NO2 on a 393 Clevo basic system



Page 1 of 1 [ 8 posts ]


 Post subject: NO2 on a 393 Clevo basic system
Posted: Thu Apr 19, 2007 8:50 pm
Getting Side Ways
Offline

Age: 50

Posts: 469

Joined: 4th Jun 2006

Gallery: 35 images

Ride: xy fairmont

Location: Perth
WA, Australia

alright ill start at the bigining , ive built a 393clevo it has 11:1 comp , and i was given a brand new Sniper Nitros kit by a friend bla bla bla... any way this is a very basic kit and it is a wet kit that also delivers extra fuel at the same time as the shot of nos this is done from a delivery manifold plate, that sits beneath the carbi.... all the other kits ive seen have a solinoid on each pot drilled and tapped into the intake manifold i no what the advantages are of this ,but will having such a basic kit mean some pots might run leaner or hotter or something and put my motor at risk of smashing its self up ..... my cam stops producing power at 7500rpm but my engine builder says its capable of reving to 9000rpm will this give me protection or is it safe to use these cheap systems or stear clear any help would be appreceated...





Attachments:
IMG_0688.JPG [ 53.72 KiB | Viewed 217 times ]

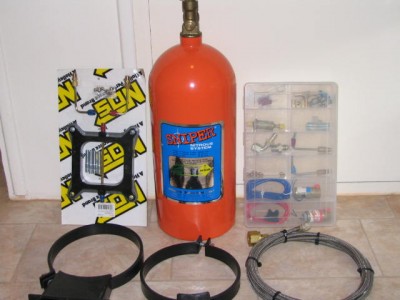

File comment: the basic NOS system see the delivery manifold on the right..
IMG_0688.JPG [ 53.72 KiB | Viewed 221 times ]
IMG_0688.JPG [ 53.72 KiB | Viewed 219 times ]



_________________

If you have it under control then you dont have enough power..
There is no replacement for Displacment..

Top
 Profile


Posted: Thu Apr 19, 2007 9:41 pm
Getting Side Ways
Offline
User avatar

Age: 92

Posts: 1088

Joined: 30th Jan 2005

Gallery: 16 images

Ride: F350

Location: Brisbane
QLD, Australia

I'll start by saying any engine builder that says its good to rev a clevo to 9000rpm cannot be trusted.
Dont get him to fit the kit.
Top
 Profile


Posted: Thu Apr 19, 2007 10:24 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

he didnt say its good to rev to 9000rpm. he said the engine capable of revving to 9000rpm. my dad built clevo that had modded 4mab crank and grout filled clevo block and ally rods, in a drag car reved to 8800 for 4 years.

looks good anyway man, what heads u got?

should be good for 600hp without nos



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Thu Apr 19, 2007 10:54 pm
Getting Side Ways
Offline

Age: 50

Posts: 469

Joined: 4th Jun 2006

Gallery: 35 images

Ride: xy fairmont

Location: Perth
WA, Australia

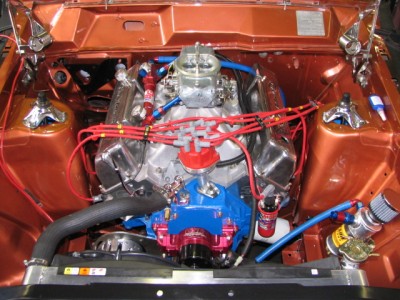

Got the Alloy CHI 3V ported, cam is solid roller has 712' lift can any one help with thoughts on the NO2 kit.... yer the motor will not be reving to 9 grand but he said it's capable the cam stops producing just over 7grnd so we will be stopping it at 7200rpm buy the little pill on the side of my MSD ignition, god bless technoligy.... yer the engine builder recons i should have 490hp at the rear wheels with out gas will be on road in 2 weeks so when i get it dynoed ill post it and let you no...





Attachments:
web pick8.jpg
web pick8.jpg [ 251.51 KiB | Viewed 240 times ]



_________________

If you have it under control then you dont have enough power..
There is no replacement for Displacment..

Top
 Profile


Posted: Fri Apr 20, 2007 2:00 am
Getting Side Ways
Offline

Age: 39

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

the distribution from that plate style nos system wont be any worse than the distribution from your carby system....



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Fri Apr 20, 2007 8:12 am
Getting Side Ways
Offline
User avatar

Age: 52

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

It will be fine, remember to start small, listen for detonation and reduce timing 2 deg for every 100hp and all should be good. The "other" systems you refer to are direct port, and this system will be fine, it will supply exactly the same as your carb does, so if it is lean on a single cylinder now, it will be lean on NOS.
Make sense
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


Posted: Fri Apr 20, 2007 10:28 am
Getting Side Ways
Offline

Age: 50

Posts: 469

Joined: 4th Jun 2006

Gallery: 35 images

Ride: xy fairmont

Location: Perth
WA, Australia

Thanx for the input guys most apreciated...



_________________

If you have it under control then you dont have enough power..
There is no replacement for Displacment..

Top
 Profile


Posted: Fri Apr 20, 2007 3:17 pm
Getting Side Ways
Offline

Age: 42

Posts: 9452

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Just look at all the modified street cars around the country. All the ones that run nos run the exact setup as you are running.
