Query about Waste gates and BOV's



Page 1 of 1 [ 13 posts ]


 Post subject: Query about Waste gates and BOV's
Posted: Fri Aug 14, 2009 9:36 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Hello all,

Still a bit new to this turbo thing...

Do you have both a BOV and a waste gate on a turbo install? or you can just have a waste gate?

Also what actually opens the waste gate, is it built into it? (ie when it sees say 9psi it just opens?)

The snort kit ones shown here http://www.snortperformance.com/IMGP0097s.jpg appear to have two hose barbs, are these what trigger them? and then what do these hoses hook too?

Anyone with a mud map of this would be awesome... :S

And a BOV goes after the turbo where the pressure is doesn't it? and does it connect to the waste gate so the gate triggers the BOV?

I have absolutely no idea how this works...

Any help is grgeatly appreciated...

Thanks,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Sun Aug 16, 2009 12:22 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Read this ..
http://www.theturboforums.com/turbotech/main.htm
Buy or read this book..
http://www.amazon.com/Maximum-Boost-Tur ... 0837601606



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Sun Aug 16, 2009 12:42 am
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

EBXR8380 wrote:


wow when i have time i will read that..

links ftw



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Sun Aug 16, 2009 8:59 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

awwww thanks EB XR8 looks good...

Will read later... I found some stuff about BOV's on google but still couldn't find what I was after for wastegates...

Thanks,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Tue Aug 18, 2009 8:41 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

wastegates regulate boost .so say you have a 6psi spring in the wastegate it wont run any lower.
the hose usually goes on the bottom fitting.
top one is usually for a electronic boost controller which will use boh of them .if you connect it to the top one it will just keep boosting.

bov is to release pressure in ya intake pipe to stop the turbo spinning back the other way which can cuase damage . if will usually go off when the t/b is shut closed .



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Tue Aug 18, 2009 8:45 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Cheers for that...

Continually reading stuff on the net and its slowly making sense...

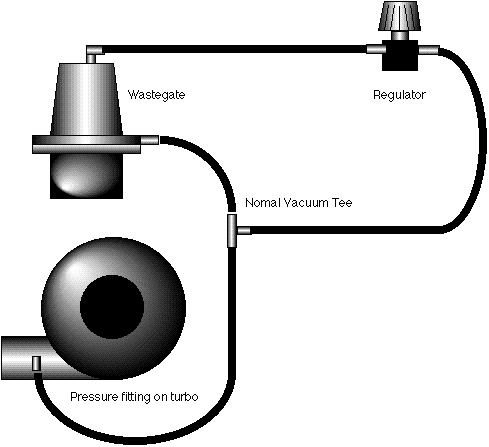

Set up like this picture I found?
Attachment:
wstgate.gif [ 11.49 KiB | Viewed 1645 times ]



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Sat Oct 03, 2009 9:54 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 324

Joined: 23rd Apr 2006

Gallery: 2 images

Ride: EF II TickMont, BA XR6T

Location: Adelaide - Whyalla
SA, Australia

the bov was created to release pressure and to also keep shaft speed up when changing gears to reduce lag from 2nd to top gear,



_________________

Current Ride - Phantom BA XR6 Turbo
EF II Fairmont Tickford Optioned, J3 Chip, Converted To 5 Speed
R.I.P. Nelly .... My NL V8 Fairlane..... Totaled by a kombivan

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Mon Oct 05, 2009 7:26 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Tezza393 wrote:
the bov was created to release pressure and to also keep shaft speed up when changing gears to reduce lag from 2nd to top gear,


Agree with the maintenance of shaft speed but not with the VL owner wives tail of the turbo spinning backwards. Still waiting a see a speed log showing the speed fall to zero for that myth to be confirmed/busted.

Also as the throttle shuts you get a massive pressure spike come back through the intake piping which loads up the compressor wheel and forces it to stall. What also happens then is that the torque on the compressor side of the shaft is much greater than, and in the opposite direction to the torque applied to the turbine side of the shaft. Over time, shafts snap when subjected to a lifetime of boost spikes. This is why blow off valves are fitted. To keep the turbo in one piece.

Warranty comes first, reduced lag between gears is just a side effect.
Top
 Profile


 Post subject: Re: Query about Waste gates and BOB's
Posted: Tue Oct 06, 2009 12:02 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

On a twin turbo set up one turbo can spin backwards..
When coming off high boost on dyno with out BOV..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Tue Oct 06, 2009 12:20 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

I still want to see a turbo speed sensor log because if you measure by eye, there will be certain speeds at which the turbo appears to be spinning backwards but is not. Something to do with the focus rate of the human eye.
Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Tue Oct 06, 2009 12:37 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

xcabbi wrote:
Tezza393 wrote:
the bov was created to release pressure and to also keep shaft speed up when changing gears to reduce lag from 2nd to top gear,


Agree with the maintenance of shaft speed but not with the VL owner wives tail of the turbo spinning backwards. Still waiting a see a speed log showing the speed fall to zero for that myth to be confirmed/busted.

Also as the throttle shuts you get a massive pressure spike come back through the intake piping which loads up the compressor wheel and forces it to stall. What also happens then is that the torque on the compressor side of the shaft is much greater than, and in the opposite direction to the torque applied to the turbine side of the shaft. Over time, shafts snap when subjected to a lifetime of boost spikes. This is why blow off valves are fitted. To keep the turbo in one piece.

Warranty comes first, reduced lag between gears is just a side effect.



Boost spike??? Its not boost spike. I also have never heard of a compressor wheel stalling. The back pressure or doseing they crap on about (VL guys) is the sound of the pressure wave of air flowing backwards past the tips of the turbine blades. The combined speed of the air flowing back past the tips of the blades reaches the level of the sound barrier. Hence converting pressure to sound energy (like the tips of the rotors do on a huey). The vids you see on you tube make it apear the wheel turns backwards but its like watching the tyres on the car next to you at the lights "turn" backwards while they accelerate.

I mean really, you think 30,000+ rpm can slow, stop and turn backwards in the second it takes to change gear? or just stall?

I am also yet to see proof that doseing has snapped a turbine shaft rather than over speed. Destroy comp wheels maybe, shafts no.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Wed Oct 07, 2009 8:29 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

The correct term is a pressure wave (as you have discribed) but I have improperly called it a boost spike because of the pressure front.

And as for the snapped shaft caused by doesing? I'll post up a few pics of the evidence when I have the time. Mind you thins thing had been dosed for 300,000+kms so I dare say it outlasted the manufacturers expectations.
Top
 Profile


 Post subject: Re: Query about Waste gates and BOV's
Posted: Mon Feb 22, 2010 4:42 am
Oompa Loompa
Offline

Posts: 41

Joined: 18th Feb 2010

Ride: henry's finest

Location: sydney
NSW, Australia

Nicko nizpro measured it. The data is somewhere. I can't remember where though (maybe calaisturbo.com ;) ). The outcome was interesting. The wheel doesn't stop ever, it just slows down a few thousand rpm I believe. Marginal really.
The sound and how it is made is described a few posts up.
Top
