 Post subject: RAPTOR V on my XR8
Posted: Tue Aug 07, 2007 3:55 pm
Oompa Loompa
Offline

Age: 32

Posts: 31

Joined: 9th Nov 2006

Location: Liverpool
NSW, Australia

Hi would just like to know if anyone has heared of this brand Raptor V superchargers, they flow 750 cfm and are good for 600 hp and 10psi.

Link http://www.raptorsc.com.au/products.php


Okay plan is to get this , make my own bracket etc.

I will run on 10 psi, know will this actually be 10psi in the intake manifold.
Also fuel system, aim is for around 210-250rwkw what will i need.

I was thinking walbro pump 500hp, rising rate reg and a tune.

All of this is going on a eb2 xr8 auto
mods done are diff, full exhaust and elec shiftkit.
Top
 Profile


Posted: Tue Aug 07, 2007 8:59 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

I was planning to purchase a raptor to supercharge my car. I have seen a V6 commo with one in the flesh. Looks the goods but recently they've upped the price to $2500 (was $2200 gst inc) and that little bit was enough for me to purchase a vortech as they are a bit more tried and trusted and better on the reliability side due to oil lines.

Saying that the commo hammered well, that put out 190 rwkw's with a aftermarket ecu, roller rockers and a bit of port work in a VN 5 speed.

For the blower, the walbro pump and rising rate reg is required. You may need to upgrade your MAF as well and possibly the throttle body as well. You will need larger injectors too as the 19lbs are just too small. Can get away with 24 lbs but ideally 30lb's are better.

Good Luck.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sat Dec 08, 2007 3:42 pm
Oompa Loompa
Offline

Age: 32

Posts: 31

Joined: 9th Nov 2006

Location: Liverpool
NSW, Australia

Well its been a while now and i have installed it on my car with custom brackets and everything.

Just running it in at the moment and will put it on a dyno to see what she puts out.

Pics are coming later.

Brad
Top
 Profile


Posted: Sat Dec 08, 2007 5:11 pm
Fordmods Newbie
Offline

Age: 42

Posts: 2

Joined: 2nd Dec 2007

Ride: Fairmont Ghia

Location: Perth
WA, Australia

nice one, looking forwad to see how it goes. I've got a Novi 2000 head unit that I want to get on mu AU Ghia 5L, trying to fab a bracket up when I get some time, did u end up making tuor own up, good luck.



_________________

No Supercharged Stroker Yet, Just A Pile Of Parts

Top
 Profile


Posted: Sat Dec 08, 2007 7:57 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

Good stuff, it'll be interesting to say the least!

What sort of boost is it running, and what size MAF did you go for?



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Mon Dec 10, 2007 6:31 pm
Oompa Loompa
Offline

Age: 34

Posts: 38

Joined: 8th Oct 2007

Ride: 1999 AU Falcon

Location: Hills Area
NSW, Australia

Which components did you get?


How much did it set you back?


I have been looking into doing this for quite some time, but have never had any first hand info from people using a raptor SC. Would be nice to know exactly what you used and how much $$

:)



_________________

1999 AU Falcon | Liquid Silver | Pacie 4480 | 2.5" Catback | K&N Pod with Custom 3" Intake | 18" Azzurros | Eclipse CD7100, MB Quart RVF216 running off a bridged RF Power T400-4, 2x Soundstream RW-12's in a custom ported box running off a Clarion DPX11500 | CMS Stg2 Cam + Custom Tune (15/9/08)

Top
 Profile


Posted: Mon Dec 10, 2007 8:48 pm
Oompa Loompa
Offline

Age: 32

Posts: 31

Joined: 9th Nov 2006

Location: Liverpool
NSW, Australia

I havent given it to much yet as im running it in but i have been through the Royal National Park and she sounds great.

Feels alittle more torquey than usual but apart from that it all runs smooth like standard.

Everything is R and D at the moment so i dont want to let too much out, Raptors are unproven at the moment on a falcon though this should change opinions. Nothing earth shattering but an alternative to CRAPPA, aiming for atleast 170 rwkw no cooler.

Unfortunately it is not a drop in kit or anything like that its just my backyard mechanics at work, the only thing i couldnt do was weld which was taken care of.

Video later.
Brad
Top
 Profile


Posted: Mon Dec 10, 2007 9:08 pm
Oompa Loompa
Offline

Age: 32

Posts: 31

Joined: 9th Nov 2006

Location: Liverpool
NSW, Australia

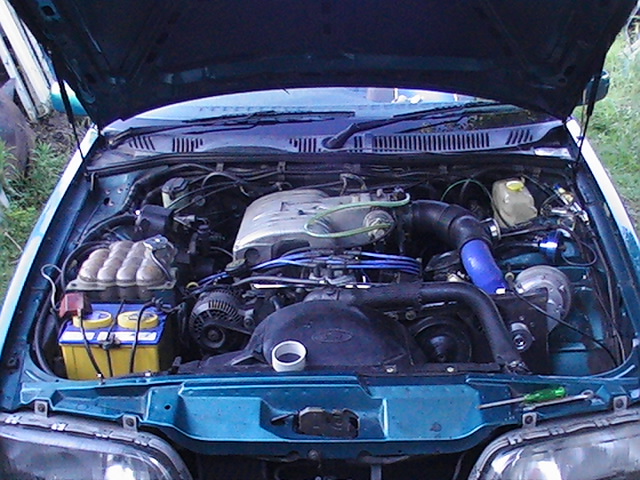

Hers a photo of early work done





Attachments:
raptor 302 004.jpg
raptor 302 004.jpg [ 154.61 KiB | Viewed 135 times ]
Top
 Profile


Posted: Mon Dec 10, 2007 9:26 pm
Fordmods Newbie
Offline

Age: 42

Posts: 2

Joined: 2nd Dec 2007

Ride: Fairmont Ghia

Location: Perth
WA, Australia

Top stuff, at least you got yours on, unlike some poor sods(namely me) lol



_________________

No Supercharged Stroker Yet, Just A Pile Of Parts

Top
 Profile


Posted: Tue Dec 11, 2007 7:24 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

347 mont wrote:
Top stuff, at least you got yours on, unlike some poor sods(namely me) lol


Your not alone mate, Mine aint on either...



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sun Dec 16, 2007 8:28 pm
Stock as a Rock
Offline

Age: 28

Posts: 161

Joined: 30th Sep 2007

Ride: XB ute, ED mont

Location: Kalamunda
WA, Australia

schnoods interested how much did you pay for your s/c, wanting to know an average price to pay for one?



_________________

ED Fairmont, XR lights, AU tickford 200kw, GT-P 18's, TwEEcer, 230kw, KAAZ LSD.

Top
 Profile


 Post subject: Raptor XR8
Posted: Fri Dec 21, 2007 8:23 pm
Oompa Loompa
Offline

Age: 32

Posts: 31

Joined: 9th Nov 2006

Location: Liverpool
NSW, Australia

Well i have been driving her alot and noticed with the 12:1 reg it just goes right out the exhaust pipe.

Car feels flat when its hot during the day but at night boy it flies, am looking to go to a lesser reg. I was at my g/f's parents property i stalled it up alittle and gunned it leaving two nice long marks down the road.

Have tried to load up a video but its too big, also need a new boost gauge as my crap speco one doesnt go past 0 vacuume( no belt slip, def making boost as a few pple can attest to- big clouds of black outta the zorst).

Brad
Top
 Profile


Posted: Fri Dec 21, 2007 9:40 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Mackagtho wrote:
schnoods interested how much did you pay for your s/c, wanting to know an average price to pay for one?
Contact them for price list.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Sun Dec 23, 2007 12:27 pm
Getting Side Ways
Offline

Age: 32

Posts: 942

Joined: 23rd Dec 2007

Ride: AU1 XR8

Hi everyone have changed my accounts for various rasons so this is my new name.

Brad
Top
 Profile


 Post subject: Re: RAPTOR V on my XR8
Posted: Sun Dec 23, 2007 1:09 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

MR_5L wrote:
Hi would just like to know if anyone has heared of this brand Raptor V superchargers, they flow 750 cfm and are good for 600 hp and 10psi.

Link http://www.raptorsc.com.au/products.php


Okay plan is to get this , make my own bracket etc.

I will run on 10 psi, know will this actually be 10psi in the intake manifold.
Also fuel system, aim is for around 210-250rwkw what will i need.

I was thinking walbro pump 500hp, rising rate reg and a tune.



All of this is going on a eb2 xr8 auto
mods done are diff, full exhaust and elec shiftkit.


If you think you are running 10 PSI boost you will need an intercooler.



_________________

I post here cos the russian tank driver doesn't
