Posted: Sun Apr 16, 2006 9:24 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Isn't the AU dryer mounted near the firewall? Would it be possible to get the AU pipes and use them instead?

Looked inside the boss' car a few times, and I think its near the TX valve in the AUs

I'm an EF man so i can't remember :P



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Mon Apr 17, 2006 7:52 pm
Getting Side Ways
Offline

Age: 39

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

Bert wrote:
When the system is vac-pumped it removes all the moisture out of the system. Moisture is bad because it will form as ice in the TX valve and/or the evaporator core. I don't know how you can "boil off" moisture in a sealed system.

how do you think it removes the moisture????

what happens to water even at room temp when you apply a strong enough vaccumn to it?? it turns into a gas.

thats what happens in the a/c system, once its a gas it just gets sucked out with the air.

oh, BTW, the au system isnt a tx valve system, it is an orifice tube system, meaning, that canister on an au isnt actually a receiver drier, its an accumulator.

i dont have my car at home now, so ill have to wait til i get to work tomorrow to get a picture of my setup.



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Fri Apr 21, 2006 8:29 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

Today I had another look at it and there is space to fit it to the far right (loking at the radiator from the front) just behind the edge of the headlight, this will give me enough room to properly mount the intercooler.

can I cut the pipes shorter and use rubber hose with stainless steel ring clamps to join the pipe back together, if not then what about silicon, the joining hose would only be about 4cm's in length and yes I do realise that I will have to get the system re-gassed and also have the gas removed before I do this.
Top
 Profile


Posted: Fri Apr 21, 2006 11:57 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

or maybe I could just get a larger sized pipe and use epoxy to glue the cut pipes together inside the larger pipe, dodgy?
Top
 Profile


Posted: Sat Apr 22, 2006 1:32 am
Getting Side Ways
Offline

Age: 39

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

dodgy



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sat Apr 22, 2006 1:57 am
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

:? which way? or all of them? I dont see it as being dodgy if i do it that way properly, I might slip the pipe over and silver solder it, just that clearance is an issue
Top
 Profile


Posted: Sat Apr 22, 2006 9:30 am
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

sounds like a sure way to lose an eyeball :)

I think the pipes hold way to much pressure. Would need to be braised together at least.



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Sat Apr 22, 2006 12:13 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Yeah dooooont play with the air con pipes. Pull it all off and once your turbo is up and running, go to an aircon shop and have them make new lines... or get lines off another car that will fit
Top
 Profile


Posted: Sat Apr 22, 2006 5:10 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

EBGizmo wrote:
sounds like a sure way to lose an eyeball :)

I think the pipes hold way to much pressure. Would need to be braised together at least.


Even if i had the system evacuated? :?

If it was to get the gas removed first , then drill a hole in part of the section to be cut out just to make sure all the gas is removed I cant see the problem.
And I ALWAYS wear safty gear when working :roll:

I think I might talk to an air con place about it, see how much it would cost to get new lines made up. If i can move this out of the way then i have 120mm more room which means i wont have to cut the front bumper and I will be able to seal the intercooler up against the radiator for more efficient cooling.

Will post up more when ive done something
Top
 Profile


Posted: Sun Apr 30, 2006 10:11 am
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 577

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

I'm not sure why you have to move it. What model car have you got??
I'm running a 600x300x75 intercooler in my EF with the Receiver-Dryer in the original location, and it all fits with no problems
If I was you I'd just leave it where it is.
Top
 Profile


Posted: Sun Apr 30, 2006 1:35 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

tjb45 wrote:
I'm not sure why you have to move it. What model car have you got??
I'm running a 600x300x75 intercooler in my EF with the Receiver-Dryer in the original location, and it all fits with no problems
If I was you I'd just leave it where it is.


Its for an EA, there isnt enought room behind the bar with that there
Top
 Profile


Posted: Sun Apr 30, 2006 1:58 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

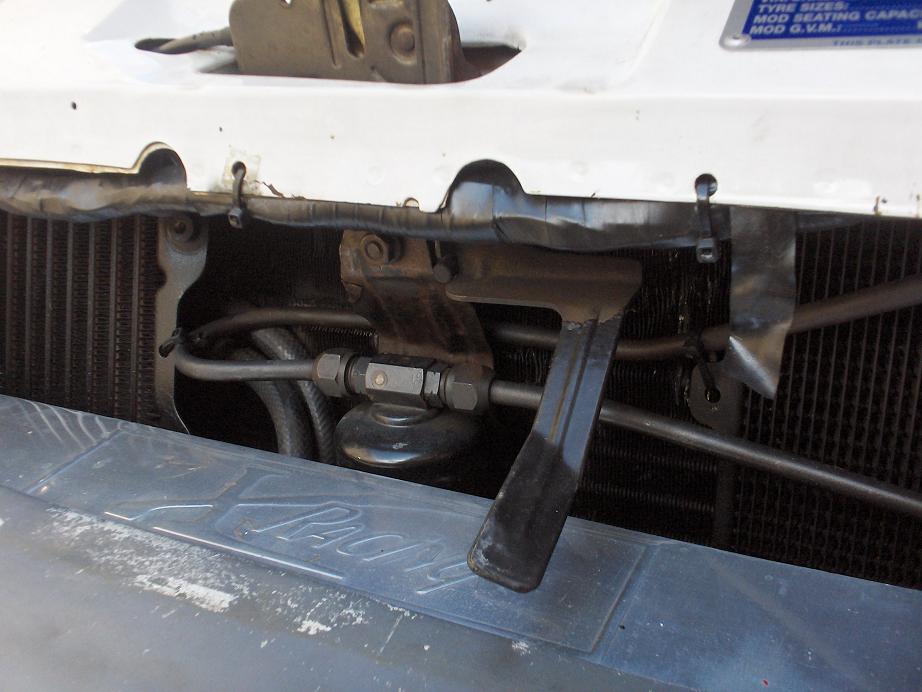

Just bend the bracket a bit and reverse it, there's loads of room there. I managed to fit 3 oil coolers in there as well.
