smallest turbo you could use.



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: smallest turbo you could use.
Posted: Fri Jan 06, 2006 2:49 am
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 799

Joined: 19th Apr 2005

Gallery: 6 images

Ride: Cherokee

Location: Tamborine Mountain
QLD, Australia

ok i sit here day after day reading your posts on turboing iv'e a vey basic understanding of what your talking about. but just a few q's:
If i have a strong rebuilt 4.0L, std heads, xr spec cam say putting out around 110rwkw, what is the smallest and cheapest turbo i could use. I am only wanting to get in the range of around 160+rwkw. What would be the highest psi i could run at without putting to much stress on the engine (6-7psi?).
I dont really want to push the revs to high either would like to stay below say 4500-4900rpm. Would i still have to go with an aftermarket ECU or would something like a power chip be suitable, would the standard injectors need to be upgraded to larger ones. Would a standard T3 turbo off something like a R32 skyline be okay or would that be too small. If this goes ahead i will only be using a small cooler aswell. Thanks youv'e probably heard it all before but like i said i only have a basic understanding.



_________________

Looking for EF/EL Falcon/Futura/XR6/XR8/Fairy.
PM me if intrested in selling......

Top
 Profile


Posted: Fri Jan 06, 2006 3:02 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

Wouldnt want to go much smaller than a gt35? I think?



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Fri Jan 06, 2006 12:57 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

what compression are u running?

6psi would be a good mark to start with and will provide good boost in power :)



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Jan 06, 2006 1:44 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

For that power output have you considered supercharging? $5,351 total cost if you fit it yourself (not hard).



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Jan 06, 2006 2:03 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 799

Joined: 19th Apr 2005

Gallery: 6 images

Ride: Cherokee

Location: Tamborine Mountain
QLD, Australia

it is std comp at the mo'. What should i drop the comp down to? Yeah I looked at supercharing, but it seems harder to source second hand charger parts than turbo parts. I want to do this the cheapest i can, i already have a standard cooler which is off a skyline, so thats a start i paid $60 for it unsure weather there is any leaks or not, i can also get a t3 flange for next to nothing and also a newish t3 turbo (approx 8,000) for $200. I just want to do it on the cheap, seeing as it's gonna be my first turbo'd ride. It's just gonna be a learning curve for me.
Any other tips..... :?



_________________

Looking for EF/EL Falcon/Futura/XR6/XR8/Fairy.
PM me if intrested in selling......

Top
 Profile


Posted: Fri Jan 06, 2006 2:28 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 799

Joined: 19th Apr 2005

Gallery: 6 images

Ride: Cherokee

Location: Tamborine Mountain
QLD, Australia

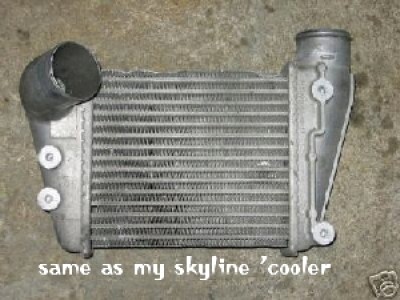

here is the cooler and turbo





Attachments:
File comment: cooler off a 95-96 cooler
cooler.JPG [ 65.69 KiB | Viewed 55 times ]
File comment: t3 off a skyline
turbo.JPG [ 6.46 KiB | Viewed 736 times ]



_________________

Looking for EF/EL Falcon/Futura/XR6/XR8/Fairy.
PM me if intrested in selling......

Top
 Profile


Posted: Fri Jan 06, 2006 3:01 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

well that cooler is WAAAAY WAAAY too smalll :)

not sure if the T3 will have enough flow for a 4.0l



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Jan 06, 2006 3:14 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 799

Joined: 19th Apr 2005

Gallery: 6 images

Ride: Cherokee

Location: Tamborine Mountain
QLD, Australia

ah ok well back to square one, what size turbo would i be looking for, i've found a GT 45 style turbo but would this be too big for what i am aiming to achive

Turbo Specifications

Nomenclature (tag ID)
T4 GT45 Y2004KInlet (exducer/hot side)
T-4 Flange 70.1mm x 82.55mm (2.76â€￾ x3.25â€￾)
Outlet (exducer/hot side)
4.25â€￾ V-Band
Inlet (compressor/cold side)
Ø 109mm (4.25â€￾)
Outlet (compressor/cold side)
Ø 86mm (3.38â€￾)
Exducer A/R 1.05
Compressor A/R0.66
Bearing Type Ball Bearing
Cooling/Lubrication Oil/Oil
Oil Supply Fitting Flange
Oil Return Fitting Flange
Compressor major diameter Ø 98 mm

That turbo in the above picture is roughly 300mmx250mm so would i be better off going with something around twice the size, what about a top mount :?: :?:



_________________

Looking for EF/EL Falcon/Futura/XR6/XR8/Fairy.
PM me if intrested in selling......

Top
 Profile


Posted: Fri Jan 06, 2006 3:57 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

Front mount are more efficient, and some can be found on ebay. Its better off to go for a slighter larger turbo, you never know what you might want to do for psi down the track :D



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Fri Jan 06, 2006 5:09 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 799

Joined: 19th Apr 2005

Gallery: 6 images

Ride: Cherokee

Location: Tamborine Mountain
QLD, Australia

Quote:

PostPosted: Fri Jan 06, 2006 2:57 pm Post subject:
Front mount are more efficient, and some can be found on ebay. Its better off to go for a slighter larger turbo, you never know what you might want to do for psi down the track icon_biggrin.gif


yeah i know what you mean but when im back at work the missus does most of the driving and i dont want to have anything to crazy with her behind the wheel :shock: :shock:



_________________

Looking for EF/EL Falcon/Futura/XR6/XR8/Fairy.
PM me if intrested in selling......

Top
 Profile


Posted: Fri Jan 06, 2006 5:15 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 2280

Joined: 5th Nov 2004

Ride: EF Falcon 95

Location: Rosebud
VIC, Australia

jump on the ebay bandwagon and sometimes you will find factory XR6T or Typhoon coolers, im sure they would be suitable for low boost such as 6PSI. Usually go for pretty cheap to



_________________

Cougar Zero makes my pants fit nice.

Top
 Profile


Posted: Fri Jan 06, 2006 5:24 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

ED911 wrote:
Quote:

PostPosted: Fri Jan 06, 2006 2:57 pm Post subject:
Front mount are more efficient, and some can be found on ebay. Its better off to go for a slighter larger turbo, you never know what you might want to do for psi down the track icon_biggrin.gif


yeah i know what you mean but when im back at work the missus does most of the driving and i dont want to have anything to crazy with her behind the wheel :shock: :shock:


Easy! Electronic boost controller!



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Fri Jan 06, 2006 6:16 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 799

Joined: 19th Apr 2005

Gallery: 6 images

Ride: Cherokee

Location: Tamborine Mountain
QLD, Australia

Quote:
Easy! Electronic boost controller!
yeah well i guess your right.
But do you think the turbo i metioded before would be okay the T4/GT45 type one :?:



_________________

Looking for EF/EL Falcon/Futura/XR6/XR8/Fairy.
PM me if intrested in selling......

Top
 Profile


Posted: Fri Jan 06, 2006 6:36 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

T4 should be fine for the 4 litres :P



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Fri Jan 06, 2006 6:49 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

the skyline turbo, is it off an RB20 or RB25????

if its from an RB20 you're in luck as i have one i'm looking to sell.
two turbos of that size would work quite well.


run them both at stock wastegate pressure and you should see around 7ish PSI.

manifolds would be easy to 3 cyls into each turbo.
if you really wanted to do it very cheap and don't want to spend much, you could use 2 of the intercoolers, one for each turbo then join the 2 pipes after them.

it's not ideal and will never make huge power but it would work.

i could prolly sell you the my turbo and a second cooler for $220
i've got plenty of s**t here...
If you wanted to i could sell you two RB20 turbos and a cheap front mount thats 600x300x76 or 600x300x100



_________________
