Posted: Thu Aug 11, 2005 8:09 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Just leave it on and see what happens... should be fine as the ED manifold is good big power and Dans AU is getting over 300 on the stock AU manifolds
Top
 Profile


Posted: Fri Aug 12, 2005 1:57 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

cool cool.
Im all wet and horny for this kit now, just working out some mulah.

I found ACL make a 1.5mm copper gasket, shoud bring back to 8.7-8.6:1 which should be good for a streeter with 10 psi.



_________________


Top
 Profile


Posted: Fri Aug 12, 2005 8:29 am
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Whats it cost? I need one of them
Top
 Profile


Posted: Fri Aug 12, 2005 12:05 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

like $100

cheep cheep!



_________________


Top
 Profile


Posted: Fri Aug 12, 2005 1:04 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

The XF snort manifolds are the only ones that appear to be some form of tuned length design. All the rest are log manifolds (in the true sense of the word).
Top
 Profile


Posted: Fri Aug 12, 2005 1:09 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

nah, i don't think all the pics are up.
the stage 4 (i think) for the eseries has a tuned length style stainless manifold.
its been used on EASPRINT's car as well as a few other cars on this forum :)



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Fri Aug 12, 2005 2:10 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

I think all the manifolds are tuned length now, apart from the stage one and two ones. The website is in development so my guess is they haven’t got all the pictures up yet. I saw a EA-AU snort tuned length manifold about 3 months ago, so they definably do exist... :D
Top
 Profile


Posted: Fri Aug 12, 2005 2:20 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Tuned length extractors AND turbo. Best of both worlds. I'm just waiting til I can get insurance, then I'm getting blown.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Aug 12, 2005 2:22 pm
Getting Side Ways
Offline
User avatar

Posts: 2772

Joined: 27th Jan 2005

Gallery: 11 images

Ride: BOXCAR (Not some sorry ass EF/EL

Location: Mackay, Far North New South Wales.
QLD, Australia

xcabbi wrote:
The XF snort manifolds are the only ones that appear to be some form of tuned length design. All the rest are log manifolds (in the true sense of the word).

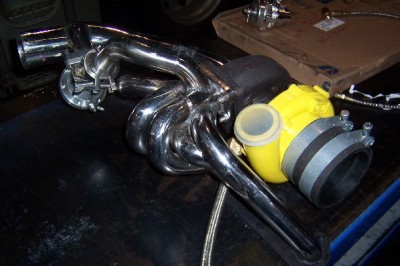

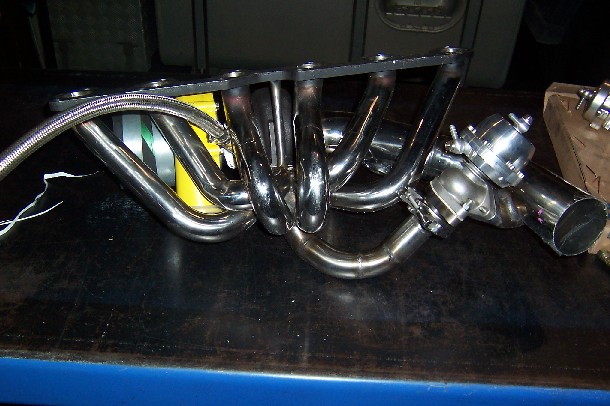

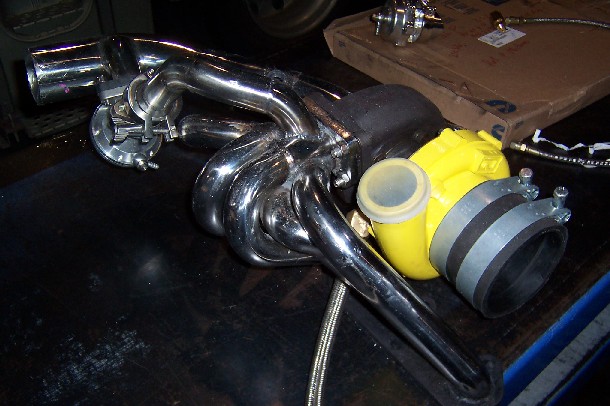

Not true dude. Heres some pics of my snort kit for the ED. I didnt run a tape measure over each pipe but i would say thats as close to tuned length as youd get.





Attachments:
t22zu.jpg [ 73.25 KiB | Viewed 70 times ]
t15mh.jpg [ 75.39 KiB | Viewed 69 times ]



_________________

The artist formerly known as seton005 (and allegedly The_Murph).

When I was growing up, we were so poor we could'nt even afford to pay attention.


Top
 Profile


Posted: Fri Aug 12, 2005 2:37 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Off topic, but has ANYONE actually got a handle on tuned length turbo manifold design? I'm not speaking from experience, but aren't gains when stepping from a well made log-style to a tuned length about 2/10ths of f**k all?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Fri Aug 12, 2005 4:29 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

2/10ths of f**k all is better than nothing. And of course there's the wank factor of saying you've got a tuned length turbo manifold.

As long as it's no worse, who cares.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Aug 12, 2005 5:11 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

it all depends on the tune of your motor as to wether these tuned manifolds will benefit.
the main thing to look at is the heads ability to flow large amounts of air and in turbo situations its the turbo's exhaust housing and manifold that can cause some major restrictions, though they are restrictions, they will still allow the head to breath alot of air, as with a log manifold.
With a manifold such as the tuned one above, it will always flow more air than a log one due to the length of the runners and the smooth flow they allow. the tight bends of the log manifold will slow down the air and cause a restriction, but as its being proven on many motors, this restriction will still allow the motor to produce high power, so the log is fine for high 200s.

A good example of this is my mates SR20, its in a very healthy state of tune with some big $$ spent on it and a very large ( for a 2lt motor ) turbo. This over sized turbo mounted on the nissan cast manifold (semi log style from factory ) tended to lag too much for easy road driving, but once he put a Trust tuned lenght manifold on it spooled alot lower and hit boost much harder. Most poeple said the turbo was to big, but with this manifold it became alot more drivable.
This is of cause a different world compared with the lazy 4lt but it does go to show that a good tuned length manifold is worth using, but its most obviouse benifits will only become apparent on high boost, high air flow applications where flow through the head is critical
Top
 Profile


Posted: Fri Aug 12, 2005 6:23 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

Im not exactly sure about this but dont decompression plates encourage detonation on boost? I know it would be a lot safer than running higher compresion but if you have the option it may be an idea to decompress the engine by enlargening the combustion chamber. More expensive but it may be worth it in the long run. What do other people think? Am i totally wrong or what?
Top
 Profile


Posted: Fri Aug 12, 2005 6:29 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Dunno, Im tossing up which way to do it at the moment
Top
 Profile


Posted: Fri Aug 12, 2005 7:17 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

I remember reading in an old Autospeed article that most 'tuned length' turbo manifolds aren't actually 'tuned'. Sure they flow better because of smoother bends, but when it comes to claims of keeping cylinder exhaust pulses spaced evenly for smoother turbine operation, nobody is even sure how to do it effectively.
I just spent like 10 minutes trying to find the article again so anyone with an Autospeed subscrip could have a read, but I can't f**k find it. I'll keep looking and edit if I find it...because it's a very interesting article, although probably outdated.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw
