Sparkplugs for turbo I6



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: Sparkplugs for turbo I6
Posted: Mon Jun 23, 2008 5:12 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

As the title suggest's what plugs are you guys running on your turbo I6's? im running these champion one's (Yeah i know champion sucks but i got them for nothing) and i think there breaking down under boost. I get a couple of boot fulls out of the car and then she runs ruff as guts. Coffs and splutters and so on.
Im on 10psi and running a 55hp nitrous shot, although i won't be running nitrous all the time, and haven't used it yet.
Cheers in advance.
Oh yeah its an EB.





Attachments:

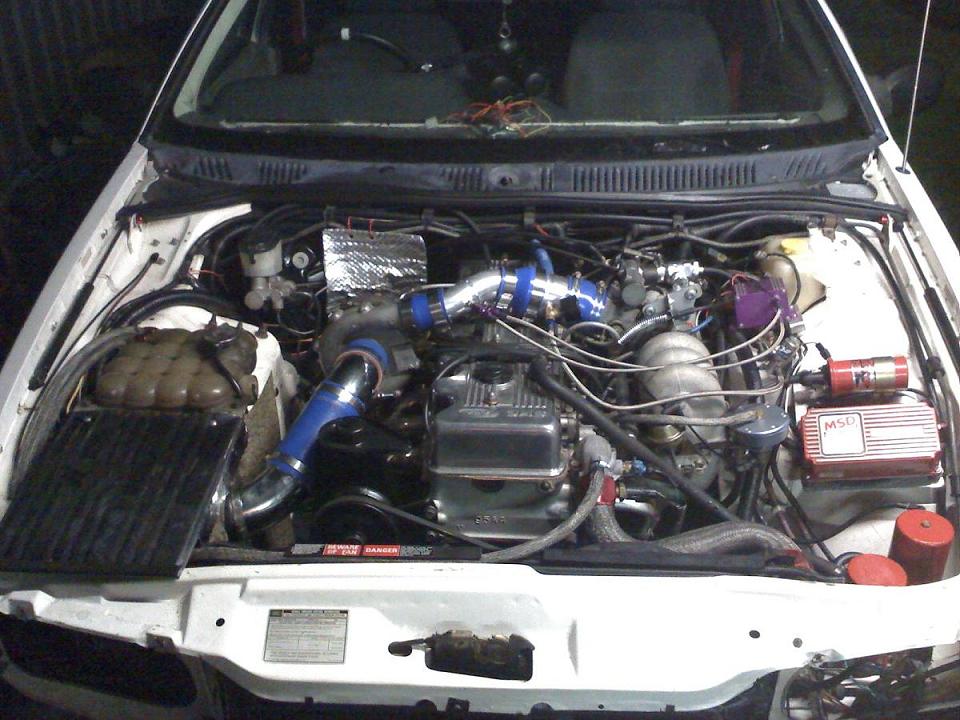

File comment: Yes no intercooler, i have a CO2 cold air intake system insted.
09-04-08_2245.jpg [ 116.51 KiB | Viewed 1655 times ]



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Mon Jun 23, 2008 7:11 pm
Smokin em up
Offline

Age: 34

Posts: 239

Joined: 20th Jan 2007

Ride: Custom Bedford, 79 Firebird

Location: Perth
WA, Australia

Check the gap on the plugs you have firstly, they may just be too wide, i know the xr6 turbos are much smaller gaps then the NAs. BAs use denso iridiums, but i put in NGK iridiums.. You can get good champion plugs, but they're race series and usually direct order from the US..

Get a set of feeler gauges and check where they're at now, probably mid to high 20's, try them at about 22 and see how you go, it could also be that your running too rich, so the plugs go black after a hard run and they are hard to fire after that, in which case, clean them and adjust your driving style until you get a tune.. Don't stomp it and wait for the car to catch up, feed the power in and keep it burning clean..


Hope this helps



_________________

Wrecking BA lots of parts available Pictures and prices here
3 Decks with stackers PRICE DROP

Top
 Profile


Posted: Mon Jun 23, 2008 8:39 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

I'd be using LPG NGK plugs in all honesty, you will need a colder plug with 10psi .



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Mon Jun 23, 2008 9:36 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

yeah the heat range for the plugs i have in her are a little hot. Ive tried some old cooler plugs i had lying around BPR7ES NGK and it seems to be a bit better. Although it still has not gotten rid of the miss fire. Everythings new on the motor so i dont know why i would be getting a miss fire with both types of plugs.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Mon Jun 23, 2008 9:36 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

oh yeah and i gapped them at .88mm



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Mon Jun 23, 2008 10:06 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

With that MSD it should be fine!!!
Extended tip like XR6 plugs don't work that well...Yes gas style plugs with there shorter electrode runs cooler..
Depending on compression ?? One or two colder is all you need...
I have one colder with 7.8 compression... If I go colder I can faul the odd plug...
Gap them down to .030 ...
Whats your intake temps ???
AFR's where they should be ???
Spark breakdown can be detonation!!
That's bad!!!



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Tue Jun 24, 2008 1:51 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

Cheers mate. Im not sure on the intake temp, AFR is pretty much Smack bang in the middle of rich and lean maybe a bit towards the rich side on full throttle and a little lean on cruising but she runs no boost cruising around. but i only have a A/F gauge to go off so im not exactly sure. Whats a good intake temp? im gona try the BCP8es or 9es as aparently they handle boost better than the BPR range of plugs. When i get them in ill gap them to what you suggest and see how we go.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Tue Jun 24, 2008 2:58 pm
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

I run one stage cooler in my AU, which is also arond 10psi. I've used Bosch R6, and currently use BCPR6ES. Both sets were gapped at 0.8mm, and have worked fine.



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


Posted: Tue Jun 24, 2008 4:25 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

i use xr6 plugs gapped to .76mm, they seem to be fine on 17.5 psi.

imo you dont need to go any colder than a 7 heat range plug.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Thu Jun 26, 2008 6:39 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

i run el xr6 plugs

what roughlyshould they be gapped to for a turbo setup



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Thu Jun 26, 2008 9:54 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

TURBO_GHIA wrote:
i run el xr6 plugs

what roughlyshould they be gapped to for a turbo setup


no engine is going to be the same.

when my car was on 12psi a 0.90mm gap was fine, but it had a bad miss with anything more than 15psi.



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Fri Jun 27, 2008 2:31 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

Quick update:
p****d off the MSD blaster 2 coil and fitted the standard Bosch unit again, still running the msd controller though.
Tried some old bpr7es plugs out of one of my bikes, gapped them at 0.8. (after some tryles)
did extensive testing of all my sensors and found that the MAP sensor was getting some frequancy interuptions.
Did a few other things and it seems to have some what fixed the issue and the idles good. There still is a slight miss when you rev her up in neutral, but ill see how she goes tomorrow.
Oh and im fitting the CMS stage 2 turbo grinde cam
to see how she revs/fuels then :)



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Fri Jun 27, 2008 2:44 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

I would say its the tune ? If your runing std EEC...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Fri Jun 27, 2008 6:11 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

Wow well what can i say,
I fitted the CMS stage 2 turbo cam and WHAT A DIFFERANCE!
It boost's earlier, accelarates better and it has even got rid of this miss fire? Don't know how but it has. Full credit Joe.... well done. Ill be there next week to dyno her.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Sat Jun 28, 2008 12:21 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Bad valve springs will cause issues also..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile
