A few of those in the know will be aware that for a few years I have been toying with the idea of a supercharger install on my EF 4.0 Fairmont.

The idea started out with using an Eaton M90 with a custom manifold. This progressed well with the manifold being partially fabricated and 2 Mustang M90 Chargers aquired. Front dress was designed and other things investigated.

As luck would have it I was offered what was said to be a Whipple Charger an manifold. I purchased this and dropped the Eaton project, still in the shed whith all the bits. I redid the front dress etc and went ahead. Charger is actualy a Lysholm AX1600, 1.6 litre charger.

New engine: AU 4.0. 0.040" oversize, full ACL Race bottom end, modified AU sump to suit the EF K frame, Stage 3 CMS Head with a 2a Cam, all new lifters etc.

Install has now started and after a few hicups is progressing well, Engine install is being done at CMS and working around their other work as well.

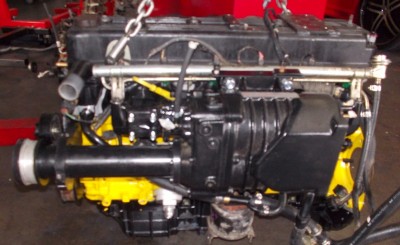

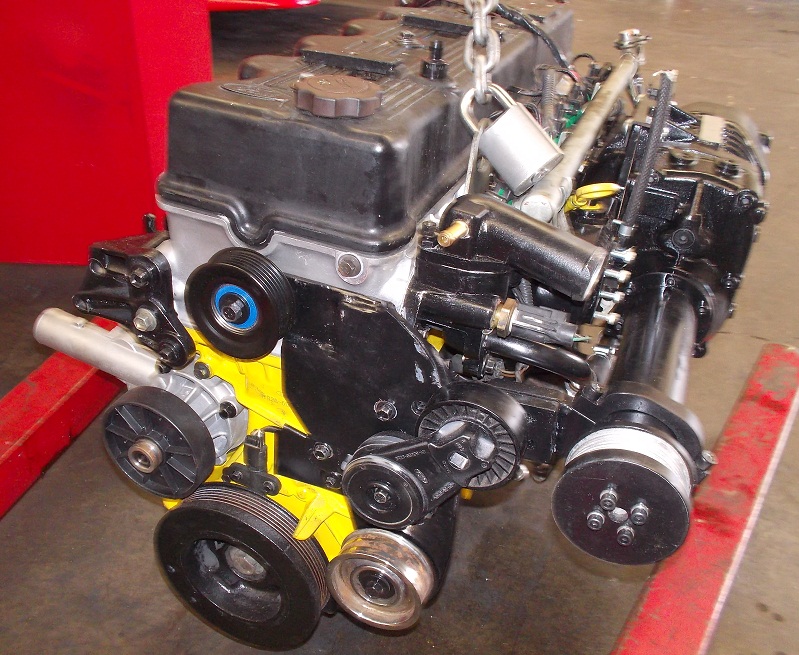

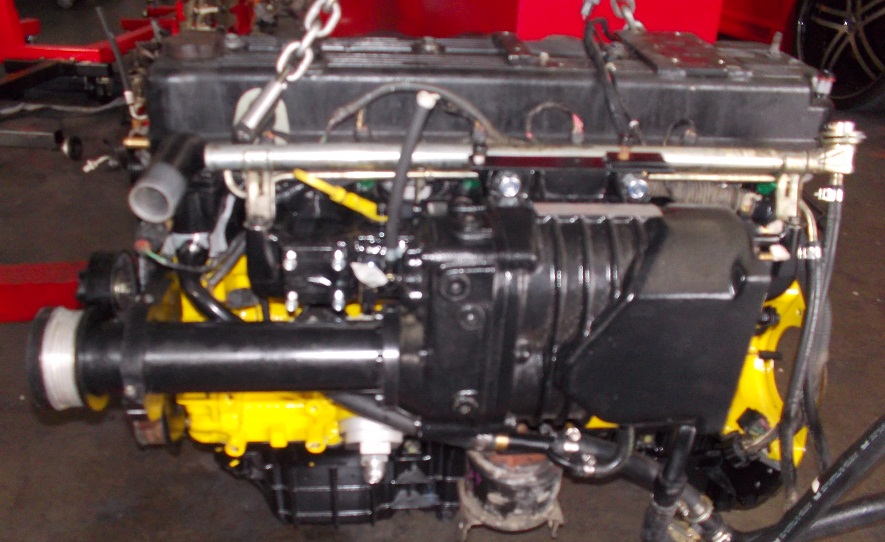

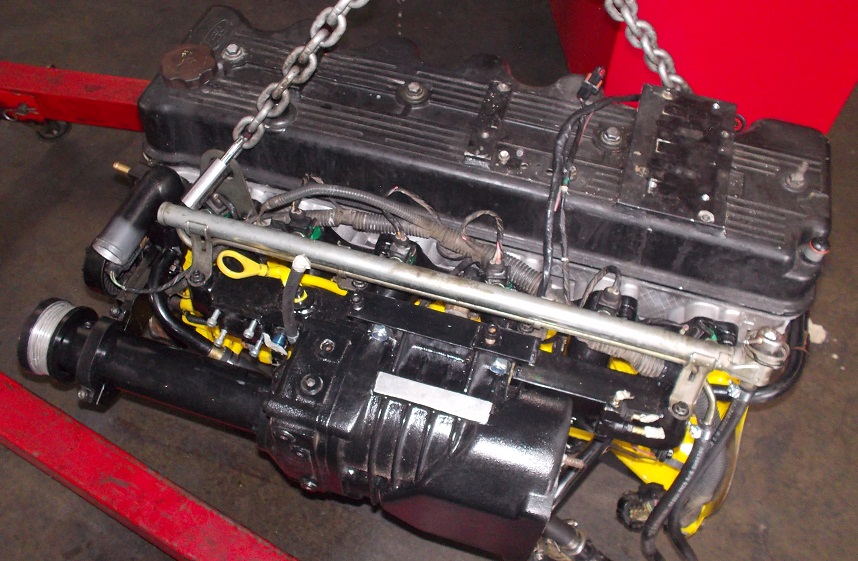

Anyway here's a few pic's of the engine on the crane.

Attachment:
Charger Mounted front.jpg
Charger Mounted front.jpg [ 286.4 KiB | Viewed 101 times ]


Attachment:
Charger Mounted Left.jpg
Charger Mounted Left.jpg [ 223.83 KiB | Viewed 98 times ]


Attachment:
Charger Mounted Left Top.jpg
Charger Mounted Left Top.jpg [ 259.14 KiB | Viewed 108 times ]
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 6:08 pm
Getting Side Ways
Offline
User avatar

Posts: 450

Joined: 24th Jan 2009

Ride: BF wagon

Location: western sydney
NSW, Australia

Nice. What kind of power would be expecting from this set up?
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 6:09 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

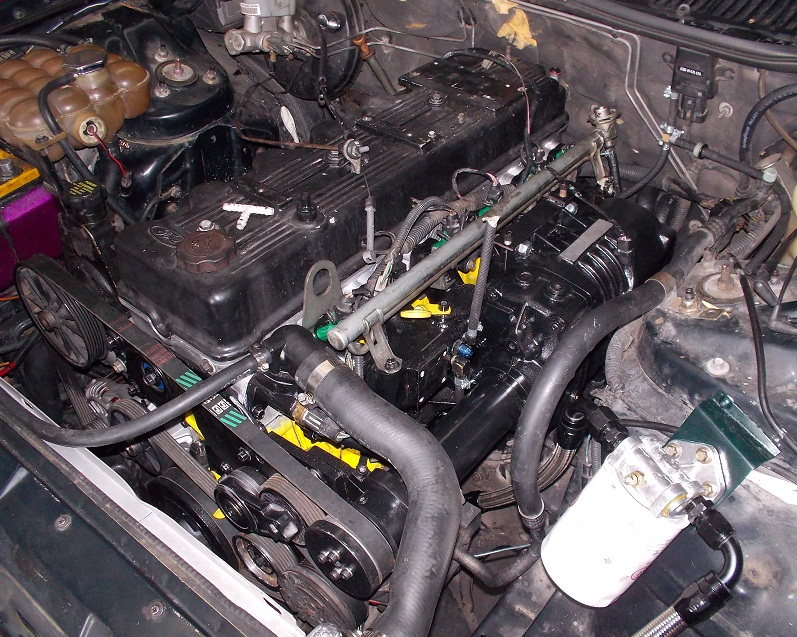

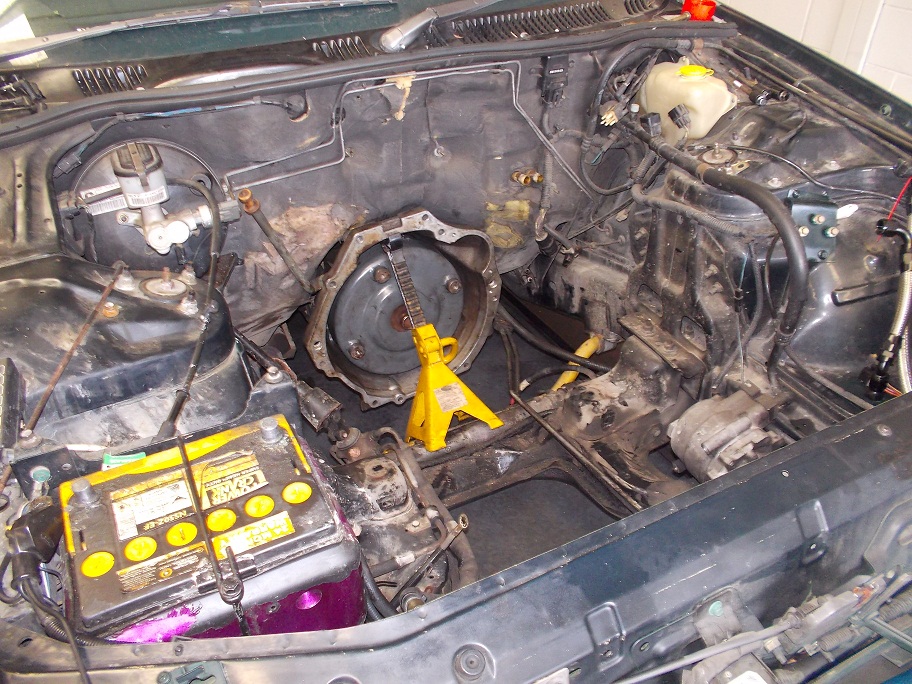

Here are some of the engine in the bay.

Attachment:
Empty Engine Bay.jpg
Empty Engine Bay.jpg [ 368.94 KiB | Viewed 108 times ]


Attachment:
Engine Bay Mounted left.jpg
Engine Bay Mounted left.jpg [ 331.14 KiB | Viewed 110 times ]


Further work will continue tomorrow with the throttle body and intake being installed and then she will fire up and on the Dyno to be tuned.
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 6:10 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Mont5.0 wrote:
Nice. What kind of power would be expecting from this set up?


In excess of 200RwKw. Will know more tomorrow afternoon :D
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 6:13 pm
Getting Side Ways
Offline
User avatar

Posts: 450

Joined: 24th Jan 2009

Ride: BF wagon

Location: western sydney
NSW, Australia

Thats a nice figure. I gained 60rwkw (230rwkw) when i charged my wagon. 200rwkw in a nice light e series will be nice. Good luck with it all.
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 6:38 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

About time you come out of the closet with this one!



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 6:43 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Matt_jew wrote:
About time you come out of the closet with this one!


Been kept pretty well on the hush hush hasn't it....... :wink:

Last edited by SWC on Wed Mar 20, 2013 7:01 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 6:51 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

Yes. Im proud I have kept quiet about it!
Good to see its nearly done. I wont have to feel guilty when I bring you my bonnet and scoop over................... :lol:



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 9:46 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

No need to feel guilty mate, always happy to help out.
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 10:27 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 646

Joined: 22nd Jan 2008

Gallery: 1 images

Ride: EBII, XR6

Location: The Hills, Sydney
NSW, Australia

Watching with interest!
I love how subtle these whipples look!
I don't think you mentioned it but apologies if you have, are you retaining the factory ECU?



_________________

Weekender: 07 BFII XR6T - Conquer
Retired: 1992 EBII SXR6 - Black Pearl

Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 10:37 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Factory ECU, SCT Eliminator Chip, 42lb injectors, BA XR6T Fuel Reg, BA Fuel Rail, Walbro Fuel Pump.
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 10:50 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

lukeee wrote:
Watching with interest!
I love how subtle these whipples look!
I don't think you mentioned it but apologies if you have, are you retaining the factory ECU?


Not a Whipple. Charger is a Lysholm AX1600. Lysholm used to be aligned with Whipple but no longer. Lysholm® is now an AirPower® Group company along with Vortech Engineering, Paxton Automotive and Vortron Industrial.
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Wed Mar 20, 2013 10:59 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

looking good paul.. good to see its nearly up and running.. :)
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Thu Mar 21, 2013 1:15 am
Getting Side Ways
Offline

Age: 32

Posts: 942

Joined: 23rd Dec 2007

Ride: AU1 XR8

Finally good to see the concept become reality, i think i remember the m90 ages ago...

Will be good to turn up on friday night and see/hear it running.
Top
 Profile


 Post subject: Re: SWC's Supercharger Project
Posted: Thu Mar 21, 2013 4:27 am
Stock as a Rock
Offline

Age: 57

Posts: 102

Joined: 19th Dec 2010

Gallery: 4 images

Ride: EF Futura / FG XR6 / DF LTD

Location: Sydney
NSW, Australia

SWC wrote:
lukeee wrote:
Watching with interest!
I love how subtle these whipples look!
I don't think you mentioned it but apologies if you have, are you retaining the factory ECU?


Not a Whipple. Charger is a Lysholm AX1600. Lysholm used to be aligned with Whipple but no longer. Lysholm® is now an AirPower® Group company along with Vortech Engineering, Paxton Automotive and Vortron Industrial.


Probably best known in Australia as the company that supplied the supercharger for the Miller cycle engine in the Mazda Millenia .
