 Post subject: Re: Turbo Vs Supercharger
Posted: Sun Apr 27, 2014 5:09 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Eaton M90

Attachment:

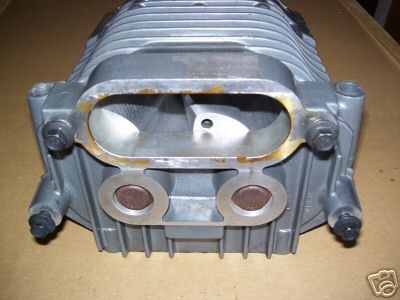

Eaton Gen3 M90 Intake End.jpg
Eaton Gen3 M90 Intake End.jpg [ 23.12 KiB | Viewed 68 times ]


Attachment:

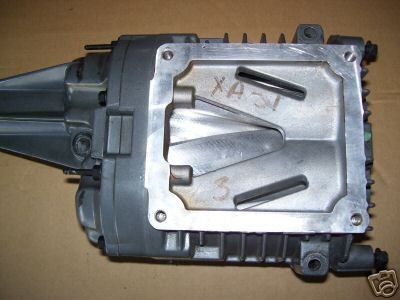

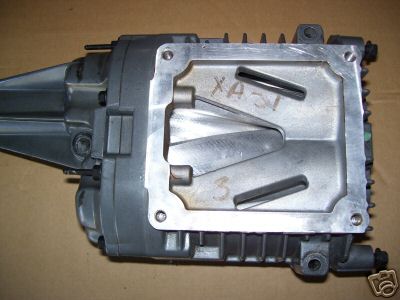

Eaton Gen3 M90 Outlet side.jpg
Eaton Gen3 M90 Outlet side.jpg [ 22.05 KiB | Viewed 67 times ]


Attachment:

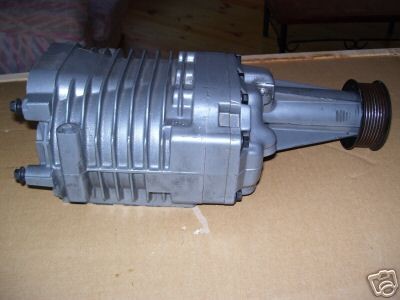

Eaton Gen3 M90.jpg
Eaton Gen3 M90.jpg [ 18.46 KiB | Viewed 68 times ]


Attachment:

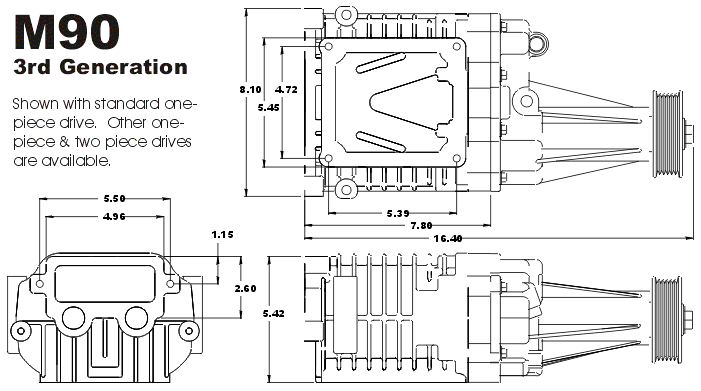

eaton_M90_drawing.gif [ 29.29 KiB | Viewed 68 times ]


Attachment:

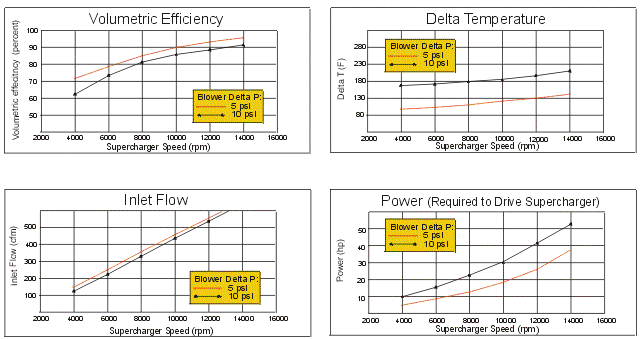

eaton_Mp90bgraph.gif [ 25.81 KiB | Viewed 91 times ]
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sun Apr 27, 2014 5:20 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sun Apr 27, 2014 5:28 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Simulation results, Flywheel KW,

http://autoapps.eaton.com/Simulator/Results.aspx
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sun Apr 27, 2014 7:48 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

Now I see what you mean regards the difference in Boost. A Lot more difference than you'd think isn't it?
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Mon Apr 28, 2014 9:44 pm
Getting Side Ways
Offline

Posts: 631

Joined: 27th Jan 2007

Ride: Supercharged BA XL ute

Location: Gordonvale
QLD, Australia

Mate I haven't read much to this point I've read the title and a few posts , so here's my 02.
Mad power yes get a turbo.
But for everyday one of these Raptors is a really good thing.
I'm home tuned and she's been dynoed at 272 RWKW , I've just put a billet impeller in it and it's got more grunt everywhere, home tuned it's still on the stock tune I've just moved the cars parameters around underneath it.
We weren't getting great figures for the first few years with the Raptors because most tuners were screwing it up all they knew was turbo tune tables , so when Peter went to that place at Archerfield in Brissy Elite tuning . He got 265 RWKW with a set up I thought was not great for top end power through a smaller header diameter at the collector where they all come together 2 1/2 not 3 inches or more and a few other things I wasn't much into , I started thinking and tweaking and came up with 272RWKW and awesome torque on my own tune just put on a dyno and away we go, the lads are now all close or over 300RWKW. STOCK tune home grown dude.
I've had mine on for 6 years now and it's still going strong my sig says it all she's a dirty old BAXL 4 sp column shift auto no tranny cooler no intercooler but she gets going all right.
Cheers talk to Tim even if you go turbo or another product we are ol school dude we rock.
By the way the Spitfire plane engine had a two speed supercharged Merlin engine in it .



_________________

BA XL ute.
P'maker headers',Hi flow cat,3" sports sytem,
Raptor V-clutched lightweight not intercooled,no tranny cooler,no worries.

Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Mon Apr 28, 2014 9:58 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

Well Ive talked to a couple of people, and if I can get about 200Kw at the rears I will be happy. I Am going to go with the supercharger. gonna go with an Eaton M90. The AU Motor is gonna get a going over, and tickled, etc with boost in mind. Plan is to make sure I can show those wannabe commonwhore drivers what a *REAL* Car can do
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Mon Apr 28, 2014 10:22 pm
Getting Side Ways
Offline

Posts: 631

Joined: 27th Jan 2007

Ride: Supercharged BA XL ute

Location: Gordonvale
QLD, Australia

Are those things even running reliably yet , they've been going to do it for the last 6 years and last I heard they had all given up. Is there a couple of runners with numbers up on the site ?
Be nice to see one go I reckon.



_________________

BA XL ute.
P'maker headers',Hi flow cat,3" sports sytem,
Raptor V-clutched lightweight not intercooled,no tranny cooler,no worries.

Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Mon Apr 28, 2014 10:48 pm
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

One of the guys I've been talking to has done pretty much the same setup i'm planning, but onto a fairlane instead.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Mon Apr 28, 2014 11:36 pm
Getting Side Ways
Offline

Posts: 631

Joined: 27th Jan 2007

Ride: Supercharged BA XL ute

Location: Gordonvale
QLD, Australia

Is it running well ?
Has it got some numbers up ?



_________________

BA XL ute.
P'maker headers',Hi flow cat,3" sports sytem,
Raptor V-clutched lightweight not intercooled,no tranny cooler,no worries.

Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Tue Apr 29, 2014 3:25 am
Stock as a Rock
Offline

Age: 41

Posts: 114

Joined: 29th Jan 2011

Ride: NL Fairlane. 5 liters of Fun!

Location: Bathurst/Orange
NSW, Australia

has had it running for a few years now with no major issues.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Tue Apr 29, 2014 4:27 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

An Eaton blower would be real nice on a 6cyl falcon but the fab work would be the biggest deal breaker for most people wanting to give it a crack. It's far more intense then welding tubes together (as in exhaust manifold for a turbo).
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sun May 04, 2014 3:03 pm
Fordmods Newbie
Offline

Age: 42

Posts: 1

Joined: 4th May 2014

Ride: BA Falcon XR6

Location: Masterton
New Zealand

Hi there, just signed up to this site, and my first post.
I have a 04 BA xr6, and also thinking about supercharging, but not sure whether to go centrifical or positive displacement.

I do have a question, it might sound funny, but if i understand correctly, a centrifical blower is basically a turbo, but driven by a belt rather than exhaust gases. If that is correct, and if it doesn't spin as fast as a turbo, can you change the pulley ratios, or possibly install a intermediate pully to make the blower spin faster??
Thanks, and any advice would be appreciated.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sun May 04, 2014 11:01 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Yes you can step it up like how you suggested. In the states some of the early 10.5 cars had a gear drive off the crank driving a centrifugal blower so the potential is there. But there is more to it than spinning the blower as hard as you can to make boost. Blowers, like turbo's are limited by their physical characteristics. You need to see their compressor maps in order to make an informed choice.
Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Sun May 18, 2014 12:49 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1775

Joined: 10th Jul 2007

Gallery: 8 images

Ride: BFII Turbo

Power: 253 rwkw

Location: Waurn Ponds
VIC, Australia

a 250 rwkw turbo 4.0 and a 250 rwkw supercharged 4.0 will feel vastly different. The supercharged engine will feel like it has better throttle response, but the turbo will have more power under the curve, despite making the same peak KW.

All things remaining equal the super will get the jump, but the turbo will pack the mid range punch that gives acceleration actual meaning.



_________________

enough isn't enough

Top
 Profile


 Post subject: Re: Turbo Vs Supercharger
Posted: Mon May 19, 2014 9:28 pm
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Grimketel wrote:
a 250 rwkw turbo 4.0 and a 250 rwkw supercharged 4.0 will feel vastly different. The supercharged engine will feel like it has better throttle response, but the turbo will have more power under the curve, despite making the same peak KW.

All things remaining equal the super will get the jump, but the turbo will pack the mid range punch that gives acceleration actual meaning.

Are we talking PD superchargers or centrifugal? There is a big difference between the way they build boost.

Regardless of what power adder you are running the most affective boost controller is the throttle itself.
