 Post subject: Vortech V2 Supercharged ED Falcon
Posted: Thu Jun 05, 2008 12:12 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

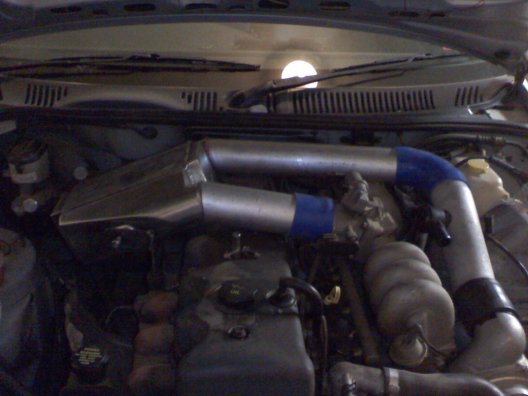

This is my ED Falcon with a Vortech V2 Supercharger and a 600HP water to air intercooler

This is the heat exchanger, it took some persuading but it fits in front of the A/C condenser with some modding.
The water pump 1000 Lt/hr located under the LHS guard

Currently needs a new tune as the exhaust is 3 inches from the secondary Extractor pipes collector.

The engine has been built with JE Forged Pistons Precision Motorsport 700 HP + con rods line bored block Supercharger custom cam, Stainless steel valves 351 Cleveland Valves turned down to suit and twin valve spring (not damper and spring).
Most parts are coated with Ceramicoat (HPC)
Power output currently 220 to 240 RWKw

To Come
BTR trans with H/Duty parts Borg warner Kevlar clutch pack and rebuild



_________________

I post here cos the russian tank driver doesn't
