Wastegate problems????



Page 1 of 1 [ 6 posts ]


 Post subject: Wastegate problems????
Posted: Wed Dec 10, 2008 6:56 pm
Fordmods Newbie
Offline

Age: 73

Posts: 4

Joined: 28th May 2008

Ride: AU

Location: Kingaroy
QLD, Australia

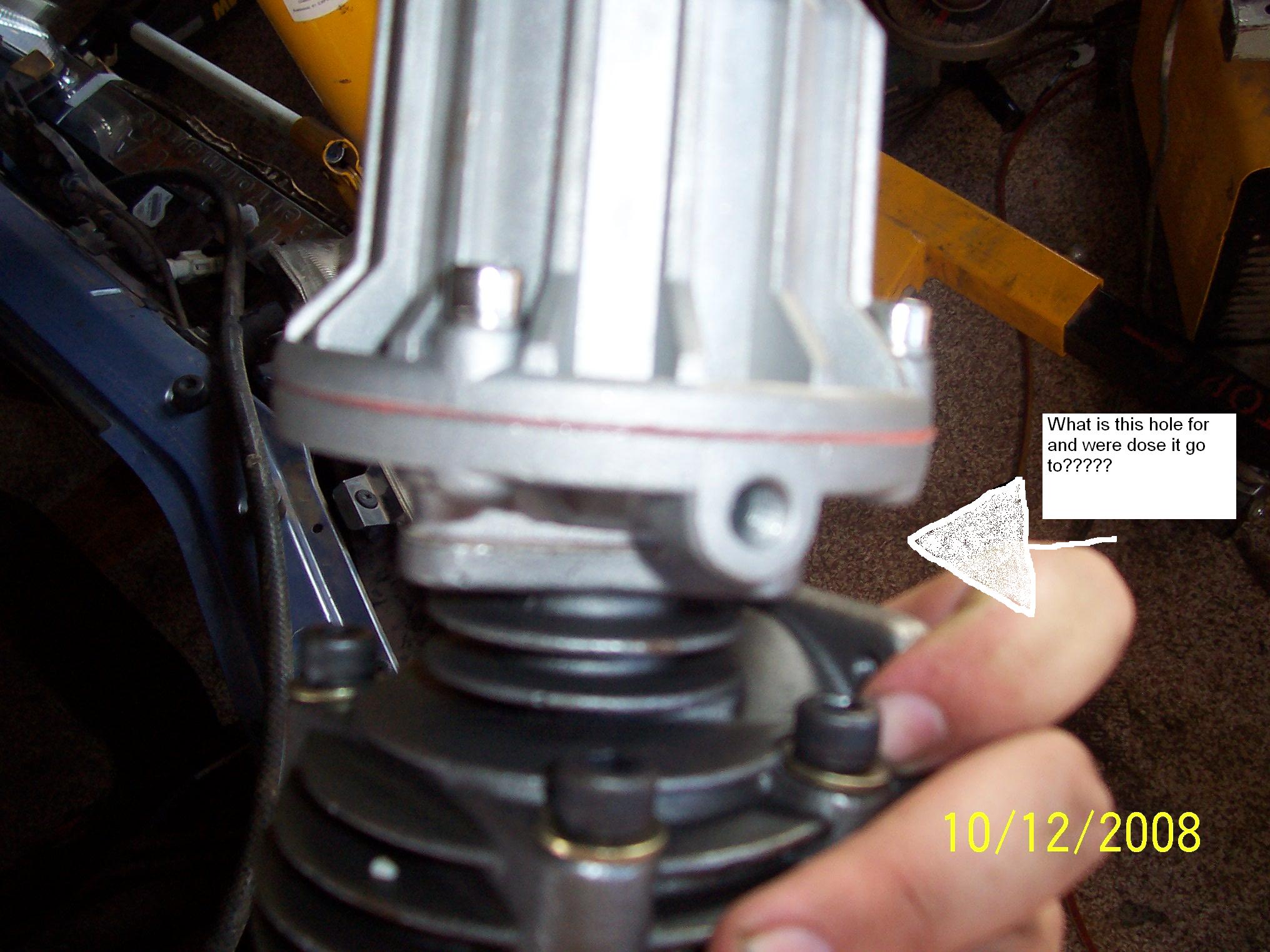

can and one tell me what these holes are for and were do they go???





Attachments:
222222.JPG [ 331.87 KiB | Viewed 1093 times ]
111111.JPG [ 300.33 KiB | Viewed 1076 times ]
Top
 Profile


Posted: Thu Dec 11, 2008 1:32 am
Getting Side Ways
Offline
User avatar

Age: 70

Posts: 3555

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Ahh !! Upload smaller pics...
The bottom hole goes to boost [best at turbo] the top one is vented to atmo...

Now if your running a EBC or even mechanical boost controller inside cabin ?? Boost can be applied to the TOP vent to adjust boost on spring.
Essentially rising boost above spring pressure..
But that best sorted on dyno where it can be tuned...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Thu Dec 11, 2008 12:13 pm
Fordmods Newbie
Offline

Age: 73

Posts: 4

Joined: 28th May 2008

Ride: AU

Location: Kingaroy
QLD, Australia

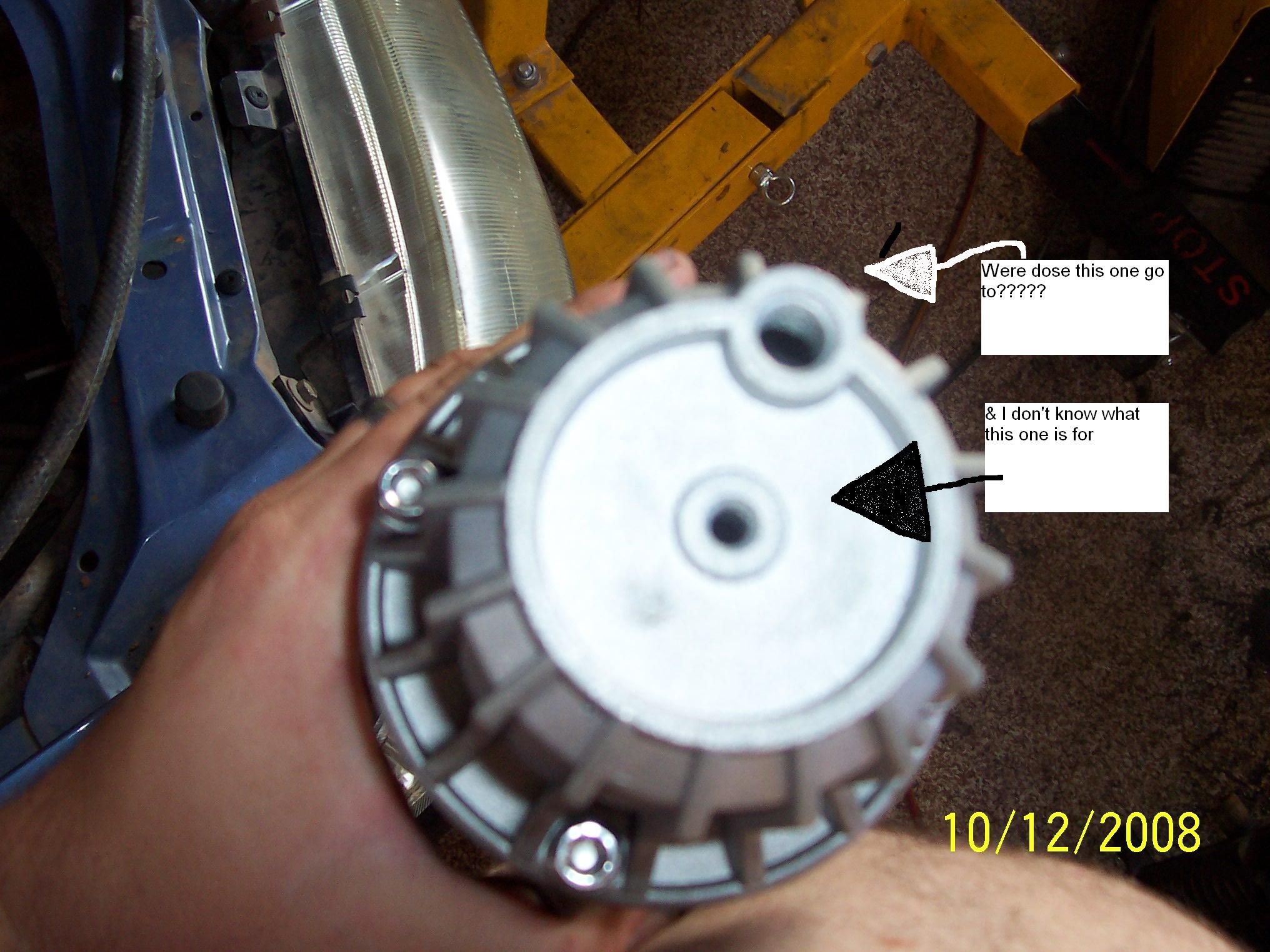

ok can any one tell me wat the top middle hole is for??????
Top
 Profile


Posted: Thu Dec 11, 2008 12:43 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

If the wastegate is setup internally for it which im sure that one isn't (ebay wastegate?) there should be a bolt that goes into that hole which pushes against a washer (of sorts) to add more preload to the wastegate spring. So by adding more preload you increase the pressure against the wastgate valve so it takes more pressure to open, so allows more exhaust pressure to the turbo, so = more boost.

But don't just put a bolt into the hole and expect adjustment. If you pull the top hat off the wastegate you will find that there would be nothing for the bolt to push against. You will have to make up your own.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Thu Dec 11, 2008 12:45 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

Oh and btw......

Edit those bloody photo's!!!! just re-size them.

You have to scroll all the way across the page to read what i wrote = pain.



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Thu Dec 11, 2008 12:52 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

by a decent wastegate first ,bottom hole goes to turbo or intake before t/b top usually goes to electronic boost controller
