 Post subject: Re: Water to Air intercoolers
Posted: Mon Feb 08, 2010 3:47 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 747

Joined: 16th Dec 2008

Gallery: 1 images

Ride: AU2 75th Anniversary Futura

Location: Adelaide
SA, Australia

yobboford wrote:
the valve was a definite if the rad is lower then the intercooler, i tried just running the pump first to see if it would push the air through, but it wont, didnt take much to bleed the air out, I ran the pump for 30secs then let it settle and cracked the valve, after about 4 times doing this it was good as gold.


ah sounds good. Yeah with mine I think my radiator will sit lower than the core itself so I might get one. Can you get them from any hardware store? Price?



_________________

Cheers
Shav

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Mon Feb 08, 2010 3:52 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1294

Joined: 6th Nov 2004

Gallery: 7 images

Ride: 80 series cruiser

Location: sydney
NSW, Australia

I got the tee from my local engineering supplies store, its a 5/8 barb straight thru with a 3/8 bsp branch, I "obtained" the valve from work, but any sort of valve will work, I used a metal ball valve so heat isnt an issue with it.



_________________

Thanks to Crescent Motors, Liverpool.
Call Joe on (02) 9600 6229.

I dont own a Landcruiser, it's a Maverick recovery vehicle!!!!

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Mon Feb 08, 2010 3:55 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 747

Joined: 16th Dec 2008

Gallery: 1 images

Ride: AU2 75th Anniversary Futura

Location: Adelaide
SA, Australia

awesome, thanks for the sizes. I might head down to my local hardware store and see what they have in the plumbing section.



_________________

Cheers
Shav

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Mon Feb 08, 2010 8:22 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 747

Joined: 16th Dec 2008

Gallery: 1 images

Ride: AU2 75th Anniversary Futura

Location: Adelaide
SA, Australia

Well I just went as saw Bruce (my tuner), Im just going to leave it with him while i go on holiday. He's going to fit everything. Brackets, hoses, pipes, fittings, you name it, he's gonna do it.

I think its best he sorts it out. Its gonna cost more to do it this way but it will be the safest.

He said, he is going to fit it over the heat shield, but he also said, he will fit some special heat proof material that BA's use to help protect the core even more. He swears by it he reckons.

I have faith in his abilities, so Im gonna go with it.



_________________

Cheers
Shav

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Mon Feb 08, 2010 11:05 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Don't forget some after shots. :lol:



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Tue Feb 09, 2010 8:21 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 732

Joined: 5th Nov 2004

Gallery: 1 images

Ride: LTDHO

Location: South eastern
VIC, Australia

xcabbi wrote:
LTDHO, is there a particular reason why you decided to go from the core to the storage tank and then the heat exchanger? I thought the convention was to go from the core to the heat exchanger and then finally to the storage tank/ice box, thus limiting heat soak.

I didn't want the water to heat back up sitting in a tank in the engine bay on it's way back to the charged air. This way the water is the coolest as it get's to the top.
I estimated the temp in the core would be higher than the bay, so it will cool a little before heading to the heat exchanger.

Temps
After core > engine bay
Engine bay > exchanger

You will note the filler is at the core, so Ice can go directly into there. (I didn't though)
Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Tue Feb 09, 2010 10:28 am
Getting Side Ways
Offline

Age: 36

Posts: 9453

Joined: 9th Nov 2004

Gallery: 4 images

Ride: Fordrunner 5.0 Turbo

Location: Wollongong
NSW, Australia

Aha now I see :idea:
Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Thu Feb 25, 2010 11:35 am
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

Hi All,

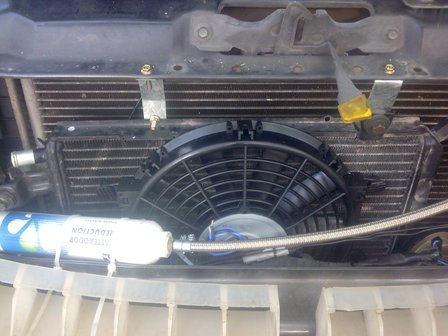

Here's the next bit of my w2a setup....fitted an RS Liberty w2a radiator with a thermofan in front of the existing radiator last weekend.

It fits very easily on an AU, nothing is tight, except that one of the horns had to be removed (its plenty loud with one anyway).

Next step will be sorting some of the water plumbing bends, and mounting a little davies craig pump behind the driver's side headlight (busy in there as its also where my water injection fill point is!).

Looking forward to Shav getting back from hols to see pics and results from his setup...

Joe





Attachments:
File comment: RS Liberty W2A radiator + thermo fan in front of existing radiator
Intercooler Radiator2.jpg
Intercooler Radiator2.jpg [ 33.95 KiB | Viewed 48 times ]



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Fri Feb 26, 2010 3:20 am
Oompa Loompa
Offline

Posts: 41

Joined: 18th Feb 2010

Ride: henry's finest

Location: sydney
NSW, Australia

shav wrote:
Ok, here is the situation.

Took off the intake pipe and dummied the core in possible locations. But its not as promising as it looks.

At first I tried it above the BBM, but as you can see on the side profile picture, it sticks up far too high.

Next was sitting it over the rocker cover, it looks like it may clear the bonnet, but with the bonnet closed, it didnt close properly.

Which left me 1 only other choice, I sat it on top of the heat shield and with some flexi pipe I had lying around, just formed it into position of how the pipe work should look.

Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image
Free Image Hosting by ImageBam.com

I think over the heat shield is the only position with this sized core.

The pipework will be 2.5" from the supercharger then a 2.5"-3" silicone reducer to the core, another 2.5"-3" silicone reducer to 2.5" pipe work to the TB.

I hope most with a Raptor V superchager realise that the outlet is 2.5" in diameter and they could effectively go the thinner 2.5" inlet/outlet Type 20 core which has a 4" body instead of the Type 19 core that I have which as a 5" body.

I think in heinz sight, the 4" body could fit above the rocker cover as a possibility, but that core is 2-3" longer.

I'll have to make up a rod/bracket of some kind to take the weight of the core itself once water goes thru it. It will get heavy, so, I'll have to get one bent to shape and connect it from the bolt that holds the header tank to one of the rocker cover bolts. That should hold the core into position.

Whats peoples thoughts so far?



I know you've already sent it off but for future reference someone could try modifying the bonnet hinges or adjusting the bonnet to sit up a couple cm's at the back. It would probably give just enough clearance to mount the core against the firewall. An added benefit is the gap provides a vent for hot air to escape.
Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Mon Mar 01, 2010 11:10 am
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

Hi All,

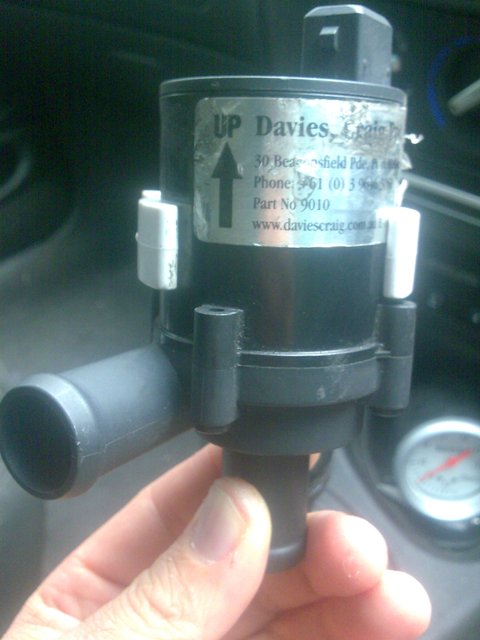

Can anyone tell me if the attached pic of my davies craig water pump must be mounted the way its shown in the photo (ie. with the 'up' arrow up)? This will dicate where I can put it, and where my water hoses will run.

Thanks for the help!

Joe





Attachments:
Intercooler Pump Davies Craig.jpg
Intercooler Pump Davies Craig.jpg [ 44.49 KiB | Viewed 43 times ]



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Mon Mar 01, 2010 11:17 am
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

Here are some more pics of some bits and pieces on my w2a setup. Intake (air) side is sorted, and almost have water side of things sorted. Will just need to mount pump, connect final hoses, then wire up. Can't wait!

Joe





Attachments:

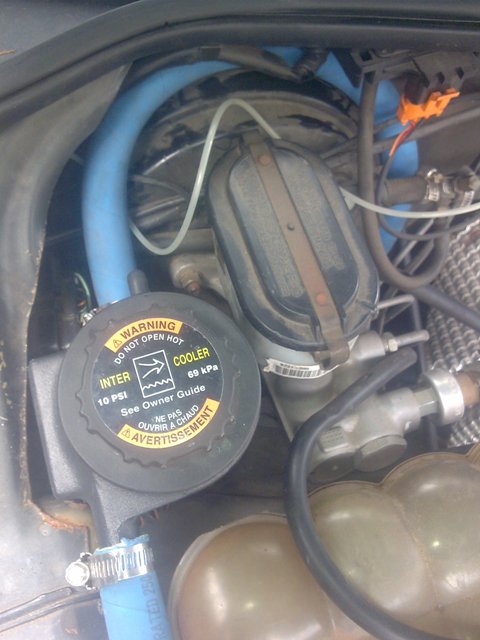

Intercooler fill reservoir.jpg
Intercooler fill reservoir.jpg [ 53.74 KiB | Viewed 53 times ]

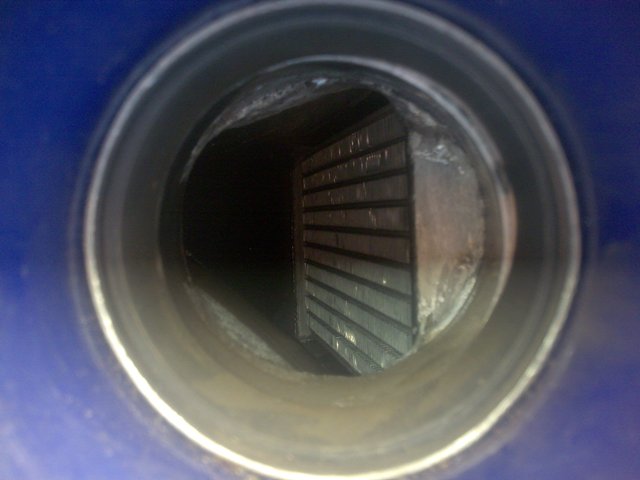

Intercooler core inside.jpg
Intercooler core inside.jpg [ 35.61 KiB | Viewed 53 times ]

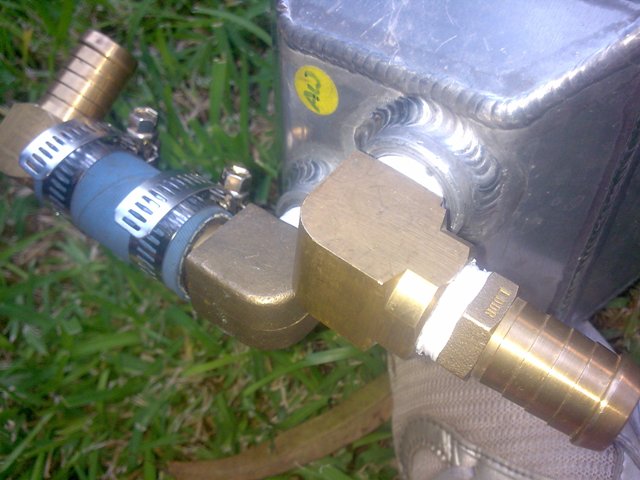

Intercooler Core Plumbing.jpg
Intercooler Core Plumbing.jpg [ 58.8 KiB | Viewed 50 times ]

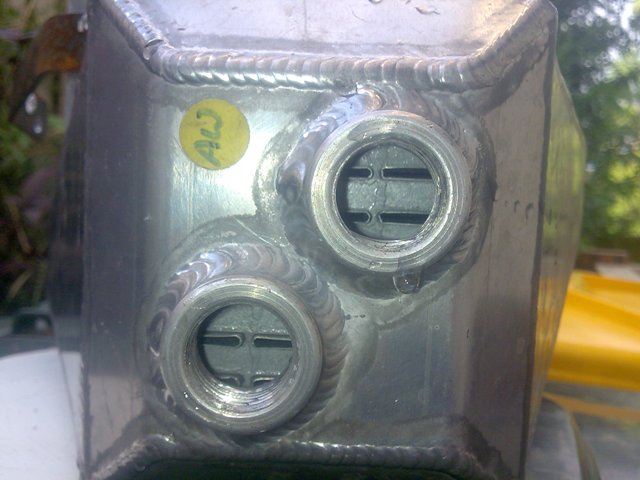

Intercooler core water in out.jpg
Intercooler core water in out.jpg [ 52.49 KiB | Viewed 63 times ]

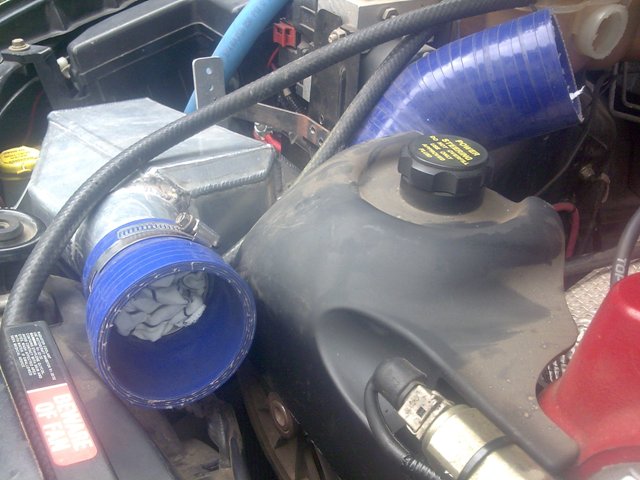

Intercooler Core3.jpg
Intercooler Core3.jpg [ 60.13 KiB | Viewed 49 times ]



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Wed Mar 03, 2010 11:48 am
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

JoeXR6 wrote:
Hi All,

Can anyone tell me if the attached pic of my davies craig water pump must be mounted the way its shown in the photo (ie. with the 'up' arrow up)? This will dicate where I can put it, and where my water hoses will run.

Thanks for the help!

Joe


Surely someone would know about the above water pump's correct orientation? I'm only familiar with the other pump I use (shurflo for water injection), which can be oriented any way...doesn't matter. This way seems to need to be mounted upright?

I emailed Davies Craig but no response. Tips from anyone experienced with this or similar would be helpful.

Cheers,
Joe



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Wed Mar 03, 2010 7:41 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

Up means up. So i would mount as you have it in the pic. My carter pump has the same thing, albeit, different motor orientation. I would expect it to fail if operated upside down.

Just my 2c

Cheers

Daz



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Wed Mar 03, 2010 8:19 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

By looking at the pump itself the impeller configuration doesn't like getting wet as it's at the bottom of the electric motor. I'll replace it with a reliable submersible pump that's not fussy with orientation. :lol:



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


 Post subject: Re: Water to Air intercoolers
Posted: Wed Mar 03, 2010 10:49 pm
Tyre Shredder
Offline

Age: 36

Posts: 387

Joined: 30th Nov 2007

Ride: AU111 XR6 VCT Supercharged

Location: Brisbane
QLD, Australia

Slick, no I'll be sticking with this pump. Thanks Daz, I'll work out how it can be plumbed up to remain this way then.

Cheers,
Joe



_________________

FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html

Top
 Profile
