| shav |
|
|||
|
Do you have a pic of this?
_________________ Cheers |
|||
| Top | |
|||
| TROYMAN |
|
||
|
do you mean the rubber strip that sits between the firewall and bonnet??
if so i already removed mine!! |
||
| Top | |
||
| Slick |
|
|||
|
TROYMAN wrote: do you mean the rubber strip that sits between the firewall and bonnet?? if so i already removed mine!! Yea thats the one.
_________________ Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!! Pakrat wrote: You can buy them seppertly
|
|||
| Top | |
|||
| XR23IL |
|
||
|
how much r the w2a roughly?
_________________ If in doubt, rev it out |
||
| Top | |
||
| JoeXR6 |
|
||
Age: 43 Posts: 387 Joined: 30th Nov 2007 Ride: AU111 XR6 VCT Supercharged Location: Brisbane |
I think a PWR 'kit' (which would still need a lot of parts - eg. hoses, intake pipework, silicone, etc) are around $1600+.
The raptor kit when it comes out (don't know of any official figures yet) may be around 2K....which is heaps better value as it will be comprehensive (intake pipework, etc). A kit from frozenboost in US depending on exchange rate will be at your door for $570 - $800ish. This would include core, radiator, pump, thermo fan, maybe some water lines/fittings (would still need a fair bit more). Or you can piece it together yourself (this is what I've done): New core (intercooler) $250. RS Liberty used radiator $100 Pump $100 New Fittings $25 New Water Hose $80 New Thermo Fan $80 New Optional water fill point/overflow reservoir $100 New 3" Stainless Pipe for intake $150 New Silicone Joiners $80 Silicone Clamps $5 from wreckers! Total - $970 This assumes fitting everything and welding intake yourself. You could do it cheaper if you bought more used parts, and were able to fill water either on the core, or in the radiator if it is positioned higher than the core...might bring price down to $750. Hope that helps to get a few ppl thinking about water to air! Joe
_________________ FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html |
||
| Top | |
||
| XR23IL |
|
||
|
yeah it def does hopefully i have the lit in the next couple weeks and then i can look at w2a setup
_________________ If in doubt, rev it out |
||
| Top | |
||
| shav |
|
|||
|
Bear in mind, the Raptor back w2a kit will come with full warranty and instructions. What you pay for is the R&D Raptor have put in to make the kit work best for them.
But if you have a mechanical mind or know someone who can do it all for ya, you could do it all yourself and save some money.
_________________ Cheers |
|||
| Top | |
|||
| DA22LE |
|
|||
|
XR23IL wrote: yeah it def does hopefully i have the lit in the next couple weeks and then i can look at w2a setup Do you go on the cruises ebxr82nv organises?? I come along, so you could check mine out. Or have a look in the intake thread, i'm sure there is a pic in there... Cheers Daz
_________________ BA XR8 Boss 260 |
|||
| Top | |
|||
| XR23IL |
|
||
|
DA22LE wrote: XR23IL wrote: yeah it def does hopefully i have the lit in the next couple weeks and then i can look at w2a setup Do you go on the cruises ebxr82nv organises?? I come along, so you could check mine out. Or have a look in the intake thread, i'm sure there is a pic in there... Cheers Daz Yeah i have been on 1 and will have 2 get 2 some more real soon
_________________ If in doubt, rev it out |
||
| Top | |
||
| JoeXR6 |
|
||||
Age: 43 Posts: 387 Joined: 30th Nov 2007 Ride: AU111 XR6 VCT Supercharged Location: Brisbane |
Hi Fellas,

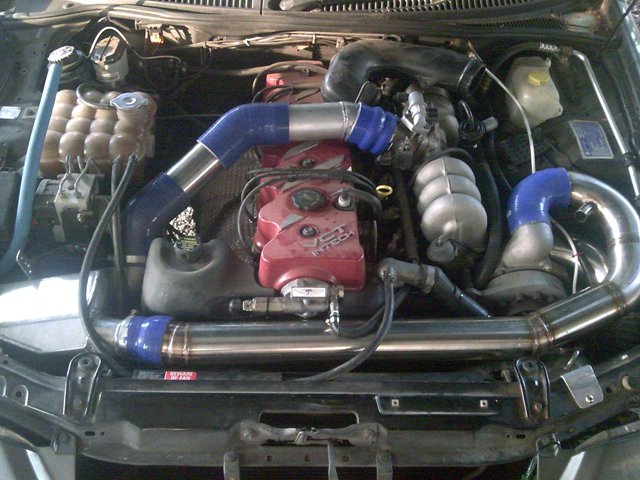

For those thinking about w2a, here is a pic of how I'm setting mine up. As you can see, the battery is in the boot, meaning I can put the core in its place. This keeps it away from extractor heat. Only the short bit of pipe to the TB will get some heat, which I'll insulate. Ideally it would be great to cut and re-weld the blower outlet (eg. raptor w2a setup), to negate the first 270degree bend, but its cheaper and easier for me this way. Overall the bends and restriction to air flow are minimal, gradual (except for the turn in the core), and away from excessive heat. What you see is a tight fit, but the bonnet does close. I'm yet to mount radiator/thermofan and pump. Joe
_________________ FOR SALE! - Supercharged AUIII XR6 VCT, intercooled, T5, big brakes.... details in the 'For Sale' section - ford-parts-for-sale-f17/fs-supercharged-au-xr6-vct-series-iii-intercooled-rwc-rego-t114254.html |
||||
| Top | |
||||
| shav |
|
|||
|
Interesting setup Joe.
I will be approaching this slightly different. Like a kid a xmas time, I opened todays mail.
_________________ Cheers |
|||
| Top | |
|||
| Steady ED |
|
|||
|
how much all that set you back shav?
thats exactly the type of core id be looking at. i'll be watching to see how it performs on yours!
_________________ ED XR8 Sprint - S-Trim, V500, 249rwkw |
|||
| Top | |
|||
| shav |
|
|||
|
Steady ED wrote: how much all that set you back shav? thats exactly the type of core id be looking at. i'll be watching to see how it performs on yours! Well I could have gone for their budget system they were selling for $280, but I knew the upgraded parts would be better off int he long run. I went the smaller but thicker heat exchanger, and the type 19 long flow core, as well as the better Bosch Cobra water pump. All up delivered I paid over $600. Alot I know, but all the parts I wanted are to suit my car and ultimately longevity. I still need water hoses, and some custom 3" pipe work made up. My initial budget of 1k will be blow out the water. But I know I should be better off.
_________________ Cheers |
|||
| Top | |
|||
| Slick |
|
|||
|
Where did you get that kit from shav, and whats the length of the heat exchanger?
_________________ Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!! Pakrat wrote: You can buy them seppertly
|
|||
| Top | |
|||
| shav |
|
|||
|
Slick wrote: Where did you get that kit from shav, and whats the length of the heat exchanger? www.frozenboost.com I ordered directly online. The heat exchanger dimensions are 12" x 12" x 2" thick.
_________________ Cheers |
|||
| Top | |
|||
