What should i do TIG weld or MIG weld my manifold?



Page 1 of 3 [ 31 posts ] Go to page 1, 2, 3  Next


 Post subject: What should i do TIG weld or MIG weld my manifold?
Posted: Sun Jan 27, 2008 2:12 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

Hey guys

I have just finshed designing my (log design) turbo manifold for my EF

I went and talked to exhaust shop and he said he would MIG weld it cause it would penetrate the pipe better and i also went to engeneering shop and he said he would MIG weld it 4 the same reason.

the manifold is Steampipe with steel flanges.

I thought they were ment to be welded with TIG welders or something.


Plz Explain so i can go back to the shop with some idead of what i want and why.

Thx Jason



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Sun Jan 27, 2008 2:29 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1667

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

For best penetration it should be welded with stick, but MIG will do the job for what you want.. TIG would be to fiddly and take much longer to weld..



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Sun Jan 27, 2008 2:31 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

MIG will be perfectly fine, TIG is more for things that have to be 100% perfect



_________________

Because i can.

Top
 Profile


Posted: Sun Jan 27, 2008 2:35 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1228

Joined: 5th Mar 2006

Gallery: 25 images

Ride: FALCON EB TURBO, EL XR6

Location: Sydney
NSW, Australia

Can you post some picks of your progress so far?



_________________

FALCAHOLIC

IF AT FIRST YOU DON'T SUCCEED
DESTROY ALL EVIDENCE THAT YOU EVEN TRIED



Top
 Profile


Posted: Sun Jan 27, 2008 2:52 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

mate, steer clear of that engineering shop..... MIG will NEVER penetrate like TIG can... a mig deposits wire filler regardless of the heat of the base metal. it will lay down wire without the base metal being liquid.. TIG on the other hand, is fully dependant on the operator to determine weld puddle size/temp and add filler accordingly.

This is WHY tig is for things that need to be perfect, strong, x-ray quality, made to last, and also, look beautiful.. MIG is for improved production time and very little else..

i did mig one manifold back before we had a tig, and ill never ever mig a manifold again...



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Sun Jan 27, 2008 4:10 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

ebs_4l wrote:
mate, steer clear of that engineering shop..... MIG will NEVER penetrate like TIG can... a mig deposits wire filler regardless of the heat of the base metal. it will lay down wire without the base metal being liquid.. TIG on the other hand, is fully dependant on the operator to determine weld puddle size/temp and add filler accordingly.

This is WHY tig is for things that need to be perfect, strong, x-ray quality, made to last, and also, look beautiful.. MIG is for improved production time and very little else..

i did mig one manifold back before we had a tig, and ill never ever mig a manifold again...


Exactly.


The only thing the tig cant weld is Galv steel (the zinc will clog the tungsten) and aluminium if you dont have a AC machine with High Frequency (ie DC only scratch start).

If you are using steampipe with at least a 3mm thickness use the tig to weld it. You will get complete penetration with out it being excessive.

And if it is Stainless then it must be purged. otherwise inside it will have a big hairy catepillar around it (oxidation). Mild steel there is no need to purge.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sun Jan 27, 2008 4:28 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

Hmm well the guy in the engineering shop was a tafe teacher in metal fabrication. he said that mig would penetrate good and tig wouldn't penetrate as well.

LOL i agree with you guys on tig over mig thats why i came here and ask.

he agreed to world it with tig if i wanted. Ive watched him mig and tig and oxy weld and he f**k amazing with them and he do me a dirt cheap cashy cause my old man get everything done threw him.

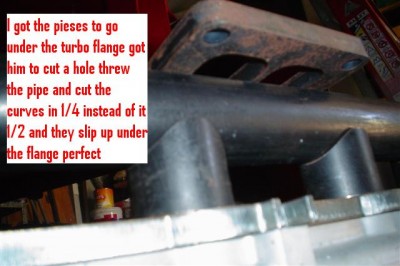

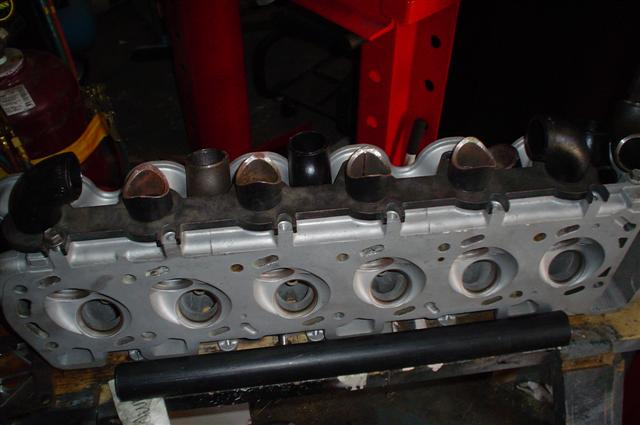

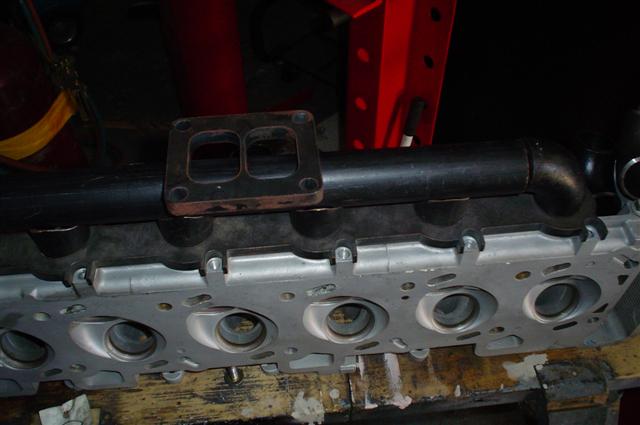

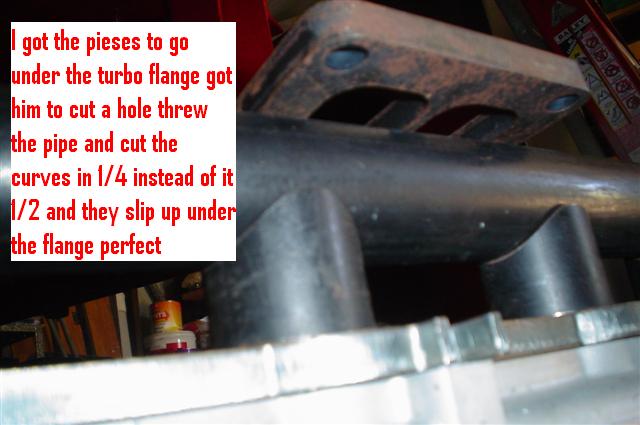

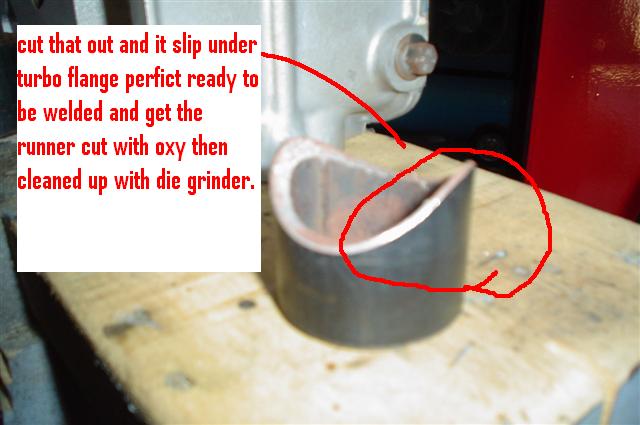

here some pic's from last week ive i don't have camera here to show you up to date stats





Attachments:
DSC02322 (Small).JPG
DSC02322 (Small).JPG [ 45.57 KiB | Viewed 152 times ]
DSC02321 (Small).JPG
DSC02321 (Small).JPG [ 42.71 KiB | Viewed 136 times ]
DSC02320 (Small).JPG
DSC02320 (Small).JPG [ 35.45 KiB | Viewed 147 times ]
DSC02319 (Small).JPG
DSC02319 (Small).JPG [ 37.76 KiB | Viewed 125 times ]



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Sun Jan 27, 2008 5:22 pm
Parts Gopher
Offline

Posts: 71

Joined: 21st Jul 2007

Ride: xr8

Location: sydney
NSW, Australia

hey mate im a boilermaker welder by trade and tig is the go! if welded correctly then peno will be perfect mig you will get splatter on it and also will not look as neat . and you can weld galv with tig you just grind the edges that your welding to remove the oxides in the material then your good to go
Top
 Profile


Posted: Sun Jan 27, 2008 7:03 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1833

Joined: 3rd May 2007

Gallery: 8 images

Ride: AUII XR6 Uterus

Location: South Coast
NSW, Australia

how many other boilermakers here noticed it isn't steam pipe ?

steam pipe is seamless.

tig it.



_________________

Not to get technical, but according to chemistry alcohol is a solution.

Top
 Profile


Posted: Sun Jan 27, 2008 10:16 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

low_ryda wrote:
how many other boilermakers here noticed it isn't steam pipe ?

steam pipe is seamless.

tig it.


lol it ain't then i must be black pipe then well the straight pipe only bit with the seal all the bends don't have a seam.

Good eyes there

ill suggest tig welding it when i see him Tuesday cost me a bit more cause it slower but well worth it.

how long do you reckon it would take to weld up and cut holes in the main runner pipe?
hole needed 4 cylinder 2,3,4,5 and turbo flange and wastegate and just weld all up.

you say 3 hours 4 hours?



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Mon Jan 28, 2008 1:43 pm
Parts Gopher
Offline

Posts: 71

Joined: 21st Jul 2007

Ride: xr8

Location: sydney
NSW, Australia

steam pipe ?
Top
 Profile


Posted: Mon Jan 28, 2008 7:32 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Don't make manifold with 90* bends like above!!! Use 30* bends or atleast weld to log on an angle ...
Tig for sure .. Too much splatter with mig....



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Mon Jan 28, 2008 8:15 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

EBXR8380 wrote:
Don't make manifold with 90* bends like above!!! Use 30* bends or atleast weld to log on an angle ...
Tig for sure .. Too much splatter with mig....


why would i use 30* or weld on a angle that just screws with the exhaust flow. Look at snort performance and 6boost log manifold they all use the 90* bends and they work wonders.



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Mon Jan 28, 2008 8:50 pm
Stock as a Rock
Offline

Posts: 170

Joined: 10th Nov 2005

Location: Canberra
ACT, Australia

Xflow wrote:
EBXR8380 wrote:
Don't make manifold with 90* bends like above!!! Use 30* bends or atleast weld to log on an angle ...
Tig for sure .. Too much splatter with mig....


why would i use 30* or weld on a angle that just screws with the exhaust flow. Look at snort performance and 6boost log manifold they all use the 90* bends and they work wonders.


you have missed the point, he was reffering to the centre ports that intersect the main pipe at 90*, that is bad design, and you should use bends on them, you should also use bends where the entry into the turbo is, it will flow better, and keeps the cylinders divided into banks of 3, as it should be for divided scroll, which you have.

just looking at what you have now, you can see that the thing wont flow very well at all.

couple of pointers, once you have finished it, cut the flange plate so that each port is independant, then have it machined along with the turbo flange, and slightly enlarge all the bolt holes except the middle 4.



_________________

http://www.TURBO351.com

2V 351T, 732rwhp@15psi on LPG.

Top
 Profile


Posted: Mon Jan 28, 2008 8:57 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

the problem with bends on the center 4 runners is no one can cut the curve out of the 90* cause i already wanted that and curve out the the turbo flange i was going to do but it pushes turbo 2 far out and hits strut tower so i keep it in the extra 2-3cm and i got clearance or i got to put turbo on a 30* angle and get all to annoying.



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile
