What size for turbo oil feed???



Page 1 of 1 [ 7 posts ]


 Post subject: What size for turbo oil feed???
Posted: Thu May 01, 2008 10:25 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

Hey guys
im trying my hardest to get everything ready to turbo my falcon this weekend and one of my problems is the turbo oil feed has like a 1mm hole that you can drill out to suit your car and i dont have any idea what size to use.
im running Au Engine with standard oil pump

Thx
Jason



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Thu May 01, 2008 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

Ow yer here some pic's





Attachments:

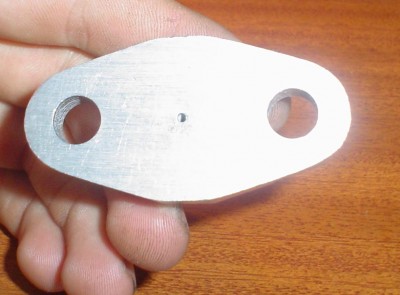

turbo flange1.JPG
turbo flange1.JPG [ 67.36 KiB | Viewed 53 times ]

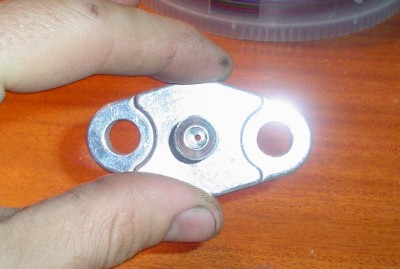

turbo flange.JPG
turbo flange.JPG [ 68.69 KiB | Viewed 58 times ]



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Thu May 01, 2008 10:30 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 918

Joined: 6th Aug 2007

Gallery: 4 images

Ride: BA XR8

Location: Kellyville
NSW, Australia

Hey,

If it's not a ball-bearing turbo, then i would leave it as is. The small diameter is there so you dont blow the seals out with the oil pressure, but i am no expert.

Cheers

:D Daz :D



_________________

BA XR8 Boss 260
DAZFAB......Now Mobile
Mink = GAY
DAZFAB MEMBERS ,,,,DA22LE, XTT909, TERRORISTGHIA, TROYMAN, SWC, FAT245

Top
 Profile


Posted: Fri May 02, 2008 12:11 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

you need to test the flow rate, look for about 1.7-2.3l/min off the top of my head -non ball bearing



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Fri May 02, 2008 6:48 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

ebs_4l wrote:
you need to test the flow rate, look for about 1.7-2.3l/min off the top of my head -non ball bearing


so i fit the oil feed to the car and start her up and let the oil pressure fill the line then when it full put the flange into a coke bottle and time a min and see how much i get. Is this done a idle? I a summing idle but just want to check.

The car should be good with 2.3L of oil missing it slightly over the high mark right now on the dip stick anyhow.



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Fri May 02, 2008 10:32 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

yeah thats it, maybe do some research and just check what info you can find regarding how many l/min u need... you could add an extra litre of oil before doing the test, it wont hurt anything, oh, and you will need to hold the rpm at about 2000, to get the oil pressure upto its maximum pressure, otherwise, you will exceed the max flow if you do it at idle then when your driving it will have higher pressure

just had a poke around, looks like 1.7l/min would be fine
http://www.turbotech.com.au/garrett2.htm



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Fri May 02, 2008 1:38 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Fit it up you don't actually blow the seals out.. The oil just goes through them.. Doesn't damage seals..
-3 oil feed would do the job..
If shaft type bearing don't bother...
If its ball bearing YES fit what you have there...
Though it looks bigger than 1mm ??
GCG sell restrictors that fit in braied oil line fitting..
Make sure the oil return is atleast 14mm and nearly vertical down to sump.. For atleast the first 150 mm or it could bilt back up and flood tubo..
The oil out of turbo can be very foamy, doesn't flow too well... I used s/steel flex pipe from Rocket
As it flex's and heat resistant...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....
