Posted: Tue Aug 29, 2006 8:36 pm
Stock as a Rock
Offline

Age: 31

Posts: 185

Joined: 1st Sep 2005

Ride: ea 5 spd

Location: kadina
SA, Australia

looks good brad no wonder wedgie was happy with it!!! keep up the good work!!!!!!!



_________________

mods: pacemaker extractors, 2.5in red back ,lowered with pedders 17" rims, extreme h/d ceramic clutch, 3.45 ef lsd, and rear brakes, clear indicators, ef thermo's, stage 2 crow (daily)

Top
 Profile


Posted: Tue Aug 29, 2006 9:36 pm
Fordmods Newbie
Offline

Age: 43

Posts: 8

Joined: 24th Aug 2006

Location: melbourne
VIC, Australia

i would be very interested in it to if it fits the el.
Top
 Profile


Posted: Wed Aug 30, 2006 3:08 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

well, you will all be pleased, i discussed the ef version with dad tonight, he was also keen to produce that model too, i told him most of the guys that have seen it comment on how good it looks, but 99% of them want it to fit an ef/el...

so, as soon as i can get my hands on an ef development car, work will start on that...

progress has continued with the ba vesrion, tonight i welded on mounts for the map sensor, and two vacumn ports, and a mount for the top of the dipstick tube to bolt to, just need tomorrow night to drill and tap the vac ports and get busy with the polishing wheel...

will post pics of the polished unit

cheers, brad

p.s i forget what pics ive posted on what forums, but for anyone who hasnt seen it, this is my car with the previously mentioned plenum



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Last edited by ebs_4l on Wed Aug 30, 2006 3:25 am, edited 1 time in total.

Top
 Profile


Posted: Wed Aug 30, 2006 3:21 am
Smokin em up
Offline
User avatar

Posts: 244

Joined: 6th Nov 2004

Ride: EA falcon

Location: Melbourne
VIC, Australia

I've been wanting to do a custom plenum for ages, problem is that i would need one made up with the the throttle body in the standard EF position (haven't got much other choice in my situation).
Top
 Profile


Posted: Thu Aug 31, 2006 1:32 am
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

here we are ladies and gentlemen....

im very impressed with the way it turned out, so was the owner.



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Thu Aug 31, 2006 2:58 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

ok im gonna sound like an absolute n00b but what is it and whats it do?



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Thu Aug 31, 2006 11:33 am
Stock as a Rock
Offline

Age: 31

Posts: 185

Joined: 1st Sep 2005

Ride: ea 5 spd

Location: kadina
SA, Australia

the finish product looks great brad!!!!!!

it will b great 2 c 1 4 ef-el and au's!!!



_________________

mods: pacemaker extractors, 2.5in red back ,lowered with pedders 17" rims, extreme h/d ceramic clutch, 3.45 ef lsd, and rear brakes, clear indicators, ef thermo's, stage 2 crow (daily)

Top
 Profile


Posted: Thu Aug 31, 2006 12:44 pm
Oompa Loompa
Offline

Age: 32

Posts: 40

Joined: 19th Jul 2006

Ride: Falcon

Location: Sydney
NSW, Australia

Not bad at all, did you get any pics of the inside?



_________________

EL XR6

Top
 Profile


Posted: Thu Aug 31, 2006 12:52 pm
Oompa Loompa
Offline

Age: 32

Posts: 40

Joined: 19th Jul 2006

Ride: Falcon

Location: Sydney
NSW, Australia

- where the intake pipes meet the main body of the plenum I mean. I saw the work in progress pic.

Btw if you need any sacrificial intake manifolds to make the new plenums there are some pretty good deals on eBay:
http://cgi.ebay.com.au/AU-XR6-SERIES-INLET-MANIFOLDS-x-2_W0QQitemZ150025629250QQihZ005QQcategoryZ32552QQrdZ1QQcmdZViewItem



_________________

EL XR6

Top
 Profile


Posted: Thu Aug 31, 2006 1:57 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

im not sure exactly what bit you want to see, you mean a photo of it bolted on without the top on it??



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Thu Aug 31, 2006 3:26 pm
Oompa Loompa
Offline

Age: 32

Posts: 40

Joined: 19th Jul 2006

Ride: Falcon

Location: Sydney
NSW, Australia

ebs_4l wrote:
im not sure exactly what bit you want to see, you mean a photo of it bolted on without the top on it??

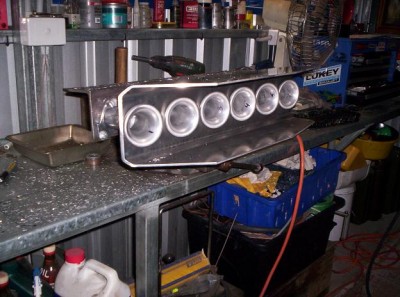

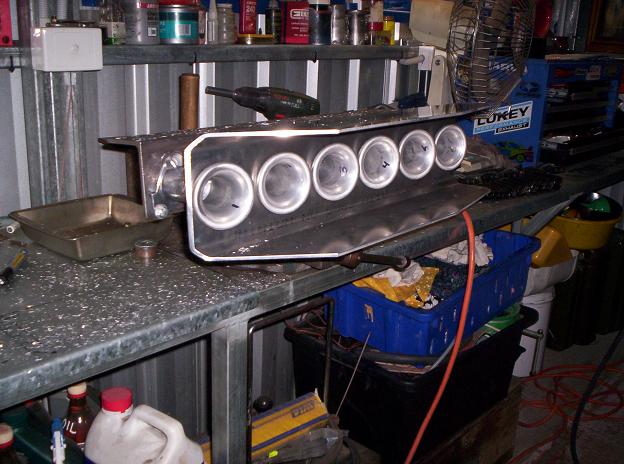

The inside bit like in this pic of yours here:





Attachments:
100_0425.JPG [ 67.16 KiB | Viewed 89 times ]



_________________

EL XR6

Top
 Profile


Posted: Thu Aug 31, 2006 7:29 pm
Tyre Shredder
Offline
User avatar

Age: 31

Posts: 325

Joined: 15th Apr 2006

Ride: F350, EF2 Ghia, XC & Corty

Power: 218 rwkw

Location: Wangaratta
VIC, Australia

Very Nice!
I Need a TIG..!



_________________

13.28@103.73mph

Top
 Profile


Posted: Thu Aug 31, 2006 7:46 pm
Getting Side Ways
Offline

Age: 33

Posts: 868

Joined: 23rd Sep 2005

Ride: eb falcon

Location: kadina
SA, Australia

Vredesbyrd wrote:
The inside bit like in this pic of yours here:

this is the inside mate, as posted on page 1



_________________

EB 4L, 8.4:1, R154, GT4202r, 4in exhaust, Greenslade Engineering exhaust manifold, plenum chamber, 90mm throttle, Garrett W2A cooler, Surecam custom, autronic SM4, Bosch 120lb, Crane HI-6, LX-92, LM-1, Turbosmart Reg, 2x bosch 044, turbosmart 48 gate. 470kw+ @ 18PSI

Top
 Profile


Posted: Thu Aug 31, 2006 8:44 pm
Oompa Loompa
Offline

Age: 32

Posts: 40

Joined: 19th Jul 2006

Ride: Falcon

Location: Sydney
NSW, Australia

I mean the piece that is missing from the bottom in that pic is what I want to see. The pic is looking into it through the bottom right? I'm interested to know how it joins the engine block.



_________________

EL XR6

Top
 Profile


Posted: Thu Aug 31, 2006 9:24 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

lol it bolts to the bottom half of the standard bbm manifold.


nice work there brad, if u get the e-series ones sorted i know somone that might buy 1



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile
