 Post subject: 302W Rebuild
Posted: Fri Jan 13, 2006 2:39 pm
Smokin em up
Offline

Age: 46

Posts: 282

Joined: 4th Jun 2005

Gallery: 9 images

Ride: ef xr8

Location: Northern
NSW, Australia

Job finally done!Balanced & blueprinted 302W with 30 thou oversize pistons,ARP bolts throughout,GT 40P heads flowwing 405hp at 550 thou lift,polished cobra intake manifold port matched & flowwed,crane cam part no 449601,yella terra roller rockers (platnum series adjustable),70mm t/b 75mm maf,port matched genie extractors,2500 stall,1/2 inch phenolic spacer,mallory fuel pressure reg, 255gph walbro fuel pump,irridium plugs,24lb injectors.
Car up and running after a few teething problems.Running it in over the next few weeks,then getting it dyno tuned.



_________________

----------------------------------------------------
FOR SALE;EF 5.0 auto ecu with tweecer $600
----------------------------------------------------

Top
 Profile


Posted: Fri Jan 13, 2006 3:34 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Cant wait for the dyno read out. Should be a good rwkw score.

Sounds like a great engine you got there.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Fri Jan 13, 2006 4:34 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

Wow, sounds like a monster. Thats the combo I was going with, so I'm very interested to see what the outcome is.

They're my old GT40-P heads too.. before I decided 347 and AFR185's was more fun :P



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Fri Jan 13, 2006 4:39 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Sounds like a real strong combo. Look forward to hearing results.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


 Post subject: 302W
Posted: Fri Jan 13, 2006 5:01 pm
Smokin em up
Offline

Age: 46

Posts: 282

Joined: 4th Jun 2005

Gallery: 9 images

Ride: ef xr8

Location: Northern
NSW, Australia

Drove it home last night,still running a bit rough down low & couldnt get it past 3 grand without it lighting up the rears.But ill be onest (it was rainning)



_________________

----------------------------------------------------
FOR SALE;EF 5.0 auto ecu with tweecer $600
----------------------------------------------------

Top
 Profile


Posted: Fri Jan 13, 2006 5:59 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

That combo is so similar to what I am doing... the only difference is the cam you have selected and your TB. I would be interested to see what your eventual dyno graph shows. :)



_________________

5.6L of carbon footprint.

Top
 Profile


 Post subject: 302w
Posted: Fri Jan 13, 2006 7:01 pm
Smokin em up
Offline

Age: 46

Posts: 282

Joined: 4th Jun 2005

Gallery: 9 images

Ride: ef xr8

Location: Northern
NSW, Australia

What cam you using vic



_________________

----------------------------------------------------
FOR SALE;EF 5.0 auto ecu with tweecer $600
----------------------------------------------------

Top
 Profile


Posted: Fri Jan 13, 2006 7:10 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

Am seriously considering the Crane 2030. The TB is a 65mm.



_________________

5.6L of carbon footprint.

Top
 Profile


Posted: Fri Jan 13, 2006 9:21 pm
Getting Side Ways
Offline

Age: 37

Posts: 661

Joined: 2nd Dec 2004

Ride: AU XR8

Location: Wollongong
NSW, Australia

Looks like it will be a pretty tough combo. Thats a reasonable sized cam as well :)

Can't wait to here how it goes after its fully run in and tuned. Which valvesprings/retainers/locks did you use? What sort of car is it going in?

Good luck with it.
Top
 Profile


 Post subject: 302w
Posted: Fri Jan 13, 2006 11:46 pm
Smokin em up
Offline

Age: 46

Posts: 282

Joined: 4th Jun 2005

Gallery: 9 images

Ride: ef xr8

Location: Northern
NSW, Australia

Motor is in a 95 EF XR8,valve springs and retainers were done by the rebuilder and I havent got the exact specs,I know they are hd double springs and have been shimmed to the correct specs.



_________________

----------------------------------------------------
FOR SALE;EF 5.0 auto ecu with tweecer $600
----------------------------------------------------

Top
 Profile


 Post subject: 302W
Posted: Sat Jan 14, 2006 2:45 pm
Smokin em up
Offline

Age: 46

Posts: 282

Joined: 4th Jun 2005

Gallery: 9 images

Ride: ef xr8

Location: Northern
NSW, Australia

Been running it in today & having a bit of trouble with restarting after driving.When I turn it off then hit the ignition it wont start without using the throttle and when it does it is running a bit rich.Help needed.



_________________

----------------------------------------------------
FOR SALE;EF 5.0 auto ecu with tweecer $600
----------------------------------------------------

Top
 Profile


Posted: Mon Jan 16, 2006 10:01 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

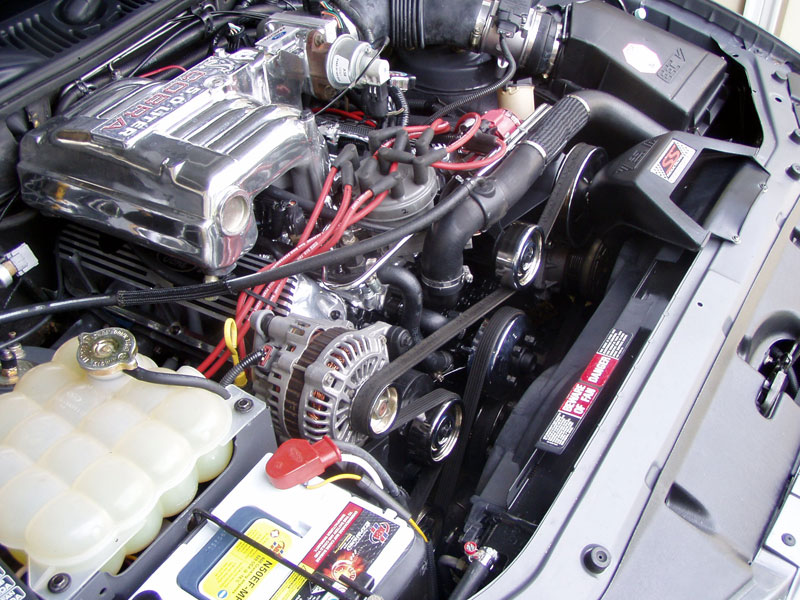

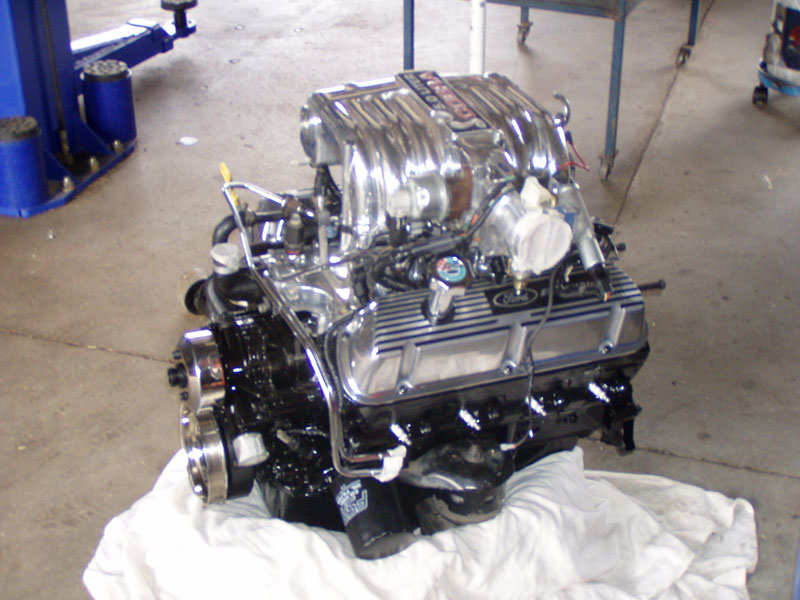

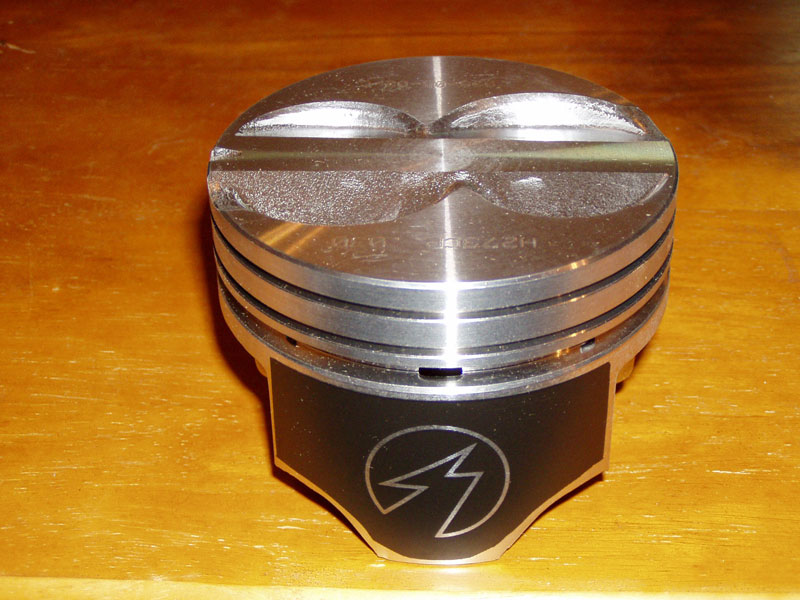

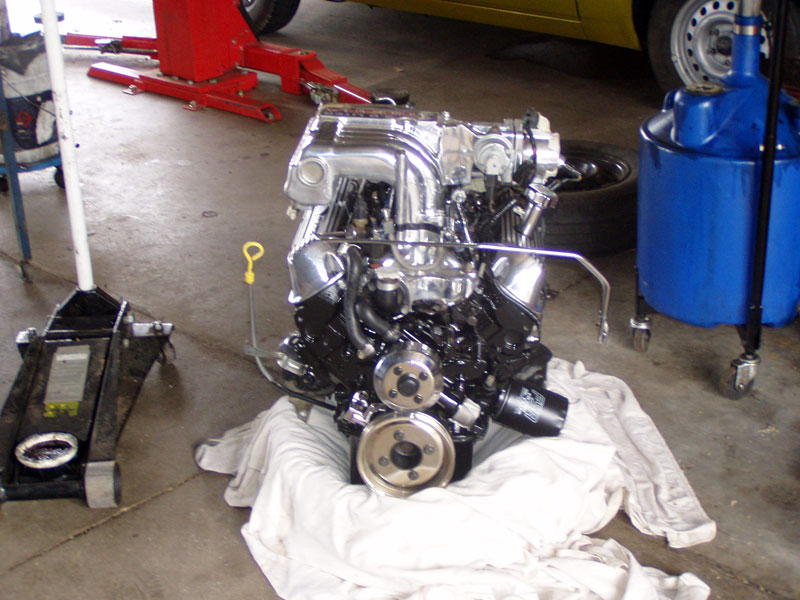

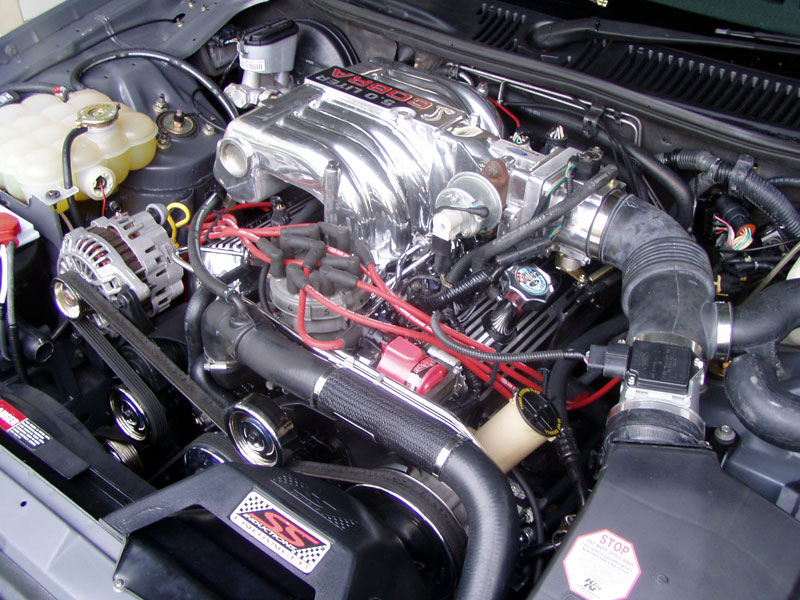

Here are the pics :)





Attachments:
Picture-017.jpg [ 158.26 KiB | Viewed 120 times ]
302w-005.jpg [ 141.39 KiB | Viewed 186 times ]
302w-004.jpg [ 145.71 KiB | Viewed 125 times ]
302w-003.jpg [ 98.48 KiB | Viewed 133 times ]
302w-002.jpg [ 107.49 KiB | Viewed 112 times ]
302w-001.jpg [ 104.59 KiB | Viewed 61 times ]



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Tue Jan 17, 2006 10:57 am
Fordmods Newbie
Offline

Age: 40

Posts: 17

Joined: 15th Nov 2004

Location: Gladstone
QLD, Australia

Nice....Do I even ask how much that setup is worth now ??
Top
 Profile


Posted: Tue Jan 17, 2006 12:21 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Try clocking the maf to 9 o'clock ???



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Tue Jan 17, 2006 2:46 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

EBXR8380 wrote:
Try clocking the maf to 9 o'clock ???


Out of curiousity - why? :)



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile
