347 Donk finished... now to put it in....



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: 347 Donk finished... now to put it in....
Posted: Sat Sep 01, 2007 8:02 pm
Oompa Loompa
Offline

Posts: 41

Joined: 8th Jun 2005

Location: Adelaide
SA, Australia

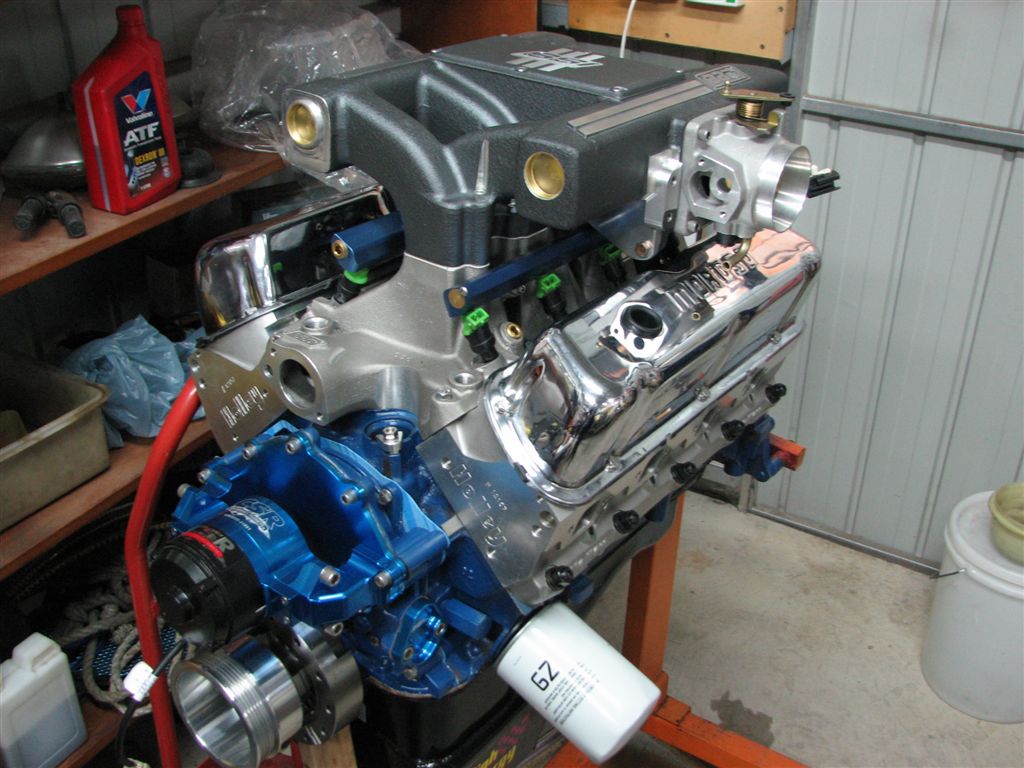

Finally after 12 months... built and ready to go in the car...

What's every1 think??

Here's the list of parts used.

Scat 347 Crank
H beam Rods

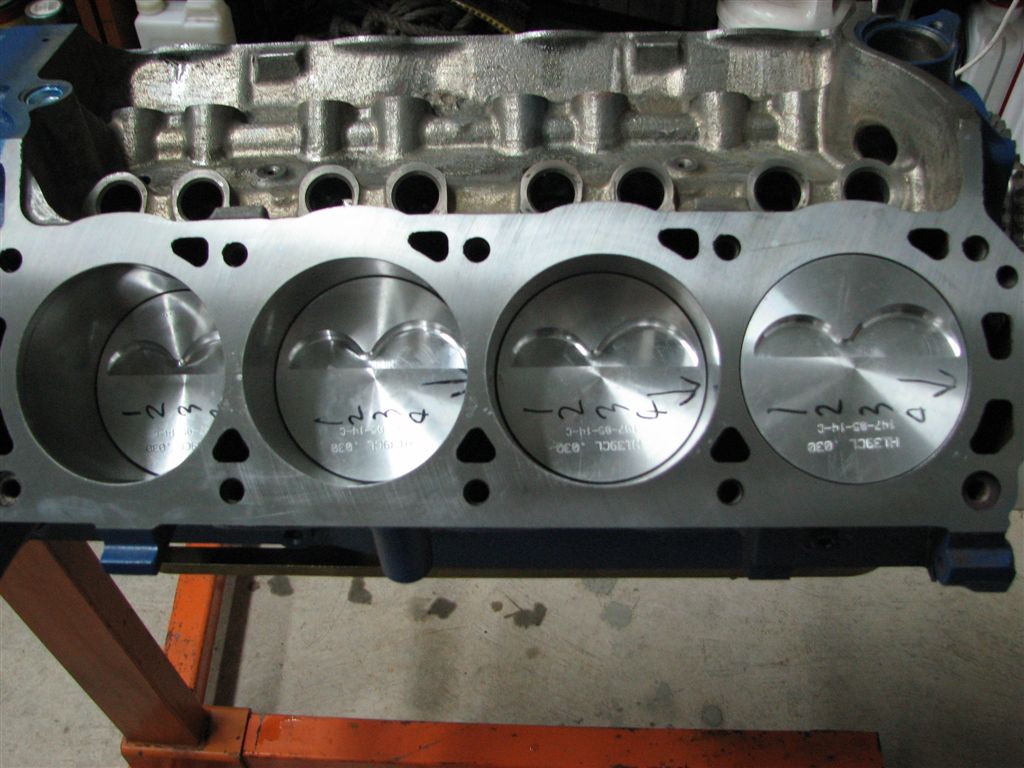

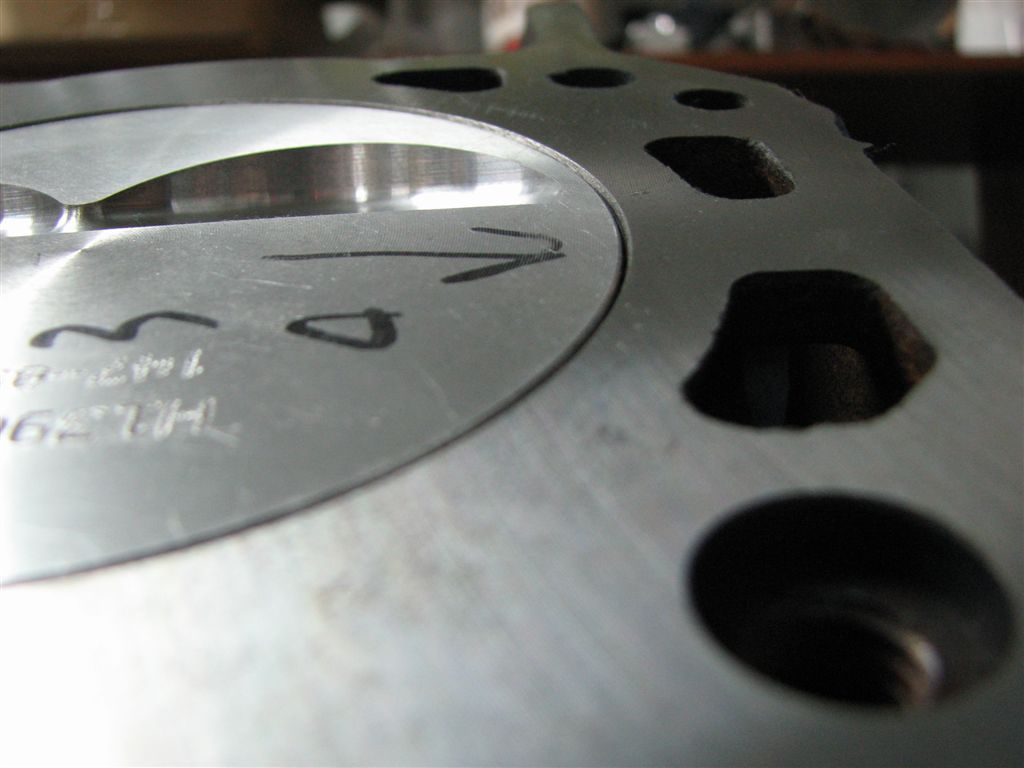

30thou pistons
Mains girdle
HV Oil pump
HE 7L Sump

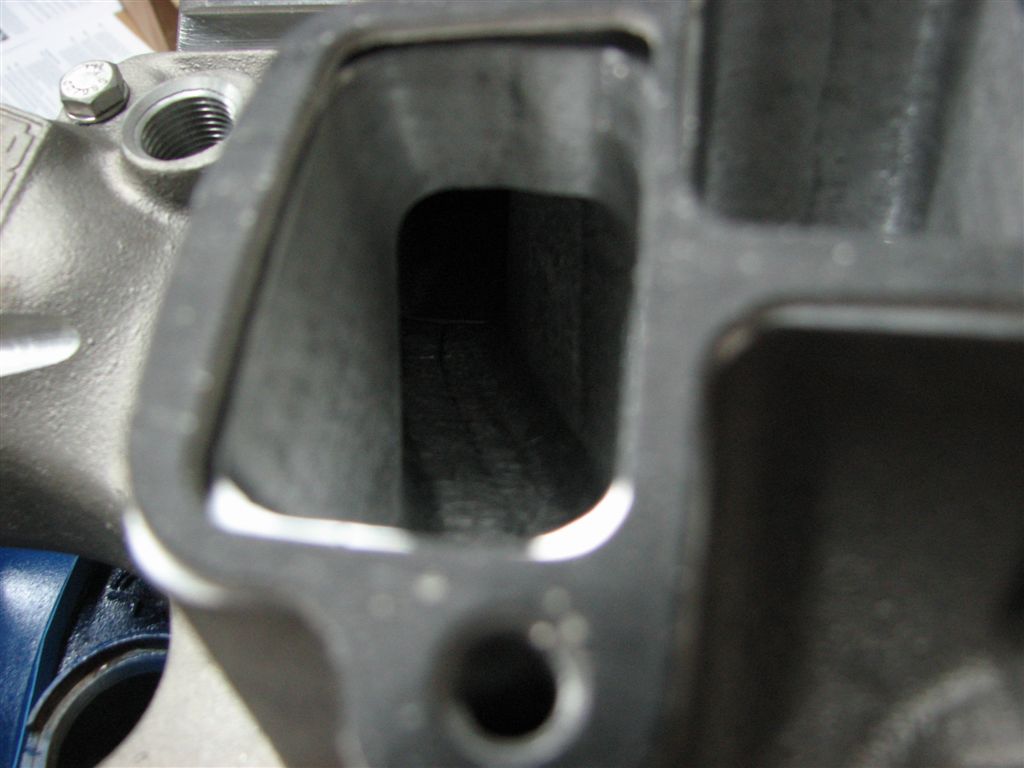

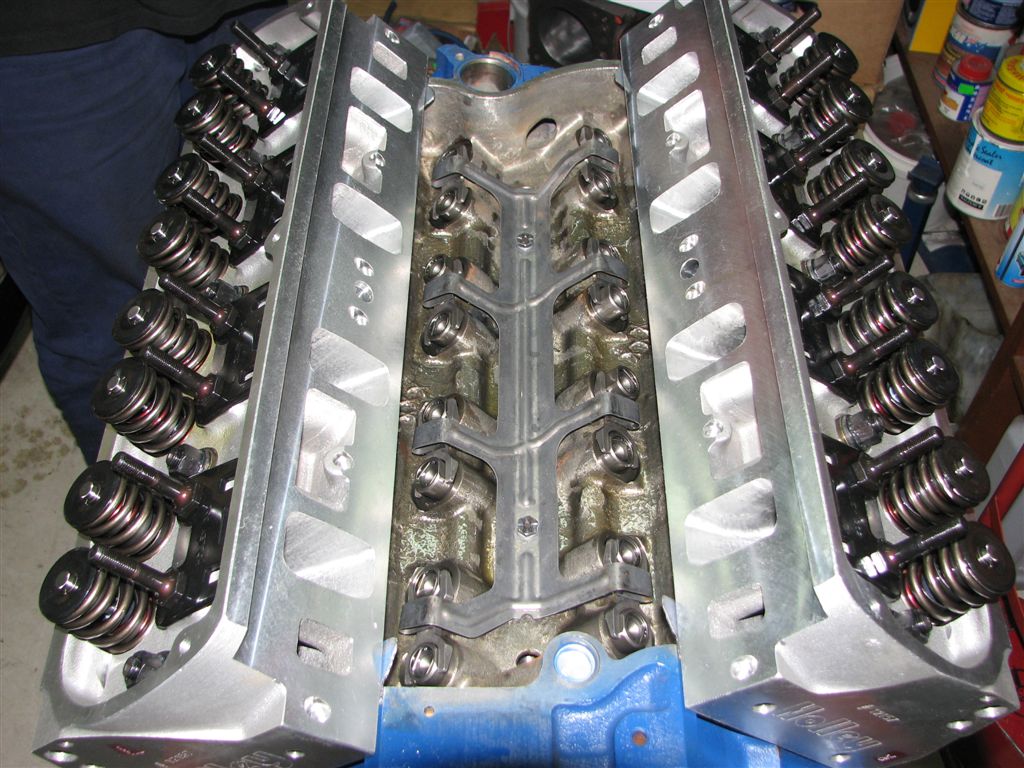

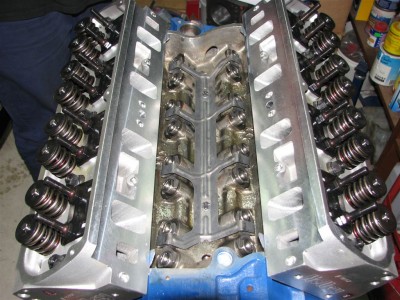

Holley Alloy heads w/ 2.1" Intake and 1.6" Exhaust (highly ported)
FMS X303 Roller cam

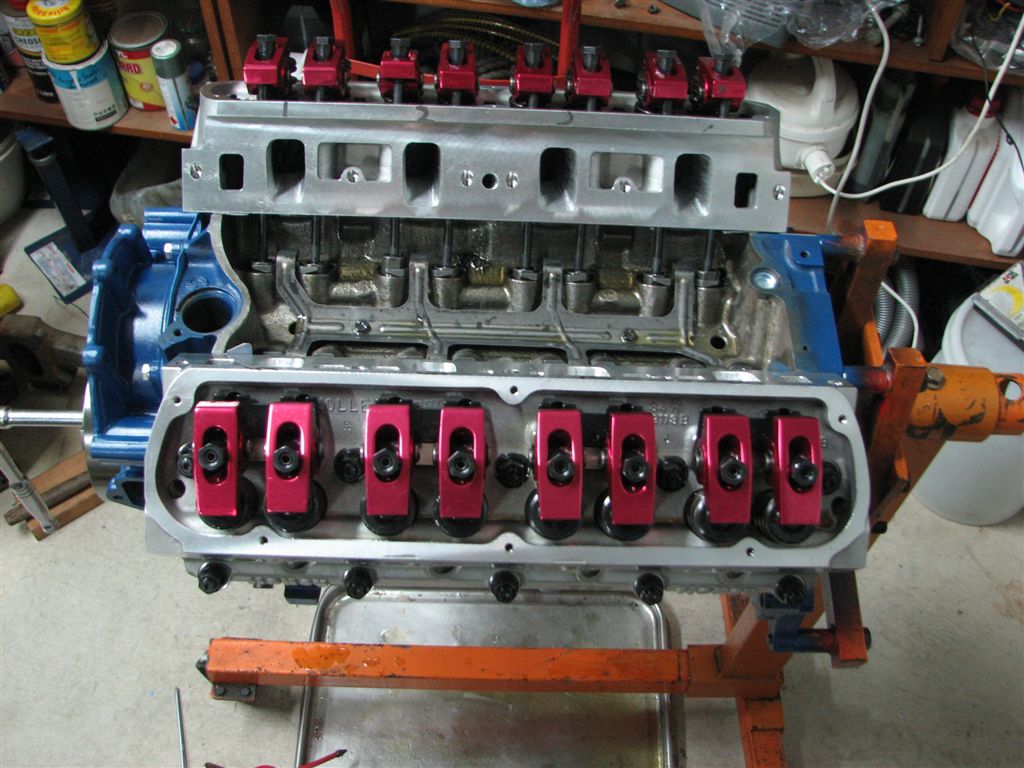

Roller rockers 1.6 RR
Hardened Pushrods
BBK SSI Intake (highly modified)
FMS 42lb Injectors w/ high flow fuel rail
Barry Grant Fuel Pressure Regulator
BG EFI Fuel Pump
Russel 6AN fuel hose from tank-surge pot-fuel rail
CSR Electric Water Pump
March Aluminium Pulley Kit
Crane Hi-6 Digital Ignition
Crane Billet Electronic Distributor
Crane LX-92 Electronic Coil
Wolf 3D ECU
CentreForce Dual Friction Clutch Kit
Yella Terra Explosion Proof Fly-Wheel

Spent about $14k...... so far... lol





Attachments:
IMG_0444.JPG [ 76.67 KiB | Viewed 26 times ]
IMG_0432.JPG [ 143.48 KiB | Viewed 28 times ]
IMG_0427.JPG [ 169.2 KiB | Viewed 33 times ]
IMG_0405.JPG [ 70.8 KiB | Viewed 31 times ]
IMG_0404.JPG [ 118.85 KiB | Viewed 35 times ]
Top
 Profile


Posted: Sat Sep 01, 2007 8:02 pm
Oompa Loompa
Offline

Posts: 41

Joined: 8th Jun 2005

Location: Adelaide
SA, Australia

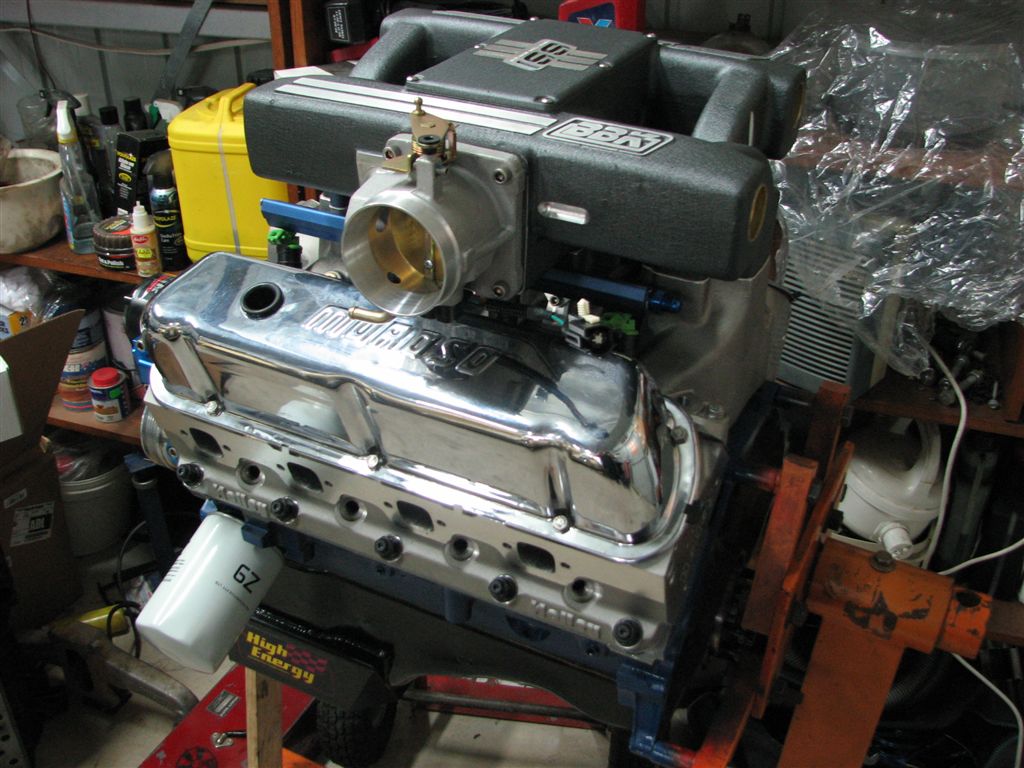

final





Attachments:
IMG_0456.JPG [ 131.76 KiB | Viewed 48 times ]
IMG_0458.JPG [ 141.38 KiB | Viewed 39 times ]
Top
 Profile


Posted: Sat Sep 01, 2007 10:17 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2116

Joined: 13th Aug 2005

Gallery: 15 images

Ride: 1999 XHII XR8, 2002 AU Fairmont

Power: 236 rwkw

Location: Perth
WA, Australia

Looks great mate, Whats it going into?

Using standard block?



_________________

STREETBUILT RACING
1999 XHII Falcon XR8 Ute 5.0L, TKO600 5spd, KB 2.1L Blower, 6.5psi, 12.2@113mph!!

Top
 Profile


Posted: Sat Sep 01, 2007 10:20 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

looks farrkkking schweeeeeeet!!!
Top
 Profile


Posted: Sat Sep 01, 2007 10:22 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 632

Joined: 9th Jun 2007

Gallery: 7 images

Location: Rockingham
WA, Australia

looks n sounds like it pretty nice
wat kind of car is it going into?
wat sorta power u hoping for?



_________________

BA Fairmont Ghia
Optioned.
V8.
Superlows.
18's

Alot to come

Top
 Profile


Posted: Sat Sep 01, 2007 10:25 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

That looks fvcken awsome, should go hard, eh?



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Sep 01, 2007 10:44 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

What are the flow figures for the heads and intake?

Pete.
Top
 Profile


Posted: Sat Sep 01, 2007 10:49 pm
Oompa Loompa
Offline

Posts: 41

Joined: 8th Jun 2005

Location: Adelaide
SA, Australia

Going into an EL XR8...

Not entirely sure on power output.. hoping for minimum 250rwkw.
Also got 100hp of Blue Bottle Fun onboard..

Heads flowed 550hp potential at .050

and with intake and short exhaust runners 470hp potential.

And I got a weathered block from an AU series 2... I heard they had a higher nickel content... and the machinist agreed.. he said the Boring tool really laboured boring the block.. (and it was a new sharp tool)

Couldn't afford a DART block at the time..
Top
 Profile


Posted: Sat Sep 01, 2007 11:30 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

damianm79 wrote:
Heads flowed 550hp potential at .050

and with intake and short exhaust runners 470hp potential.

..


No I mean actual flow figures and at what test pressure?
At a glance 42's are unnecessarily large for that engine unless you're going to use them to supply fuel for the 100 shot?

Pete.
Top
 Profile


Posted: Sat Sep 01, 2007 11:41 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Are they CAT roller rockers?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Sun Sep 02, 2007 12:11 am
Oompa Loompa
Offline

Posts: 41

Joined: 8th Jun 2005

Location: Adelaide
SA, Australia

I can't find the flow sheet... I have it somewhere though.. I'll see if I can find it and post back...

I realise the 42lb's are a bit big... but they are fuelling for the NOS as well.. I just got them at an incredible price... $400 for the set.. and they are Siemen Dakas injectors. I'm hoping the ECU tune can accomodate for them..

And the Rollers.. were badged FMS... not sure who manufactured them... they are a full bearing roller though..
Top
 Profile


Posted: Mon Sep 03, 2007 12:07 am
Smokin em up
Offline

Age: 46

Posts: 282

Joined: 4th Jun 2005

Gallery: 9 images

Ride: ef xr8

Location: Northern
NSW, Australia

Nice work keep us posted. :D



_________________

----------------------------------------------------
FOR SALE;EF 5.0 auto ecu with tweecer $600
----------------------------------------------------

Top
 Profile


Posted: Mon Sep 03, 2007 3:54 pm
Getting Side Ways
Offline

Age: 35

Posts: 516

Joined: 3rd Dec 2004

Ride: SZ Titanium & ZG Fairlane

Location: Roxby Downs
SA, Australia

is it going to fit under the bonnet with that manifold? looks nice!



_________________

F6 Rspec #139 - Stock Car Racing

Top
 Profile


Posted: Mon Sep 03, 2007 4:21 pm
Oompa Loompa
Offline

Posts: 41

Joined: 8th Jun 2005

Location: Adelaide
SA, Australia

Not entirely sure mate.. lol

I measured from the valley to the top of the stock one, and this one is 4cm taller...

Worst comes to worse... a BA bonnet bulge in the loom..
Top
 Profile


 Post subject: 347
Posted: Mon Sep 03, 2007 4:52 pm
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Another tuff 347 going into a E series falcon

Love it :D



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]
