351 Windsor into EL



Page 1 of 1 [ 14 posts ]


 Post subject: 351 Windsor into EL
Posted: Sat Jan 07, 2006 2:54 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

I am looking at putting A 351 windsor into A EL. It has already a 5.0 in it. I know ford hes done it but it had a s**t looking commonbore group A bonnet scoop on it. I want it to fit under the bonnet. Has anyone seen it or herd of it done? I am also open to ideas.



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Sat Jan 07, 2006 3:00 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

Somone around here has done it (with a quite indepth thread with pics too)

you more or less use the 351 block, EFI windsor heads yank 351 intake manifold, and bolt up all your 5.0 acsessories. some bonnet mods are needed to fit the intake manifold but they would depend on the car.



_________________

Because i can.

Top
 Profile


Posted: Sat Jan 07, 2006 3:26 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

I believe that member 347stroker was completing that or has by now, completed that project. Have a chat to him.



_________________

5.6L of carbon footprint.

Top
 Profile


Posted: Sat Jan 07, 2006 3:37 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 317

Joined: 18th Apr 2005

Gallery: 11 images

Ride: NC 5.0L

Location: gawler
SA, Australia

with the money you would spend on putting the 351 in you could do some head work and put a supercharger on it and then it would be putting out 300+ rwkw with less hassels my ford mechanic said that the 351w EFI was worse then the 5.0 he said that they were slower and heaver.
Top
 Profile


Posted: Sat Jan 07, 2006 6:41 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

mrghia wrote:
with the money you would spend on putting the 351 in you could do some head work and put a supercharger on it and then it would be putting out 300+ rwkw with less hassels my ford mechanic said that the 351w EFI was worse then the 5.0 he said that they were slower and heaver.

That suggestion was only a matter of time.
'Save' with the purchase of a supercharger (I don't see how), then spend that 'saving' on massive insurance costs.
Each to their own i say. While i'm for supercharging myself (can't beat forced induction for guaranteed power to weight results, no loss of driveability, packaging fits under-bonnet etc...), i can see why people would want to put a 351w where a 302w sits. It's mostly a bolt in job (even to the gearbox), owner certifiable with the rta (15% capacity increase), minimal increase in insurance & fuel consumption & same basics to achieving good horsepower (heads, cam, induction, exhaust).
So lets answer the question rather than try to change the man's idea.


Physically, a 351efi intake won't quite fit under the ef/el bonnet (351 gt40 efi just fits under ea-ed). Many bulge options around but since you want to avoid that a carby manifold is going to be a few critical inches shorter & much, much cheaper. Consider a straight lpg system or efi injectors (some carby manifolds come with bosses that can be drilled for injectors) with a throttle body adaptor & use either with external egr for emissions compliance. Similar average power with the selection of the right performance parts, slight loss low down (only compared to stock efi 351w) but the cam will make the most difference to driveability. What do you think?





Attachments:

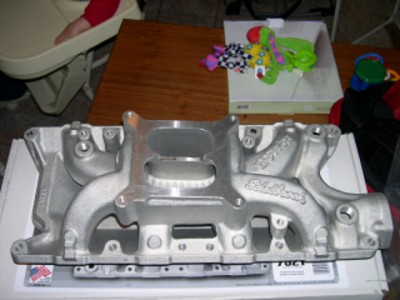

air gap.jpg
air gap.jpg [ 336.75 KiB | Viewed 45 times ]
File comment: perhaps this kind of adaptor on this type of manifold.
g001.jpg [ 26.95 KiB | Viewed 42 times ]



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Last edited by sam12h on Sat Jan 07, 2006 7:03 pm, edited 2 times in total.

Top
 Profile


Posted: Sat Jan 07, 2006 6:50 pm
Getting Side Ways
Offline

Age: 37

Posts: 661

Joined: 2nd Dec 2004

Ride: AU XR8

Location: Wollongong
NSW, Australia

You should have a read of this thread on FordForums - 351W EBII, http://fordforums.com.au/showthread.php?p=479033

I think xr9ute has a bit of experience with this as well?

The bad thing about the 302w is that the block (especially late model 5.0L), are not that strong. I believe the 351W blocks are much stronger.

Drop in a 351W, then stroke it to 420ci+. Streetable 500hp n/a V8 Falcon anyone :)
Top
 Profile


Posted: Sun Jan 08, 2006 11:26 am
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

Thanks people I believe xr8ute is thinking like me but I was thinking 600hp. I can get a efi 351 for $1800. Where can I get a blower for that price. Do any of you know if the auto & computer handle this conversion? Also I have A F150. I dragged it against my EL. It weighs 2 t. It was neck & neck all the way. Your ford mechanic has been doing to much reading and not enough driving.



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Sun Jan 08, 2006 3:26 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Here try this;

http://www.fordmods.com/forums/viewtopi ... b&start=20

BTW I raced my ute the other week and got 14.00 @ 102mph.
I should mention that's in full street trim and fully loaded with tools and tyres and other stuff like a matress and a couple of model aeroplanes still in the back and street tyres on the car.
The gearing is all wrong with 3.5's as it's crossing the line at over 5000rpm when peak power is at 4500rpm.
The injectors(only 19's) are maxing out at the top of each gear. I could probably knock off a coupla tenths with a gearbox that actually allows fast shifting but then it would cost more than the Toploader too.
Next up is some 3:1 gears and some 24's and we should see some 13.7's or so. BTW I have not tuned the car on the dyno yet....that should make a difference too.

Now back to the subject at hand 351EL.
I hear(from some sources) the BTR can be made to handle the 351 or you can use a 4R70 from a '94 up Mustang and use a '94-'95 Mustang EECIV to control both the 351 and the trans. The Edelbrock Performer that I used is probably your best chance of fitting it under the bonnet although it would'nt support 600hp unless you hogged and welded the s**t out of it. You'd need a Victor #3887 intake to support that much power and it's 12.5" high. Custom lowered engine mounts may keep things under the bonnet for you. Of course if you're going up in displacement you can afford to drop runner length which means a short runner crossram style intake like used on the V8 supercars is a low profile if expensive option.

Cheers,
Pete.
Top
 Profile


Posted: Sun Jan 08, 2006 4:09 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

XR9UTE wrote:
Here try this;

http://www.fordmods.com/forums/viewtopi ... b&start=20

BTW I raced my ute the other week and got 14.00 @ 102mph.
I should mention that's in full street trim and fully loaded with tools and tyres and other stuff like a matress and a couple of model aeroplanes still in the back and street tyres on the car.
The gearing is all wrong with 3.5's as it's crossing the line at over 5000rpm when peak power is at 4500rpm.
The injectors(only 19's) are maxing out at the top of each gear. I could probably knock off a coupla tenths with a gearbox that actually allows fast shifting but then it would cost more than the Toploader too.
Next up is some 3:1 gears and some 24's and we should see some 13.7's or so. BTW I have not tuned the car on the dyno yet....that should make a difference too.

Now back to the subject at hand 351EL.
I hear(from some sources) the BTR can be made to handle the 351 or you can use a 4R70 from a '94 up Mustang and use a '94-'95 Mustang EECIV to control both the 351 and the trans. The Edelbrock Performer that I used is probably your best chance of fitting it under the bonnet although it would'nt support 600hp unless you hogged and welded the s**t out of it. You'd need a Victor #3887 intake to support that much power and it's 12.5" high. Custom lowered engine mounts may keep things under the bonnet for you. Of course if you're going up in displacement you can afford to drop runner length which means a short runner crossram style intake like used on the V8 supercars is a low profile if expensive option.

Cheers,
Pete.
Mate I was only joking about the 600hp.



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Sun Jan 08, 2006 7:41 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Would a well fabbed boxed std 351 inlet work o/k ?? It would require some longer internal runners inside box to keep some torque? Can be fabbed up to keep it all under bonnet..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Mon Jan 09, 2006 12:42 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

quote]Mate I was only joking about the 600hp.[/quote]

Ok, otherwise none of the info I gave was of any use to you?

Pete.
Top
 Profile


Posted: Mon Jan 09, 2006 12:41 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2351

Joined: 11th Nov 2004

Gallery: 30 images

Ride: Blown XR8

Location: Melbourne
VIC, Australia

Thats the way i would like to go with mine in years to come, 351 block stroke it to 420+ cubes. Then bolt the blower on perhaps.
The guy that tuned my car atm, wants to do this to mine, and says it would make an easy 600hp N/A, and if wanted could rev to 7,000rpm+ no problems.
Top
 Profile


Posted: Mon Jan 09, 2006 2:59 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

EL XR8 wrote:
Thats the way i would like to go with mine in years to come, 351 block stroke it to 420+ cubes. Then bolt the blower on perhaps.
The guy that tuned my car atm, wants to do this to mine, and says it would make an easy 600hp N/A, and if wanted could rev to 7,000rpm+ no problems.


Do you what sorta coin youd be lookin at the to acheive that and it be a reliable durable setup ? cheers



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Mon Jan 09, 2006 3:54 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

It looks like I will haveto yake some photos and some measurements and post them on here when I start my little experement.
