5.4 in to ef xr8



Page 1 of 2 [ 23 posts ] Go to page 1, 2  Next


 Post subject: 5.4 in to ef xr8
Posted: Wed Jun 07, 2006 10:12 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

hey guys sorry for making yas think id allready done it... just wondering if n e 1 has done it... coz im preety keen to do it... if so wat were the problems ... did it fit ok... is it possible to make legal, and wat sort of process is it
id prob put either the sequential 6 speed or the manual 6 speed in it...



cheers for all your help...
jagga

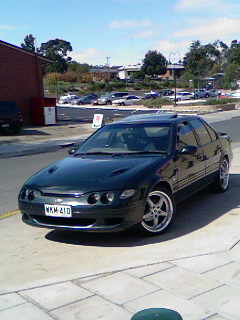

Attachments:
xrated 2.jpg
xrated 2.jpg [ 11.28 KiB | Viewed 790 times ]



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile


Posted: Thu Jun 08, 2006 12:37 am
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

Are you mad? Shed load of custom work & $$$ required & those motors are nice when new, but become hand grenades waiting to be boat anchors as soon as the warranty ends.

IMO stick to a windsor. 351w will bolt straight up to your current box & mounts, be compatable with your current computer (gt40 or aftermarket efi manifolds are available) & take almost all the go-fast 5.0 bits (eg. alloy heads). Get a 94'-95' 351 & it will be a roller cam block. If you really want a ball tearer though, put a 351w crate motor already stroked to 408ci with vic jr heads. Does wheelspin in top sound appealing?



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Top
 Profile


Posted: Thu Jun 08, 2006 1:01 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4323

Joined: 17th Jan 2006

Ride: Soarer 2.5GT-T

Location: Cranbourne
VIC, Australia

yeah f**k the 5.4.
It won't fit, the electrics will be all f**k up, you'll have to do chassis damage even if you can get it in.
I mean think about it, the BA is a fair bit bigger than an e series, a lot taller too. And they couldn't fit the boss in without a bonnet hump.
stroked 351 sounds liek good advice to me.
Top
 Profile


Posted: Thu Jun 08, 2006 2:45 am
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

sounds like a good idea to me ;) weather it can be done.. no idea!



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Thu Jun 08, 2006 10:40 am
Smokin em up
Offline

Age: 37

Posts: 288

Joined: 18th Jan 2006

Ride: Falcon

Location: sydney
NSW, Australia

Compared to the Windor 5.0, as we all know the 5.4 is massive in size, esp in quad cam form.
Im seriously not sure if it will fit.
A stroker 302 to 347 would be great i think, esp with a 6 speed behind it.
Top
 Profile


Posted: Thu Jun 08, 2006 4:13 pm
Stock as a Rock
Offline

Age: 34

Posts: 132

Joined: 5th Nov 2004

Ride: EF Fairmont 5.0

Location: Adelaide, SA
SA, Australia

E-Series have wider engine bays than XA-XC, so it will fit with a bit of custom work, and some block hugger extractors, but the question is why?

For the same money you could build a twin turbo or supercharged 429 windsor with an aftermarket block. 5.4's weigh more than a clevo with iron heads, and a 302W is around 100kg lighter than a cleveland.

5.4's are big, heavy truck motors.
Top
 Profile


Posted: Thu Jun 08, 2006 5:25 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

I measured it up quickly the other day and the E-series bay is wider than even the BA one. I think it was 810mm vs 780mm. Depth was harder to measure because of the bulky V8 mount on the E-series K-member so I measured from crank centre line to top of radiator support on both vehicles and they are the same. Bonnet clearance may be an issue but otherwise the 5.4 should just fall in there. The 5.4 is a smidge shorter than the 5.0 too.
As for electronics it should be pretty easy. A reflash with smartshield turned off would solve the antitheft side of things.
Still, if I were going to fit a modular I'd get an '03/'04 4.6 Supercharged Cobra engine. Shorter deck means smaller size and the power potential is enormous! Electronics wise it's similar again....turn PATS off with TwEECer.

Cheers,
Pete.
Top
 Profile


Posted: Thu Jun 08, 2006 5:34 pm
Smokin em up
Offline

Age: 37

Posts: 288

Joined: 18th Jan 2006

Ride: Falcon

Location: sydney
NSW, Australia

Thats a nice looking XR you have there in any event
Top
 Profile


 Post subject: ef.5.
Posted: Thu Jun 08, 2006 8:21 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

cheers guys for ur responces...
im thinking mybe it mite be a future (distant)project... as 4 now im looking up a few crate motors and the strocked 351 packare did catch my eye...
does n 1 know much about the man o war crates... are they good tough motors.

cheers dannyboy i put almost every dollar ive had on it to date... i wanna start getting serious..

this car is purely to satisfy my needs to have fun...
and god damn i love it.

cheers guys keep the feed back coming

hey if any 1 knows a little bout the crate packages can u let me know. cheers





Attachments:
xrated 2.jpg
xrated 2.jpg [ 11.28 KiB | Viewed 676 times ]



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile


Posted: Thu Jun 08, 2006 11:20 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

should get the guys at FTG to have a test fit in a wreck ;)

cmon darren, ya know u wanna :D



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Fri Jun 09, 2006 6:50 pm
Fordmods Newbie
Offline

Posts: 5

Joined: 15th Sep 2005

Location: melbourne
VIC, Australia

LET ME KNOW IF YOU GET THE 5.4 IN!
Cause that is what I wanted to do!
Would be an awsom combo, hot car and sik motor. :) :D
GO THE XR :!:
Top
 Profile


Posted: Fri Jun 09, 2006 10:04 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

ive heard on quite a few accounts including from FTG that they dont fit the heads dont clear the shocker towers in a n e series engine bay
Top
 Profile


Posted: Sat Jun 10, 2006 9:46 am
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Thats a shame, those motors are awesome
Top
 Profile


 Post subject: 5.4 in 2 ef
Posted: Tue Jun 13, 2006 11:21 pm
Tyre Shredder
Offline

Age: 31

Posts: 372

Joined: 3rd Aug 2005

Gallery: 3 images

Ride: ef XR8 / xe fairmont ghia 393.

Location: clare valley
SA, Australia

hey guys i spoke to a mate who owns a car resoration and auto body srtucturing joint and he said he could probably make it fit given the rough measurements i managed to get.
but he also clarified wat was said earlier...
the heads are a little to tall... they would make it a real challenge to fit... but he also mensioned that a option may be to try and find shorter heads and try and keep the efficiency.

is this a option or was he prob just having me on...
if it gets too hard i think im gonna go with the 351 injected crate motor..

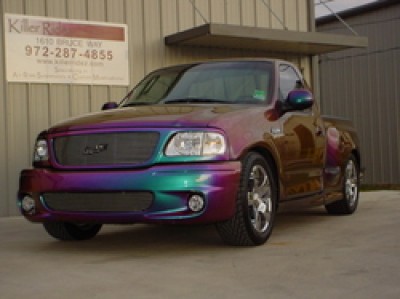

Attachments:
camo.jpg [ 29.66 KiB | Viewed 28 times ]



_________________

Ef xr8. Charged 9psi, tw 170 heads,track heat intakes,1.72 rockers, f303 cam, custom plazma man/ rapid cooler, 60lb injectors, tko600, sct eliminator, aeromotive fuel system.

393 xe ghia stage 5 als raceglides c4,9" full spool 31spline moser axles. Will be looking at running high 9s low 10's

Top
 Profile


Posted: Tue Jun 13, 2006 11:37 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Gotta love the size difference between the new and the old 8's




_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile
