AU3 Injectors into E series?



Page 1 of 1 [ 15 posts ]


 Post subject: AU3 Injectors into E series?
Posted: Fri Mar 05, 2010 8:17 pm
Fordmods Newbie
Offline

Age: 34

Posts: 6

Joined: 4th Oct 2009

Ride: NF Fairlane

Location: Brisbane
QLD, Australia

Hey guys, ran into another problem with my NF Fairlane project.

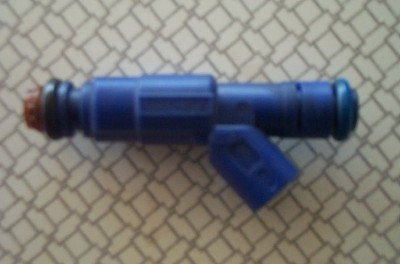

I want to upgrade the standard 19lbs injectors with 24lbs. I purchased a set like the one pictured, and the 2 pins are smaller and the wiring harness plugs have 3 locking tabs as the blue injector only has one.

My question is do i cut down the E series wiring harness to fit, and have loose pins inside, or do i need to find an AU wiring harness to suit the injectors?

Also will the NF fairlane ecu have any problems with larger injectors, or should i fit the standard injectors then take it to get tuned and installed there to avoid damage?

I'm sure this has been covered before and have tired searching but didn't find anything relevant. I have tried various automotive and electrical shops with no luck. Any help and/or advice is appreciated.

Cheers Anthony





Attachments:
au injector.jpg
au injector.jpg [ 21.4 KiB | Viewed 157 times ]
Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Fri Mar 05, 2010 10:09 pm
Getting Side Ways
Offline
User avatar

Age: 70

Posts: 3555

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

If you have no other mods your better off with 19's..
24's can be fitted with calibrated maf...
Yes the EEC can be tuned to run 24's also...
http://www.promracing.com/mass-air-meters-c-2



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 07, 2010 4:12 pm
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 18th Feb 2007

Ride: ED GHIA V8

Location: ford town
NSW, Australia

ford-v8-f2/do-au-injectors-fit-on-e-series-cars-v8-t81865.html
7th reply down.

XH5LWEPN wrote:
Ford Racing make "plug and play" adaptors to fit the AU (EV6) injectors into the E-series (EV1).

http://www.fordracingparts.com/parts/pa ... Field=9669

These are exactly what i use on my ute.



_________________

Black ED Ghia
V8 with lpg
Full leather
waitng on sunroof..


Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 07, 2010 4:23 pm
Tyre Shredder
Offline
User avatar

Age: 58

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

Why do you want to change the injectors? If you have no mods just stick to the standard ones.
Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 07, 2010 6:16 pm
Fordmods Newbie
Offline

Age: 34

Posts: 6

Joined: 4th Oct 2009

Ride: NF Fairlane

Location: Brisbane
QLD, Australia

cheers for that lethal EA.

After a more in depth search I have found that these are the 21lb EV6 plug type with improved spay pattern off the AU series 1, unless anyone can confirm different? This is the cheapest option I have found unless anybody knows of cheaper.

http://www.fordracingparts.com.au/fuel_systems_20.html#

Engine isn't standard, brief run down, will include full once i type up a build page. Trying for 200kw with GT40P heads, explorer upper and lower intake, mild performance cam (can't remember specs off hand), crane 1.7 rollers and others i can't think of right now.

I know the injectors will run rich until it is tuned and wont improve my performance without larger throttle body and MAF.

Another related question, the car is also running LPG and has the mixer before the throttle body, it drastically reduces the intake diameter, is it still worth upgrading MAF and throttle body for when used on petrol?

I am open to any thoughts or suggestions
Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 07, 2010 8:11 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Are they orange (19lb) or blue (24lb)?



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 07, 2010 8:21 pm
Tyre Shredder
Offline
User avatar

Age: 58

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

How the hell are we ment to advise you when you can not even tell us what you have
Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Mon Mar 08, 2010 8:25 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1651

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

It's interesting that these are 24lb, are people sure these are 24lb? These are the same plugs as the USA vehicles, yet the USA ones of these are light blue for 24lb and dark blue (AU colour) for 39lb. Why would they make a whole separate colour unit just for the AU?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Mon Mar 08, 2010 2:13 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

XFWAGON wrote:
It's interesting that these are 24lb, are people sure these are 24lb? These are the same plugs as the USA vehicles, yet the USA ones of these are light blue for 24lb and dark blue (AU colour) for 39lb. Why would they make a whole separate colour unit just for the AU?

The dark blue EV6 shown above did come out in 21lb so checking the part number is the only sure way of knowing what that part number flows.



_________________

5.6L of carbon footprint.

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Tue Mar 09, 2010 12:16 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1887

Joined: 26th Nov 2006

Gallery: 7 images

Ride: EL XR8, '08 Mondeo XR5t

Power: 205 rwkw

Location: Perth
WA, Australia

Have the rockers arrived yet, mate? I have a set of 24lb injectors sitting here that will plug straight in. If you were to find a buyer for yours, I could send them straight over ;)



_________________

Trickflow Street Heat top end kit, 70mm BBK TB & EGR, 24lb injectors, Underdrives & 3.73s: 275rwhp - 13.15@105mph NA / 12.37@116mph N20

When injustice becomes law, resistance becomes duty

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 14, 2010 10:11 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1651

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Vic wrote:
XFWAGON wrote:
It's interesting that these are 24lb, are people sure these are 24lb? These are the same plugs as the USA vehicles, yet the USA ones of these are light blue for 24lb and dark blue (AU colour) for 39lb. Why would they make a whole separate colour unit just for the AU?

The dark blue EV6 shown above did come out in 21lb so checking the part number is the only sure way of knowing what that part number flows.


Do you know what part numbers correspond to flow rate? I would quite like to know what the ones i have are.



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 14, 2010 10:49 am
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

Take the part number off the injectors and google it. Usually you'll find the specs will come up against the part numbr.



_________________

5.6L of carbon footprint.

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 14, 2010 8:38 pm
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

Stock injectors will be good for 200kw



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 14, 2010 9:14 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

I'm running 24lb in mine and at WOT it's at 98% duty cycle. :lol:



_________________

5.6L of carbon footprint.

Top
 Profile


 Post subject: Re: AU3 Injectors into E series?
Posted: Sun Mar 14, 2010 9:48 pm
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

Vic wrote:
I'm running 24lb in mine and at WOT it's at 98% duty cycle. :lol:


I meant at the engine.
Not sure if the OP was talking RW or not.



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project
