Hi guys
Got 3 questions I hope someone can help with,
1, Blue racer cams ? & heatseeker cams? for 347 stroker witch of the two is best for street & little strip work?

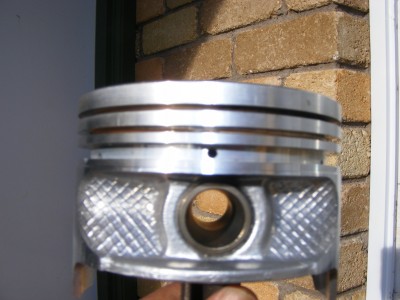

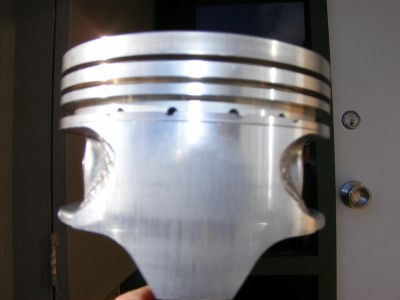

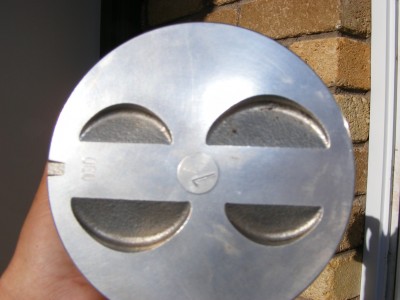

2, could anyone identify these pistons taken out off 347 stroker ?

thanks
devondevil





Attachments:
DSCF1721.JPG [ 338.77 KiB | Viewed 44 times ]
DSCF1719.JPG [ 366.65 KiB | Viewed 51 times ]
DSCF1718.JPG [ 389.82 KiB | Viewed 38 times ]
Top
 Profile


 Post subject: Re: Cams - identify pistons
Posted: Mon Jul 06, 2009 7:21 am
Getting Side Ways
Offline

Posts: 699

Joined: 1st Jan 2006

Ride: Lots, all Fords

Location: Hamilton
New Zealand

It does not look like a 347 piston to me, the pin height seems way too big. It is a cast piston, and looks like a regular 302 or 351 windsor piston. Measure the pin height.



_________________

XA Faimont 351C, AU2 XR8 Manual 5.0, DA LTD 5.0, Mk1 Capri 5.0, 1995 Mustang 5.0, EF2 XR8 Manual, EF2 Fairmont Ghia 5.0, AU3 XR8 Auto, AU2 XR8 Auto, AU2 XR8 Manual Ute, TE Cortina 5.0 Manual, DU LTD 5.0 soon to be manual

Top
 Profile


 Post subject: Re: Cams - identify pistons
Posted: Mon Jul 06, 2009 9:59 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

yep either that or using short rod ?? Which applies heaps of side load on bore & pistons..
Look std to me...
Even my 330 with 5.4" rods has pin through oil ring...
as said unless it's from a 351 stroker ??



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: Cams - identify pistons
Posted: Tue Jul 07, 2009 6:15 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 661

Joined: 14th Jan 2007

Ride: T1 TE50 P01

Location: Perth NoR
WA, Australia

1) Blue Racer do not make hydraulic roller camshafts for the 5.0L Ford, so if this is for your EF it won't work for you....
2) I've not had any experience with Heatseeker camshafts, I remember their ads in Street Machine back in the early 90s. Personally I'd look at using a Crow, Comp or Crane camshaft.

3) That piston is not out of a 347 stroker. It looks to be a basic cast replacement flat top for a 302 Windsor, such as Sealed Power, Hypatec or Endurotec. Certainly nothing special.



_________________

TE50 T1 P01
200kw 5.0L, T5, Koni shocks, King S/Lows, Whiteline swaybars, DBA 4000 rotors, Acron CAI, 80mm Accufab TB, Difillipo headers & cats, twin 2.5" & Aerochambers, 3.91 LSD.

To Come:
Long rod 306, TFS 11R 205cc heads, SHP camshaft, 1.72 R/R, ported TFS Box R, 400hp NX SHO kit...

Top
 Profile


 Post subject: Re: Cams - identify pistons
Posted: Sun Jul 19, 2009 2:05 pm
Parts Gopher
Offline
User avatar

Age: 57

Posts: 98

Joined: 23rd Mar 2009

Gallery: 5 images

Ride: 1994 EF

Location: Burnie
TAS, Australia

Thanks guys
No not for my ef
was out of sons 1986 xf ute running 302 windsor auto street-strip,we have since pulled engine out & apart for rebuild SON was so dissapointed to find out not stroked has told when brought it.
So we going to rebuild & run that while doing 351 replacement if - when we find one.
again thanks for all your help & advice
cheer's & keep up the good work
devondevil
Tassie
