EB 5L engine . No. 7 problem



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: EB 5L engine . No. 7 problem
Posted: Mon Oct 27, 2008 6:53 am
Parts Gopher
Offline

Age: 60

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Hi all. I have an eb 5l shaking like hell. Pull the codes,,,,, Hard code 7
keeps showing up.
Have compression of 145 psi all round.
Have changed injectors with ones from a moter running smooth.
Have changed plugs.
Also hard code 34 and memory 66 & 34.
Any clues would be good as have spent lots of time
Also fuel pressure about 38 . 40 with reg hose off
Thanks
Top
 Profile


Posted: Mon Oct 27, 2008 11:56 am
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

66 is- maf sensor open circuit
this would cause the rough idle.
34 is - evp voltage above closed limit
Dont quote me but i think the evp has something to do with emissions and or the egr valve :?
As for the 7 code, there arent any codes below the number 10 according to my manual(max ellerys)



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Mon Oct 27, 2008 3:51 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

It's probably the vehicle I.D. code 70. This code will come up first.
Top
 Profile


 Post subject: Code 66
Posted: Mon Oct 27, 2008 9:16 pm
Parts Gopher
Offline

Age: 60

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Thanks for replies... My 66 code is I think MAF sig low.
34 - EVP or PFE is/was low

As for the 7 i thought there was no 0 in codes so 7 could be 07, -- No. 7 failed balance test.
Only learning so ..
Dont think 34 is a big prob right now or am i wrong?

Codes come out............. .....1- 7 - 34 = hard
1- 34 - 66 = memory

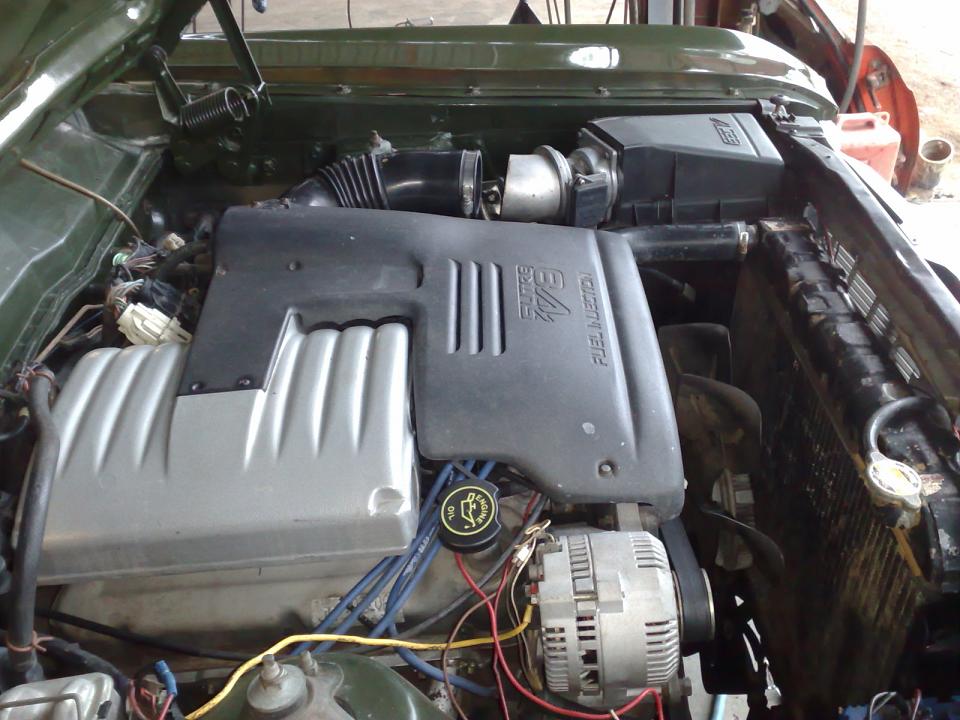

Green Car.. If 66 is MAF how do i test maf. or how do one clean a maf

XR9UTE...... Sweet 351. you recon is engine code or No. 7

Include photo of engine . Thanks.. What do the two wires do going to the injectors do / one would be a signal the other would be ? power?





Attachments:
Air Box.JPG
Air Box.JPG [ 119.92 KiB | Viewed 532 times ]
Top
 Profile


Posted: Tue Oct 28, 2008 12:07 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Power + and signal -



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Tue Oct 28, 2008 12:35 am
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

I would clean the maf with electrical contact cleaner and if that made no difference maybe check the voltage if you can find the specs(i cant) or better still if you could get hold of a working one to see if that is the problem.
The 34 code says it shows no symptoms so maybe its not that important.
the manual also says the 34 code may be caused by-
vacuum line fault
egr filter valve blocked
evp sensor fault
egr sensor fault
ecu fault
egr solenoid fault
hope that helps.



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


 Post subject: MAF cleaner
Posted: Tue Oct 28, 2008 8:13 pm
Parts Gopher
Offline

Age: 60

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Hi again, bought a can of contact cleaner today. so will clean maf when time permits. It was a basic question about inj wiering . so all injectors should have 12v on one side. I can check that too.
Also I have checked engine loom conectors { salt & pepper}
So next step.. clean maf. Work will get in the way of that but i.ll report the results.. Many Thanks
Top
 Profile


Posted: Thu Oct 30, 2008 9:46 pm
Parts Gopher
Offline

Age: 43

Posts: 97

Joined: 4th Aug 2008

Ride: XC GXL

Location: perth
WA, Australia

Shaking? like when you rev it?? Balancer slipped??



_________________

XC GXL 5.8: 14.1 @ 99MPH. Thank you to Jimbos alchoholic uncle for the short motor. It goes alright now mate.

Top
 Profile


 Post subject: Shakes
Posted: Fri Oct 31, 2008 6:12 am
Parts Gopher
Offline

Age: 60

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Yea Tom, like when I rev it, Pretty bad, I agree with what you are saying. Have checked torque converter is tight looking for inbalance.
Also once or twice engine has run almost perfectly. No shake or vibe.
A change.
Buying new balancer and fit on weekend mabey.

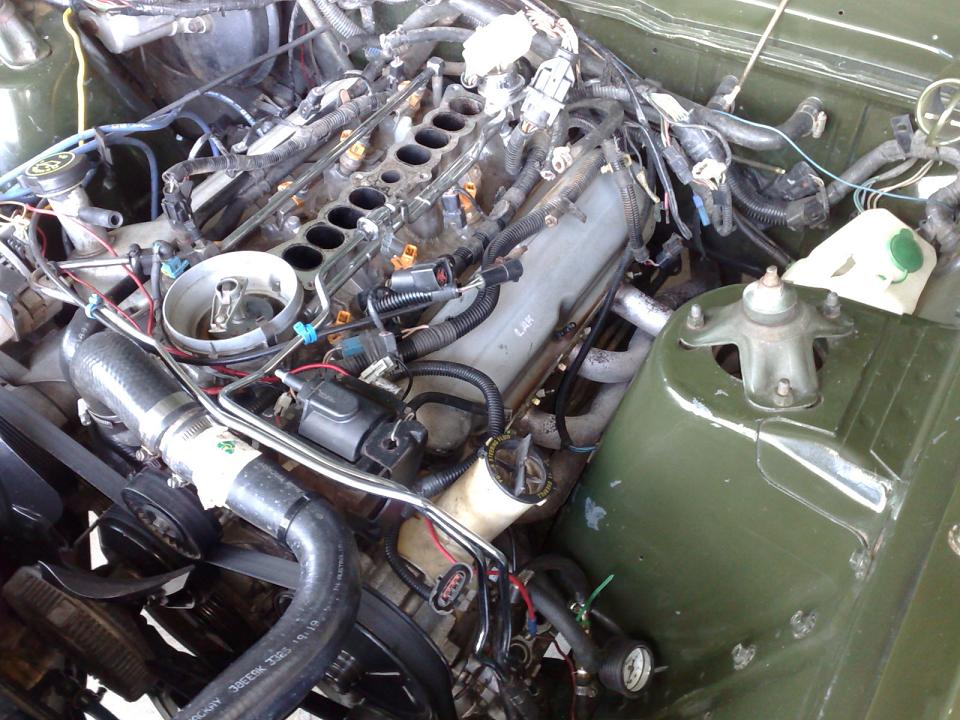

Thanks for the thought, Picture of injector change.





Attachments:
XW straight 8.JPG
XW straight 8.JPG [ 158.64 KiB | Viewed 445 times ]
Top
 Profile


Posted: Fri Oct 31, 2008 10:13 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Has the engine always run like this? What gearbox do you have?
Top
 Profile


 Post subject: gearbox
Posted: Fri Oct 31, 2008 9:47 pm
Parts Gopher
Offline

Age: 60

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Hi . is an eb 4 speed auto . 1992. Same as engine, electronic,
First v8 after 6 in oz
From mustang I think. 5l.
Running gear from eb fairmont ghia. 5L
It did run very nicley but did develope the miss in eb.
Only put moter in xw to fit up , but all,s pretty well i say .
Have cleaned maf. Does run a bit smoother.
Green car. Maf did work in doner car reciently.
Might do vacume test. dont know but seems good
Work ,,, tomorrow.. am changing harmonic sunday .
gotta go . some one goming!!!1





Attachments:
Cold air from someware.JPG
Cold air from someware.JPG [ 120.07 KiB | Viewed 428 times ]
Top
 Profile


 Post subject: Tom doolie
Posted: Sat Nov 01, 2008 8:58 pm
Parts Gopher
Offline

Age: 60

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Tom got it right, changed harmonec, all better,
Thanks to all. runs real nice,
Top
 Profile


Posted: Sat Nov 01, 2008 9:19 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

Does tom win a prize? haha nah good to hear shes sorted now dude.



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
 Profile


Posted: Mon Nov 03, 2008 8:49 pm
Parts Gopher
Offline

Age: 43

Posts: 97

Joined: 4th Aug 2008

Ride: XC GXL

Location: perth
WA, Australia

Good work. Good to see someone doin a comp test too. Theres alot to be said for goin back to basics ay. Considering the `up the garden path` diagnostics around. But hey who needs 600 horsepower on Mastercard? Not me thats for sure. Thats a wicked car man. Cant say it enough.



_________________

XC GXL 5.8: 14.1 @ 99MPH. Thank you to Jimbos alchoholic uncle for the short motor. It goes alright now mate.

Top
 Profile


Posted: Mon Nov 03, 2008 9:59 pm
Getting Side Ways
Offline

Age: 108

Posts: 927

Joined: 27th Sep 2007

Location: Adelaide
SA, Australia

I hope that garden path diagnostics thing wasnt aimed at me because i only gave him the fault codes he told me, and offered the advice the manual says.



_________________

165 Killer Wasps all packaged in a green kmart car, almost an explorer in a way...

Top
